Product Description

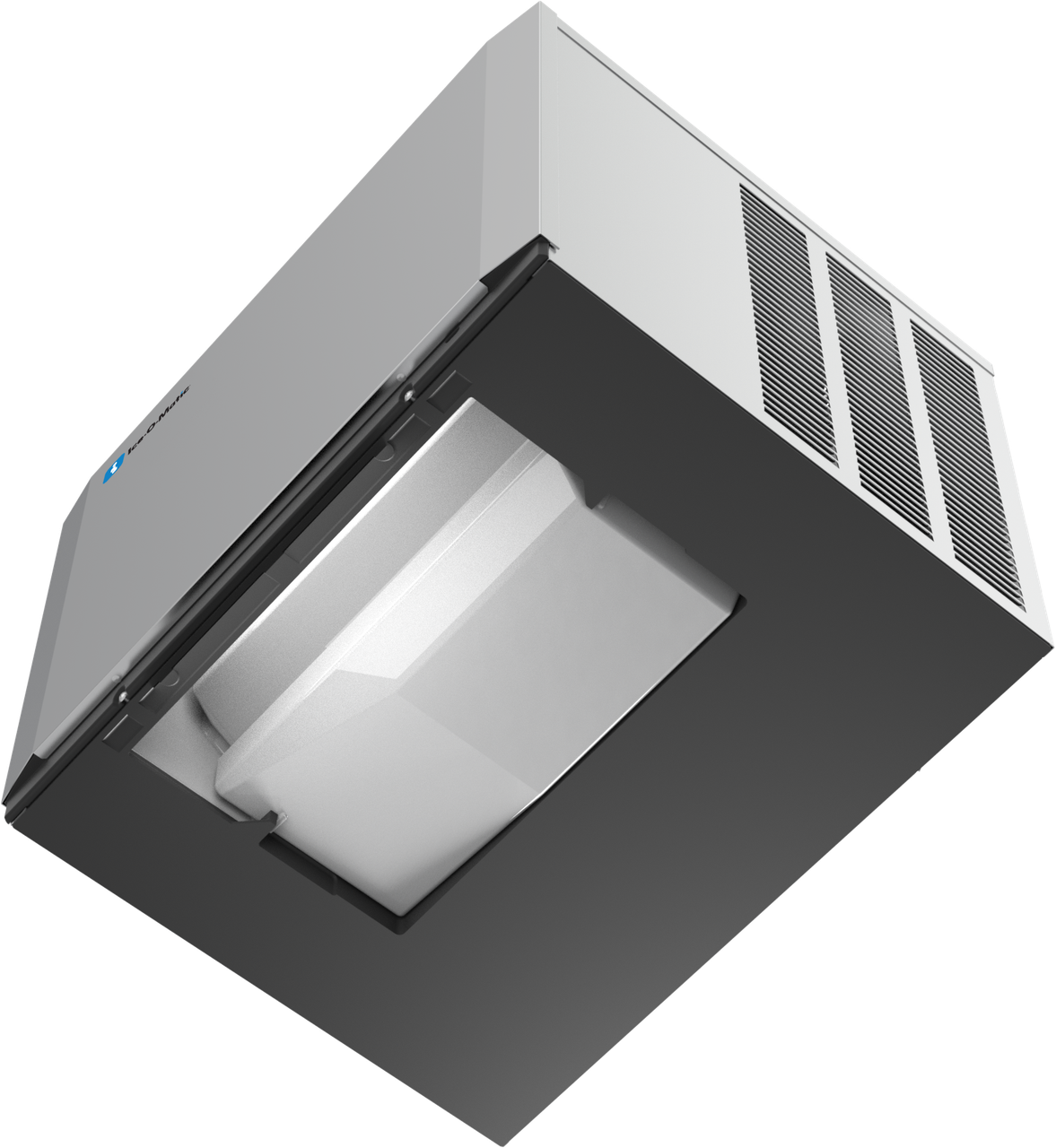

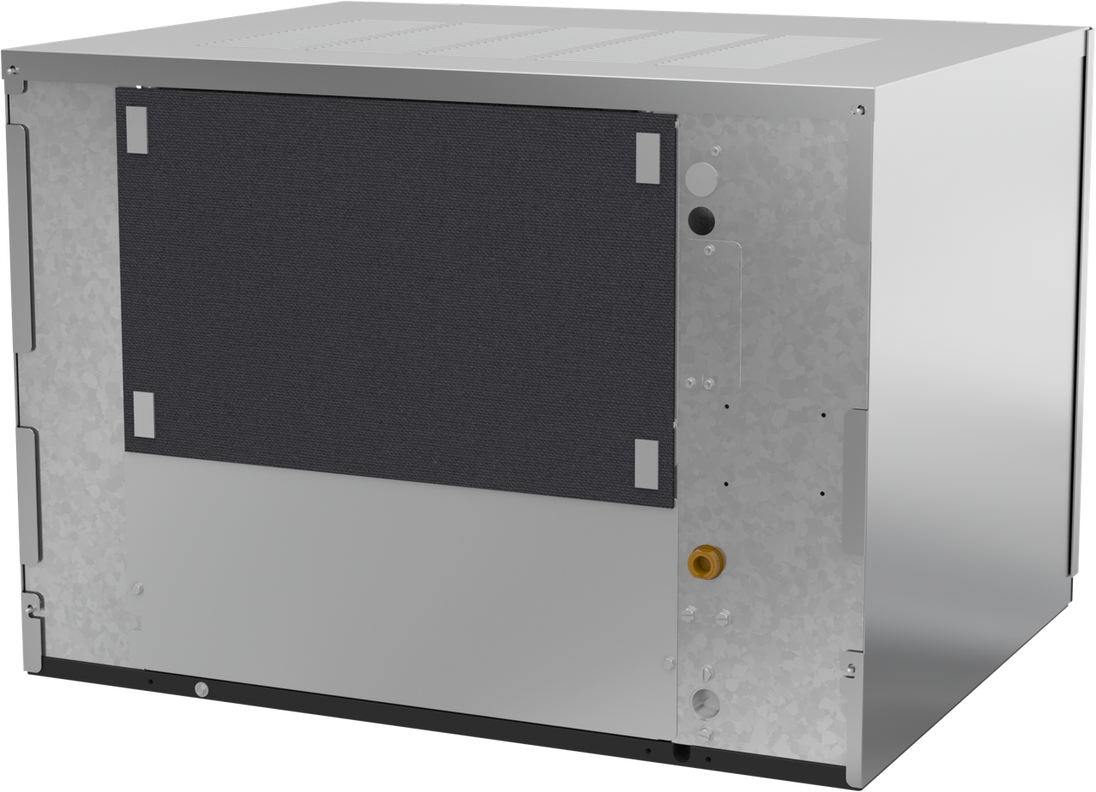

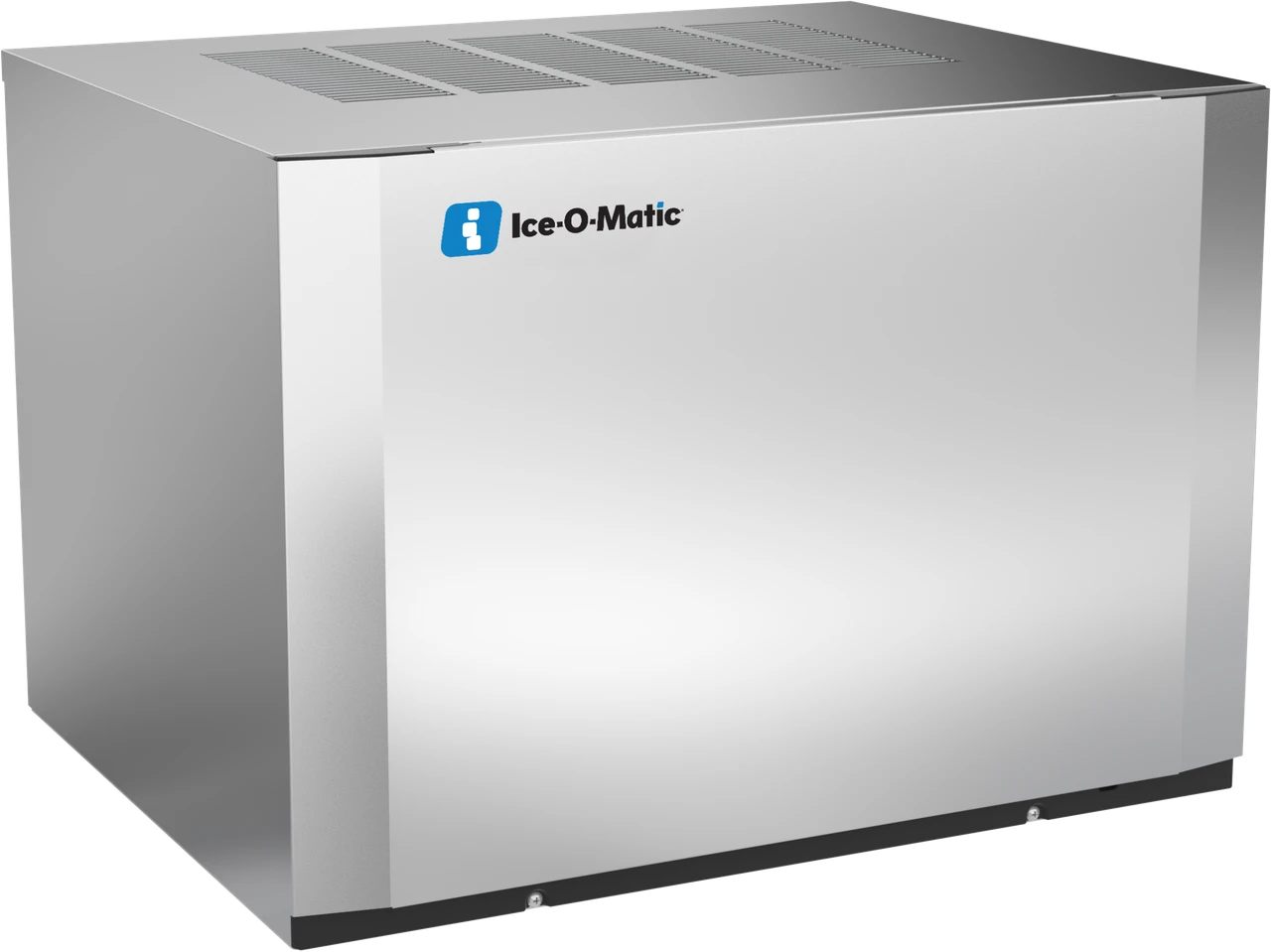

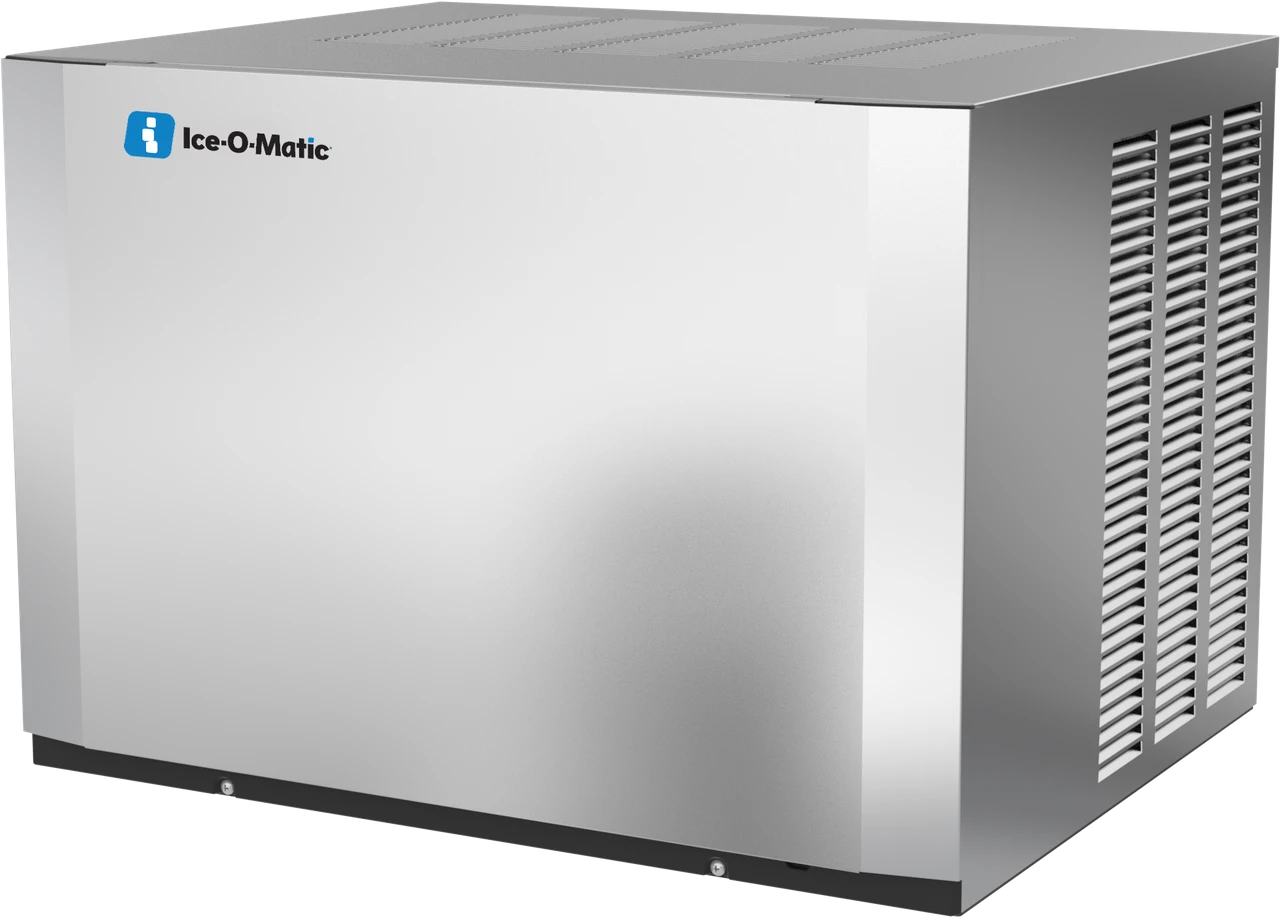

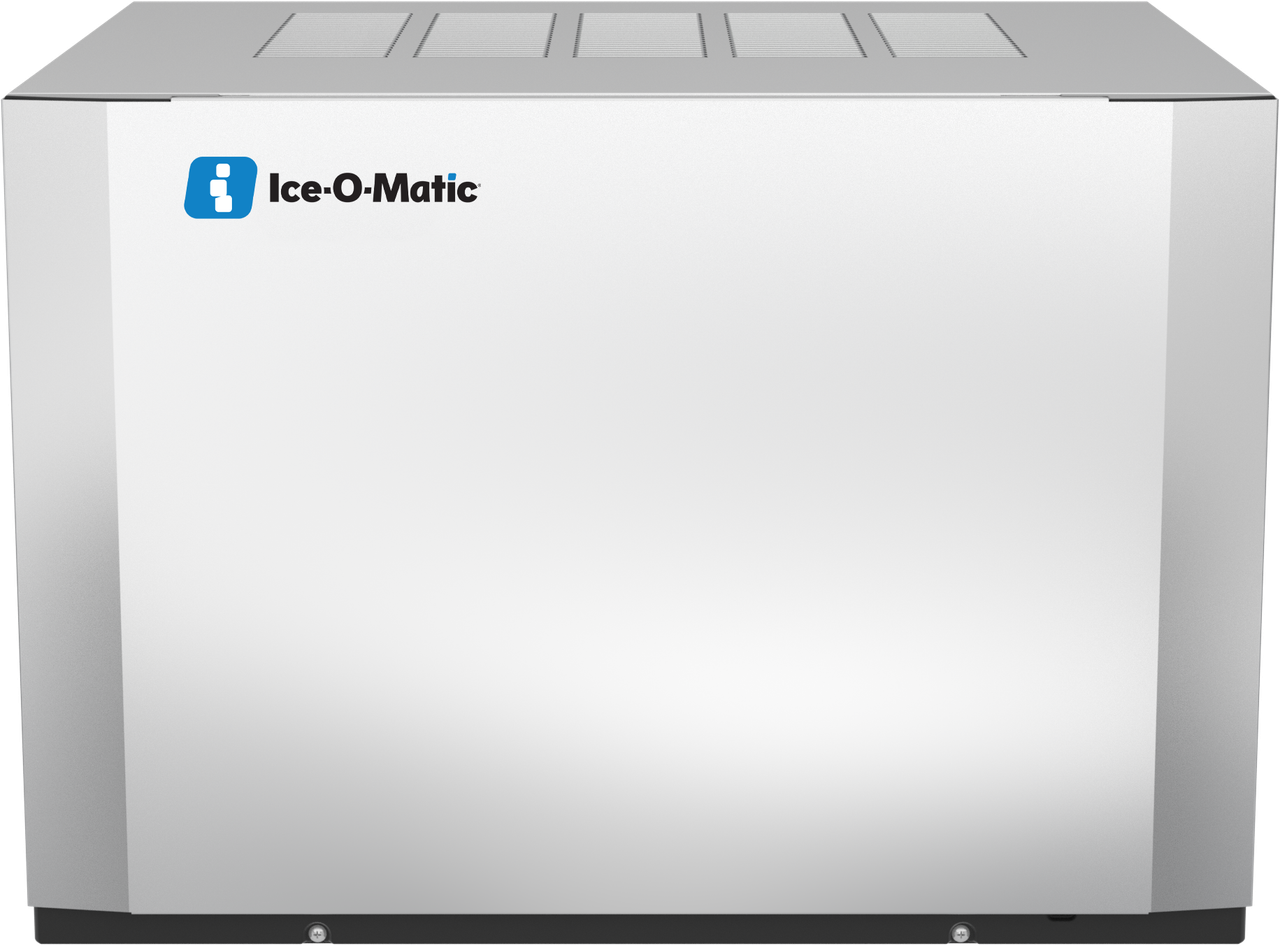

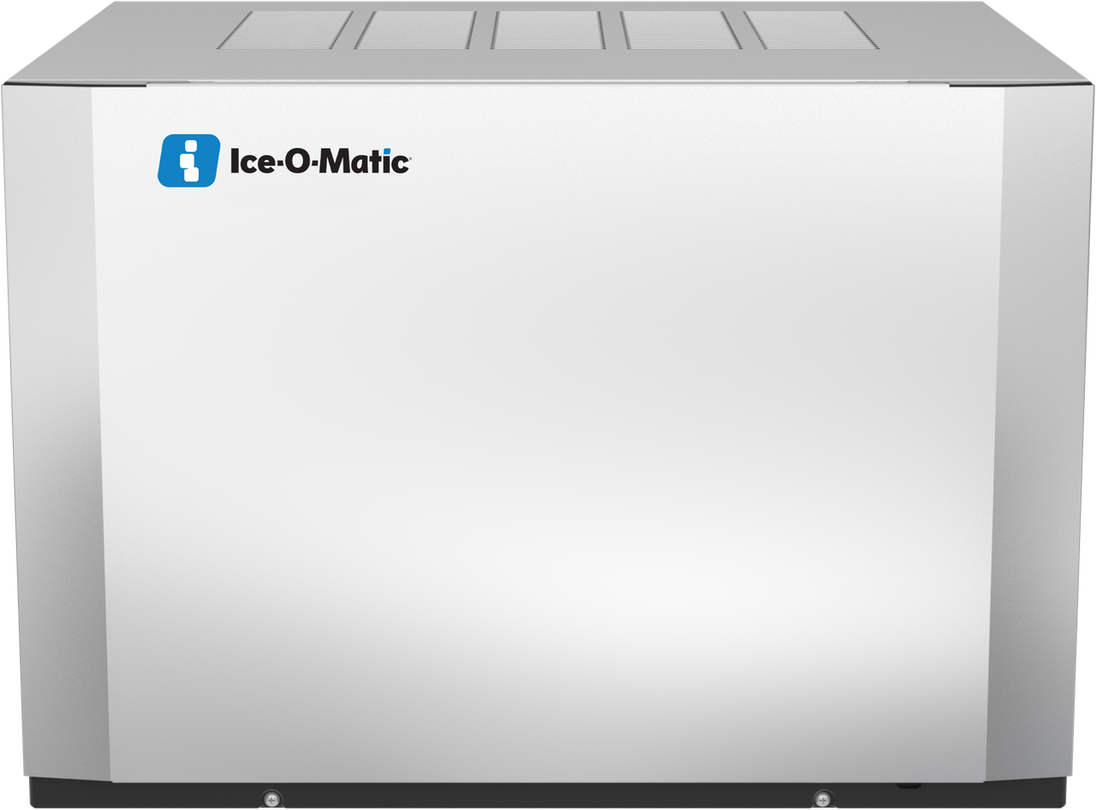

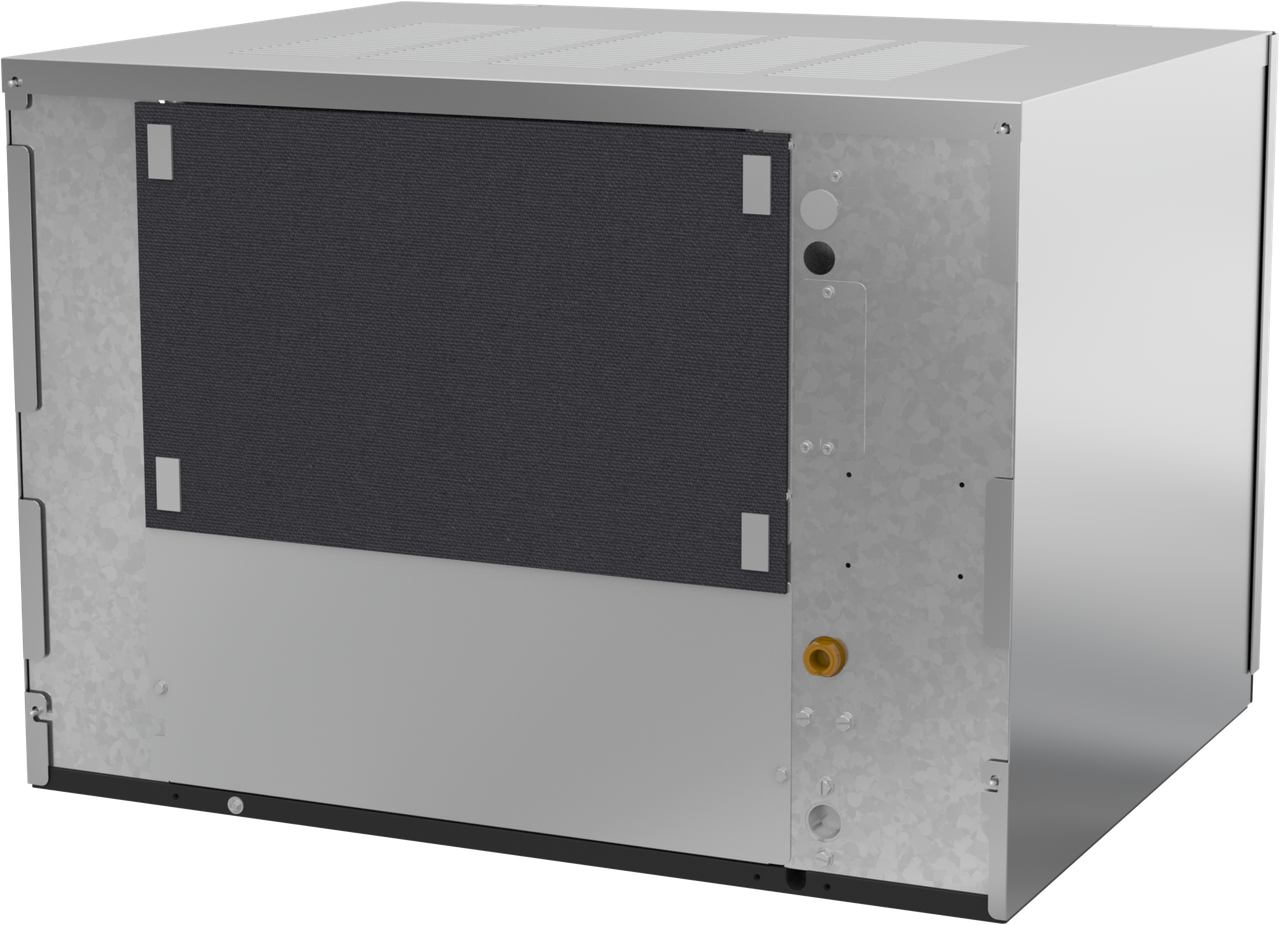

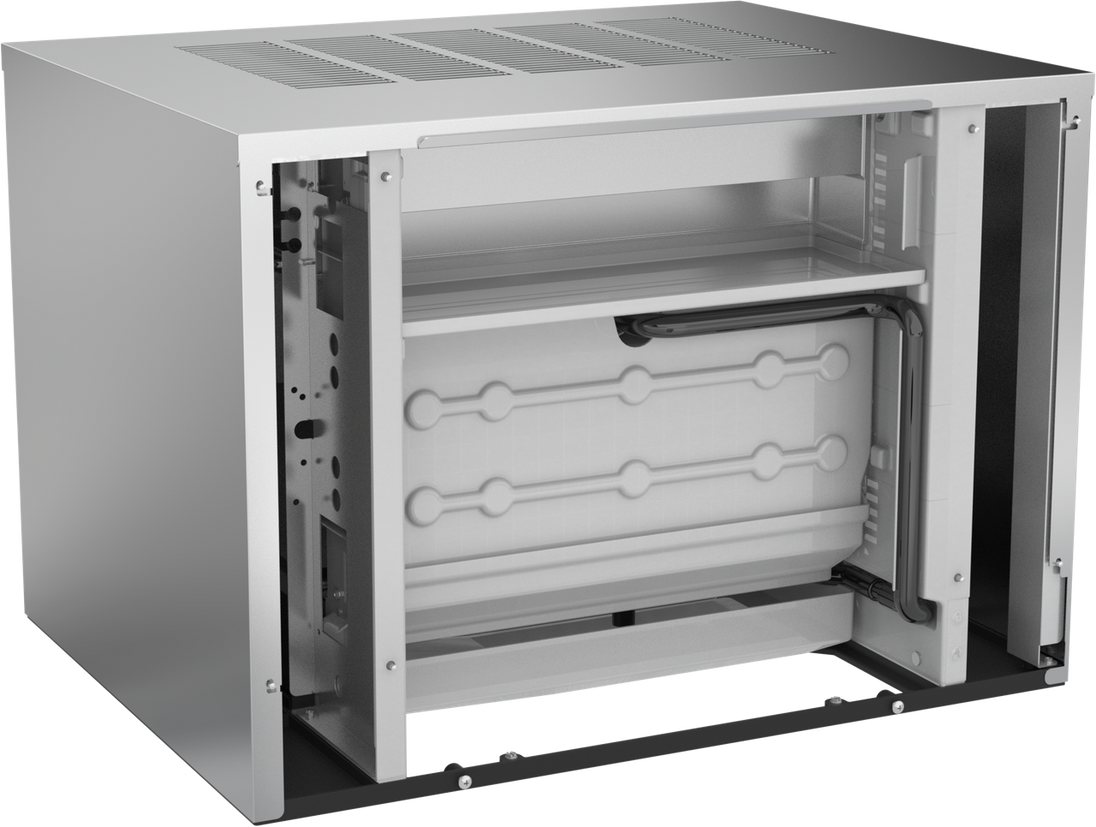

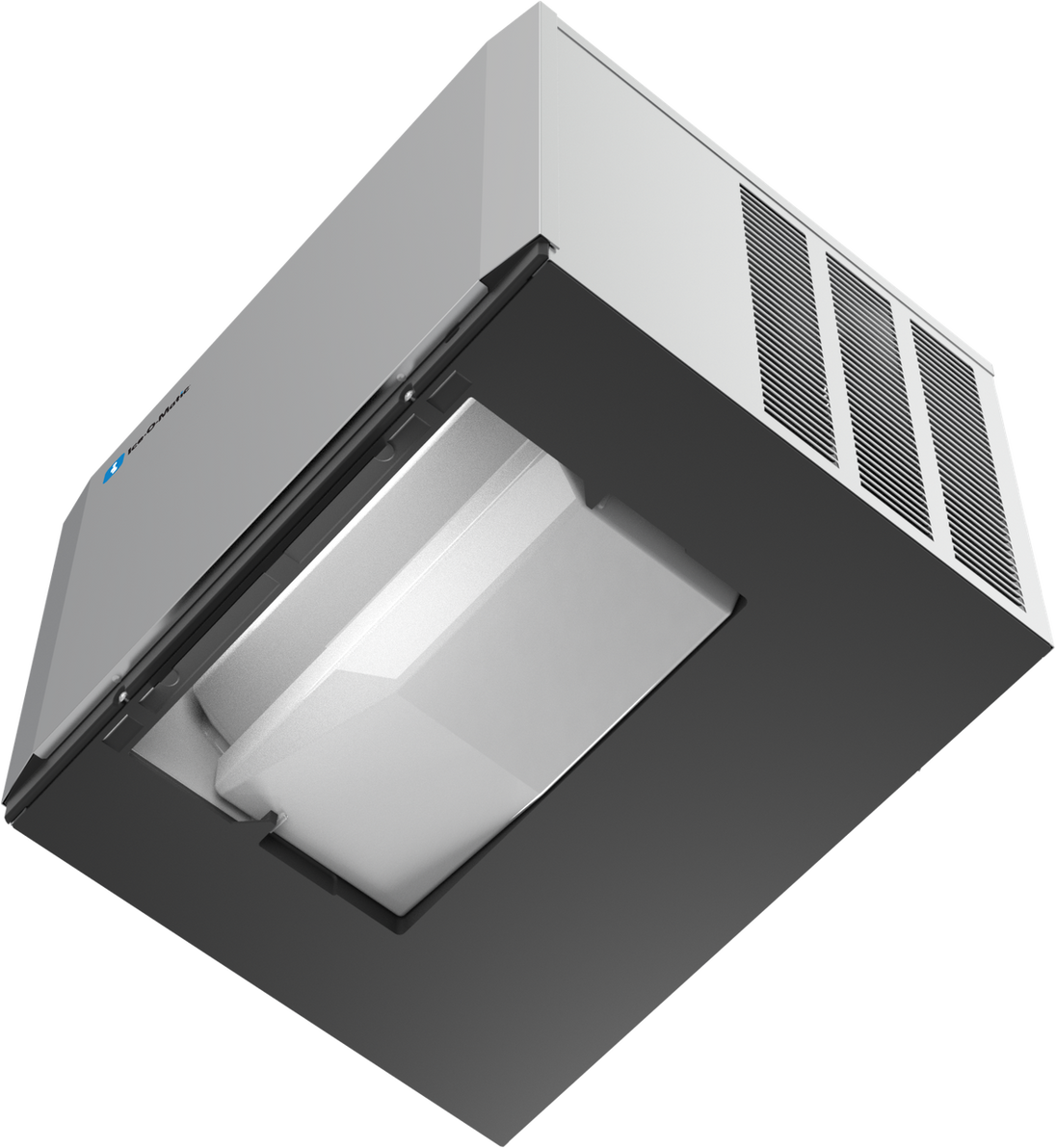

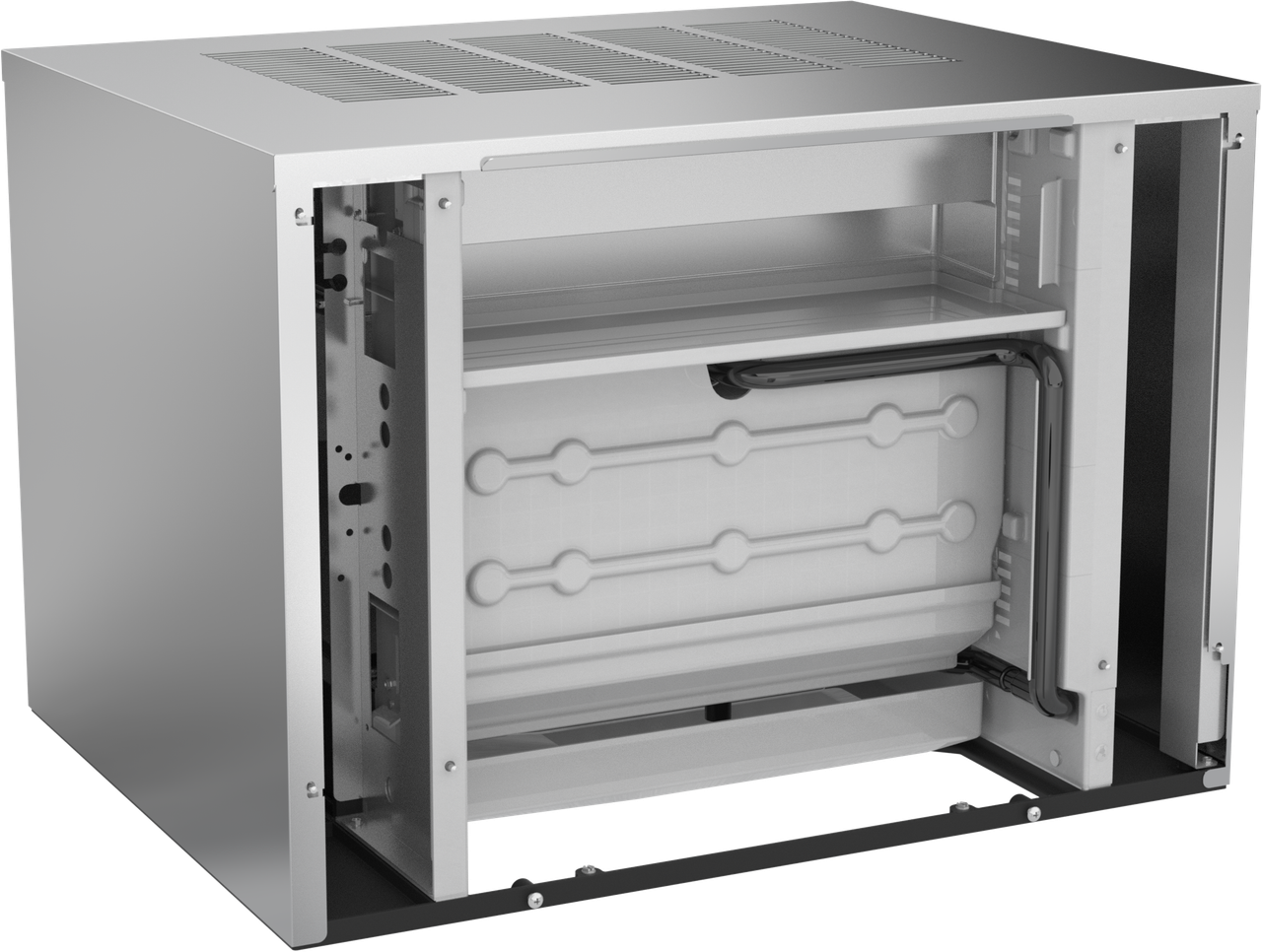

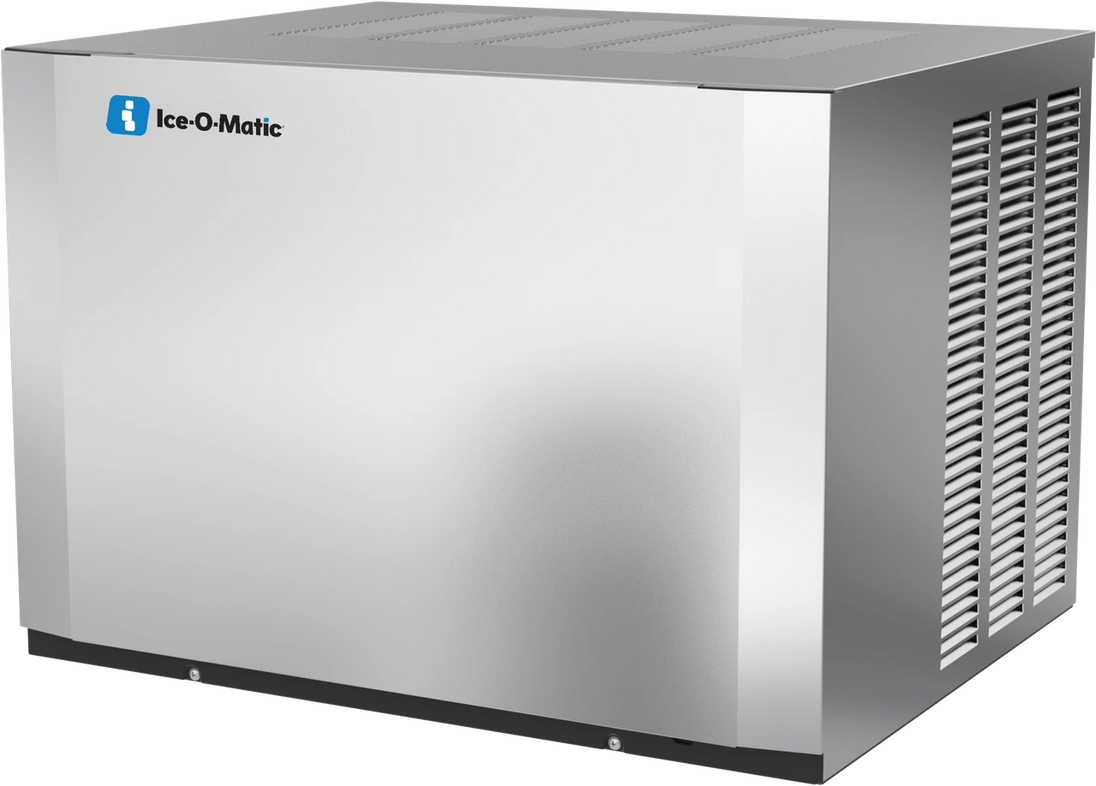

The Ice-O-Matic CIM0430HA90 is a 30 1/4 inch modular ice machine head from the Elevation Series, producing 400 to 500 lb of half cube ice per 24 hours, air cooled.

Half Cube Ice on the 30-Inch Elevation Cabinet

The CIM0430HA90 uses the same 30 1/4 by 24 1/4 by 21 1/4 inch cabinet as the CIM0530 series, so it fits the same footprint and bin openings. It produces half cube ice, the smaller, faster-melting cube that chills and dispenses quickly, the format most speed rails and beverage dispensers are built around.

400 to 500 lb Output at 115V

In the 30-inch Elevation cabinet, the CIM0430HA90 sits below the CIM0530HA90 in daily output, 400 to 500 lb versus 500 to 600 lb, while running on the same 115/60/1 electrical service. It is the lower-volume, same-footprint counterpart for operators who do not need the CIM0530HA90's full capacity.

IFQ1 Filtration and R290A Refrigerant

The unit ships with Ice-O-Matic's IFQ1 filter system and runs on R290A refrigerant. It is Energy Star certified and BABA compliant per the manufacturer's published specifications.

Specifications

Model CIM0430HA90
Series Elevation
Type Half Cube, modular head, bin sold separately
Capacity 400-500 lb per 24 hours
Exterior Dimensions 30.25 in W x 24.25 in D x 21.25 in H
Electrical 115/60/1
Refrigerant R290A
Condenser Air Cooled
Filter System IFQ1
Certifications Energy Star Certified, BABA Compliant
Shipping Weight 147 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
