Product Description

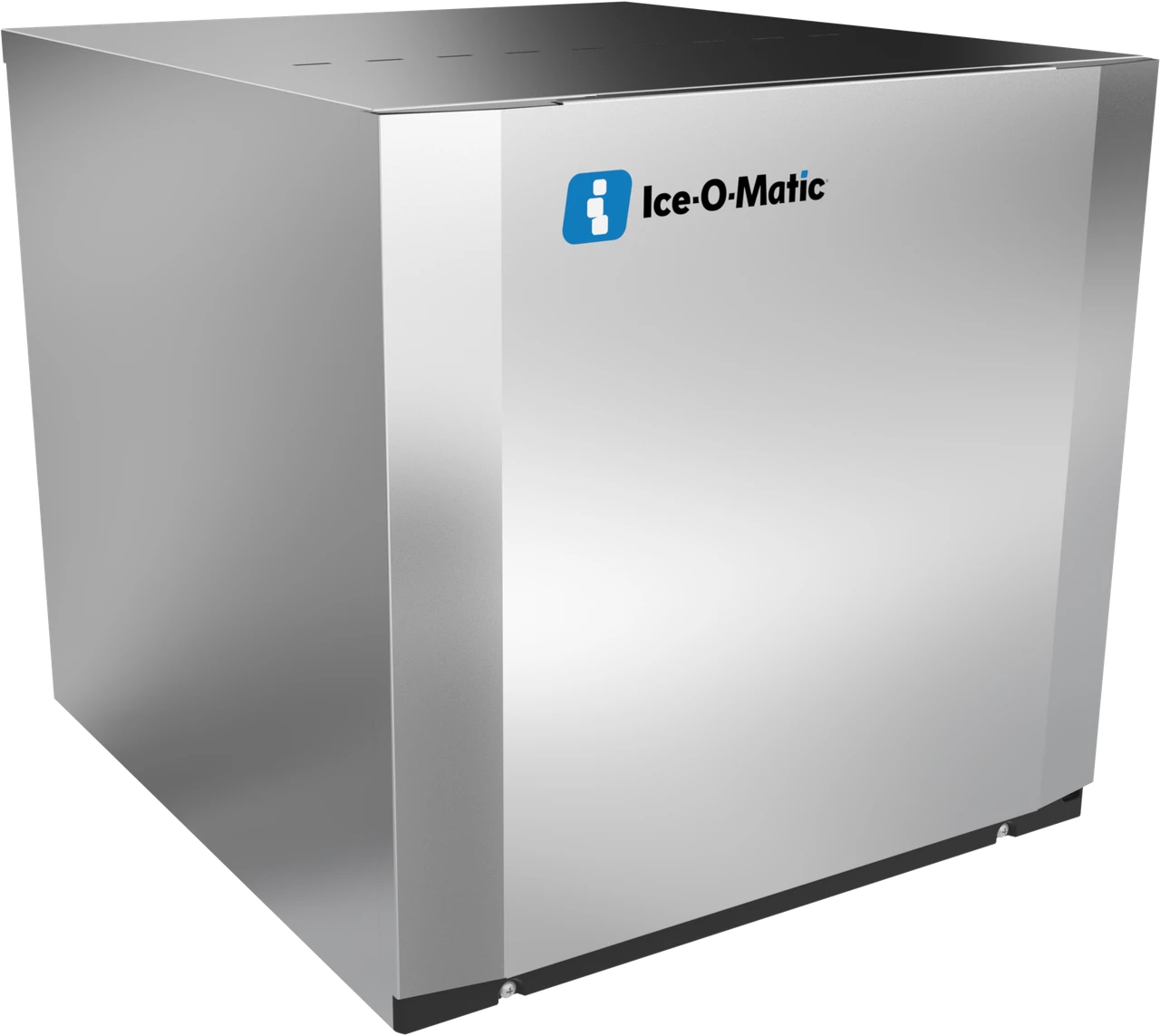

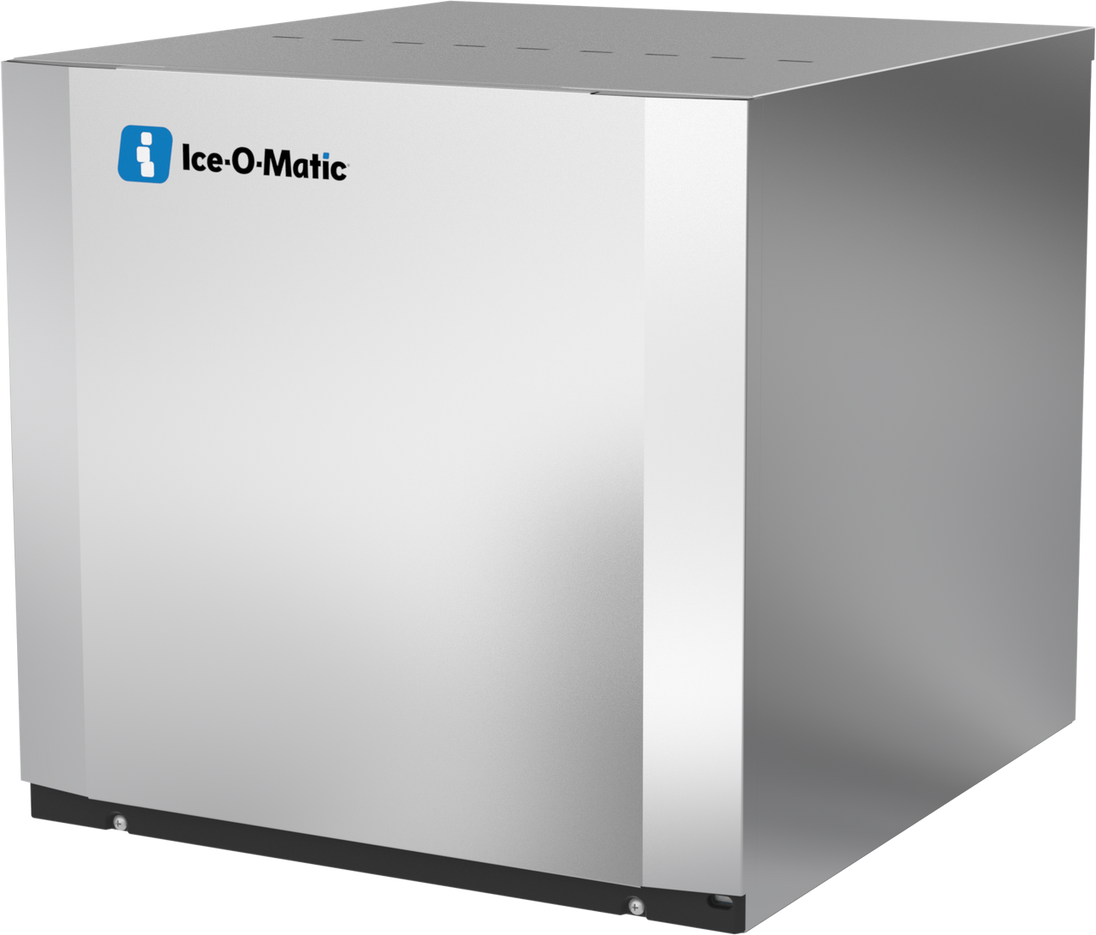

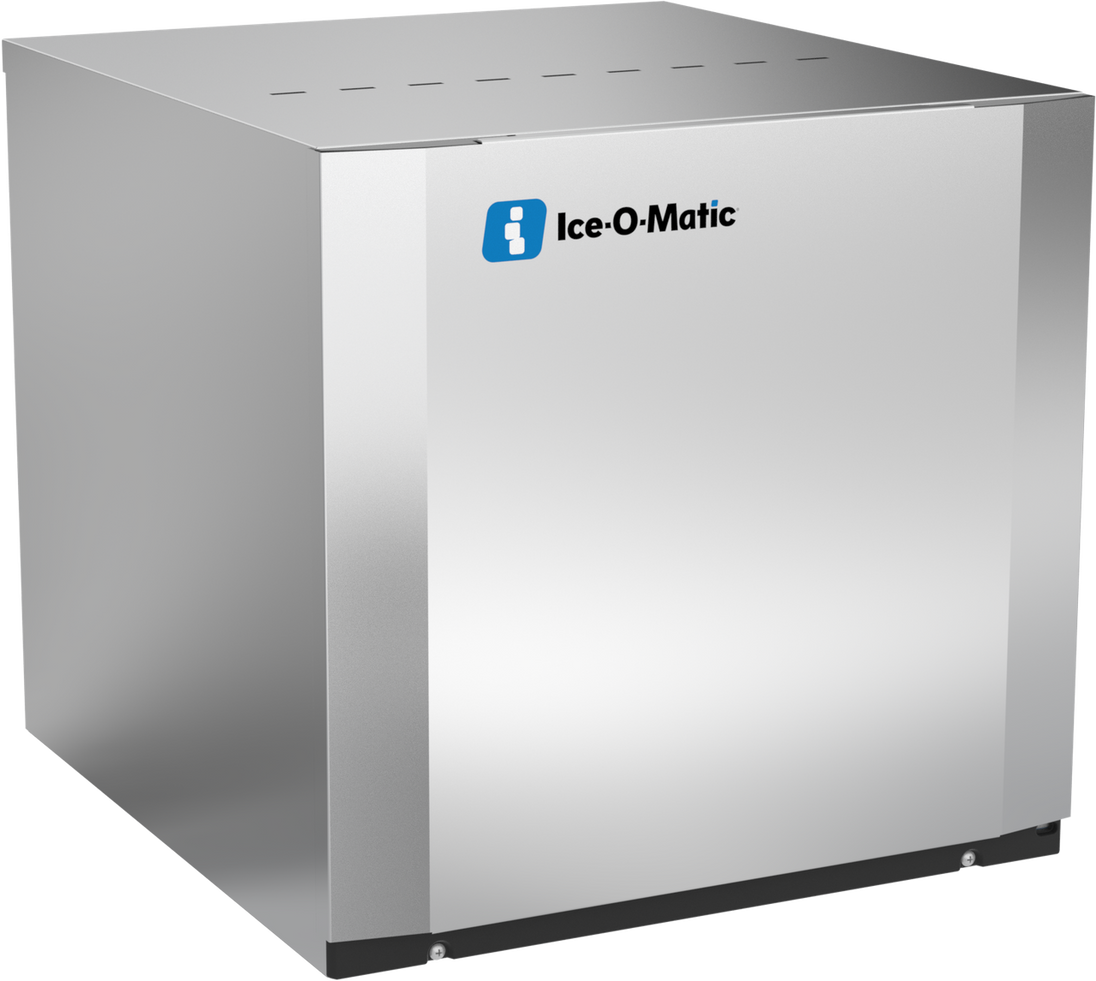

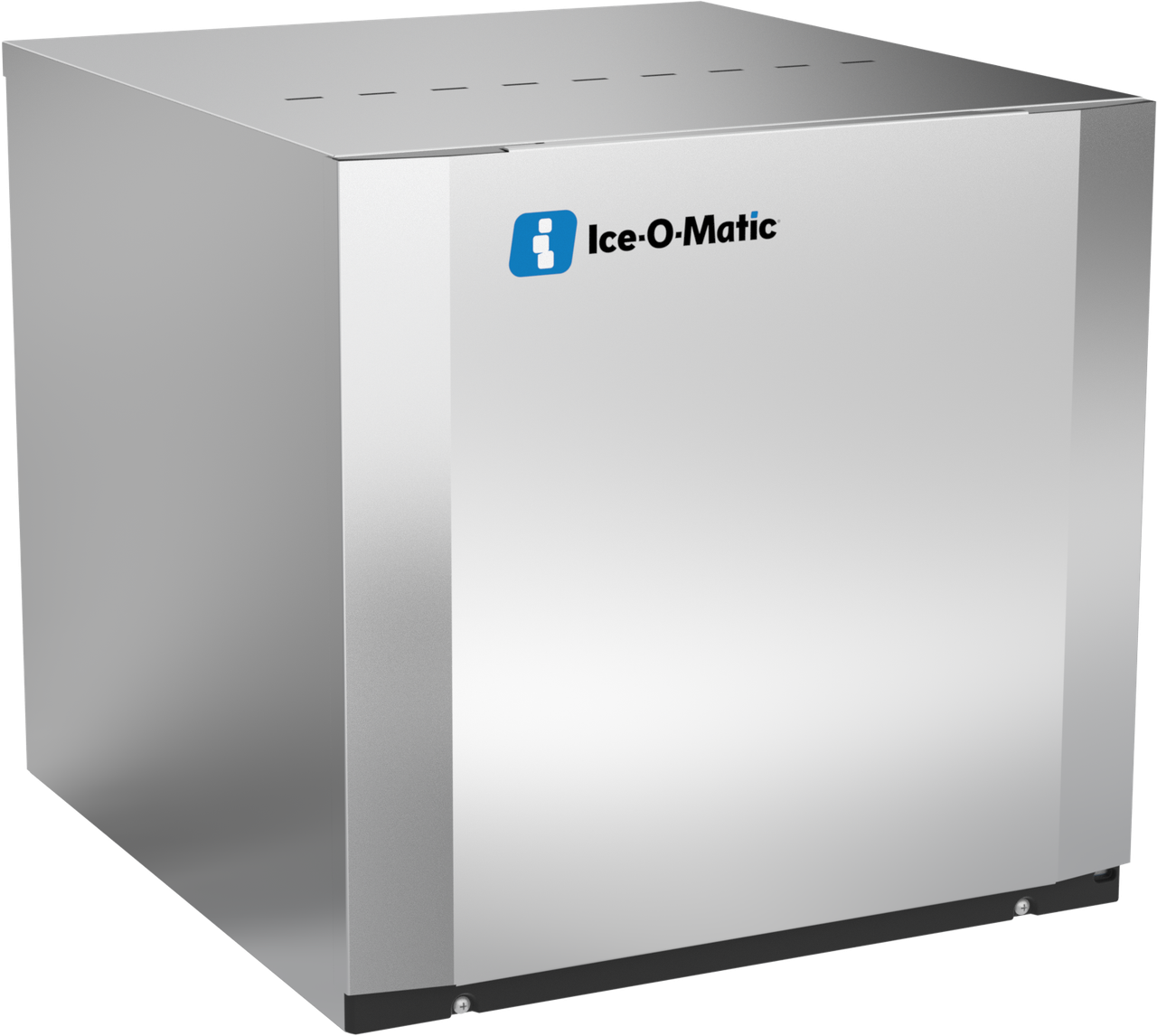

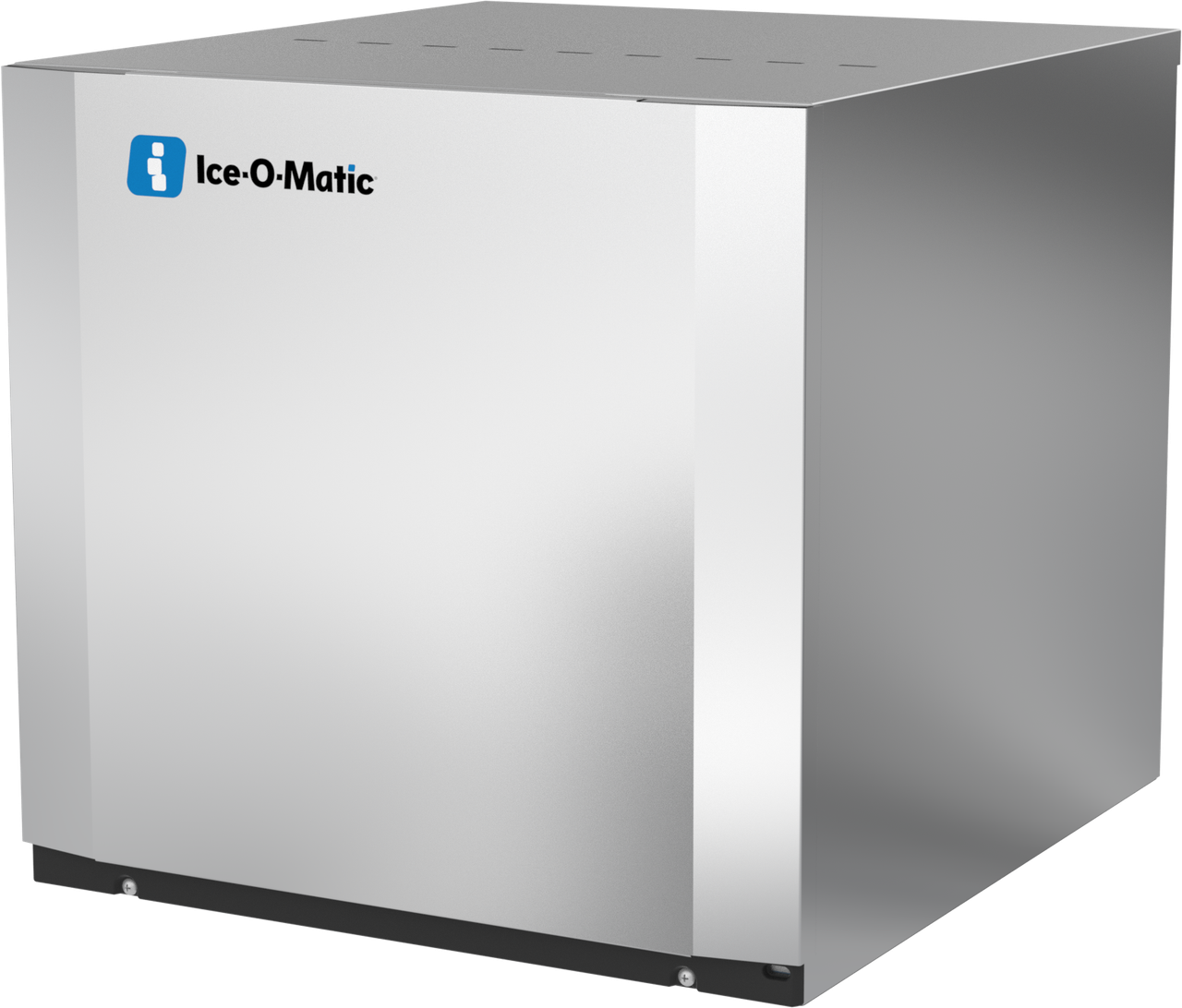

The Ice-O-Matic CIM0320HW90 is a 22 1/4 inch Elevation Series ice machine head producing 300 to 400 lb of half cube ice per 24 hours, water cooled.

Half Cube on the Same 22-Inch Chassis

The CIM0320HW90 shares its footprint, production band, and electrical spec with the full-cube CIM0320FW90 — the difference between the two is the cube geometry the evaporator plate produces, not the size of the machine or its output.

Water Cooled Instead of Air

Unlike the air-cooled CIM0320HA90 built on the same chassis, this variant rejects heat through a water-cooled condenser rather than into the surrounding room, which matters in a mechanical closet without enough airflow for an air-cooled unit. It requires a water supply and drain connection for the condenser in addition to the ice-making water line.

IFQ1 Filter Compatibility

Ice-O-Matic specifies the IFQ1 water filter system for this head. Running the specified filter is part of what keeps the published warranty terms in force, since scale buildup from unfiltered water is excluded from standard coverage.

Specifications

Model CIM0320HW90
Series Elevation
Type Half Cube, modular head (bin sold separately)
Capacity 300-400 lb/24hr
Exterior Dimensions 22.25 x 24.25 x 21.25 Inch (W x D x H)
Electrical 115V/60Hz/1-Phase
Refrigerant R290A
Condenser Water Cooled
Filter System IFQ1
Certifications BABA Compliant
Shipping Weight 129 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
