Product Description

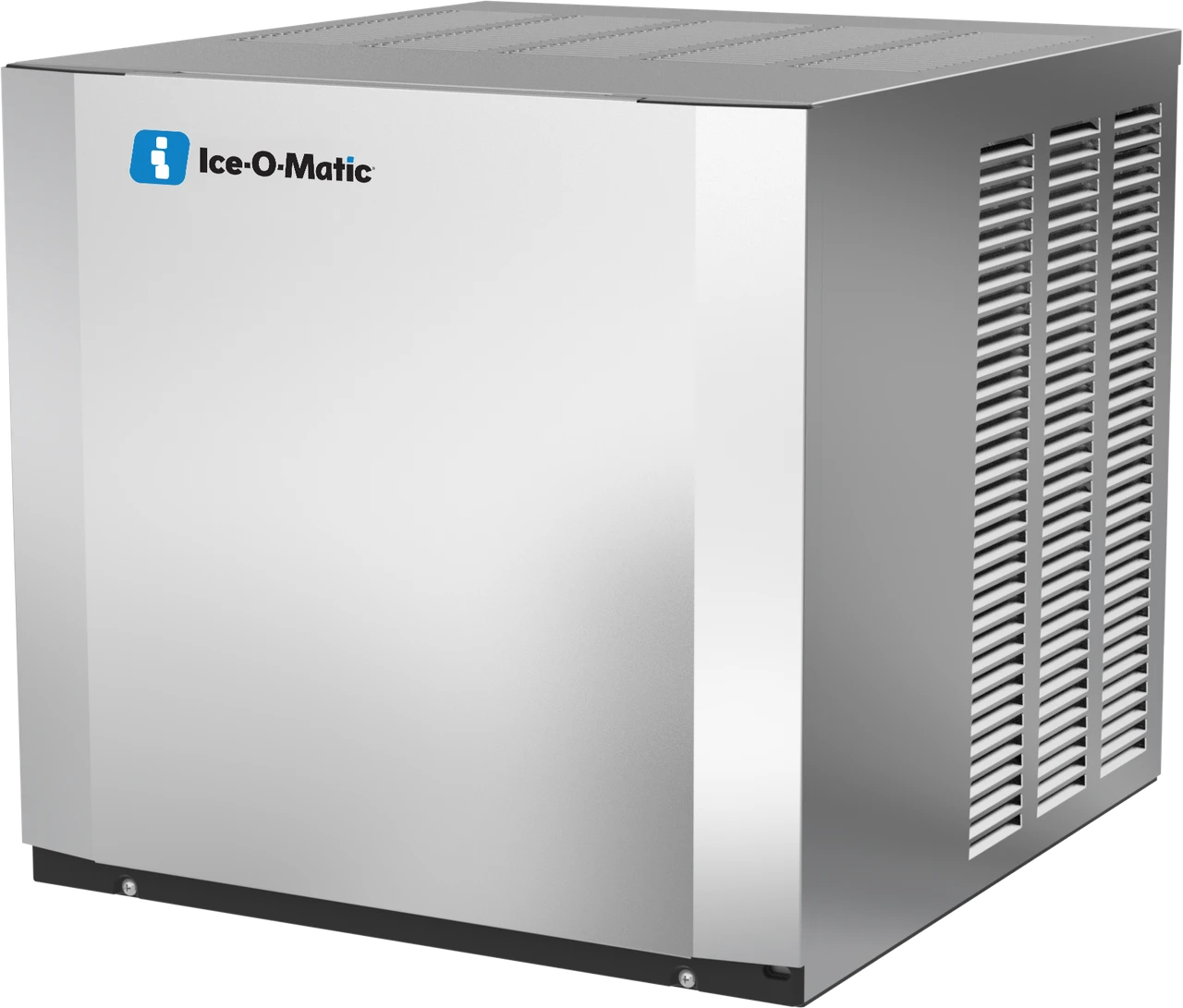

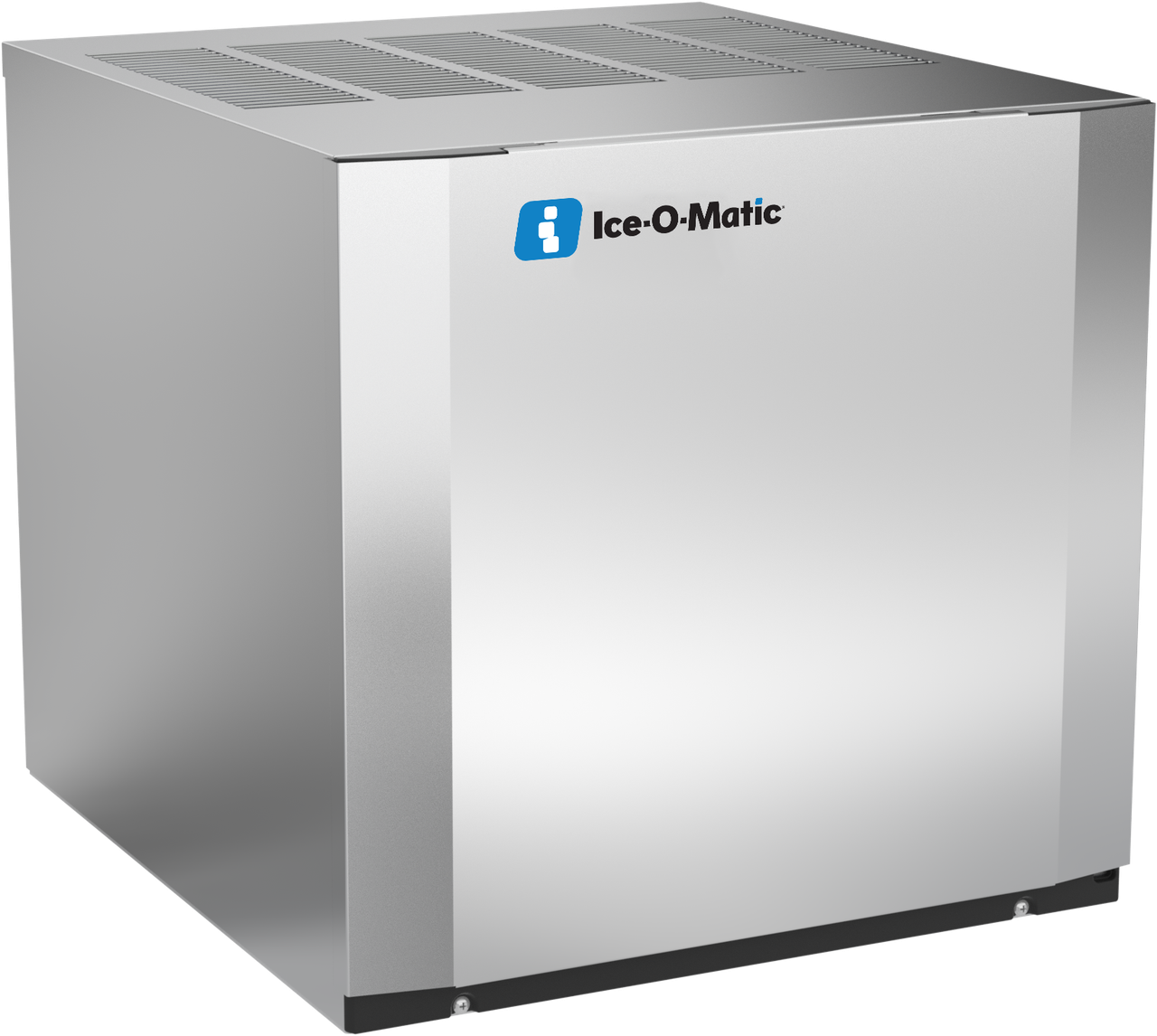

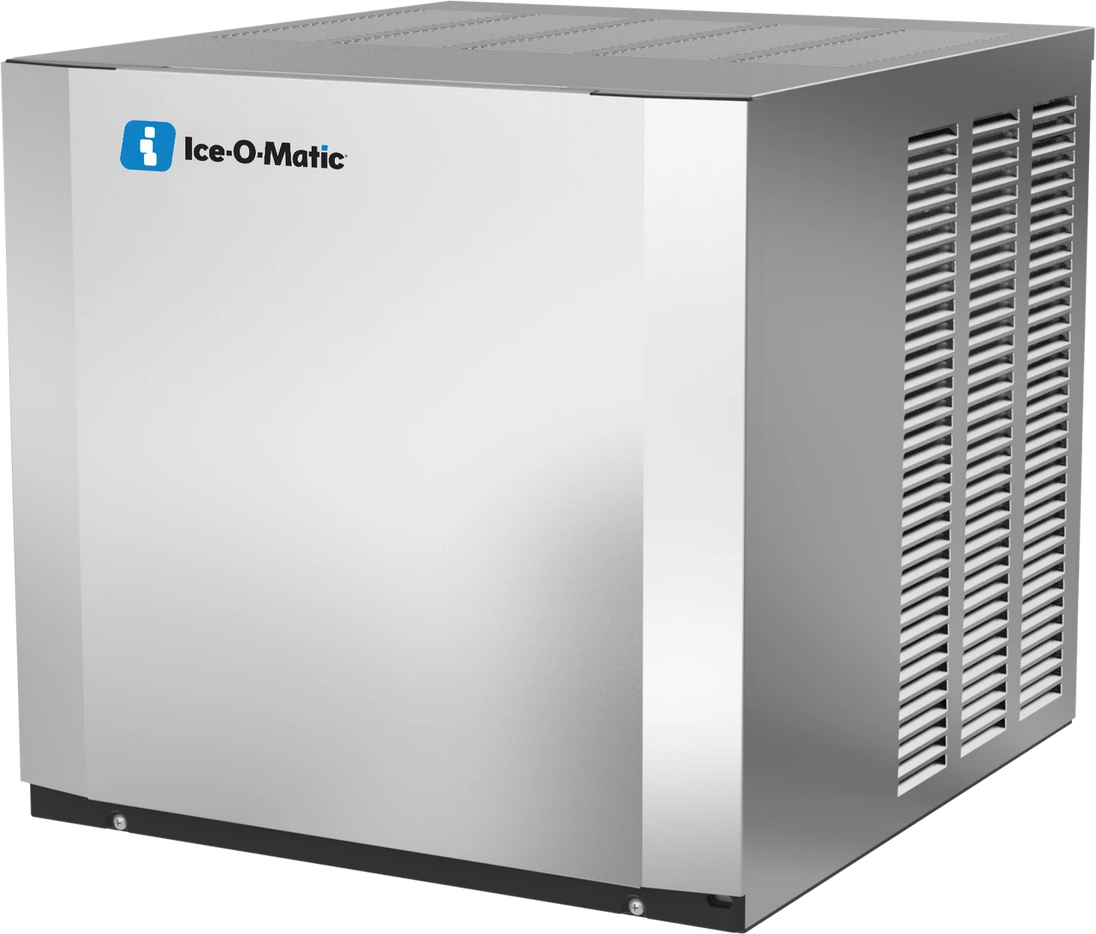

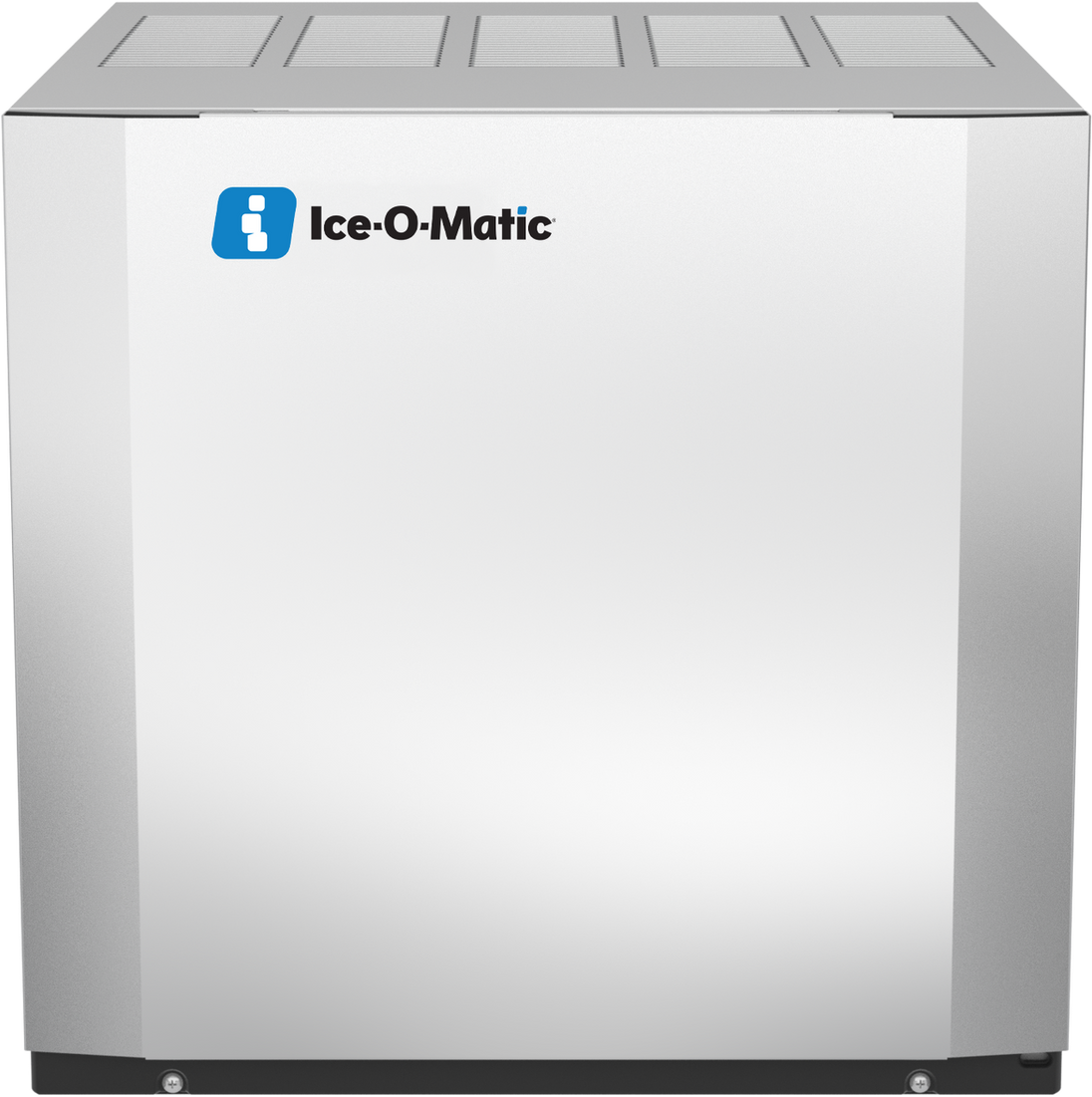

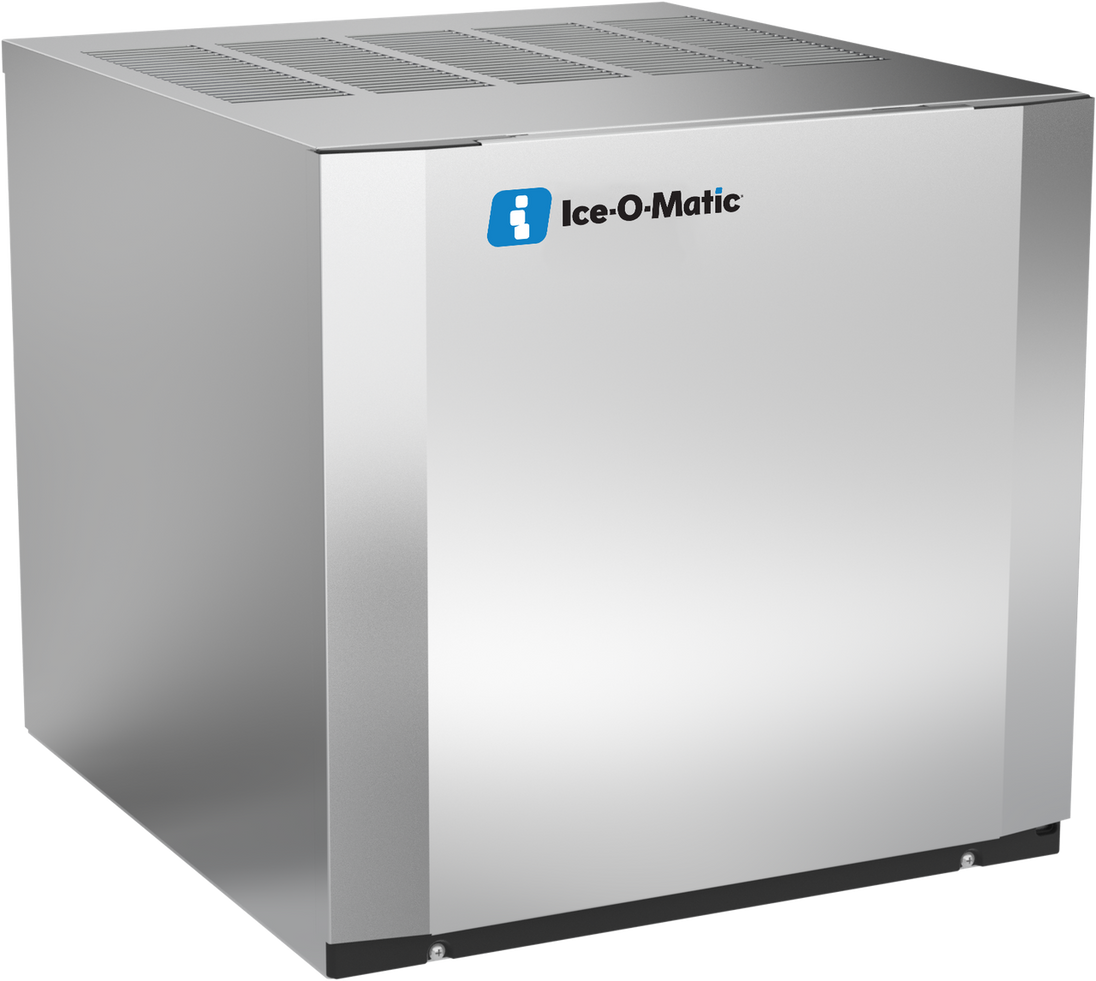

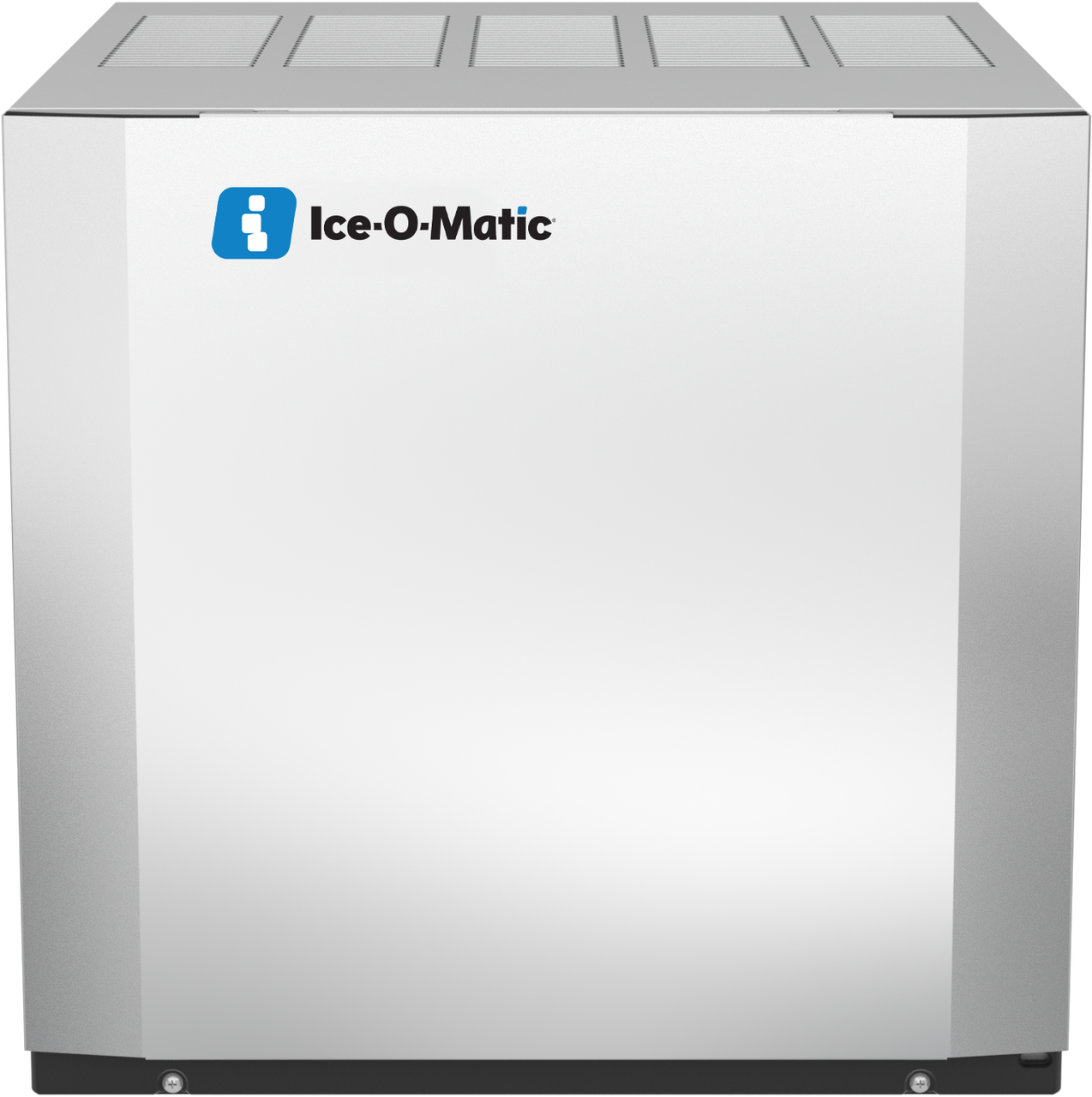

The Ice-O-Matic CIM0320HA90 is a 22 1/4 inch Elevation Series ice machine head producing 300 to 400 lb of half cube ice per 24 hours, air cooled.

Half Cube on the Same 22-Inch Chassis

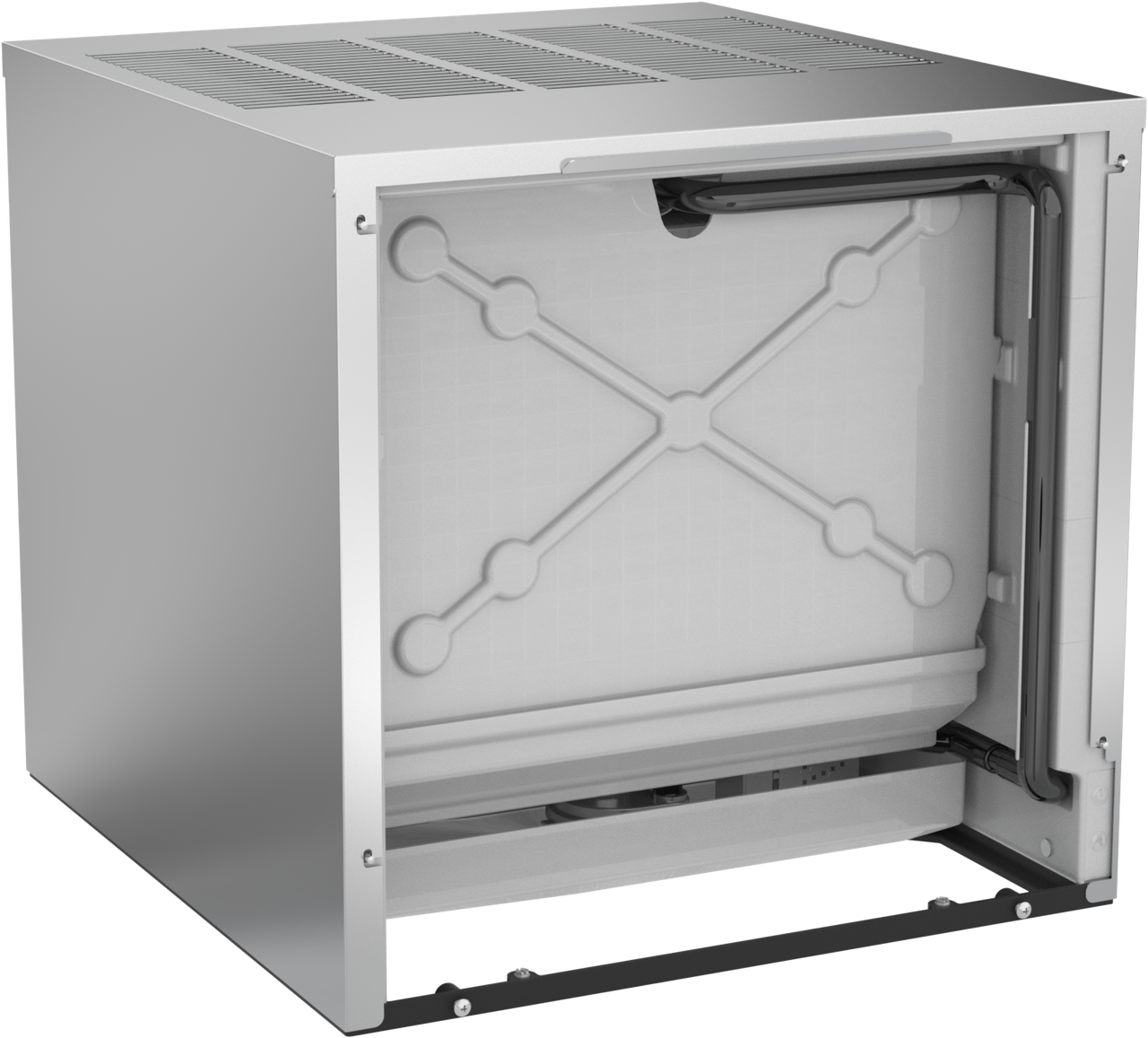

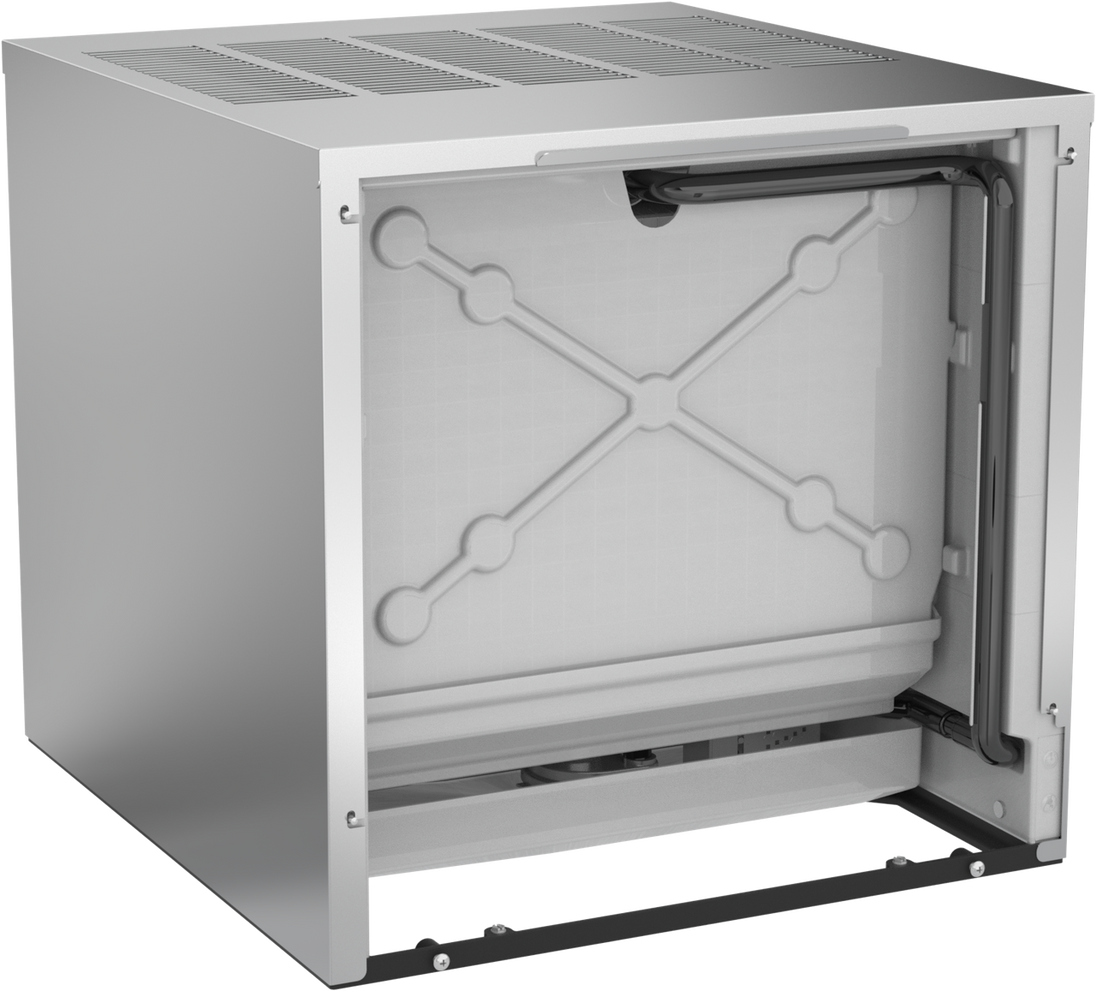

The CIM0320HA90 shares its footprint, production band, and electrical spec with the full-cube CIM0320FA90 — the difference between the two is the cube geometry the evaporator plate produces, not the size of the machine or its output.

R290A Refrigerant, Air Cooled

This head runs on R290A, a low-GWP hydrocarbon refrigerant, and rejects heat locally through an air-cooled condenser. It carries both Ice-O-Matic's ENERGY STAR and BABA compliance certifications.

IFQ1 Filter Compatibility

Ice-O-Matic specifies the IFQ1 water filter system for this head. Running the specified filter is part of what keeps the published warranty terms in force, since scale buildup from unfiltered water is excluded from standard coverage.

Specifications

Model CIM0320HA90
Series Elevation
Type Half Cube, modular head (bin sold separately)
Capacity 300-400 lb/24hr
Exterior Dimensions 22.25 x 24.25 x 21.25 Inch (W x D x H)
Electrical 115V/60Hz/1-Phase
Refrigerant R290A
Condenser Air Cooled
Filter System IFQ1
Certifications ENERGY STAR, BABA Compliant
Shipping Weight 125 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
