Product Description

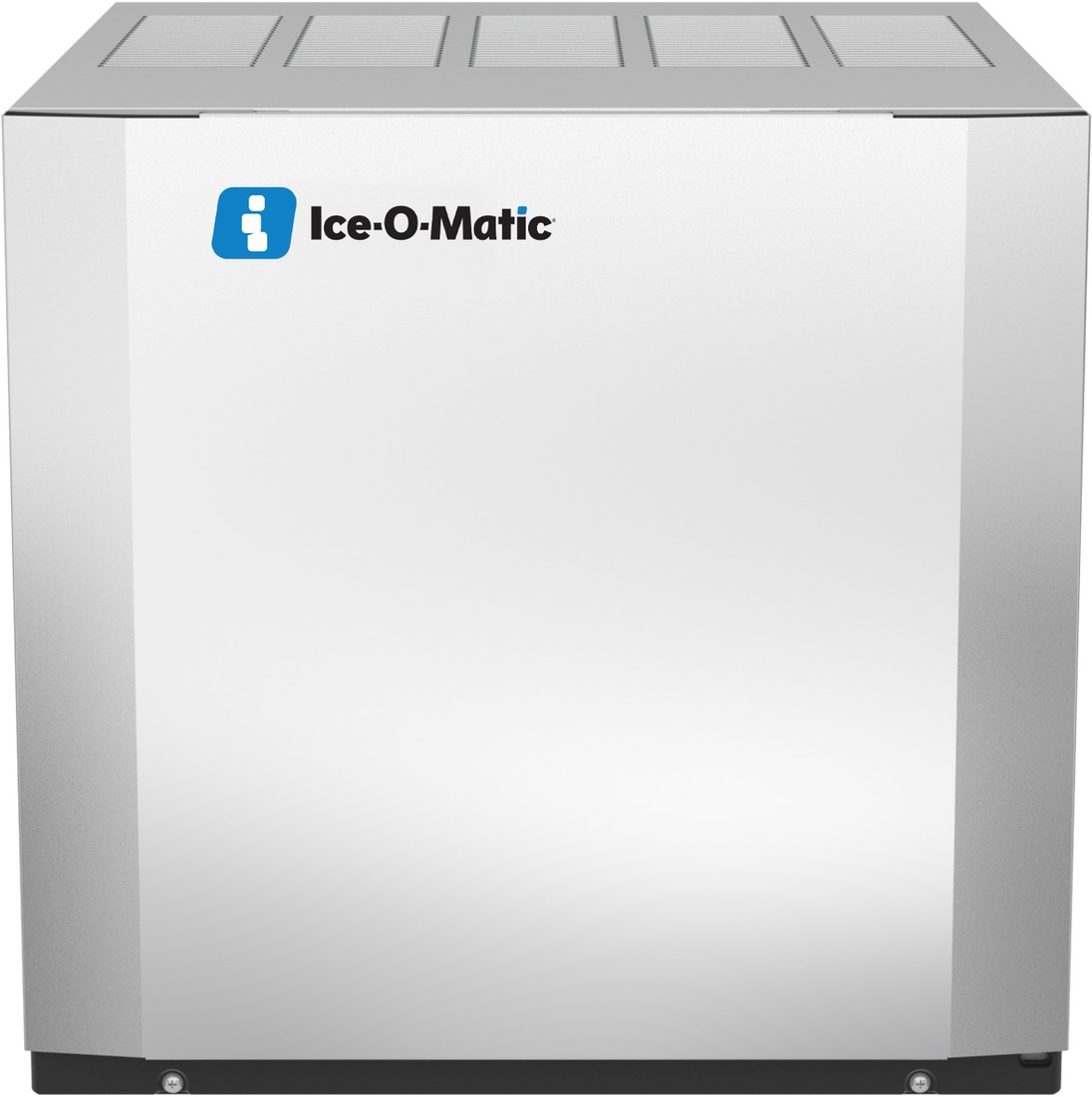

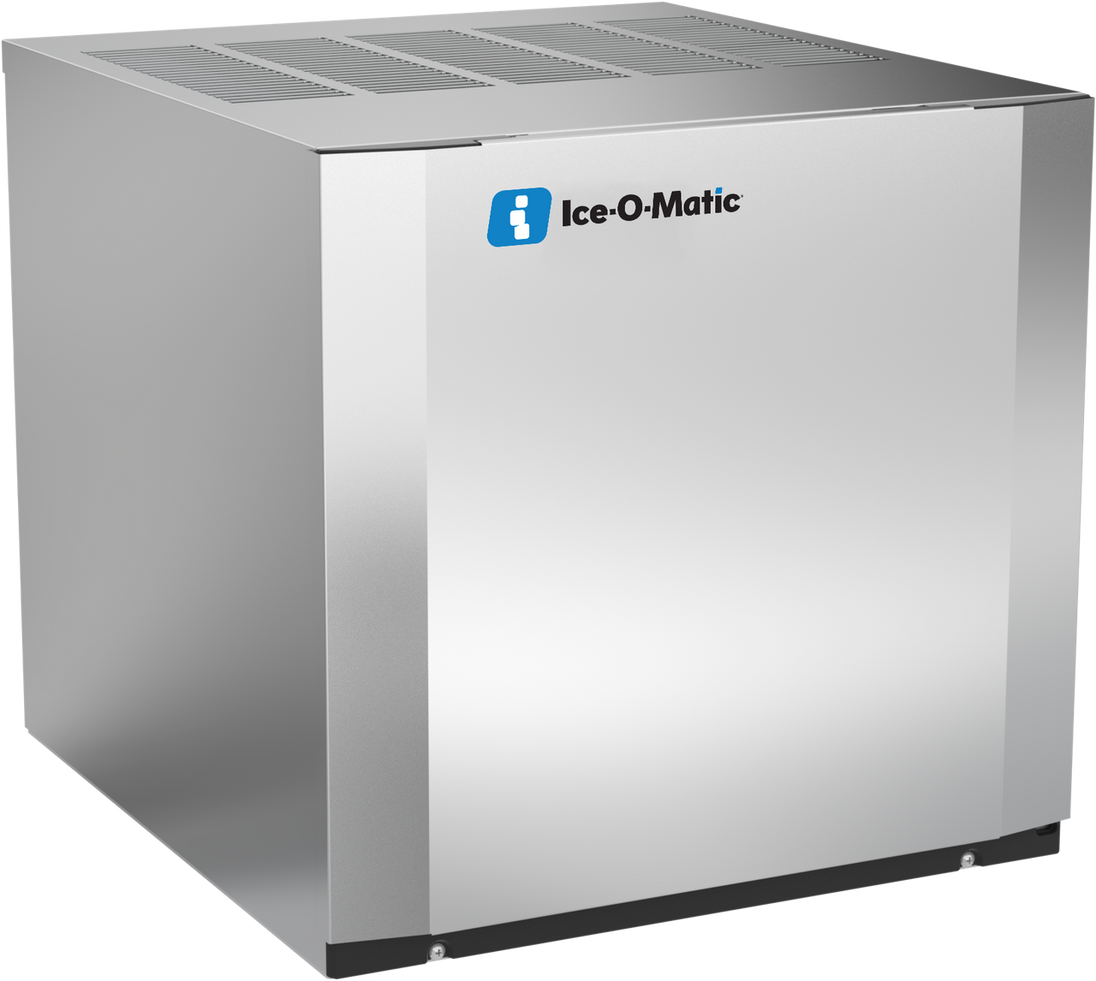

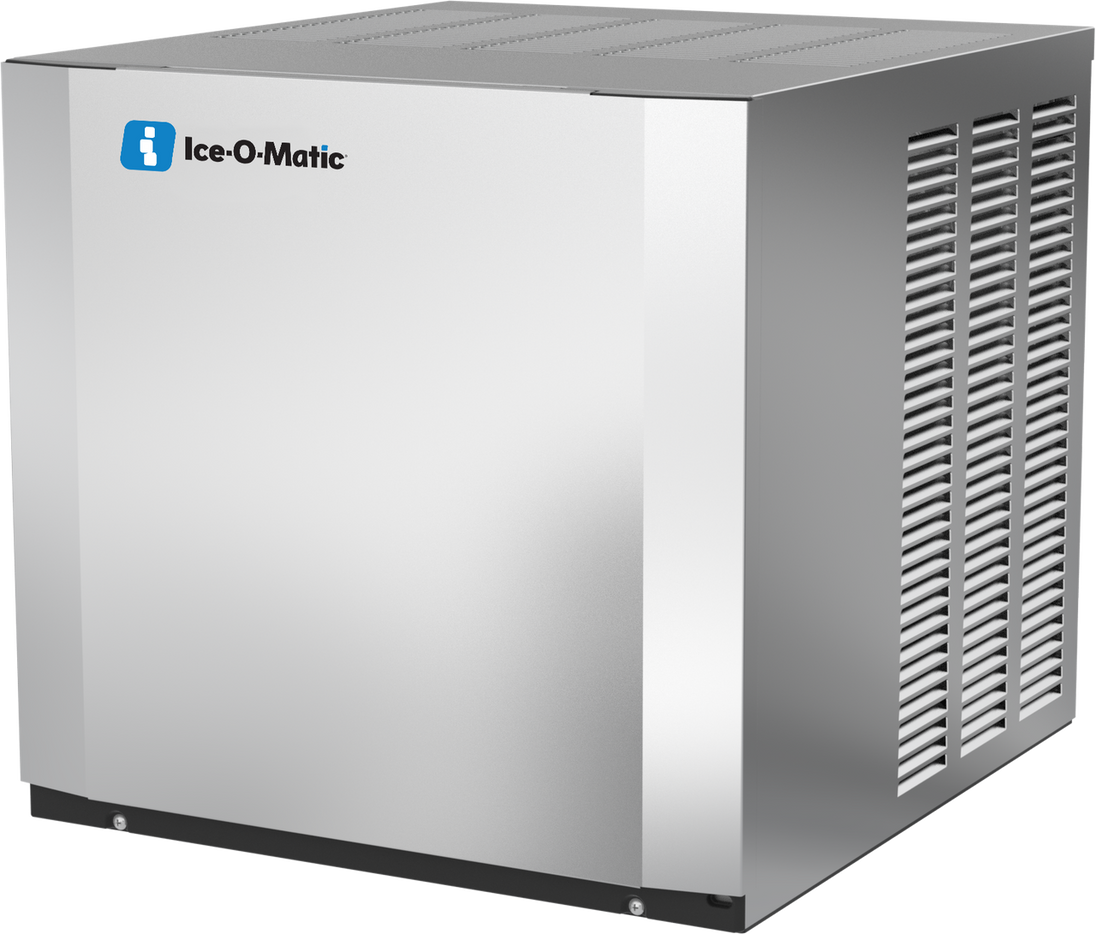

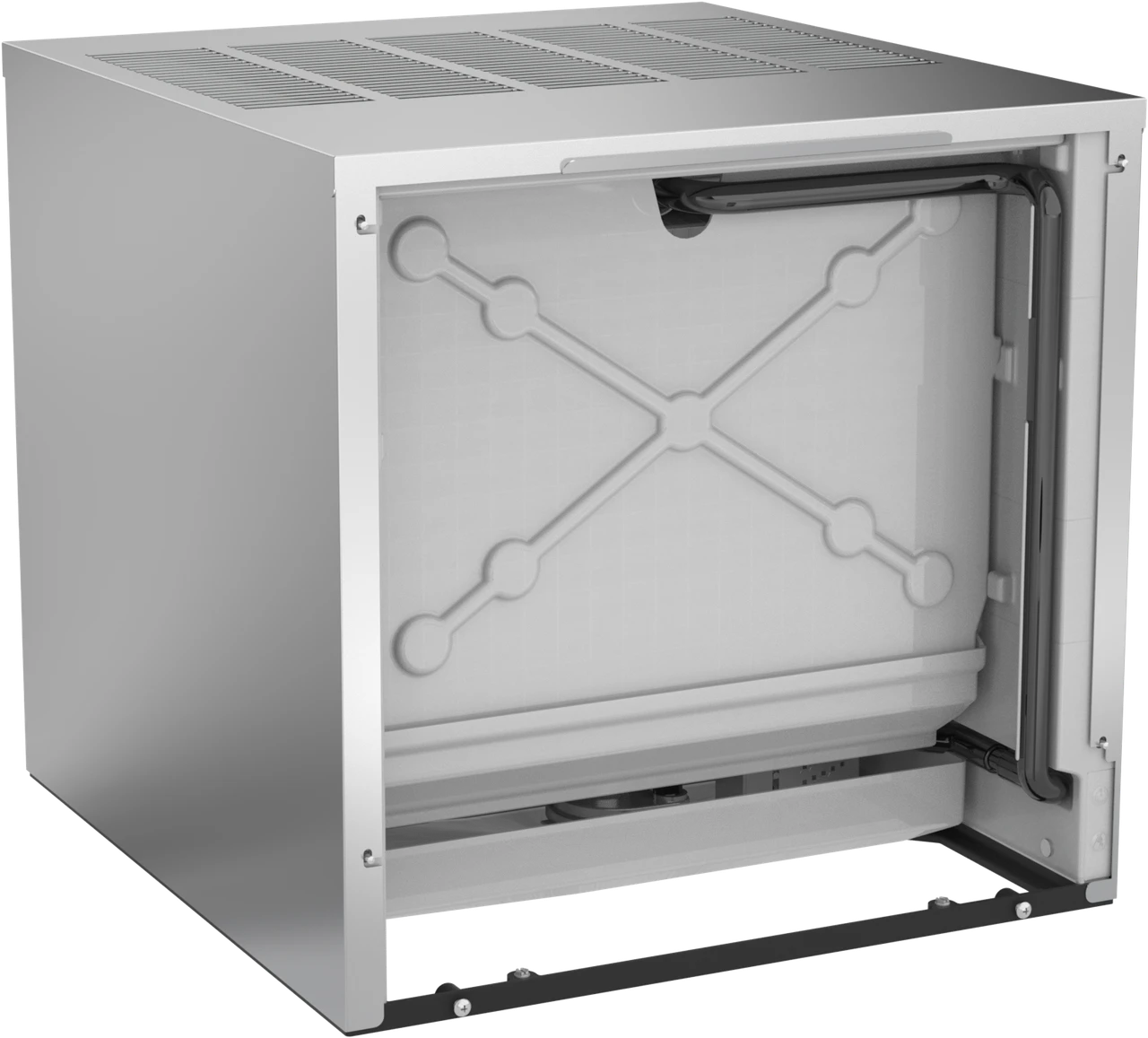

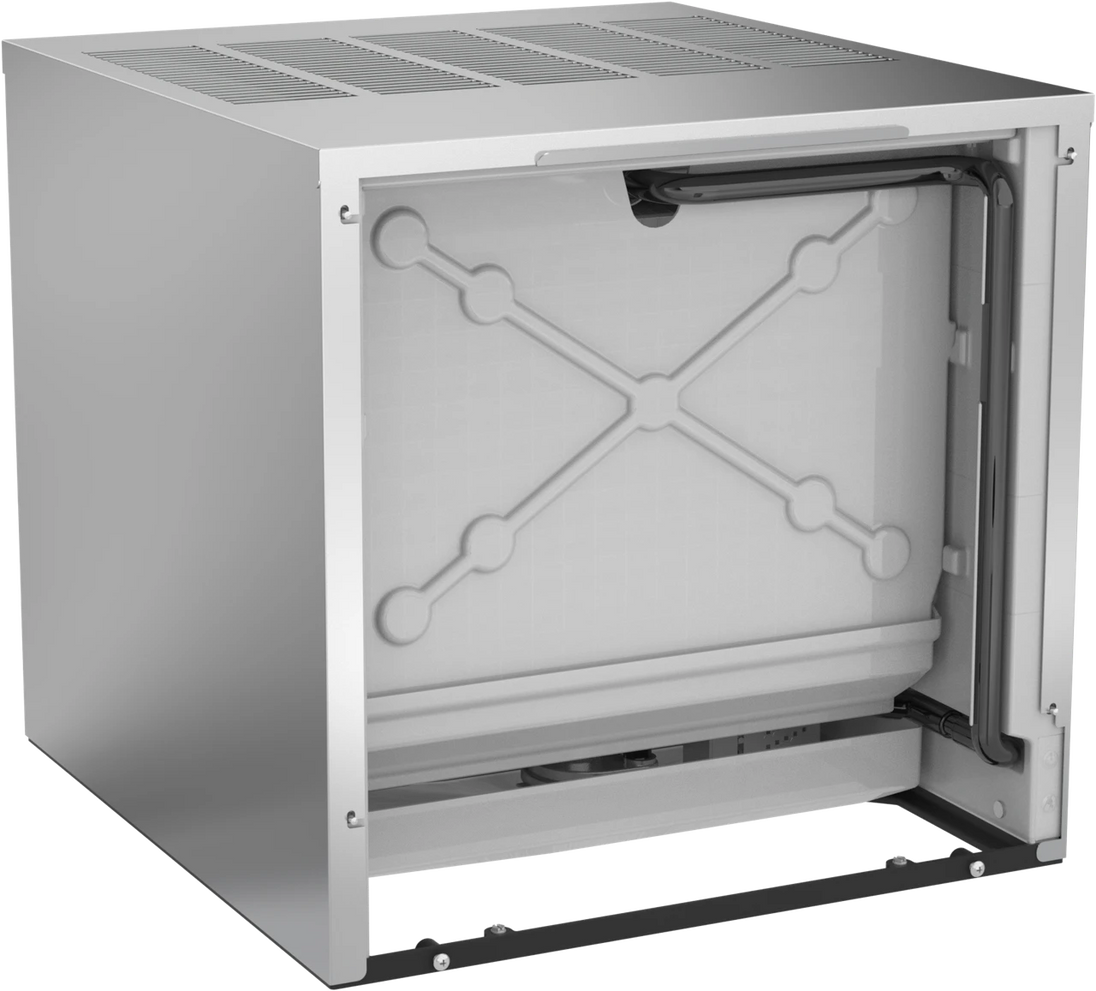

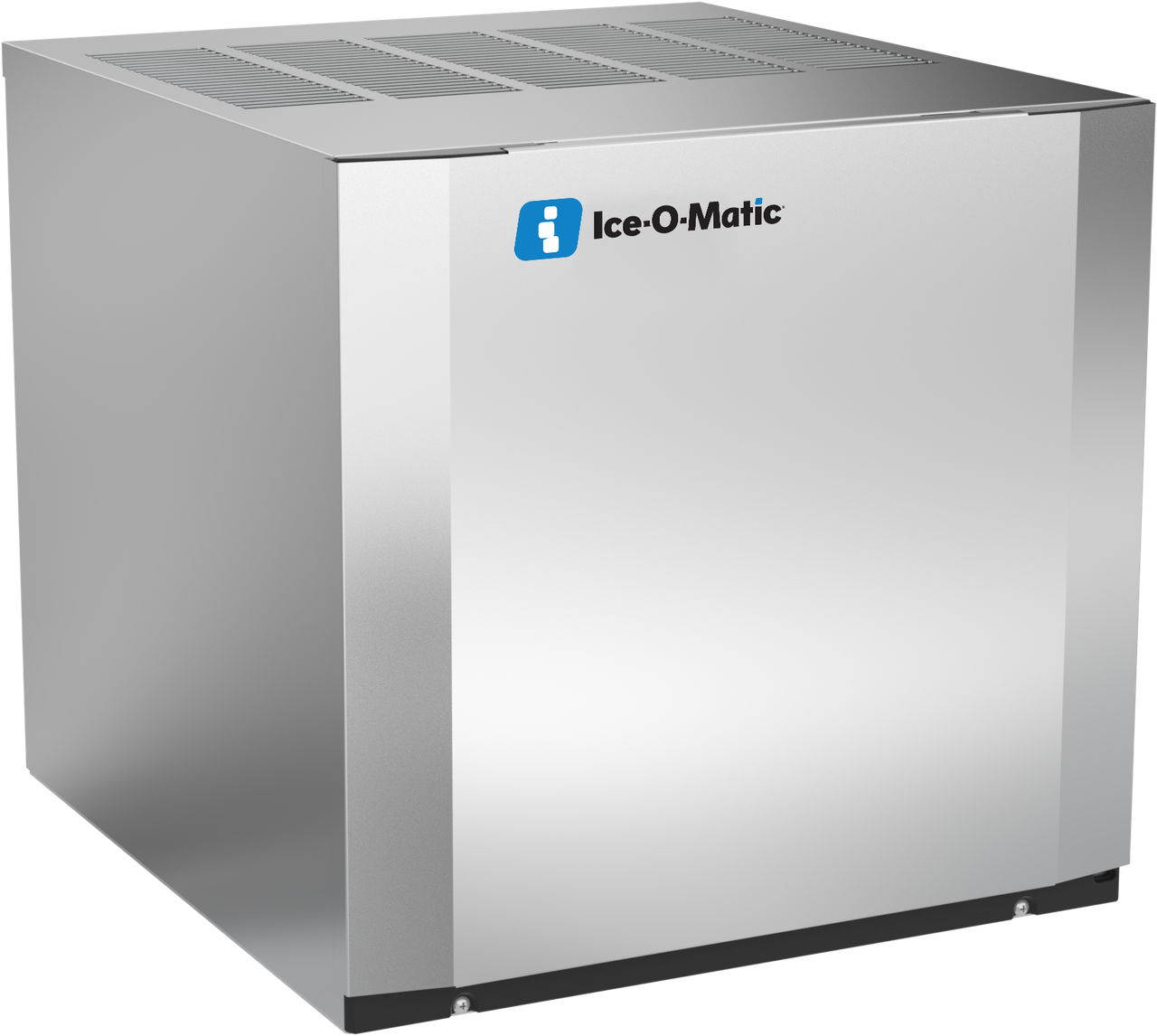

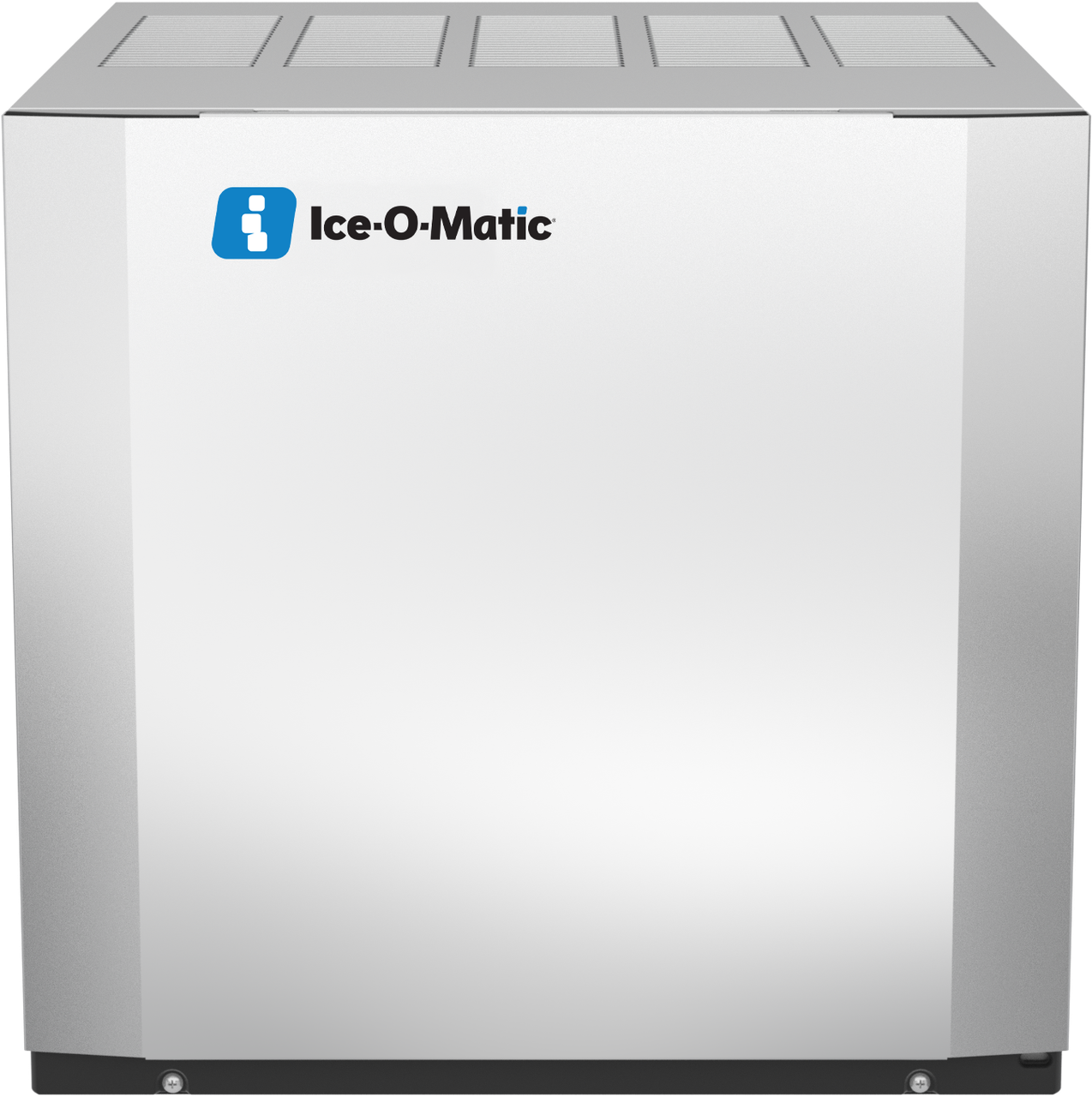

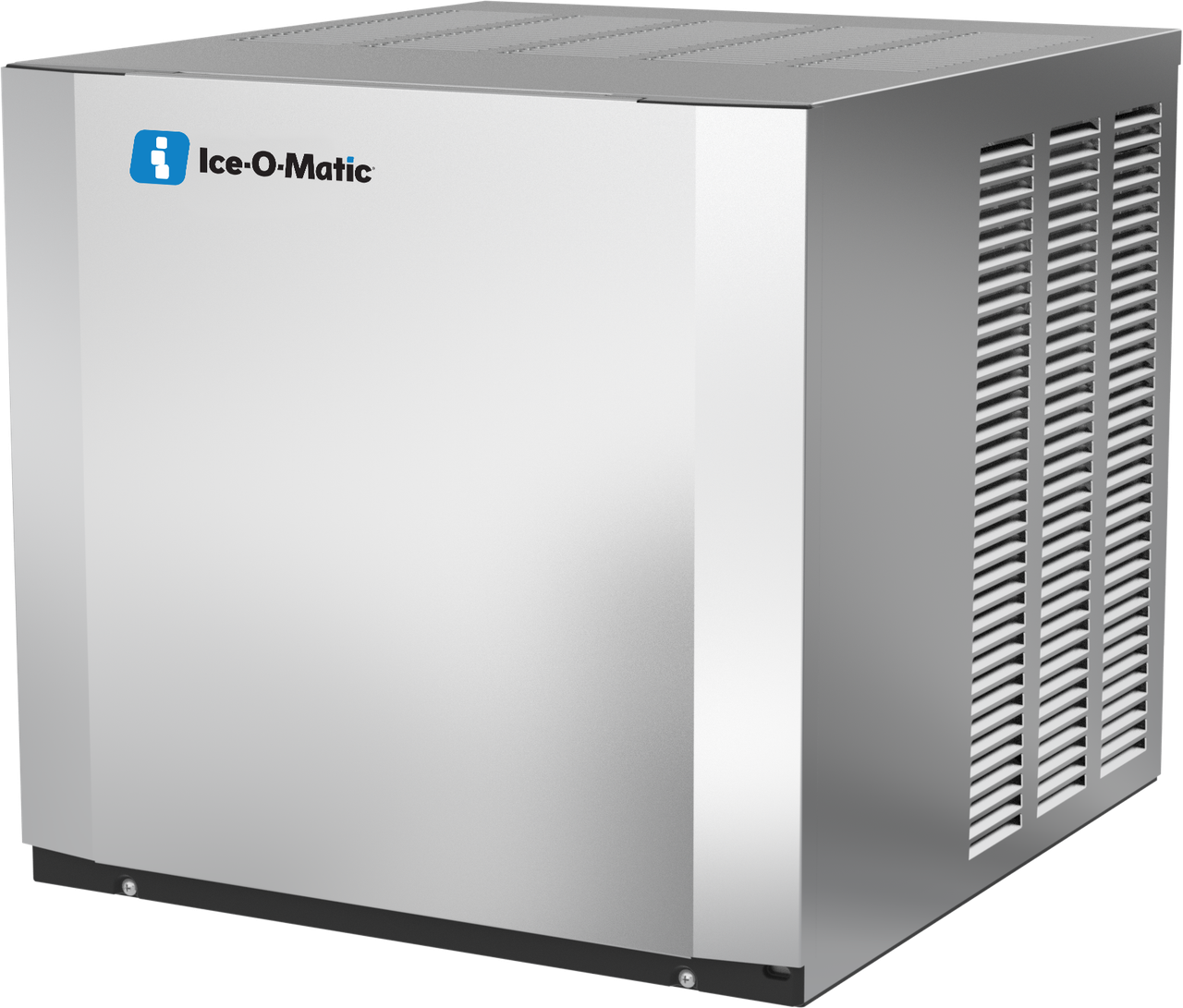

The Ice-O-Matic CIM0320FA90 is a 22 1/4 inch Elevation Series ice machine head producing 300 to 400 lb of full cube ice per 24 hours, air cooled.

22-Inch Footprint for Tight Spaces

At 22.25 inches wide, the CIM0320FA90 is the narrower option in the 300-400 lb Elevation cube tier, next to the 30 inch wide CIM0330FA90 that produces the same output. Both share the same 24.25 x 21.25 depth and height, so the choice between them comes down to available floor width, not capacity.

R290A Refrigerant, Air Cooled

This head runs on R290A, a low-GWP hydrocarbon refrigerant, and rejects heat locally through an air-cooled condenser. It carries Ice-O-Matic's ENERGY STAR certification, which the water-cooled CIM0320FW90 variant of this same chassis does not.

IFQ1 Filter Compatibility

Ice-O-Matic specifies the IFQ1 water filter system for this head. Running the specified filter is part of what keeps the published warranty terms in force, since scale buildup from unfiltered water is excluded from standard coverage.

Specifications

Model CIM0320FA90
Series Elevation
Type Full Cube, modular head (bin sold separately)
Capacity 300-400 lb/24hr
Exterior Dimensions 22.25 x 24.25 x 21.25 Inch (W x D x H)
Electrical 115V/60Hz/1-Phase
Refrigerant R290A
Condenser Air Cooled
Filter System IFQ1
Certifications ENERGY STAR
Shipping Weight 125 lb

Warranty

Ice-O-Matic publishes 3 years parts and labor on the CIM series, with 5 years parts coverage on the evaporator and compressor.
