Product Description

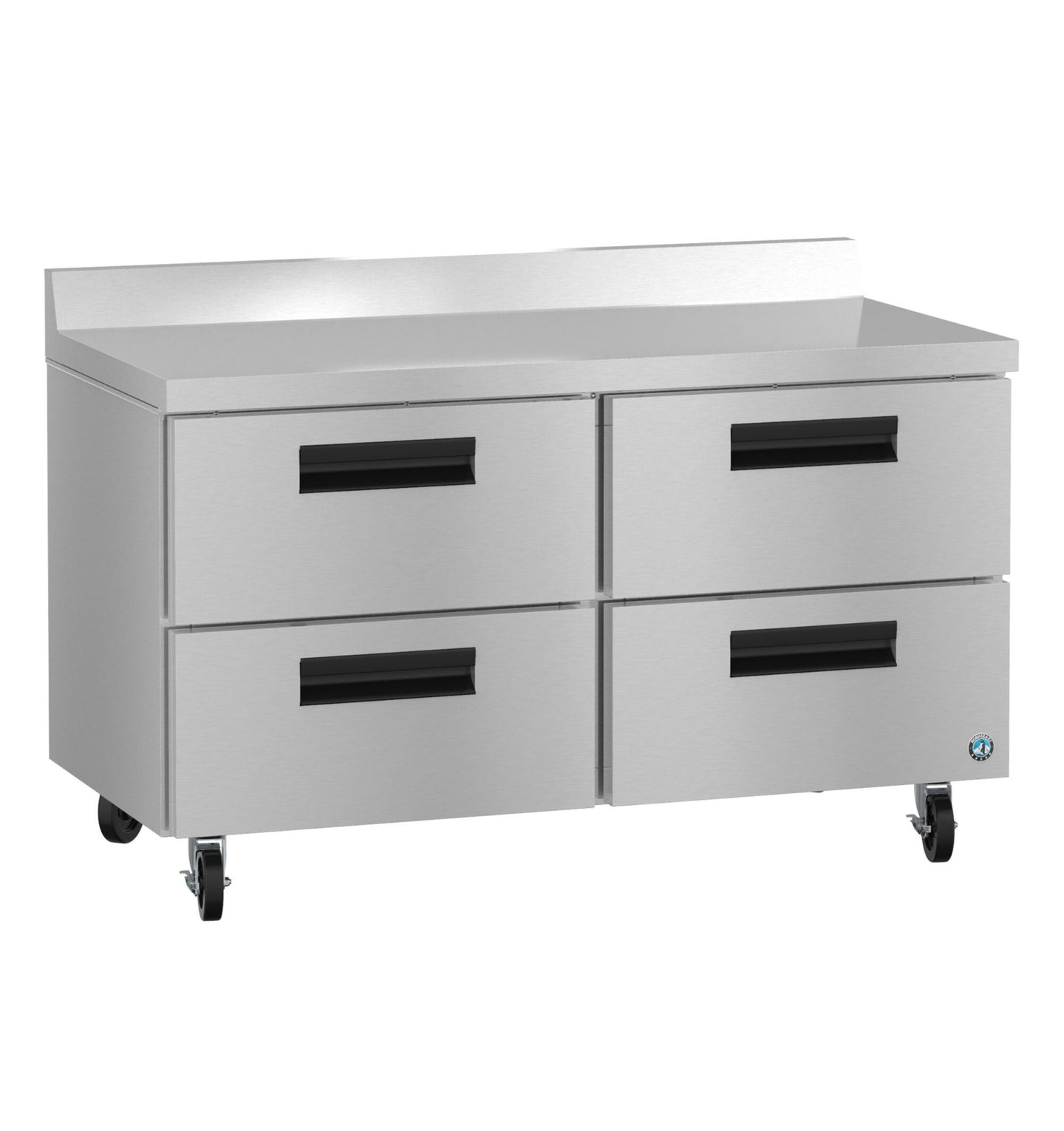

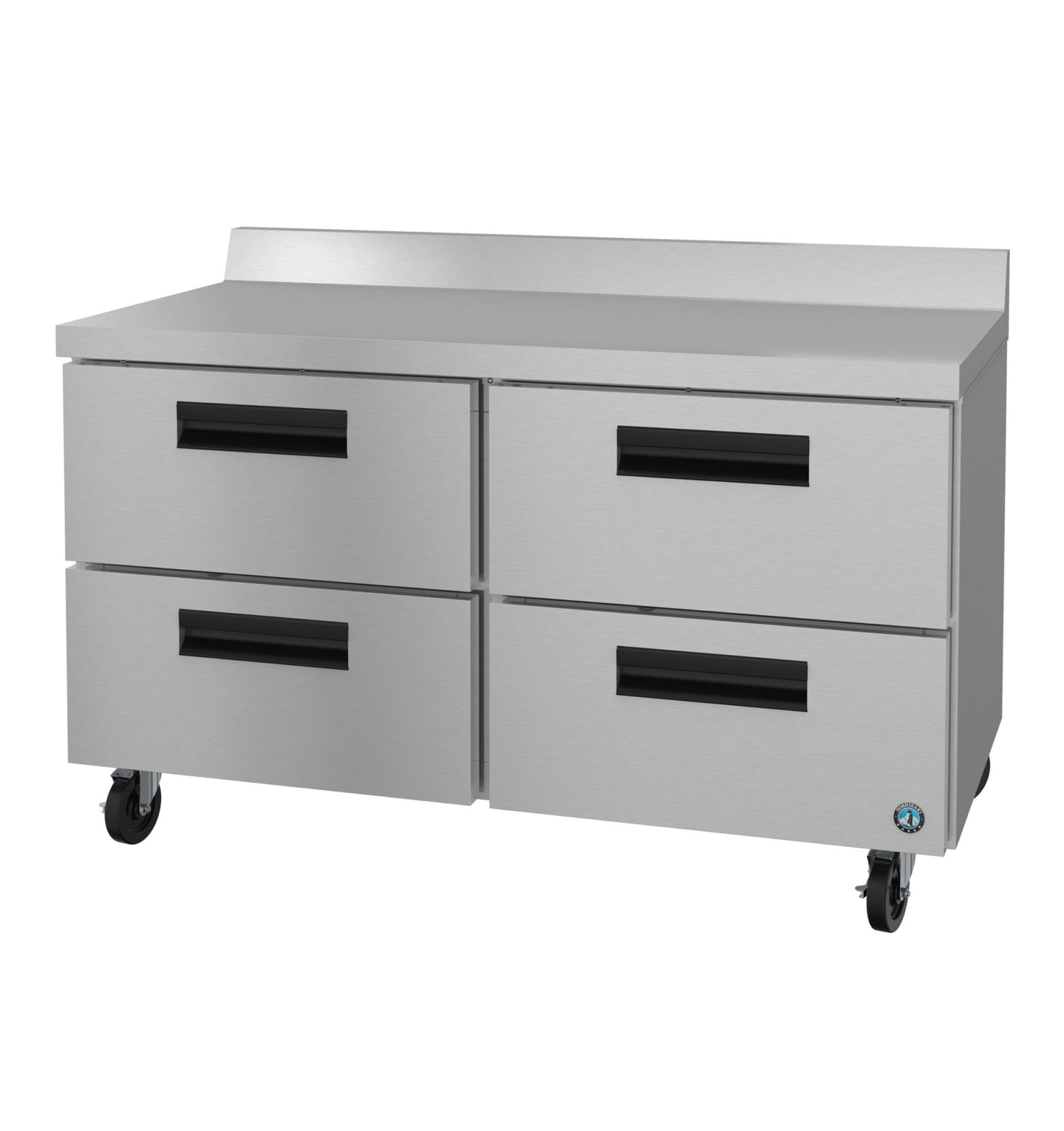

The Hoshizaki WF48B-D4 is the current-generation 48-inch Steelheart® Series two-section worktop freezer with four stainless steel drawers, holding 13.66 cubic feet nominal (12 cubic feet net) under a 40-inch-high stainless work surface.

Split-Depth Drawer Layout

The four drawers are not identical. Top drawers take one 1/2-size and one 1/3-size pan at 4 inches deep; bottom drawers take the same footprint at 6 inches. That split lets a station keep fast-moving shallow product at the top of the stack and reserve the deeper compartments for bulk, rather than surrendering the same headroom to every item.

Meaningfully More Efficient Than the A-Series

The clearest difference between this cabinet and the WF48A-D4 it succeeds is running cost: 3.6 kWh per day against the A-series' 6.08, from a 1/3 HP compressor rated at a nominal 1,426 BTU/hr. For a freezer that never shuts off, that gap compounds over a service life measured in years, and the B-series adds Georgia Made certification alongside the ETL listings.

Seven-Year Coverage on R290

Refrigeration is R290 hydrocarbon — a natural refrigerant with negligible global warming potential and no phase-down deadline. Hoshizaki backs the platform with 7-7-7 terms, more than double the A-series' three-year parts-and-labor coverage.

Specifications

Model WF48B-D4
Type Two section worktop freezer, four stainless drawers
Storage capacity 13.66 cu ft nominal / 12 cu ft net
Drawer capacity Top: (1) 1/2 size + (1) 1/3 size pans, 4" deep. Bottom: (1) 1/2 size + (1) 1/3 size pans, 6" deep
Exterior dimensions 48" W x 30" D x 40" H
Shipping weight 346 lbs
Crate dimensions 52.5" L x 34" D x 40.5" H
Electrical 115V / 60 Hz / 1 phase, 4 amps
Plug NEMA 5-15P, 10 ft cord
Refrigerant R290
Compressor 1/3 HP, 1,426 BTU/hr nominal
Energy consumption 3.6 kWh/day
Certifications ETL Safety Listed (US & Canada), ETL Sanitation Listed, Georgia Made Certified

Warranty

Hoshizaki covers the WF48B-D4 with 7 years labor, 7 years parts and 7 years on the compressor.
