Product Description

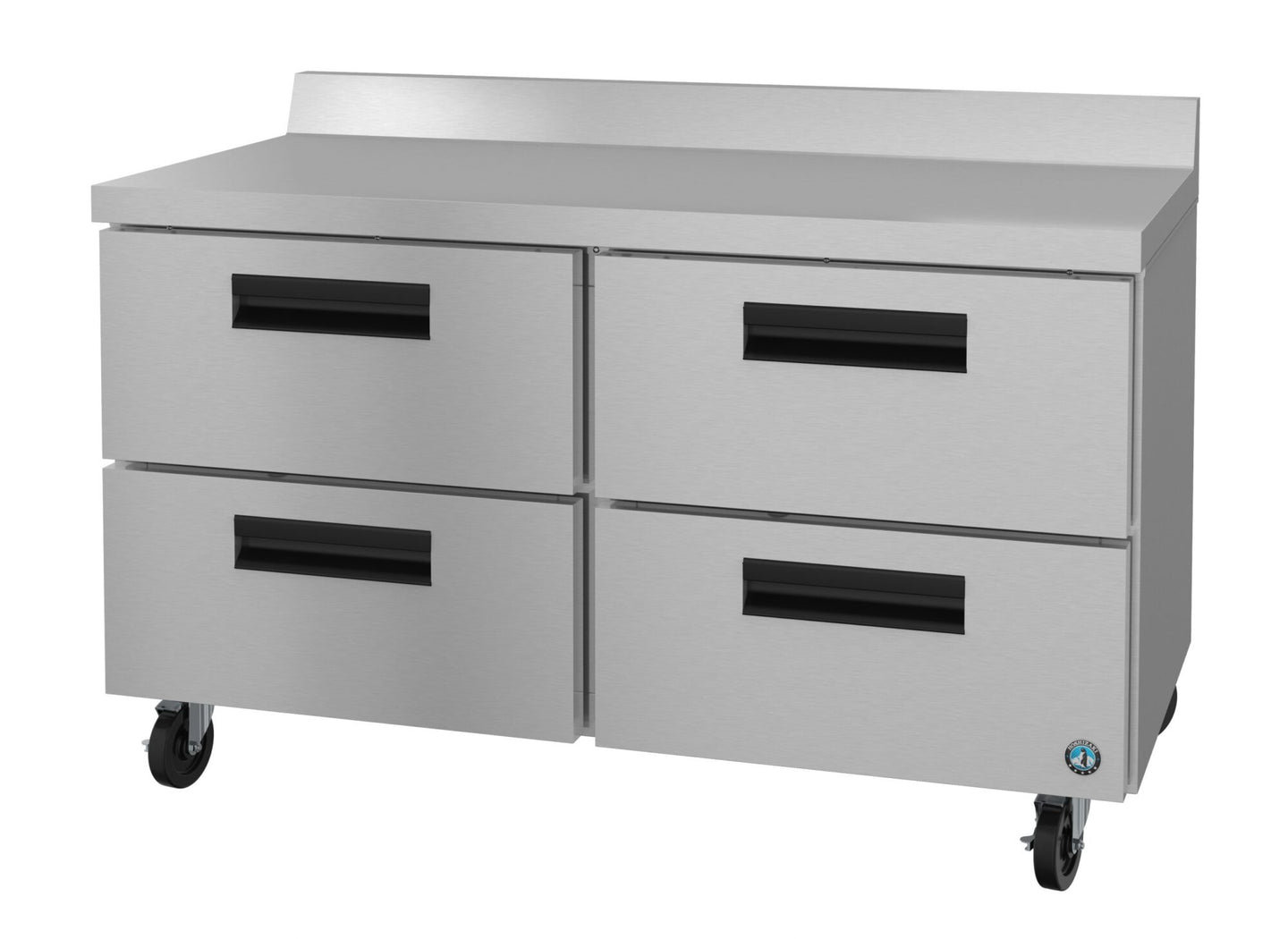

The Hoshizaki WF48A-D4 is a 48-inch Steelheart® Series two-section worktop freezer fitted with four stainless steel drawers. It holds 13.66 cubic feet nominal (12 cubic feet net) beneath a stainless top at 40-inch working height, putting frozen pans and prep surface in the same four-foot footprint.

Four Drawers, Two Depths

The drawer stack is not uniform, and that is deliberate. The top drawers are sized for one 1/2-size and one 1/3-size pan at 4 inches deep — shallow, fast-access storage for the items turned over most often. The bottom drawers take the same pan footprint at 6 inches deep for bulkier product. Splitting depths this way means a station is not forced to waste six inches of headroom on garnish pans.

Designed for Hot, Tight Kitchens

Worktop freezers get installed in the warmest, most congested part of the kitchen. The WF48A-D4 is built around that assumption, with a 5.9 amp refrigeration system sized to hold frozen temperature under load and a cabinet that fits into a standard 48-inch equipment run without special clearances.

R290 Natural Refrigerant

Cooling uses R290 hydrocarbon refrigerant, which carries negligible global warming potential and is not exposed to the HFC regulatory phase-down. Energy consumption is 6.08 kWh per day — higher than a solid-door cabinet of the same size, which is the expected trade for four separately opened drawer compartments.

Specifications

Model WF48A-D4
Type Two section worktop freezer, four stainless drawers
Storage capacity 13.66 cu ft nominal / 12 cu ft net
Drawer capacity Top: (1) 1/2 size + (1) 1/3 size pans, 4" deep. Bottom: (1) 1/2 size + (1) 1/3 size pans, 6" deep
Exterior dimensions 48" W x 30" D x 40" H
Shipping weight 285 lbs
Crate dimensions 51" L x 32" D x 40.25" H
Electrical 115V / 60 Hz / 1 phase, 5.9 amps
Plug NEMA 5-15P, 10 ft cord
Refrigerant R290
Energy consumption 6.08 kWh/day
Certifications ETL Safety Listed (US & Canada), ETL Sanitation Listed

Warranty

Hoshizaki covers the WF48A-D4 with 3 years parts and labor on the entire machine and 5 years on the compressor.
