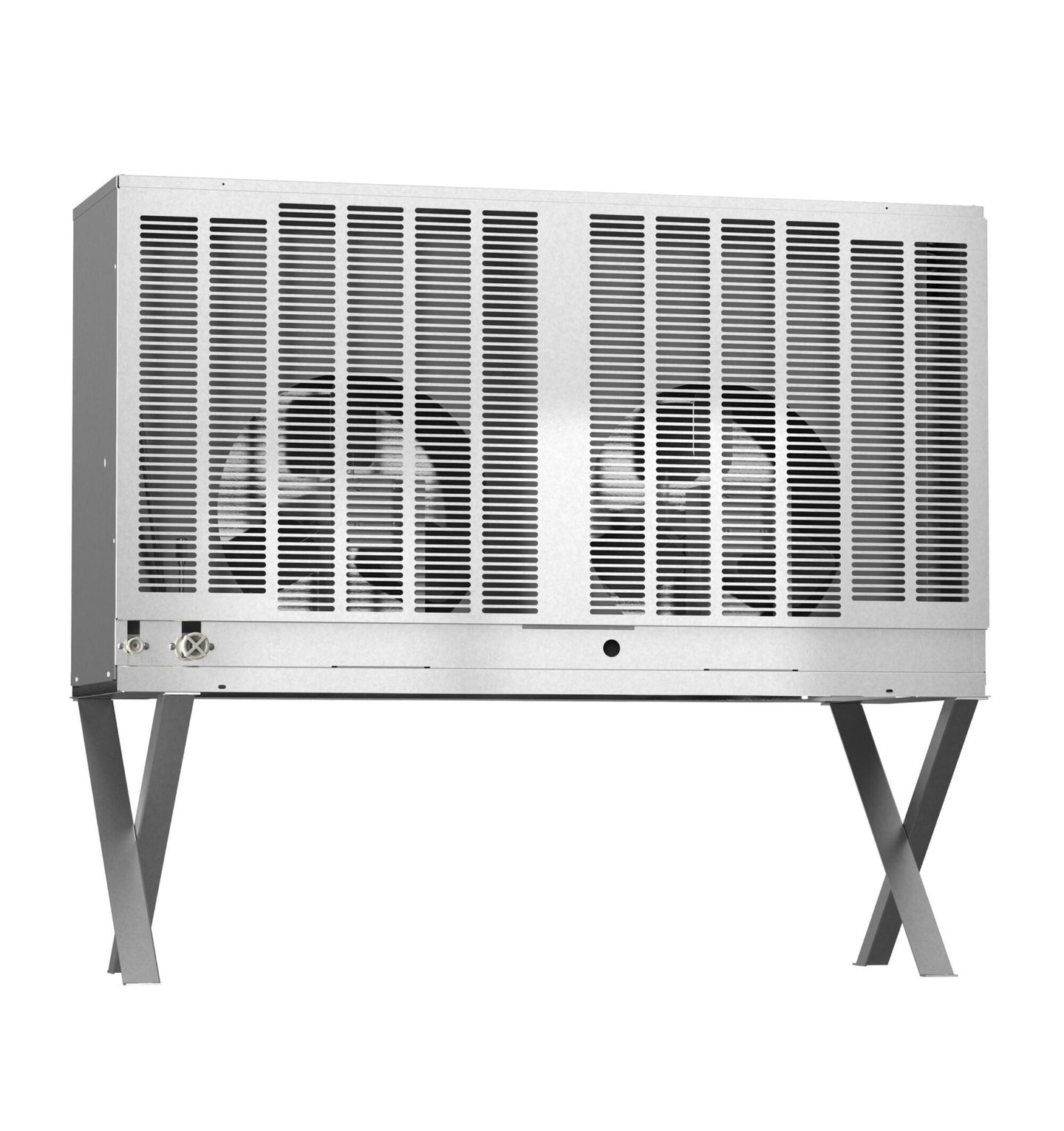

Hoshizaki URC-26JZ remote condenser unit for KM-2600SRJZ3 crescent cuber icemaker

Product Description

The Hoshizaki URC-26JZ is the remote condenser matched to the KM-2600SRJZ3 crescent cuber. It is the Z-variant counterpart to the URC-26J, sharing the same low-profile 46-inch cabinet and 115V supply.

Matching the Z Variant

Hoshizaki's Z-suffix heads take Z-suffix condensers. The URC-26JZ pairs with the KM-2600SRJZ3; the URC-26J pairs with the KM-2600SRJ3. The two condensers carry the same 9 lb 11.2 oz R-404A charge and the same cabinet, but they are specified to different heads, so match the suffix on the icemaker order rather than assuming they interchange.

115V and a Narrow Footprint

Power is single-phase 115V, hardwired at the site with four wire including ground — no 208-230V drop required, unlike the SRK and SRC condensers. The cabinet measures 46-3/8 inches wide by only 14-1/16 inches deep, which keeps the footprint tight on a roof curb or wall mount. Construction is weather-resistant for outdoor installation.

Remote Condensing at High Output

On a crescent cuber of this capacity the heat rejected by the refrigeration cycle is substantial. Siting the condenser outdoors keeps that heat and the associated fan noise out of the room housing the icemaker, rather than loading it onto the building's own cooling.

Specifications

Model URC-26JZ
Type Remote condenser unit, outdoor rated
Compatible Icemaker KM-2600SRJZ3 (sold separately)
Exterior Dimensions 46-3/8" W x 14-1/16" D x 40-1/2" H
Electrical 115V / 60 Hz / 1 phase, 4 wire including ground, hardwired
Voltage Range 104-127V
Refrigerant R-404A, 9 lbs 11.2 oz (4400 g)
Certifications UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire unit, and five years parts on the air-cooled condenser coil.
