Product Description

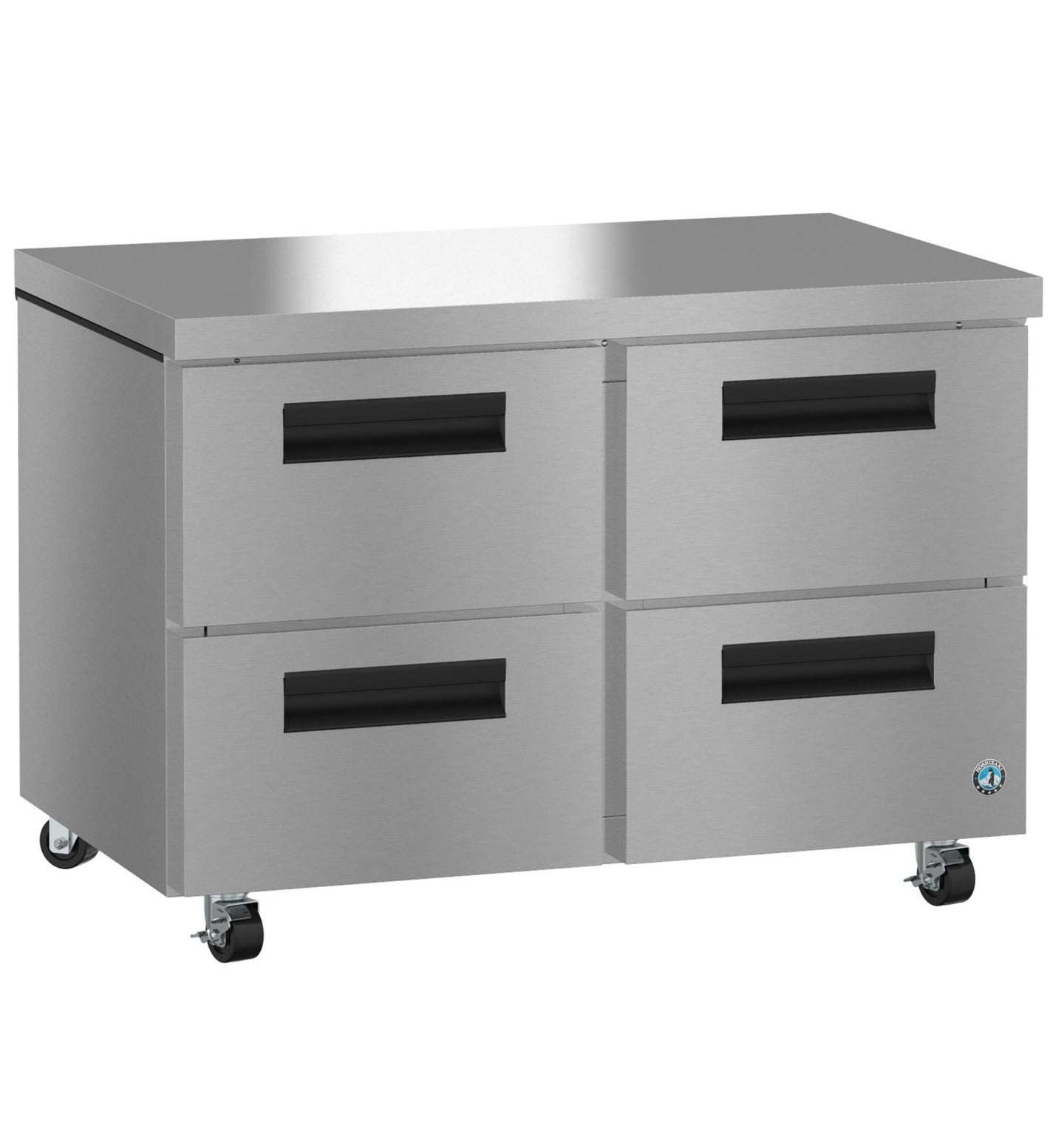

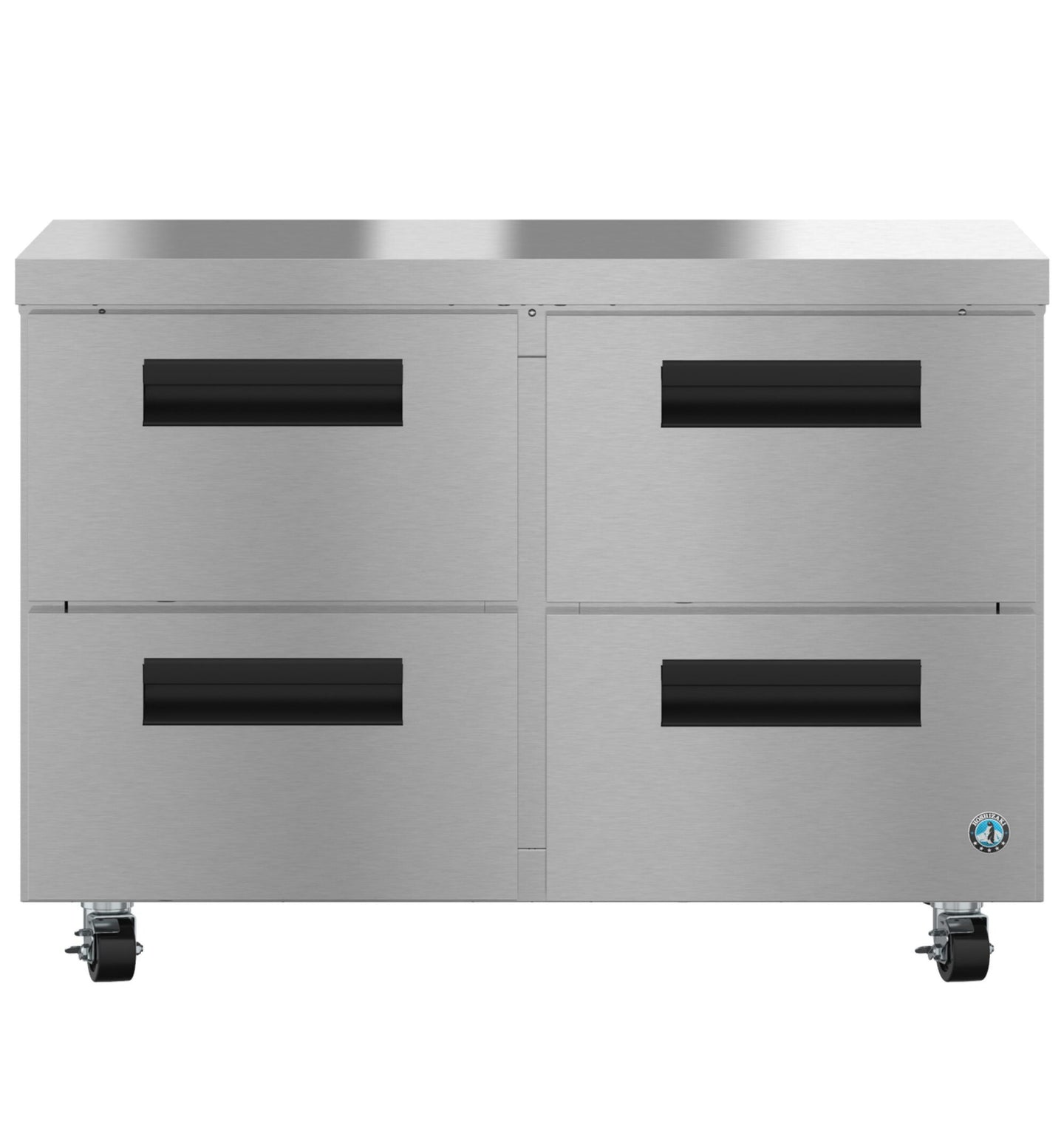

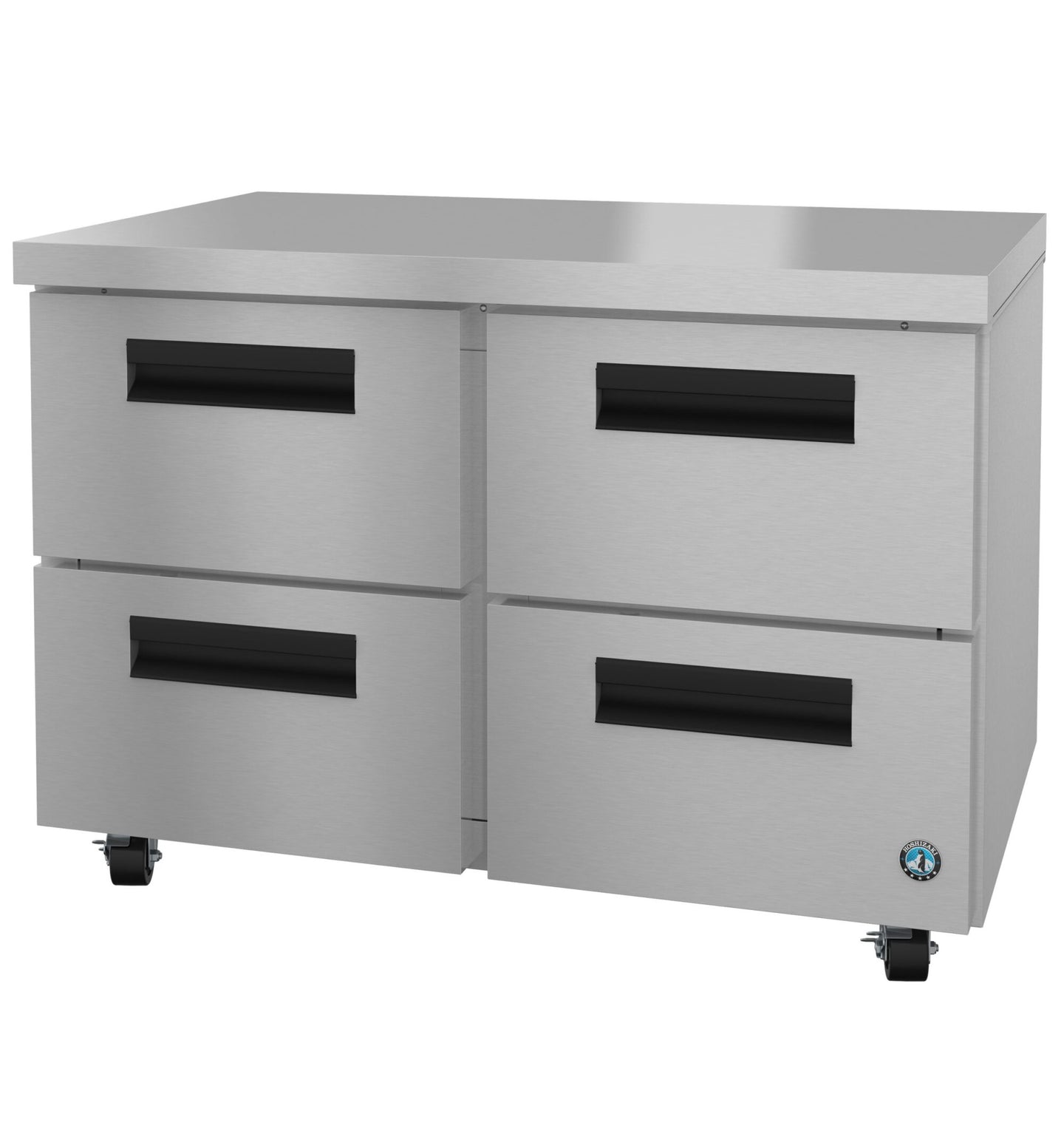

The Hoshizaki UR48B-D4 is the all-drawer build of the 48-inch, two-section Steelheart® undercounter refrigerator, offering 12 cubic feet of net storage across four stainless steel drawers.

Four Compartments on the Cook Line

Four separate drawers let a station keep four product classes physically apart — raw proteins, marinated items, prepped garnish, dairy — without stacking them on shared shelving. For an operation running a documented HACCP plan, that separation is worth more than raw cubic footage. It also means a cook opens only the compartment they need, so the rest of the cabinet never sees room air.

No Door Swing to Plan Around

Drawers travel straight out into the operator's own standing space. That makes the UR48B-D4 installable directly under a griddle or range in an aisle where a hinged door would foul on the opposite equipment run — a constraint that eliminates door cabinets from many hot-line positions entirely.

Refrigeration

R290 natural refrigerant, 1.05 kWh per day, 115 volts at 3 amps on a NEMA 5-15P plug with a 10-foot cord.

Specifications

Model UR48B-D4
Type Refrigerator, two section undercounter, stainless drawers
Capacity 12 cu. ft. net (13.66 cu. ft. nominal)
Exterior Dimensions 48" W x 30" D x 33.75" H
Shipping Weight 314 lbs.
Crate Dimensions 52.5" L x 34" D x 36.5" H
Electrical 115V / 60 Hz / 1 phase, 3 amps
Plug NEMA 5-15P, 10 ft. cord
Refrigerant R290
Energy Consumption 1.05 kWh/day
Certifications ETL Safety Listed (US & C), ETL Sanitation Listed, Georgia Made Certified

Warranty

7 years labor, 7 years parts, 7 years compressor.
