Product Description

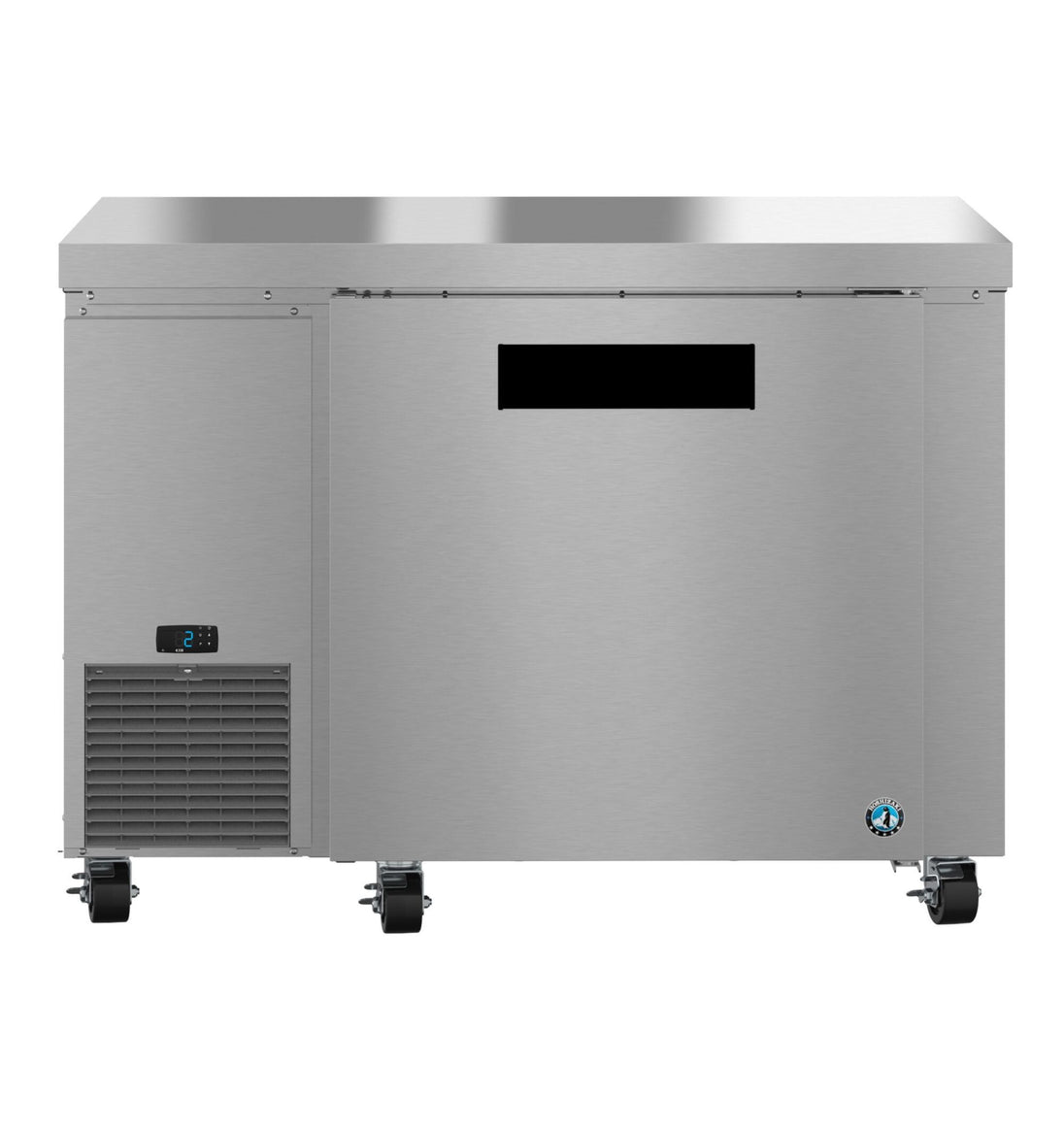

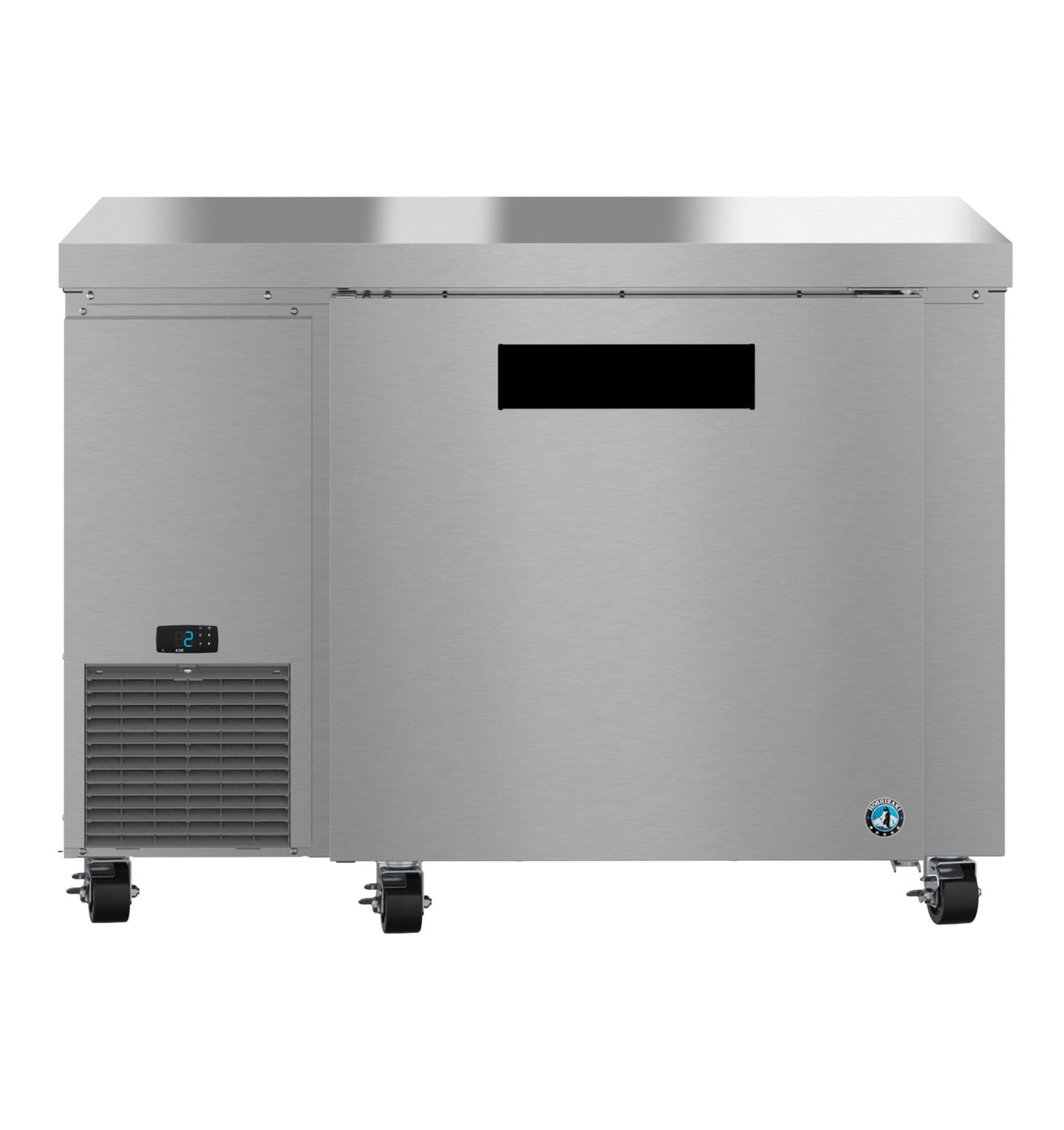

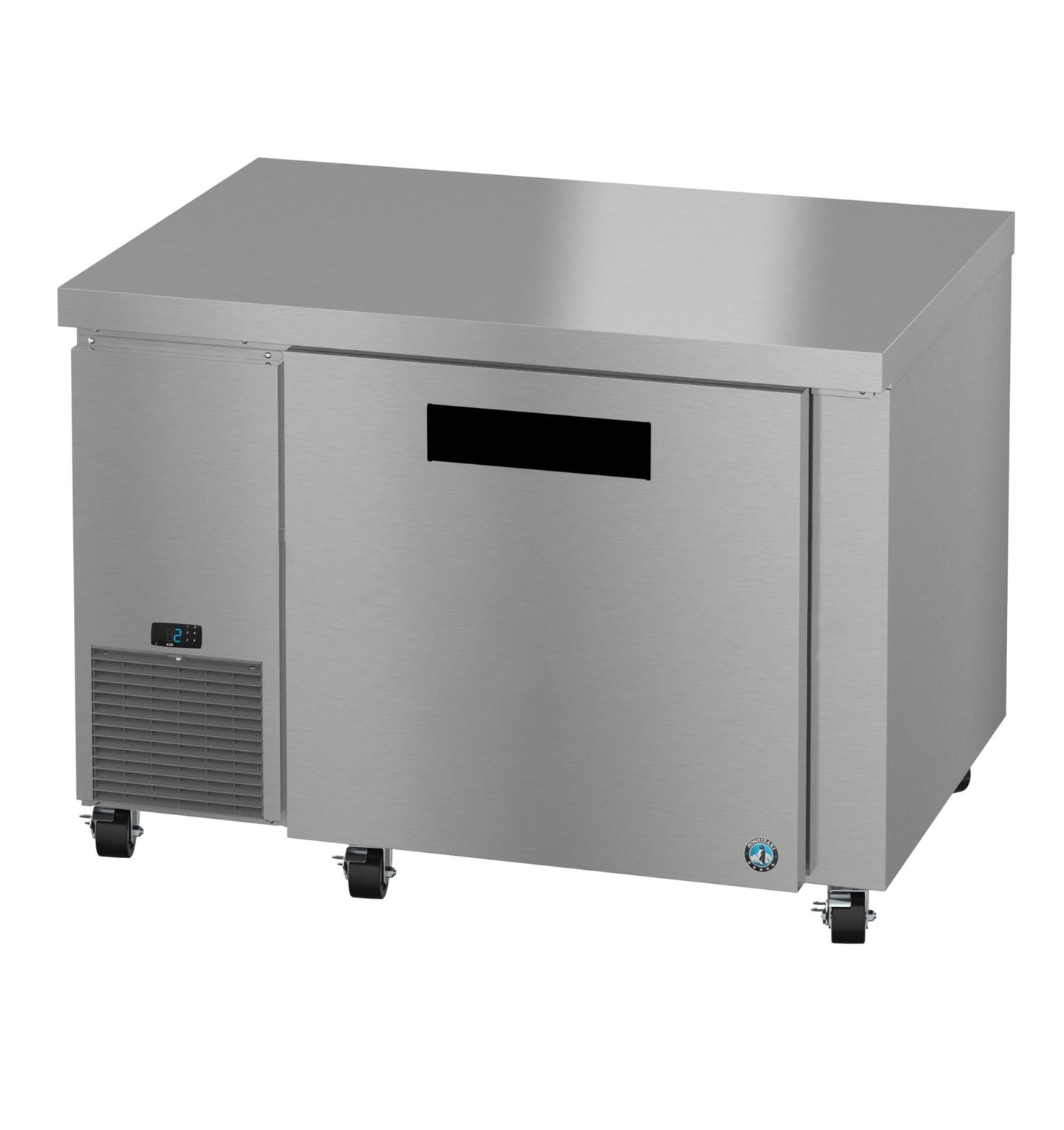

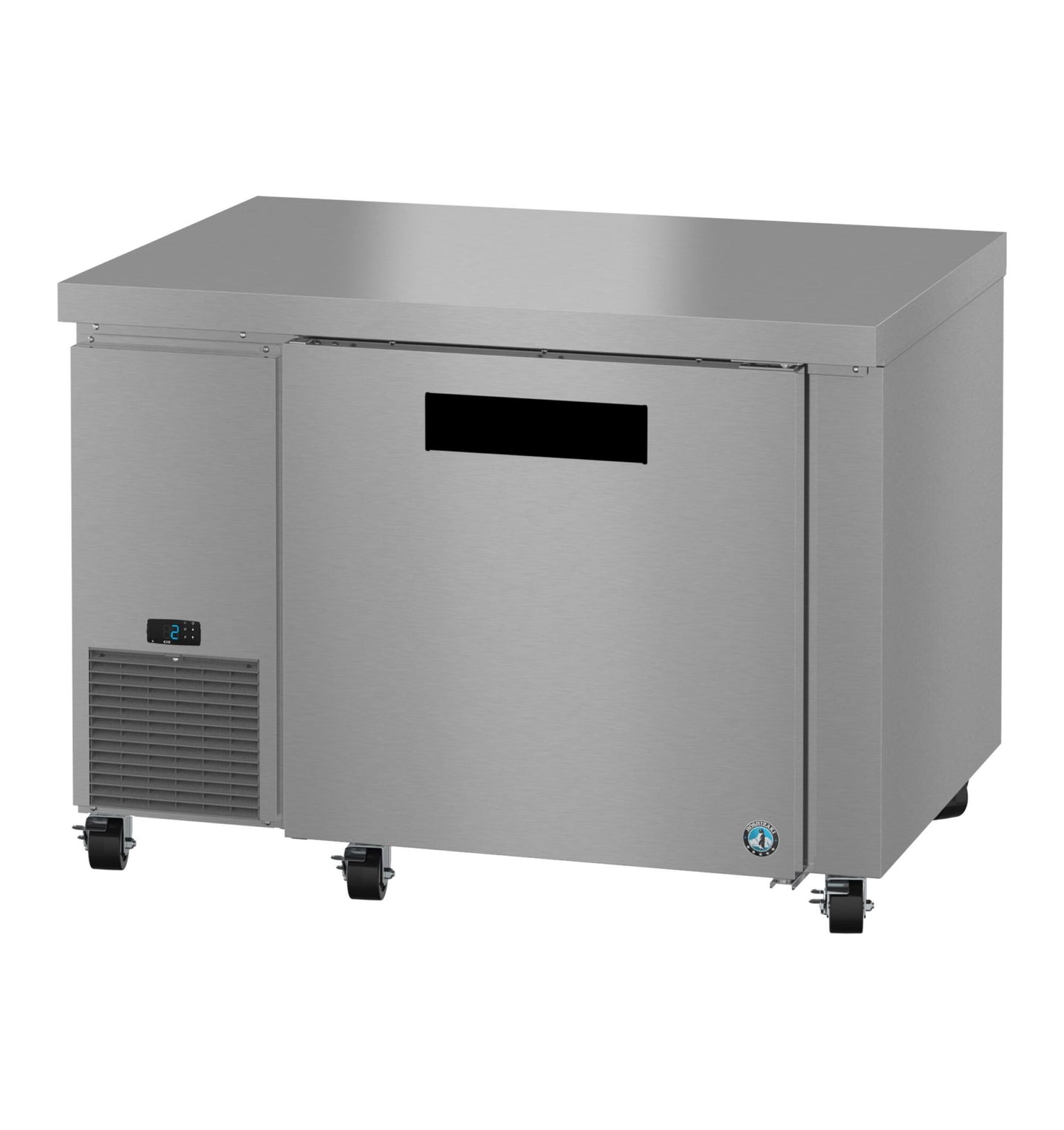

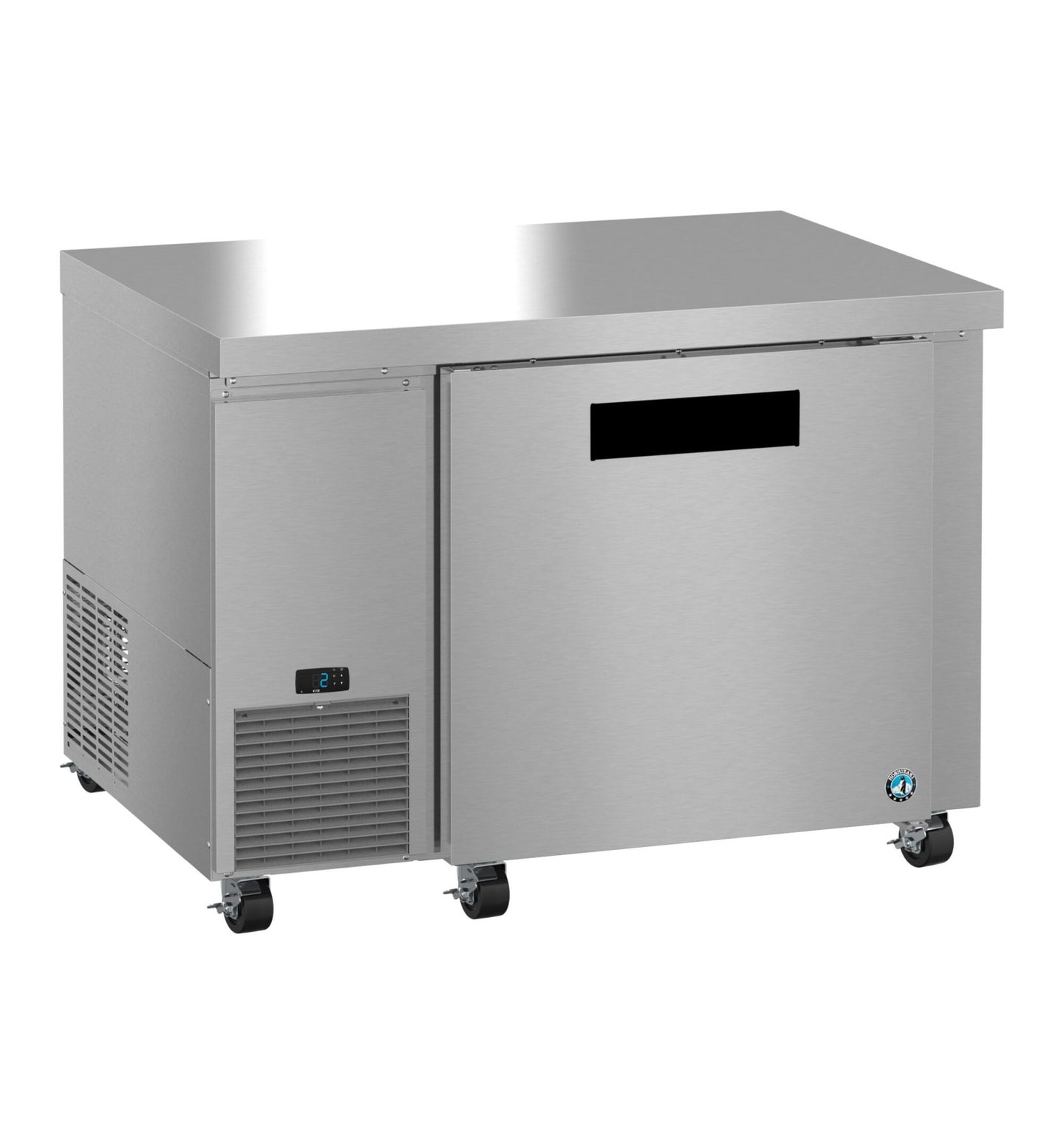

The Hoshizaki ULF46B is a 46-inch single-section Steelheart undercounter freezer with the refrigeration system mounted at the side rather than beneath the cabinet, yielding 11.78 cubic feet of usable storage behind one stainless door.

Why Side Mount Changes the Interior

On a conventional undercounter freezer the compressor and condenser occupy the bottom of the cabinet, which raises the interior floor and eats the space where full-height product would sit. Moving that assembly to the side gives the ULF46B a deeper, uninterrupted interior at the same external height, which is why 46 inches of width here holds nearly as much as a 48-inch bottom-mount cabinet. The practical gain is being able to stand tall containers and stacked full-size pans on the floor of the box rather than working around a raised deck.

Side Mount and Hot Kitchens

The second advantage is thermal. A bottom-mounted condenser sits in the hottest, greasiest layer of air in the kitchen, close to the floor where debris collects. Side mounting lifts the intake out of that zone, which generally means longer intervals between coil cleanings and less strain on the compressor in a hot line. The ULF46B is ENERGY STAR qualified, draws 4 amps at 115V and is rated at 3.36 kWh per day on R290 natural refrigerant.

Specifications

Model ULF46B
Type Side mount single section undercounter freezer, stainless door
Capacity 11.78 cu ft
Exterior Dimensions 46" W x 33.25" D x 33.875" H
Shipping Weight 263 lbs
Crate Dimensions 48.75" L x 34.75" D x 36" H
Electrical 115V/60Hz/1 phase, 4 amps
Plug / Cord NEMA 5-15P, 10 ft cord
Refrigerant R290
Energy Consumption 3.36 kWh/day
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & C), ETL Sanitation, Georgia Made Certified

Warranty

Hoshizaki covers the ULF46B with seven years on labor, seven years on parts and seven years on the compressor.
