Product Description

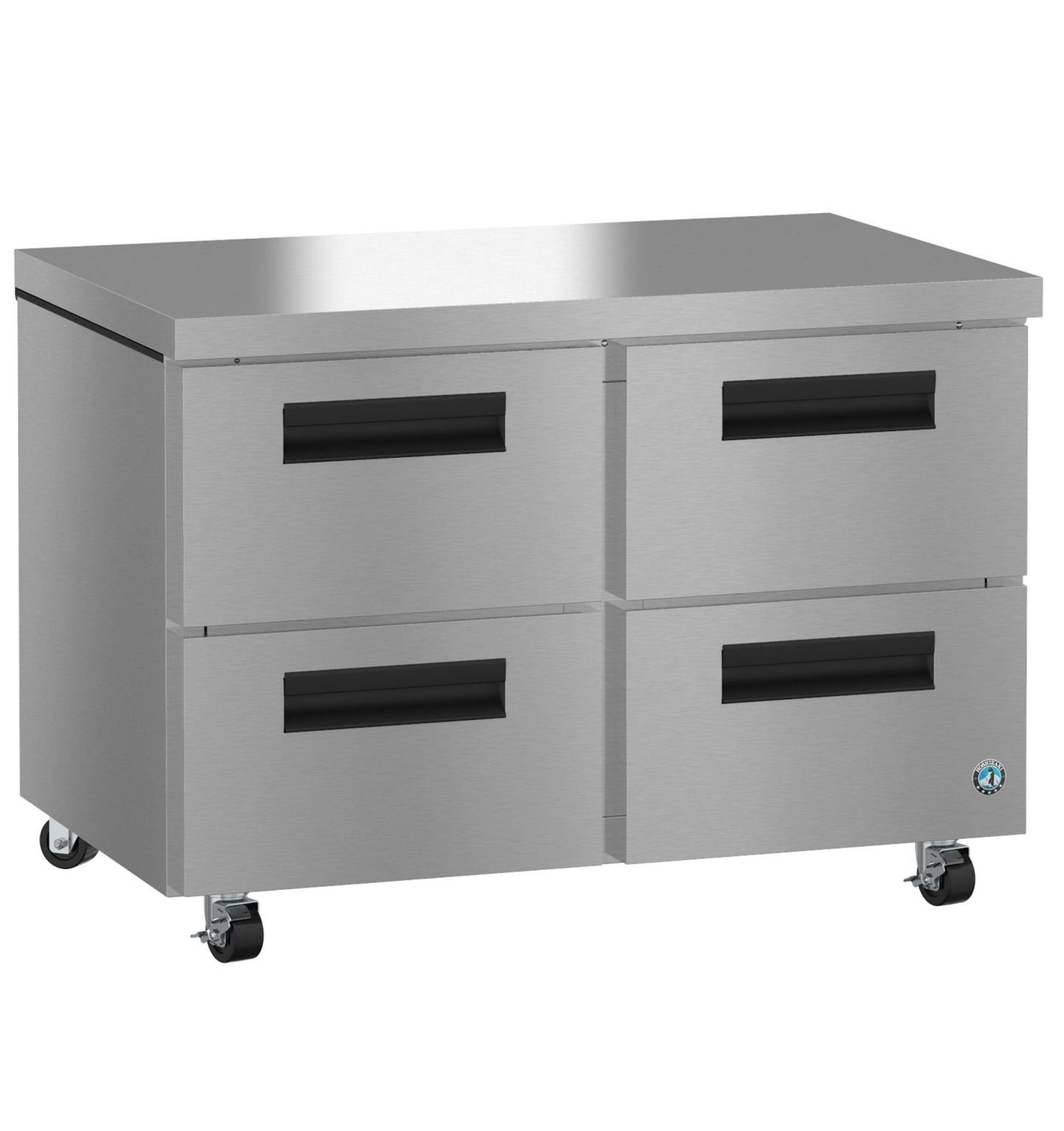

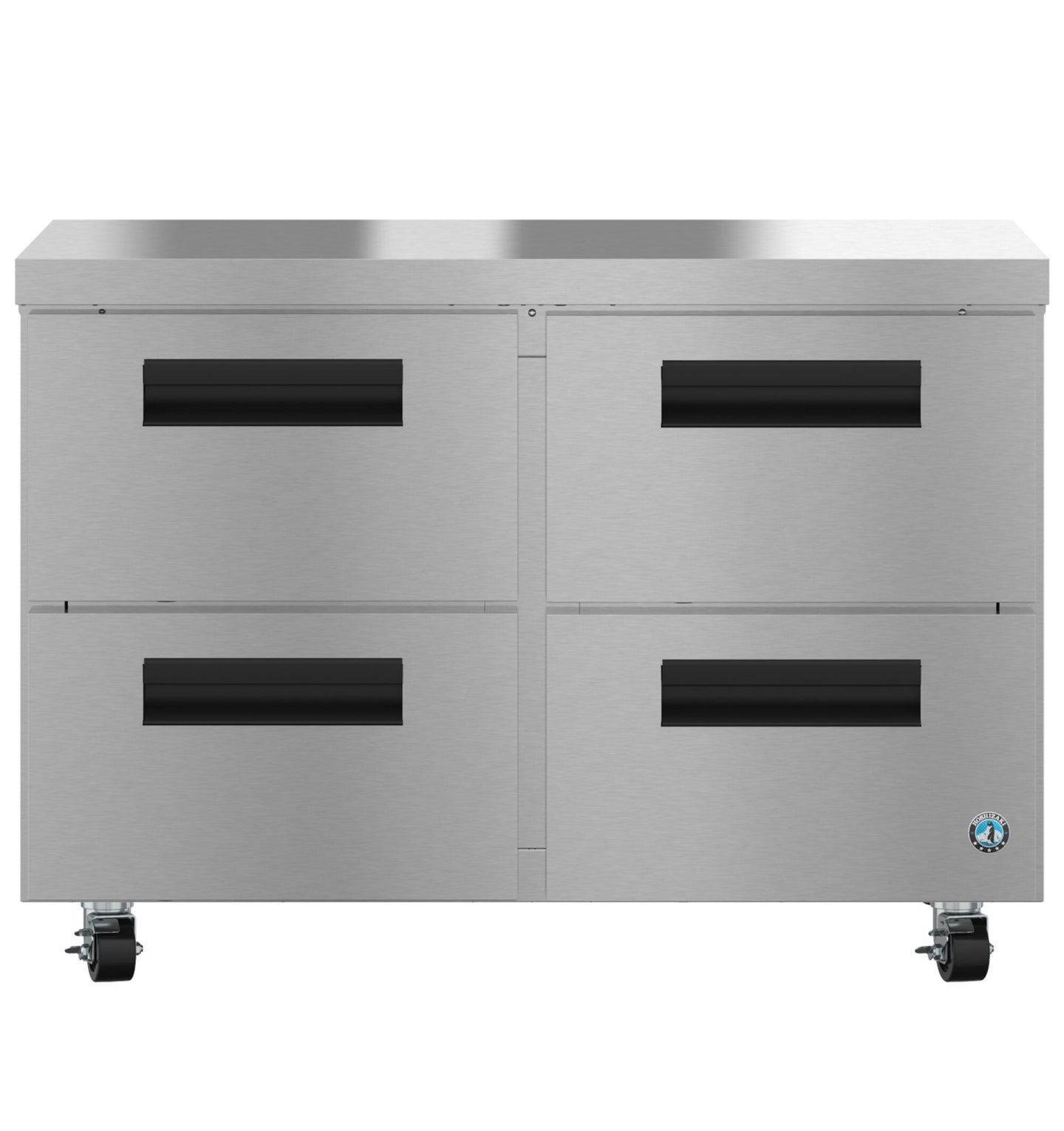

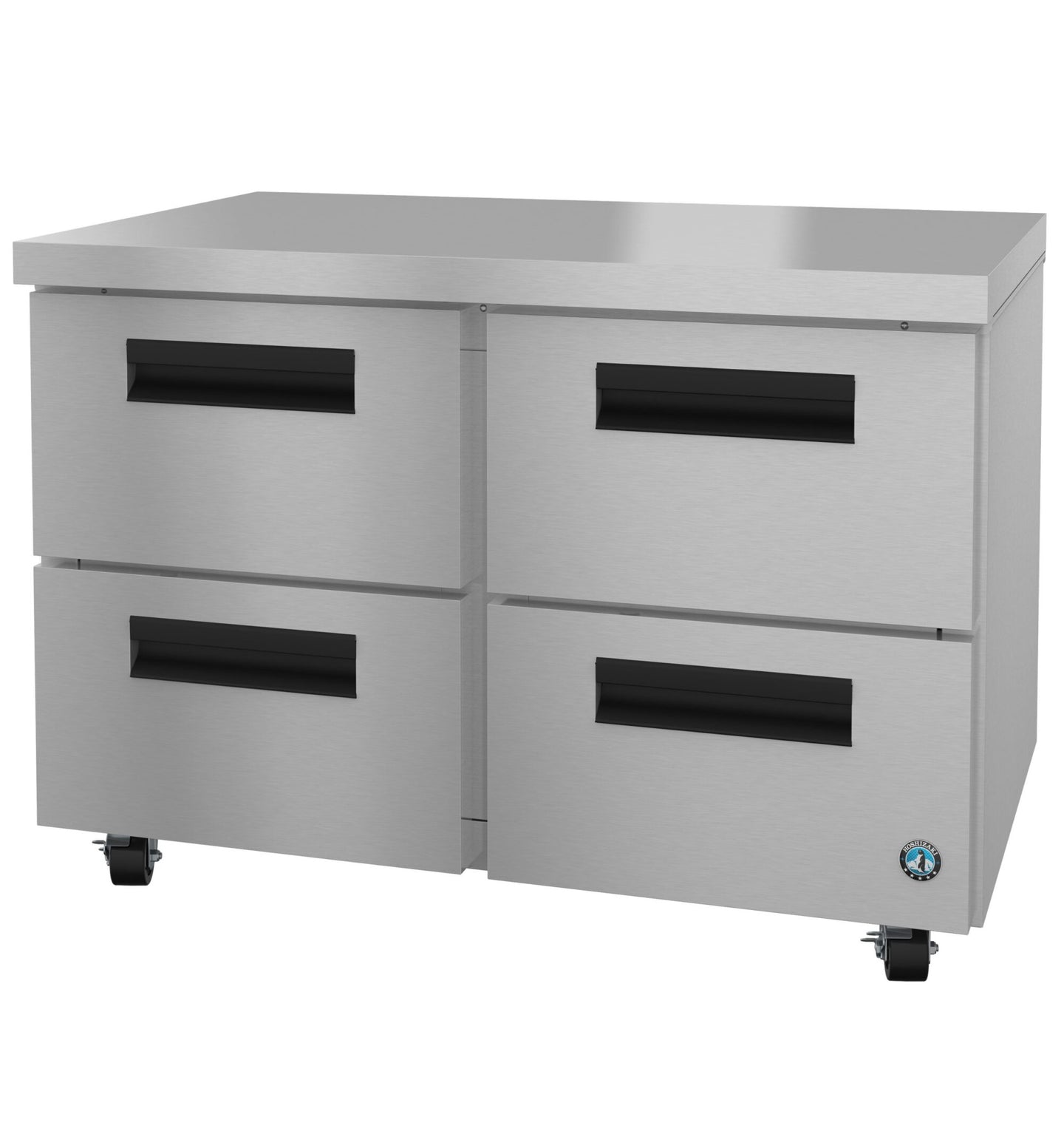

The Hoshizaki UF48B-D4 is a 48-inch two-section Steelheart undercounter freezer fitted with four stainless steel drawers, holding 13.66 cubic feet of nominal storage (12 cubic feet net) in a cabinet that fits a standard counter run.

All Drawers, No Doors

Four drawers across 48 inches gives you four defined zones instead of two shelves in the dark. On a high-volume line that is a workflow decision as much as a storage one: each drawer becomes a station's own pan, par levels are visible without unloading anything, and rotation gets enforced by geometry rather than by discipline. Because a drawer opens only to the depth needed, the cabinet sheds far less cold air per retrieval than a door swung wide, which matters when the unit is opened several hundred times a shift.

Built to Take the Cycling

Drawer slides and gaskets are the wear items on a cabinet like this, and Hoshizaki backs the whole unit with seven years on parts, labor and compressor. That is the specification difference that separates the D4 from the outgoing UF48A-D4, which carried three years parts and labor and drew 5.9 amps against this cabinet's 4. Daily consumption also improved from 6.08 kWh to 3.6.

Specifications

Model UF48B-D4
Type Two section undercounter freezer, four stainless drawers
Capacity 13.66 cu ft nominal / 12 cu ft net
Exterior Dimensions 48" W x 30" D x 33.75" H
Shipping Weight 331 lbs
Crate Dimensions 52.5" L x 34" D x 36.5" H
Electrical 115V/60Hz/1 phase, 4 amps
Plug / Cord NEMA 5-15P, 10 ft cord
Refrigerant R290
Energy Consumption 3.6 kWh/day
Certifications ETL Safety Listed (US & C), ETL Sanitation, Georgia Made Certified

Warranty

Hoshizaki covers the UF48B-D4 with seven years on labor, seven years on parts and seven years on the compressor.
