Product Description

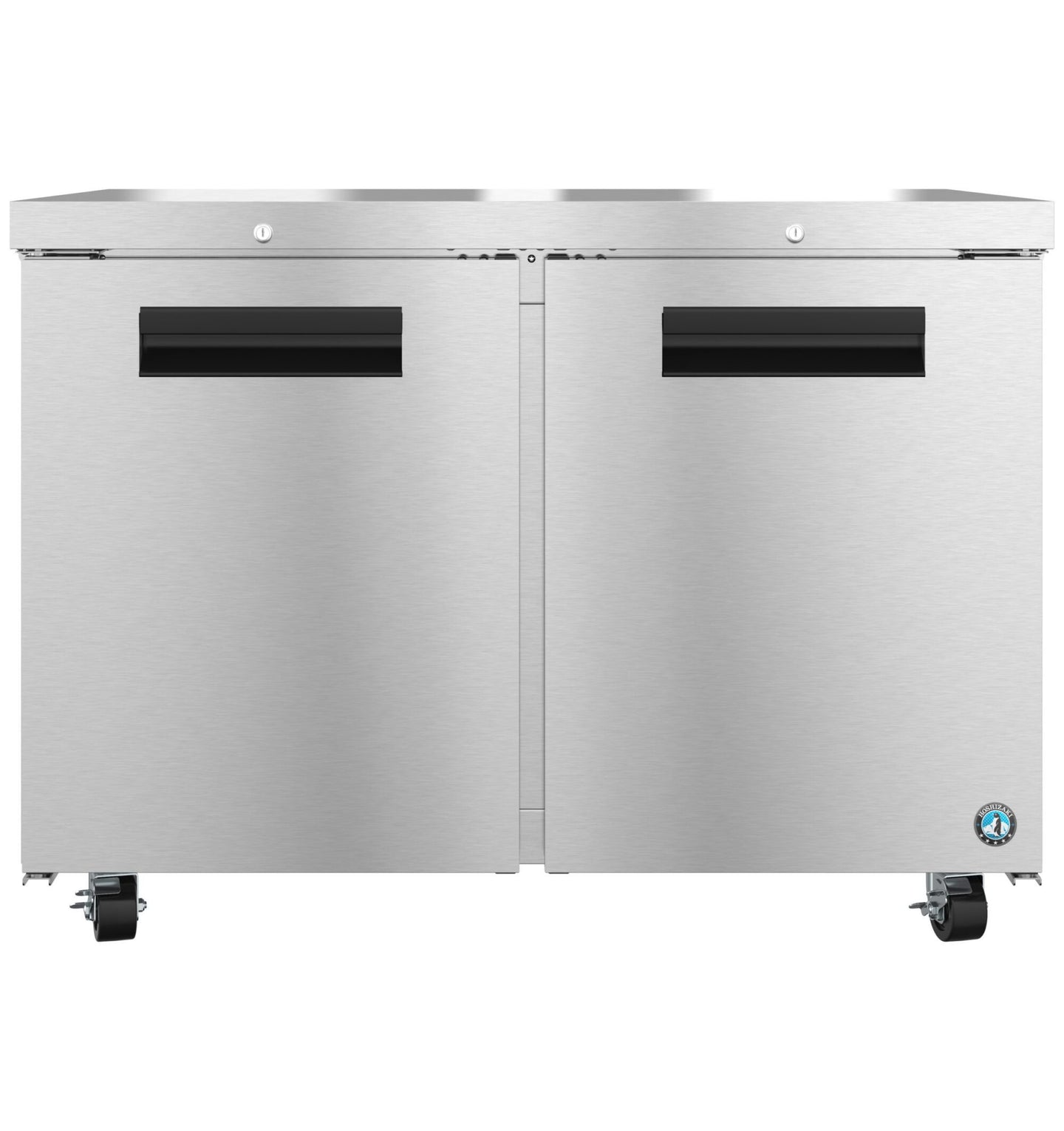

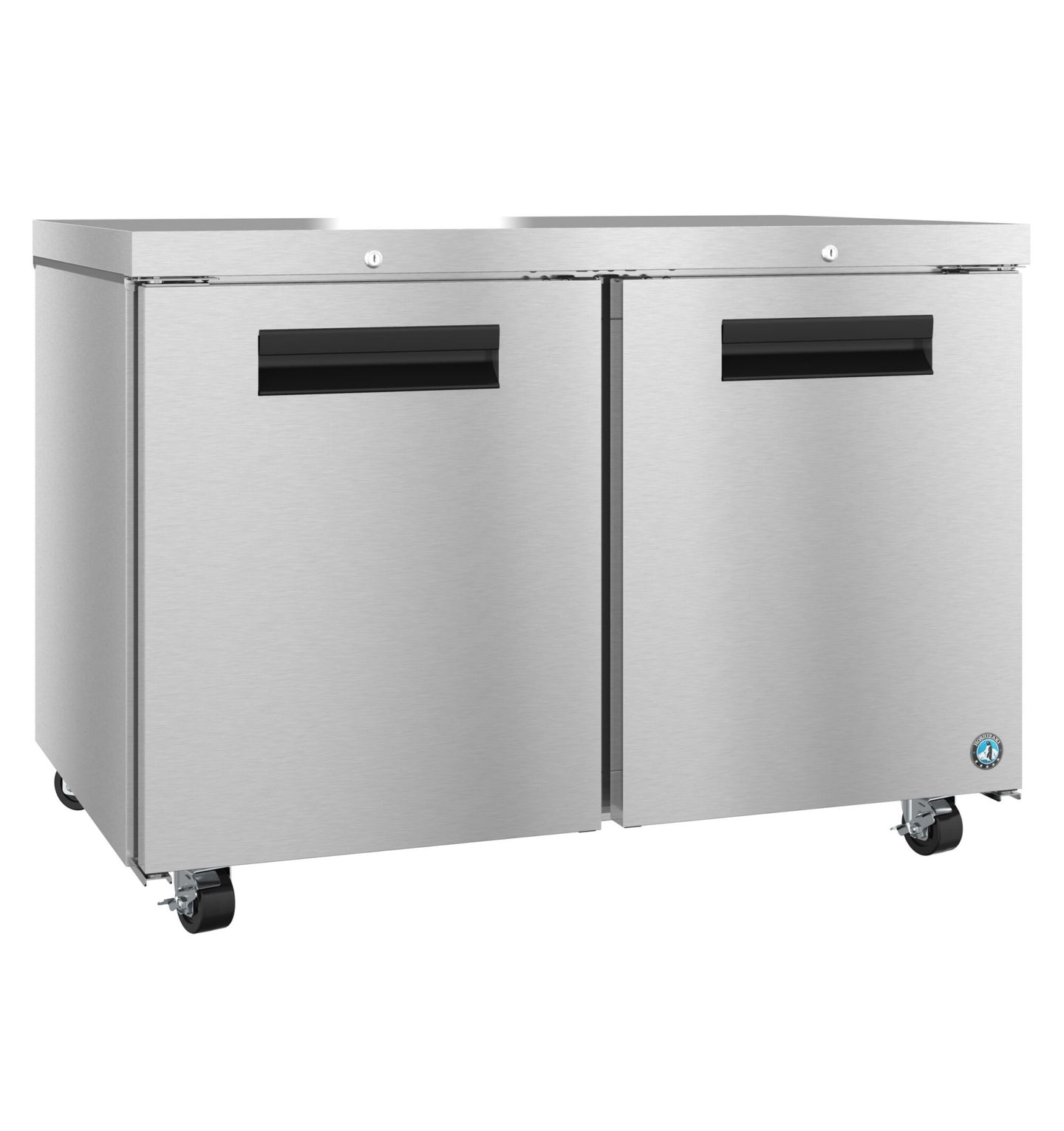

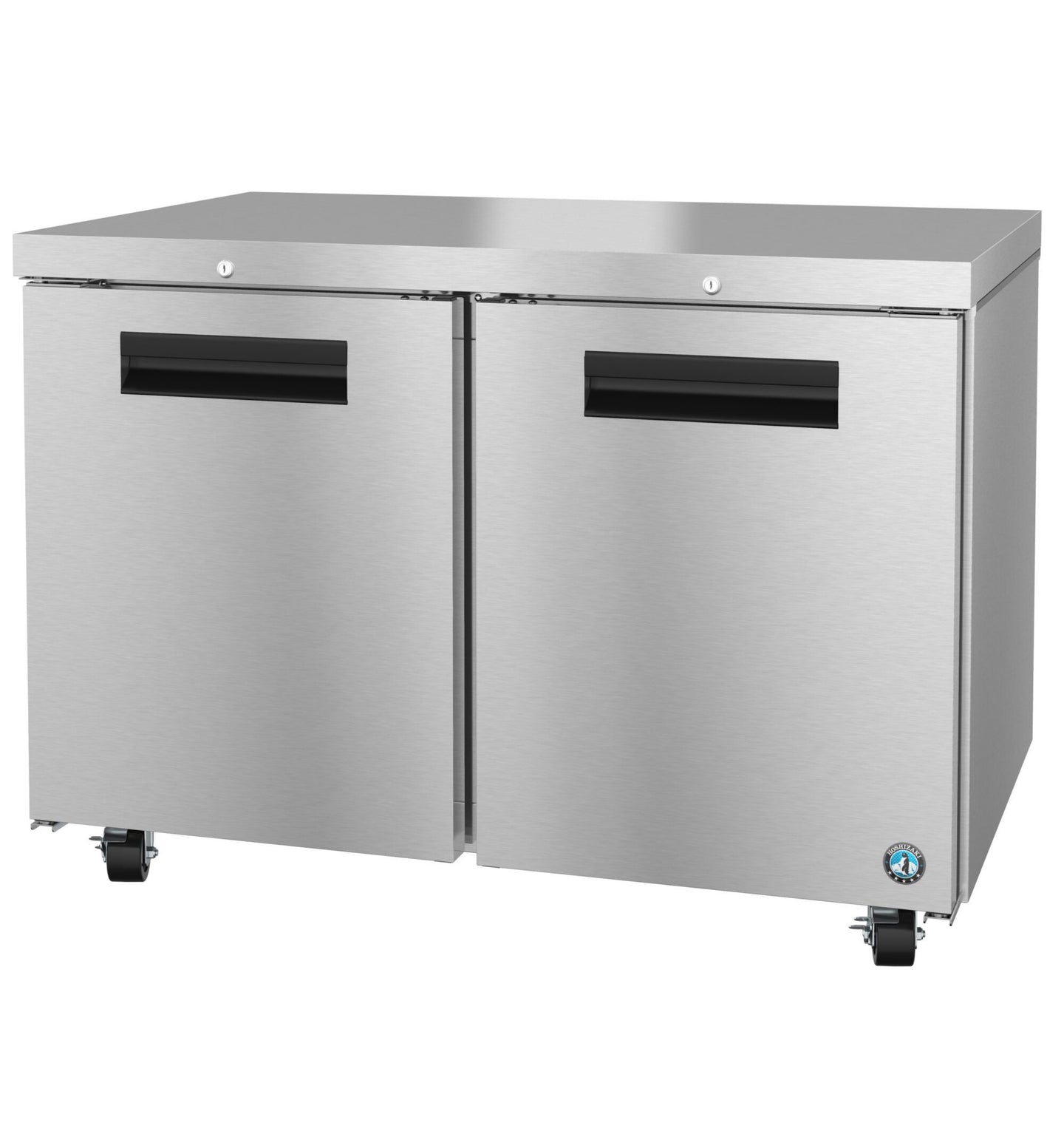

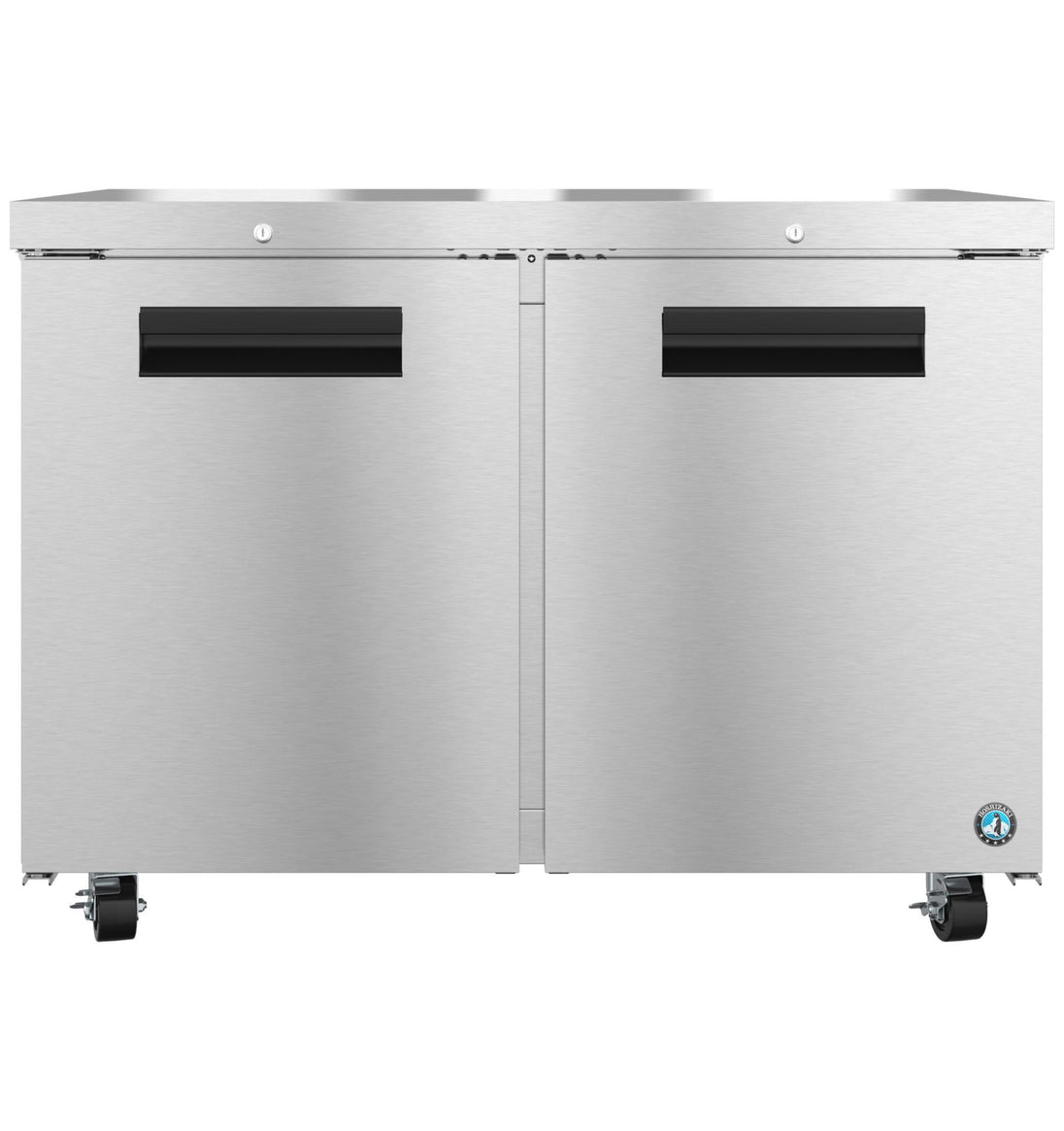

The Hoshizaki UF48B-01 is a 48-inch two-section Steelheart undercounter freezer holding 13.66 cubic feet of nominal storage (12 cubic feet net) behind solid stainless doors. It is the current-generation B-series cabinet, and the generational jump from the A-series it succeeds is substantial.

What the B Series Changed

Two numbers tell the story against the outgoing UF48A. Current draw fell from 5.9 amps to 3.6, and warranty coverage went from three years parts and labor to seven years on parts, labor and compressor alike. The cabinet also lost 12 pounds of shipping weight while keeping the same 13.66 cubic feet. For a kitchen running several cabinets on shared circuits, the amperage reduction is the one that shows up in the electrical plan.

Front Airflow for Tight Installs

The Steelheart platform breathes through the front, which is what makes a built-in undercounter installation possible at all. A cabinet that vents from the rear or sides needs clearance you rarely have in a counter run; front airflow lets the unit sit shoulder to shoulder with fixed equipment and still reject heat properly. At 48 by 30 by 33.75 inches it finishes flush at standard worktable height.

Natural Refrigerant

R290 hydrocarbon refrigerant handles the load at 3.6 amps on a standard 115V circuit, rated at 3.6 kWh per day. Built in Georgia and Georgia Made certified.

Specifications

Model UF48B-01
Type Two section undercounter freezer, stainless doors
Capacity 13.66 cu ft nominal / 12 cu ft net
Exterior Dimensions 48" W x 30" D x 33.75" H
Shipping Weight 258 lbs
Crate Dimensions 52.5" L x 34" D x 36.5" H
Electrical 115V/60Hz/1 phase, 3.6 amps
Plug / Cord NEMA 5-15P, 10 ft cord
Refrigerant R290
Energy Consumption 3.6 kWh/day
Certifications ETL Safety Listed (US & C), ETL Sanitation, Georgia Made Certified

Warranty

Hoshizaki covers the UF48B-01 with seven years on labor, seven years on parts and seven years on the compressor.
