Product Description

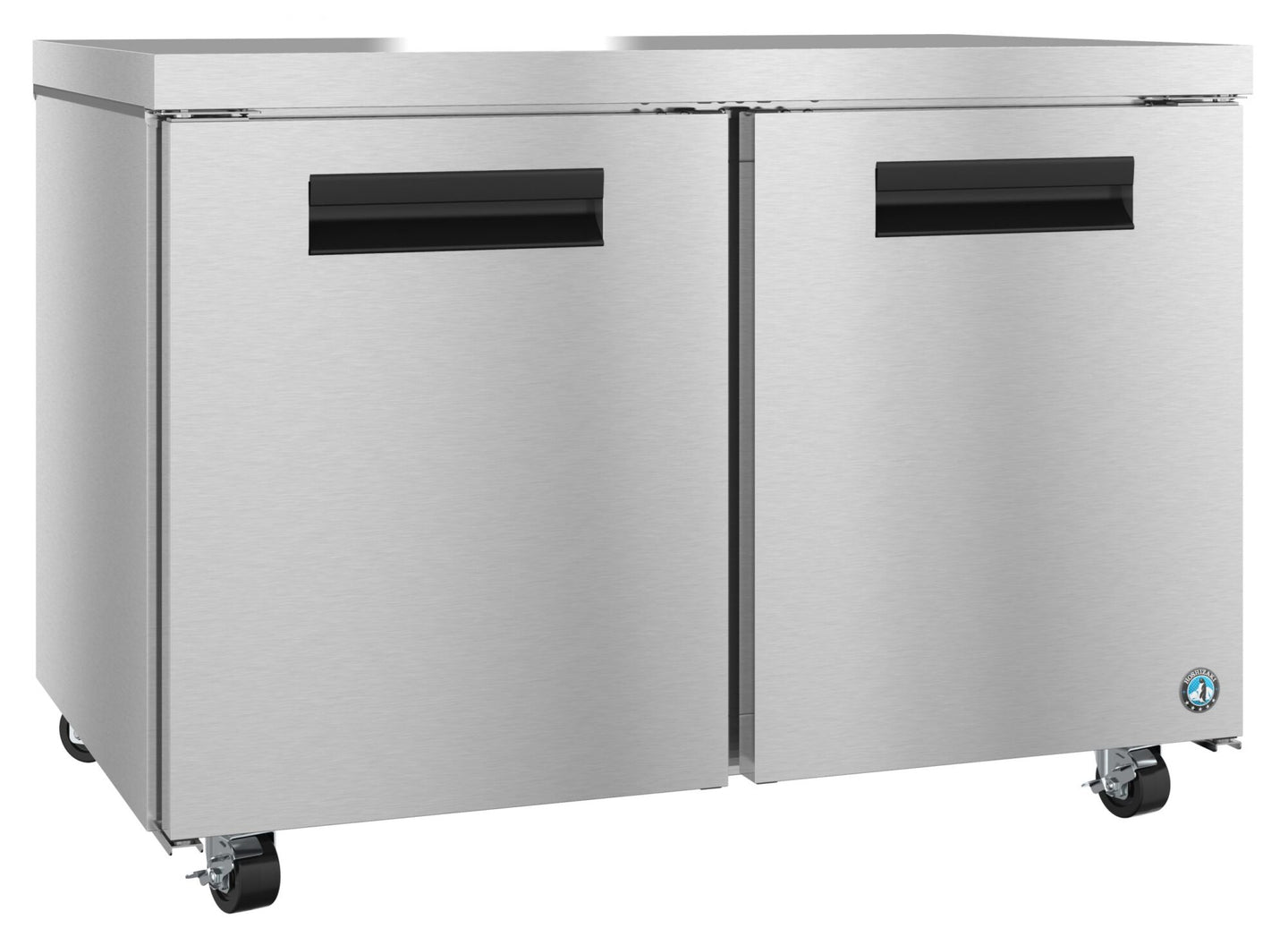

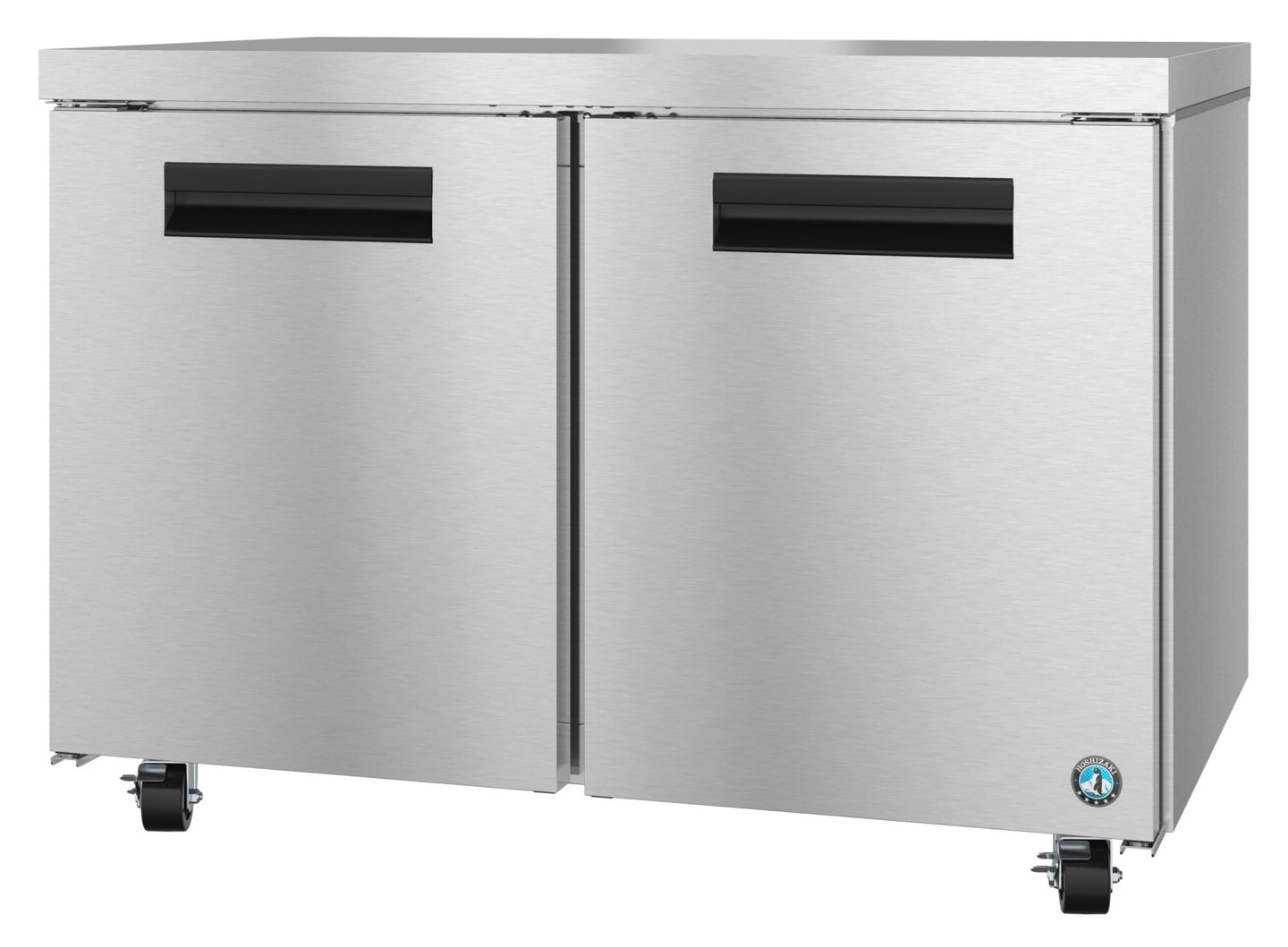

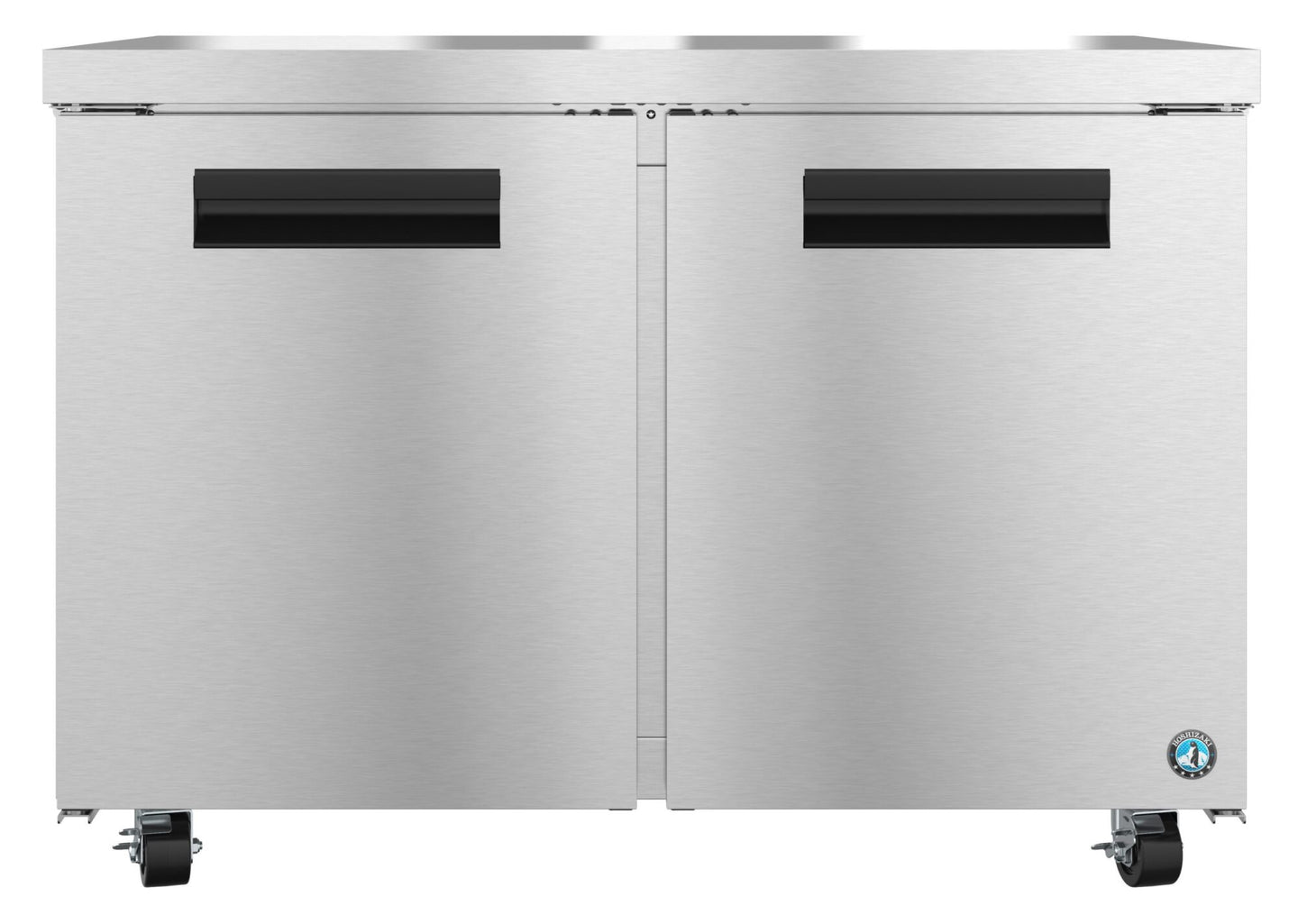

The Hoshizaki UF48A is a 48-inch two-section Steelheart undercounter freezer offering 13.66 cubic feet of nominal storage (12 cubic feet net) behind a pair of solid stainless doors. It is the workhorse size in the undercounter line, wide enough to hold a working day's frozen product without occupying a full reach-in footprint.

Two Sections, One Compressor

Dividing 48 inches into two doors is the practical choice for a busy line. Opening one door exposes half the cabinet, so each retrieval dumps roughly half the cold air a single wide door would, and the compressor cycles less. Both sections share one refrigeration system, so you get the door discipline without paying for two machines.

Standard Counter Fit

At 48 inches wide, 30 inches deep and 33.63 inches high, the UF48A drops into a standard commercial counter run and finishes flush at worktable height. That 30-inch depth is worth checking against your line: it matches standard counter depth, so the cabinet will not protrude into the aisle.

R290 Refrigeration

The cabinet runs R290 hydrocarbon refrigerant, drawing 5.9 amps at 115V and rated at 3.64 kWh per day. R290 carries no ozone depletion potential and a global warming potential far below the HFC blends it replaced.

Specifications

Model UF48A
Type Two section undercounter freezer, stainless doors
Capacity 13.66 cu ft nominal / 12 cu ft net
Exterior Dimensions 48" W x 30" D x 33.63" H
Shipping Weight 270 lbs
Crate Dimensions 51" L x 32" D x 36" H
Electrical 115V/60Hz/1 phase, 5.9 amps
Plug / Cord NEMA 5-15P, 10 ft cord
Refrigerant R290
Energy Consumption 3.64 kWh/day
Certifications ETL Safety Listed (US & C), ETL Sanitation

Warranty

Hoshizaki covers the UF48A with three years on parts and labor and five years on the compressor.
