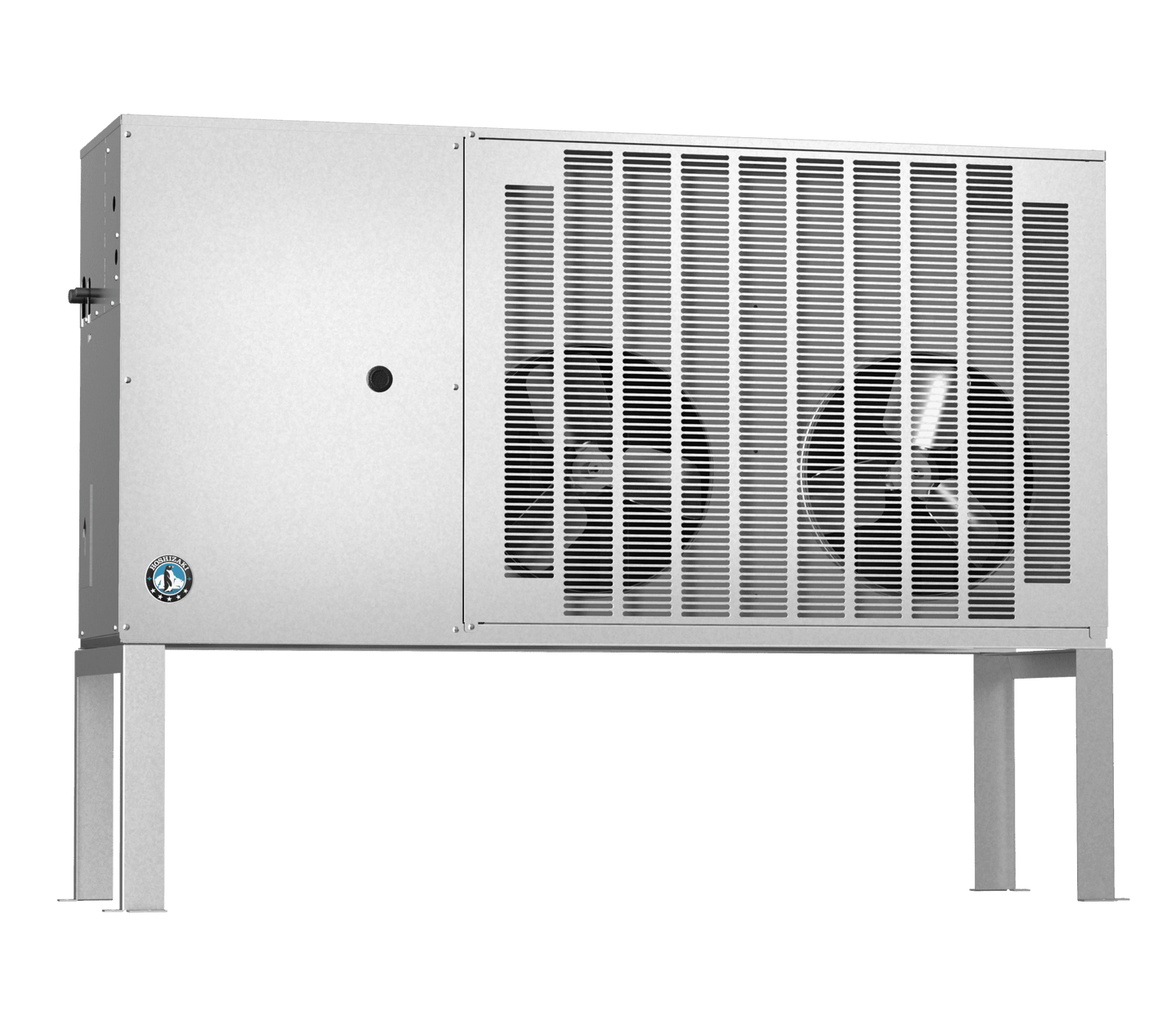

Hoshizaki SRK-20J3 three phase remote condenser unit for KMS-2000MLJ-3 icemaker

Product Description

The Hoshizaki SRK-20J3 is the three-phase version of the largest condenser in the SRK range, matched to the KMS-2000MLJ-3 remote-cooled crescent cuber. It shares the 62-inch cabinet and 26 lb refrigerant charge of the single-phase SRK-20J.

Three Phase Supply

Power is 208-230V three phase, four wire including ground, hardwired at the site with no cord or plug supplied. The condenser phase has to match the icemaker head: the SRK-20J3 pairs with the KMS-2000MLJ-3, while the single-phase SRK-20J pairs with the KMS-2000MLJ. Confirm which head variant is on the order and what supply the site actually has before specifying.

Top of the Output Range

This condenser is sized for Hoshizaki's highest-output Serenity Series crescent cuber. Its 26 lb 14.3 oz R-404A charge is substantially larger than the units serving smaller heads, and it is not interchangeable with them.

Siting

The cabinet is weather-resistant for outdoor installation, keeping compressor heat and fan noise out of the room where the icemaker sits. Hoshizaki specifies 24 inches of clearance for airflow, and refrigerant line kits are sold separately.

Specifications

Model SRK-20J3
Type Remote condenser unit, outdoor rated
Compatible Icemaker KMS-2000MLJ-3 (sold separately)
Exterior Dimensions 62" W x 21" D x 45" H
Shipping Weight 345 lbs
Electrical 208-230V / 60 Hz / 3 phase, 4 wire including ground, hardwired
Voltage Range 187-253V
Refrigerant R-404A, 26 lbs 14.3 oz (12,198 g)
Certifications UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire unit, and five years parts on the air-cooled condenser coil.
