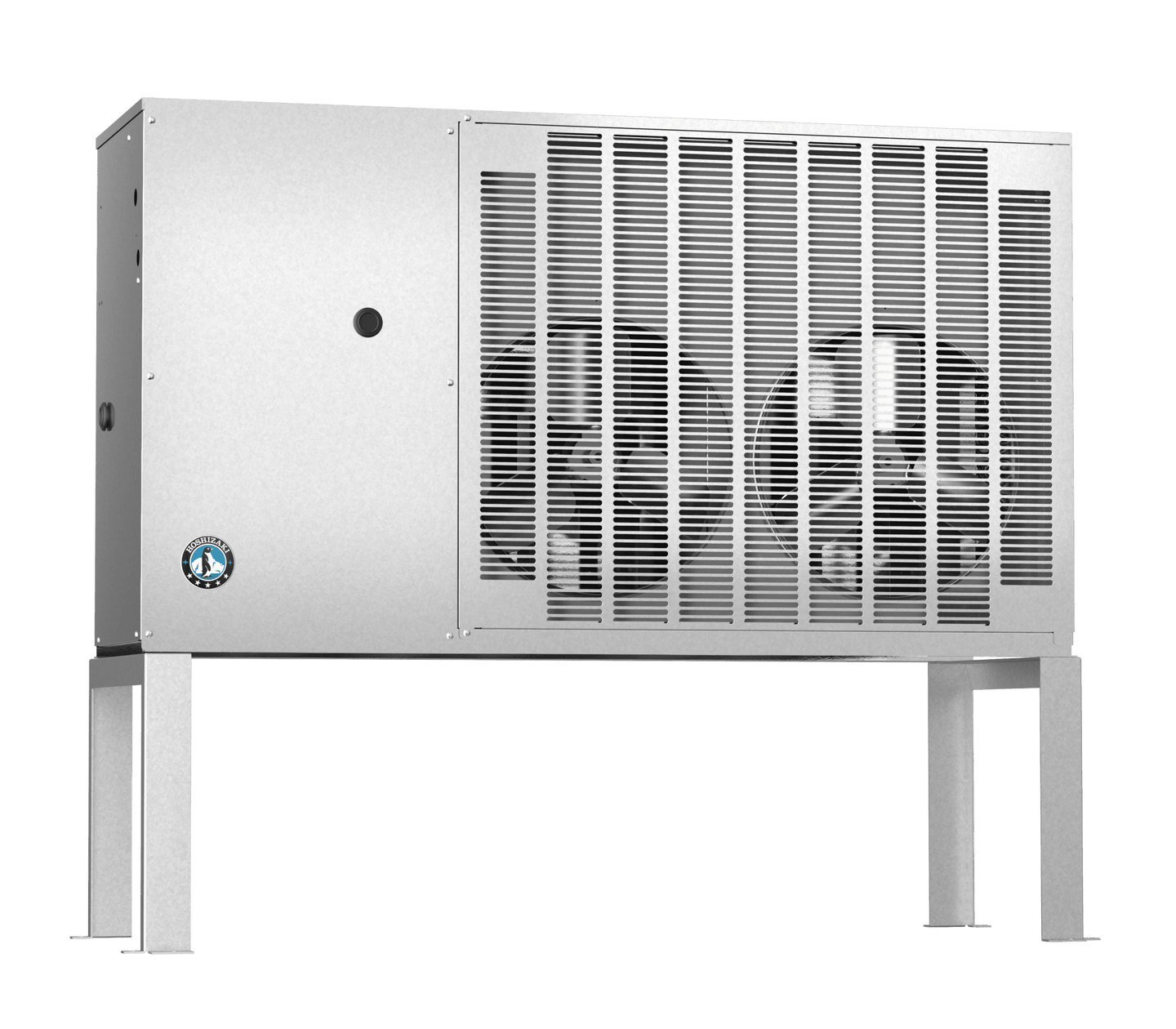

Hoshizaki SRK-15J remote condenser unit for KMS-1402MLJ icemaker

Product Description

The Hoshizaki SRK-15J is a weather-resistant remote condenser rated at 28,400 BTU/h and matched to the KMS-1402MLJ remote-cooled crescent cuber from the Serenity Series. This is the single-phase version.

Capacity Step Up

At 28,400 BTU/h the SRK-15J rejects considerably more heat than the SRK-12J in the same cabinet size, which is what allows it to serve the higher-output KMS-1402MLJ head. Condensers are matched to their icemaker by capacity and refrigerant charge; fitting an undersized condenser will not produce rated ice and will run the system hard.

Single Phase or Three Phase

The SRK-15J is the 230V single-phase unit, paired with the KMS-1402MLJ. The SRK-15J3 is the three-phase equivalent, paired with the KMS-1402MLJ-3. Confirm both the icemaker variant and the supply available at the site before ordering.

Siting

The cabinet is built for outdoor mounting, and Hoshizaki specifies 24 inches of clearance for airflow. Refrigerant tubing kits are sold separately in 25, 35 and 55 foot lengths, bounding the distance between condenser and head. Power is hardwired on site with four wire including ground; no cord or plug is supplied.

Specifications

Model SRK-15J
Type Remote condenser unit, outdoor rated
Compatible Icemaker KMS-1402MLJ (sold separately)
Capacity 28,400 BTU/h
Exterior Dimensions 52-3/8" W x 19-1/2" D x 43" H
Shipping Weight 275 lbs
Electrical 230V / 60 Hz / 1 phase, 4 wire including ground, hardwired
Voltage Range 187-253V
Refrigerant R-404A, 15 lbs 14 oz (7200 g)
Certifications UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire unit, and five years parts on the air-cooled condenser coil.
