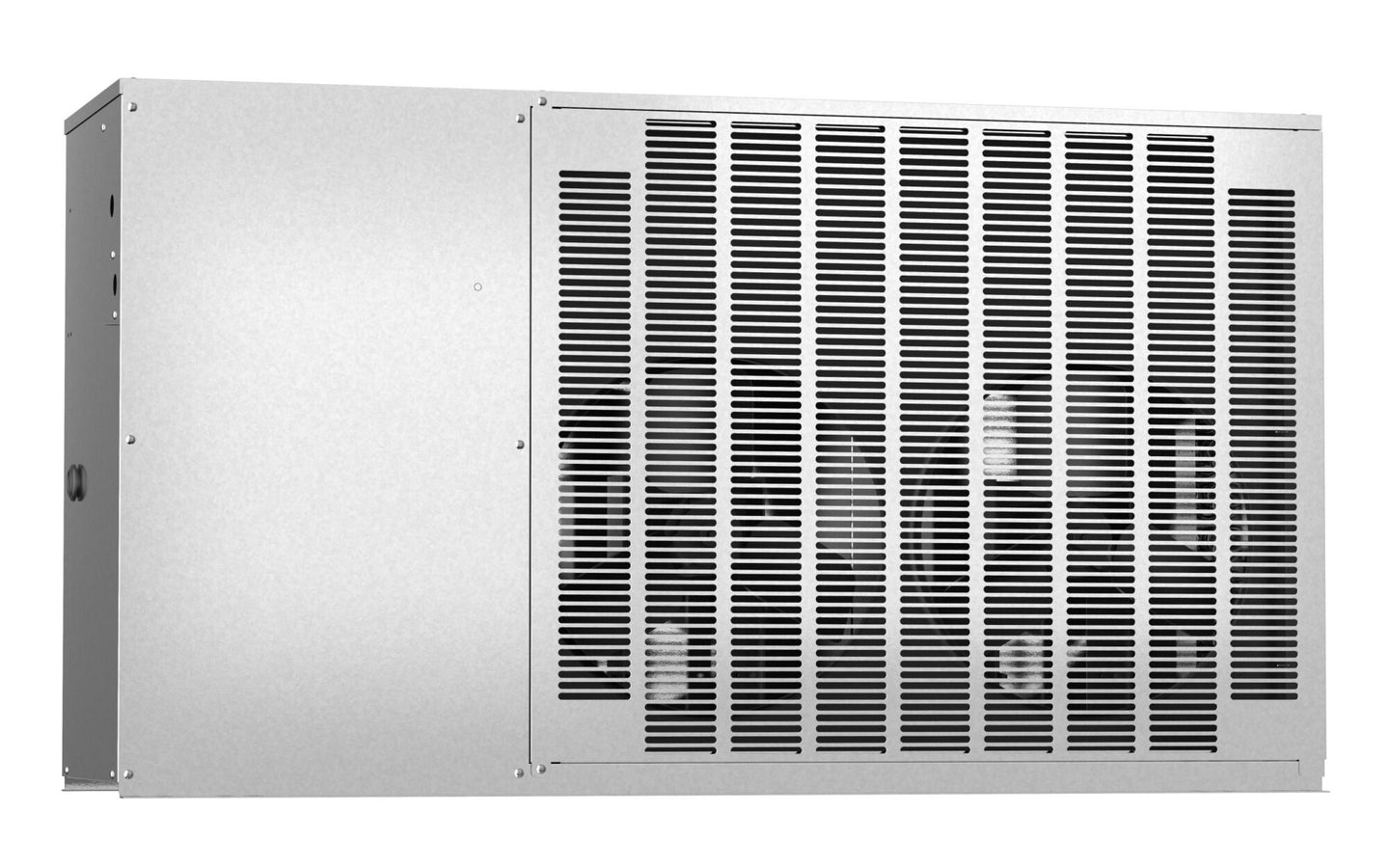

Hoshizaki SRK-12J3 three phase remote condenser unit for KMS-1122MLJ-3 icemaker

Product Description

The Hoshizaki SRK-12J3 is the three-phase remote condenser matched to the KMS-1122MLJ-3 remote-cooled crescent cuber. It is the same cabinet as the single-phase SRK-12J, configured for 230V three-phase supply.

Three Phase Wiring

This unit runs on 230V three phase, four wire including ground, hardwired at the site. If a neutral is not available at the installation, Hoshizaki requires transformer kit HS-5030. That is the detail most often missed at quoting stage, so it is worth confirming with the electrician before the condenser is ordered rather than after it arrives. The condenser's phase must also match the icemaker head it serves — pair the SRK-12J3 with the KMS-1122MLJ-3, and the single-phase SRK-12J with the KMS-1122MLJ.

Why Remote

Locating the condenser outdoors keeps compressor heat and fan noise out of the room where the ice machine stands. In a kitchen already running hot, that heat would otherwise raise ambient temperature for every other refrigerated unit in the space.

Installation

The cabinet is weather-resistant for outdoor mounting and requires 24 inches of clearance for airflow. Refrigerant tubing kits are sold separately in 25, 35 and 55 foot lengths, which sets the practical distance between condenser and head.

Specifications

Model SRK-12J3
Type Remote condenser unit, outdoor rated
Compatible Icemaker KMS-1122MLJ-3 (sold separately)
Exterior Dimensions 52-3/8" W x 19-1/2" D x 43" H
Shipping Weight 275 lbs
Electrical 230V / 60 Hz / 3 phase, 4 wire including ground, hardwired
Voltage Range 187-253V
Transformer HS-5030 kit required if neutral unavailable
Refrigerant R-404A, 15 lbs 14 oz (7200 g)
Certifications UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire unit, and five years parts on the air-cooled condenser coil.
