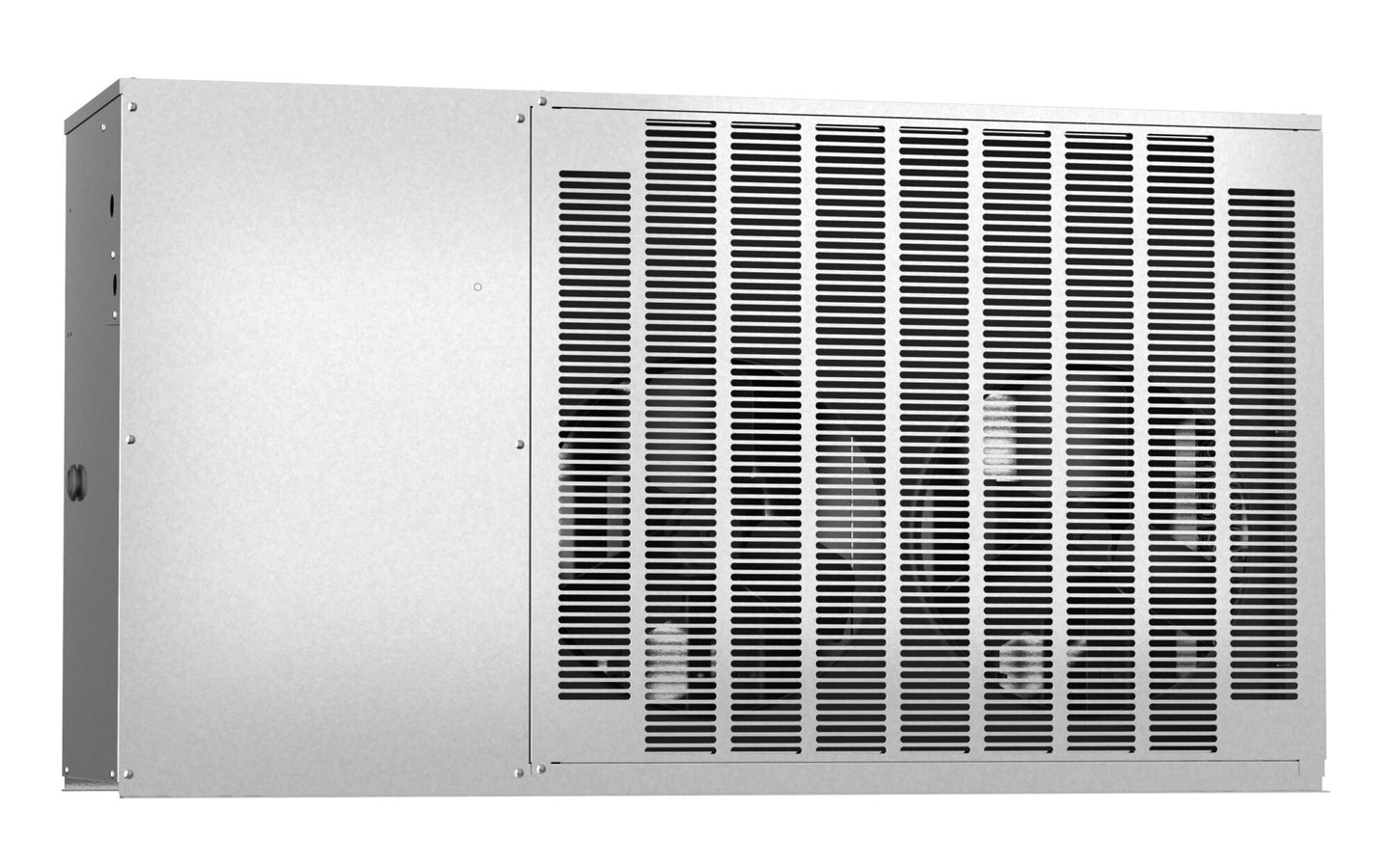

Hoshizaki SRK-12J remote condenser unit for KMS-1122MLJ icemaker

Product Description

The Hoshizaki SRK-12J is a weather-resistant remote condenser rated at 16,500 BTU/h and matched to the KMS-1122MLJ remote-cooled crescent cuber. This is the single-phase version; the SRK-12J3 covers the same pairing on three-phase power.

Single Phase or Three Phase

The SRK-12J runs on 230V single phase. Its counterpart, the SRK-12J3, is otherwise the same unit configured for 230V three phase and matched to the KMS-1122MLJ-3 head. The phase of the condenser must match the phase of the icemaker it serves and the supply available at the site, so confirm both before ordering.

Remote Cooling in Practice

Moving the condenser outdoors keeps the compressor heat and fan noise out of the room the ice machine occupies. This unit operates across an ambient range of −20°F to 122°F, which is what lets it run outdoors year round in most of the country rather than only in mild climates.

Installation

Hoshizaki specifies 24 inches of clearance front and rear for airflow. Refrigerant tubing kits are sold separately in 25, 35 and 55 foot lengths, which bounds the distance between condenser and head. The unit is hardwired on site with four wire including ground; no cord or plug is supplied.

Specifications

Model SRK-12J
Type Remote condenser unit, outdoor rated
Compatible Icemaker KMS-1122MLJ (sold separately)
Capacity 16,500 BTU/h
Exterior Dimensions 52-3/8" W x 19-1/2" D x 43" H
Shipping Weight 275 lbs
Electrical 230V / 60 Hz / 1 phase, 4 wire including ground, hardwired
Voltage Range 187-253V
Refrigerant R-404A, 15 lbs 14 oz (7200 g)
Ambient Range −20°F to 122°F
Certifications UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire unit, and five years parts on the air-cooled condenser coil.
