Product Description

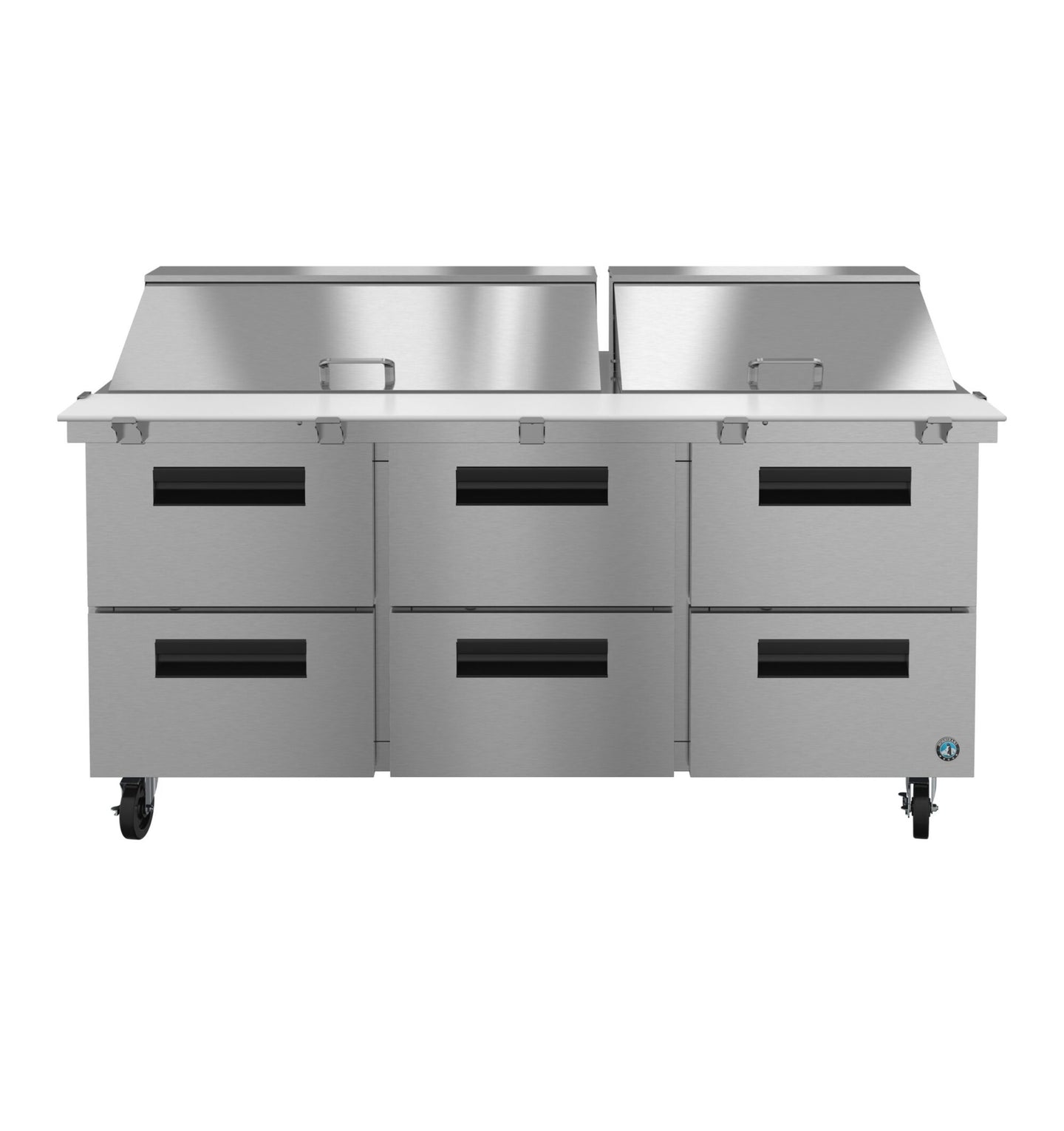

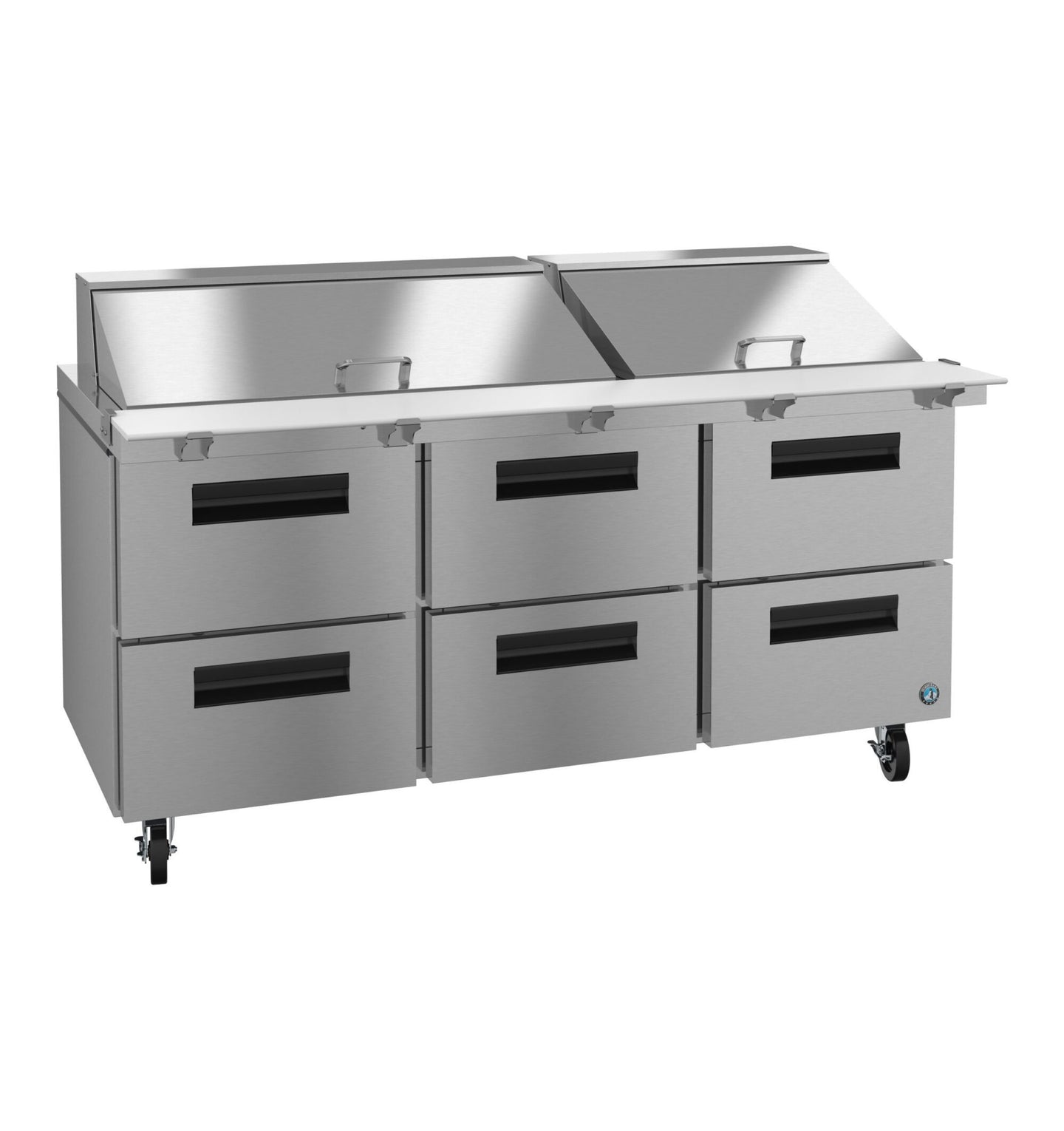

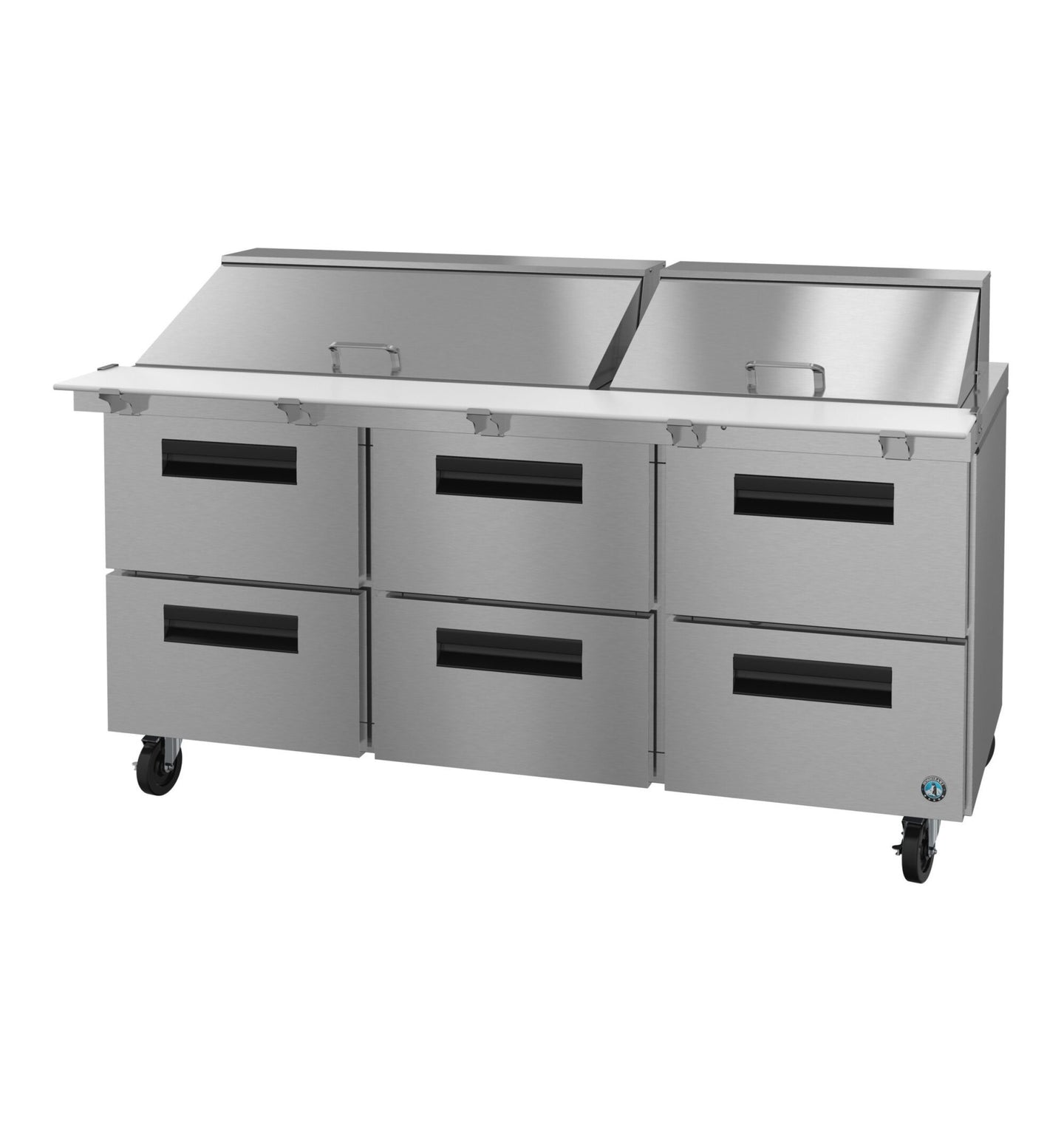

The Hoshizaki SR72B-30MD6 is the all-drawer configuration of the Steelheart Series 72-inch mega top prep table: six stainless drawers under a thirty-pan rail, with 18 cubic feet of net refrigerated storage.

Six Drawers, No Doors

Every section of this cabinet is a drawer, which makes it the choice for a station that portions everything into pans and never needs to store a tall item. The top drawers each take one 1/2-size and one 1/3-size pan at 4 inches deep; the bottom drawers take the same pan sizes at 6 inches deep, so bulk components live low and working components live at hand height.

Why an All-Drawer Base Holds Temperature Better

A drawer exposes only its own volume when opened, while a full-height door dumps the cold air of an entire section every time. On a line that opens refrigerated storage dozens of times an hour, an all-drawer base recovers faster and cycles the compressor less than the equivalent door cabinet. The trade is cost and the loss of anywhere to stand a cambro upright.

Front Airflow and R290

Front intake and front discharge let the unit be pushed against a wall or set between hot equipment. R290 natural refrigerant, 4 amps at 115V, 5.05 kWh per day.

Specifications

Model SR72B-30MD6
Type Three section mega top prep table refrigerator, stainless drawers
Series Steelheart
Configuration 6 stainless drawers; top drawers take (1) 1/2 and (1) 1/3 size pan 4 in deep, bottom drawers (1) 1/2 and (1) 1/3 size pan 6 in deep
Net capacity 18 cu ft (21.25 cu ft nominal)
Rail capacity 30 pans, 1/6 size
Exterior dimensions 72 in W x 34 in D x 44.25 in H
Shipping weight 539 lb
Electrical 115V / 60 Hz / 1 phase, 4 amps
Cord and plug 10 ft cord, NEMA 5-15P
Refrigerant R290
Energy consumption 5.05 kWh/day
Certifications ETL Safety Listed (US and Canada), ETL Sanitation, Georgia Made Certified

Warranty

Hoshizaki 7-7-7 warranty: seven years labor, seven years parts, seven years compressor.
