Product Description

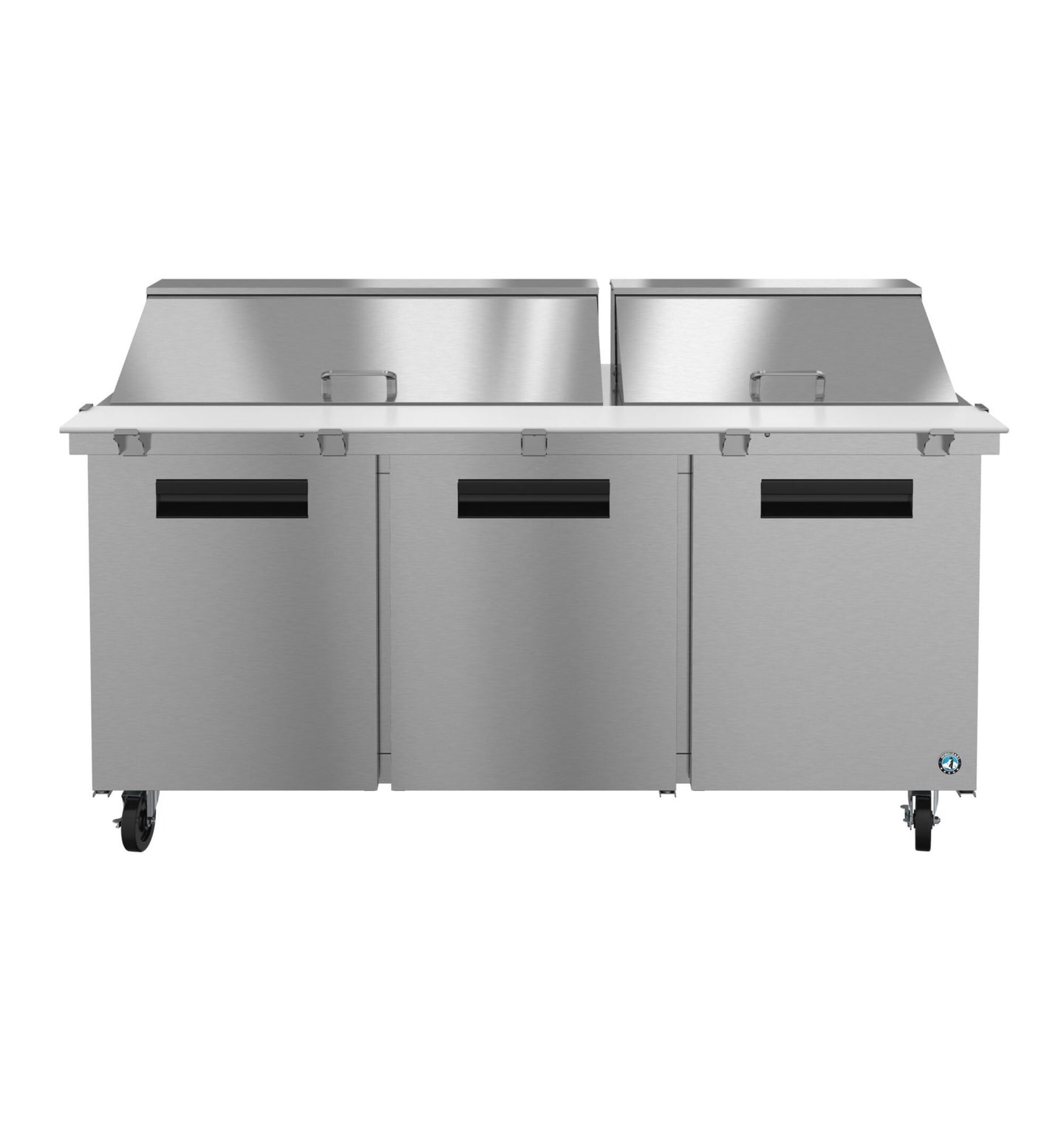

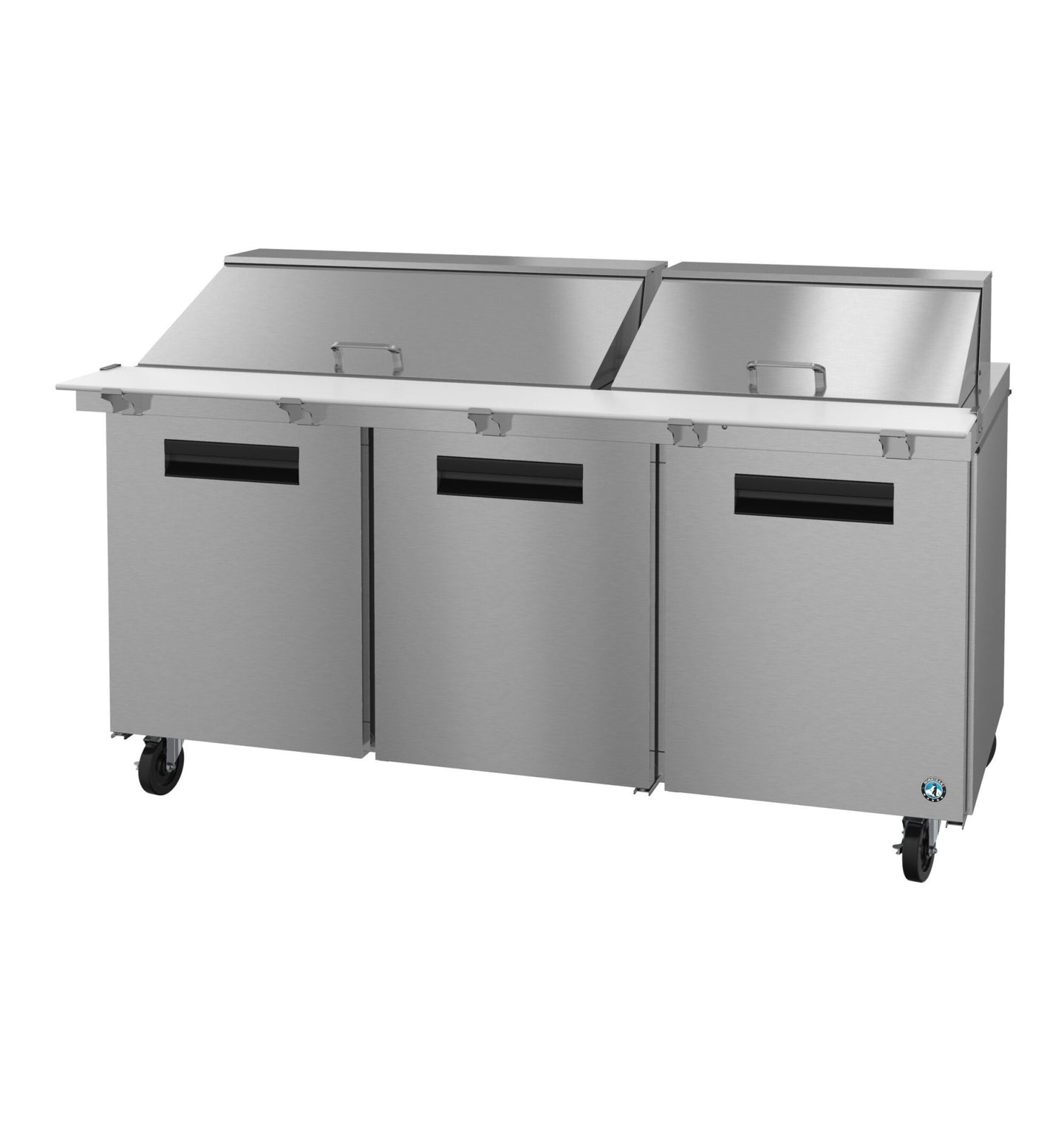

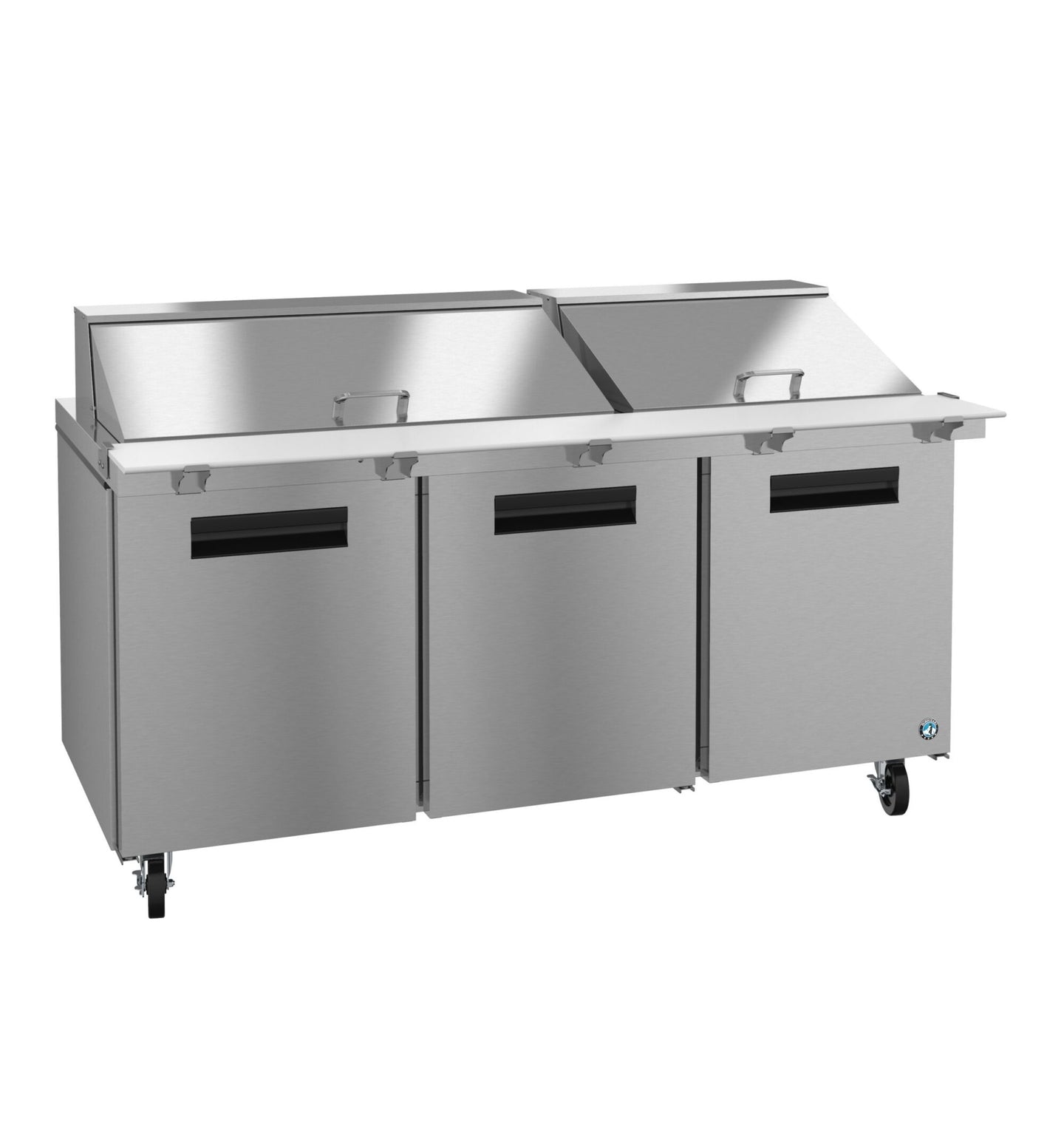

The Hoshizaki SR72B-30M is the maximum-rail mega top in the Steelheart Series 72-inch prep table family, holding thirty chilled 1/6-size pans over a three-section cabinet with 18 cubic feet of net refrigerated storage.

Thirty Rail Positions on a 72-Inch Cabinet

Thirty pans is about as dense as a 72-inch rail gets. The use case is a single station that has to cover an entire assembled menu without a runner going to a second table: a full pizza make line, a salad bar prep station, a sandwich shop with a long modifier list. Because the cabinet, compressor and footprint are shared with the 18- and 24-pan versions, the only trade-off is rail real estate versus open cutting-board surface.

Mega Top Geometry

The 34-inch depth of the mega top is what makes thirty positions possible; a 30-inch sandwich top cannot carry the same rail. Pans supplied are 4 inches deep and the rail also takes 6-inch inserts. Three stainless doors, three sections, epoxy-coated adjustable shelves.

Front Airflow and R290

Front intake and front discharge let the unit be installed tight to a wall or between fryers and ranges without the condenser breathing its own hot air. R290 natural refrigerant, 4 amps at 115V, 4.77 kWh per day.

Specifications

Model SR72B-30M
Type Three section mega top prep table refrigerator, stainless doors
Series Steelheart
Net capacity 18 cu ft (21.25 cu ft nominal)
Rail capacity 30 pans, 1/6 size, 4 in deep (included); accepts 6 in deep pans
Exterior dimensions 72 in W x 34 in D x 44.25 in H
Shipping weight 449 lb
Electrical 115V / 60 Hz / 1 phase, 4 amps
Cord and plug 10 ft cord, NEMA 5-15P
Refrigerant R290
Energy consumption 4.77 kWh/day
Certifications ETL Safety Listed (US and Canada), ETL Sanitation, Georgia Made Certified

Warranty

Hoshizaki 7-7-7 warranty: seven years labor, seven years parts, seven years compressor.
