Product Description

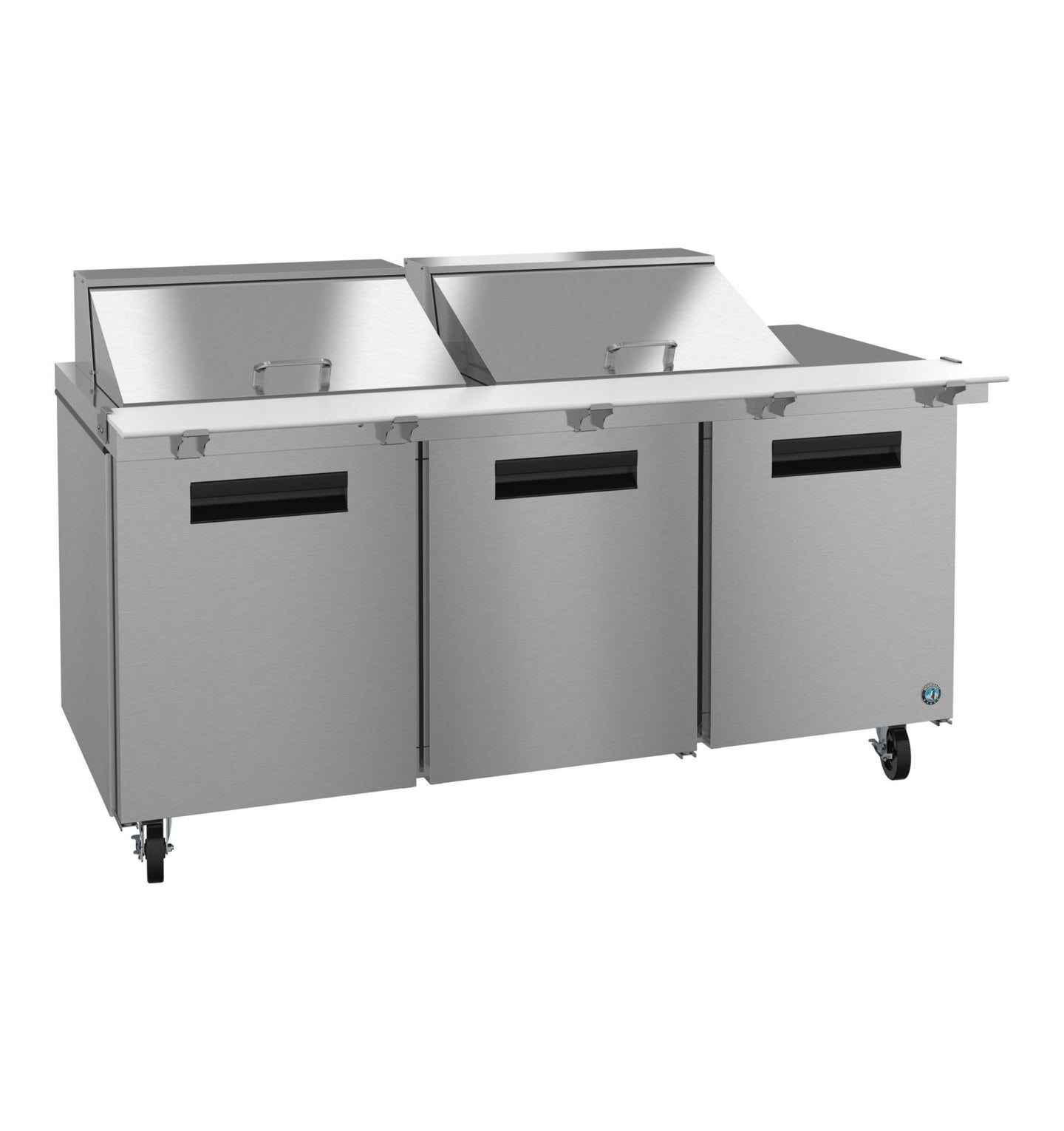

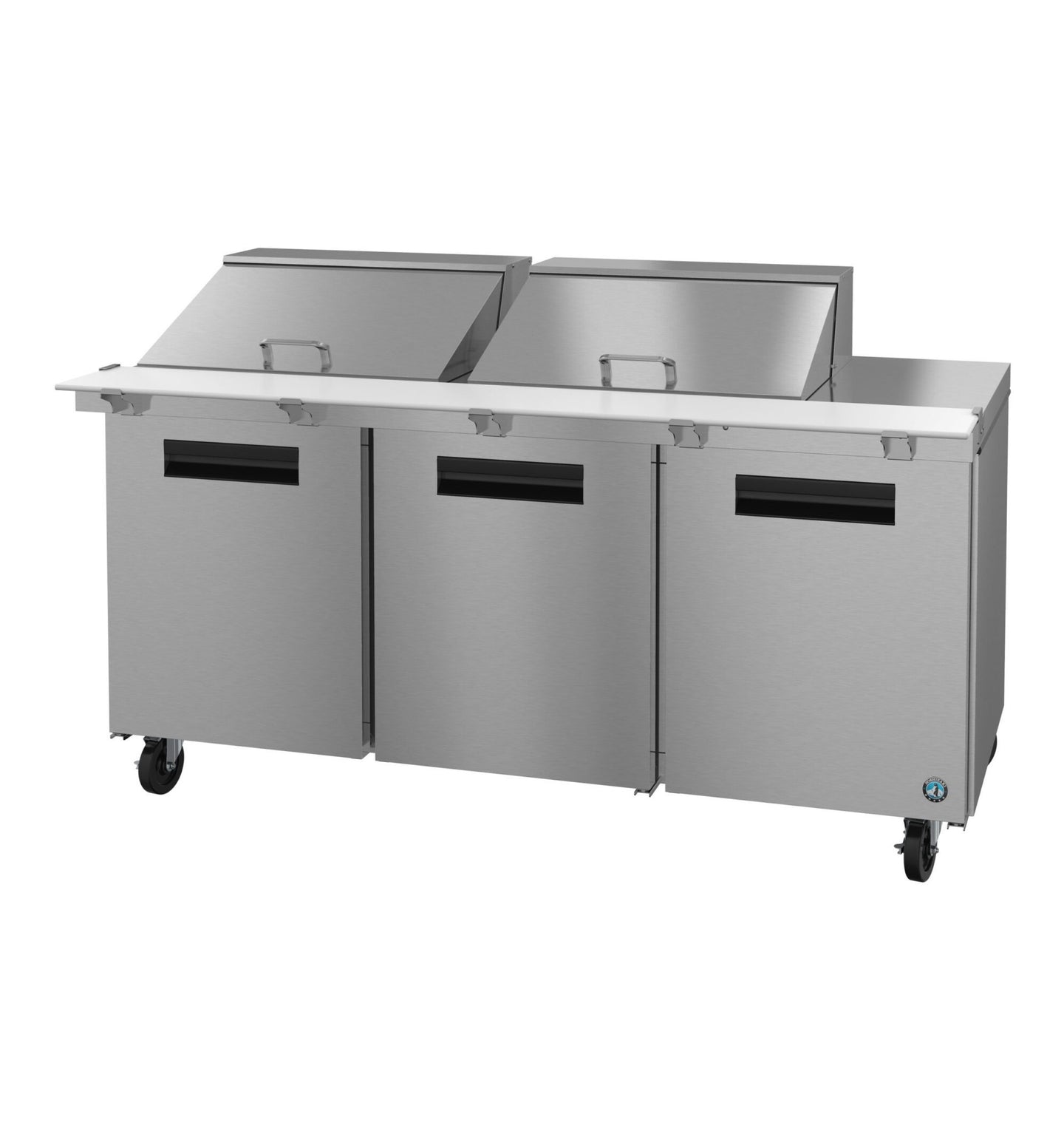

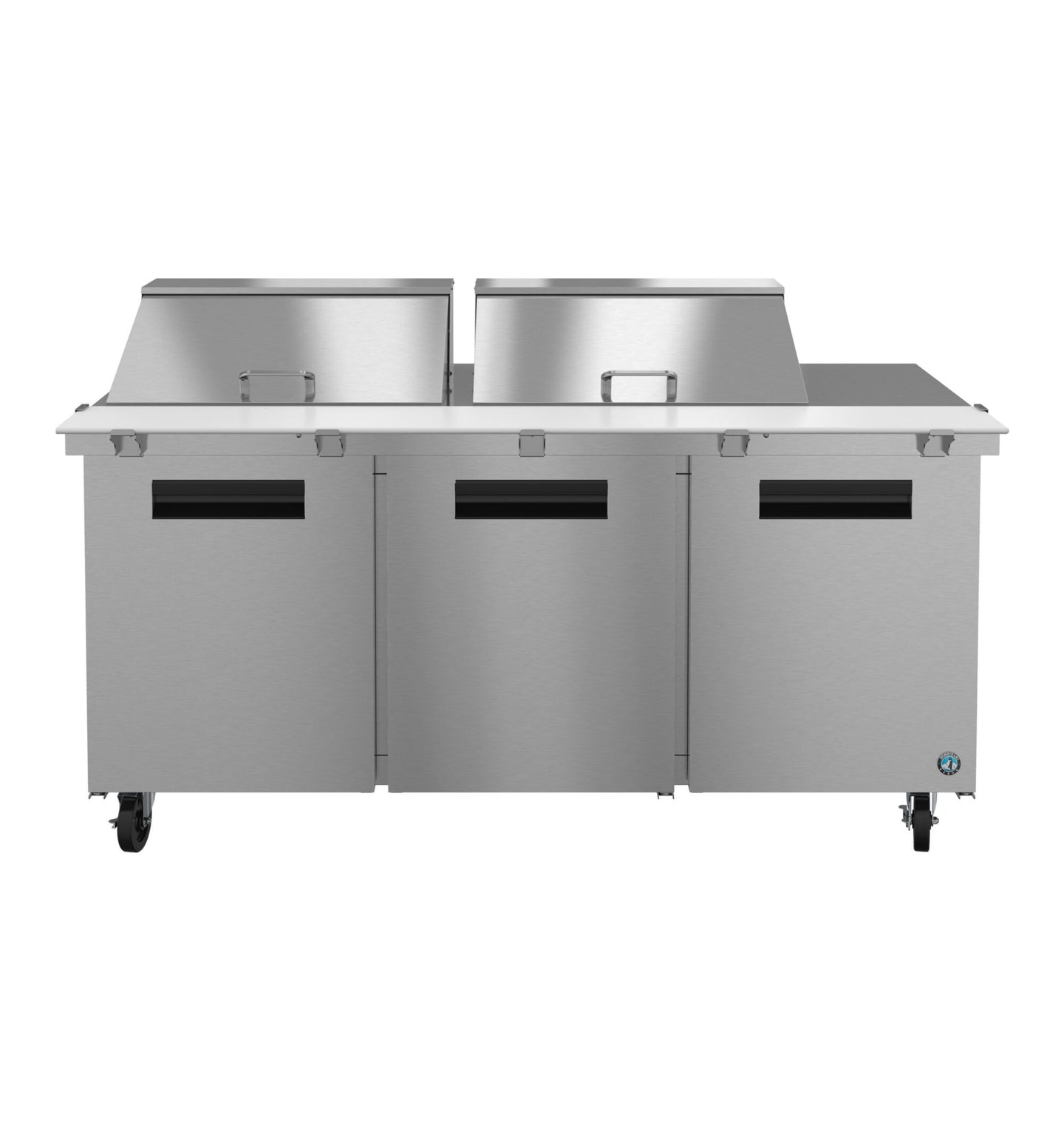

The Hoshizaki SR72B-24M is a Steelheart Series 72-inch mega top prep table refrigerator that puts twenty-four chilled 1/6-size pans across the rail while keeping 18 cubic feet of net refrigerated storage in the three-section cabinet below.

Twenty-Four Positions for a Component-Heavy Menu

Twenty-four rail slots is the configuration for a station whose menu is assembled rather than plated: pizza toppings, poke and grain bowls, taco builds, deli counters where every option has to be at hand and at temperature. Compared with the 18-pan SR72B-18M, this model adds six positions on the same 72 by 34 inch footprint, at a cost of 17 pounds of shipping weight and no change in electrical draw.

Deeper Cabinet, Deeper Pan Options

At 34 inches deep the mega top carries a broader chilled surface than a 30-inch sandwich top, and the rail accepts 6-inch-deep inserts in addition to the 4-inch pans supplied. Three stainless doors open onto three sections with epoxy-coated adjustable shelving.

Front Airflow and R290

Both intake and discharge are at the front of the cabinet, letting the unit sit flush to a wall or between hot equipment without recirculating its own exhaust. The system uses R290 natural refrigerant and draws 4 amps at 115V for 4.77 kWh per day.

Specifications

Model SR72B-24M
Type Three section mega top prep table refrigerator, stainless doors
Series Steelheart
Net capacity 18 cu ft (21.25 cu ft nominal)
Rail capacity 24 pans, 1/6 size, 4 in deep (included); accepts 6 in deep pans
Exterior dimensions 72 in W x 34 in D x 44.25 in H
Shipping weight 435 lb
Electrical 115V / 60 Hz / 1 phase, 4 amps
Cord and plug 10 ft cord, NEMA 5-15P
Refrigerant R290
Energy consumption 4.77 kWh/day
Certifications ETL Safety Listed (US and Canada), ETL Sanitation, Georgia Made Certified

Warranty

Hoshizaki 7-7-7 warranty: seven years labor, seven years parts, seven years compressor.
