Product Description

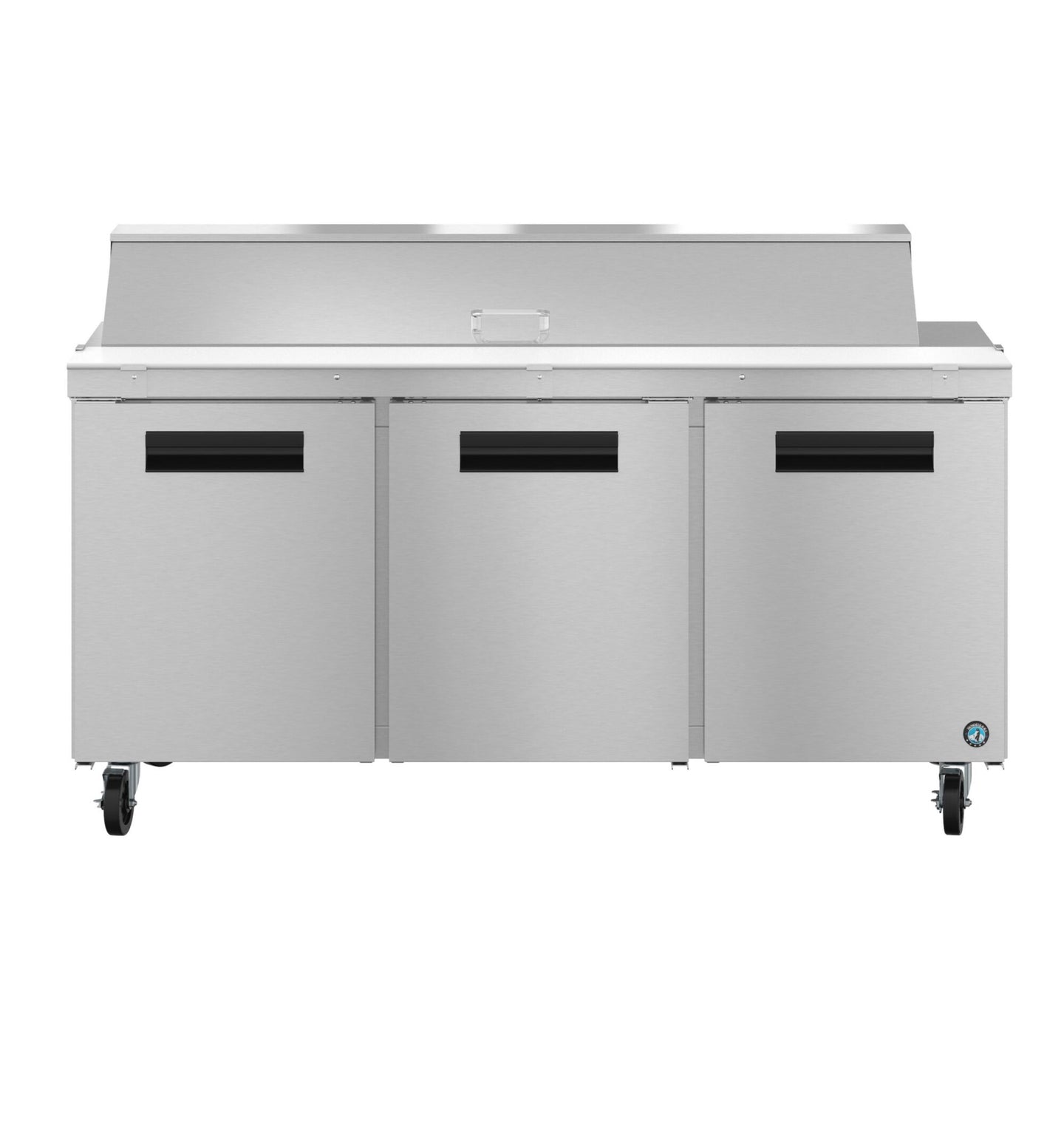

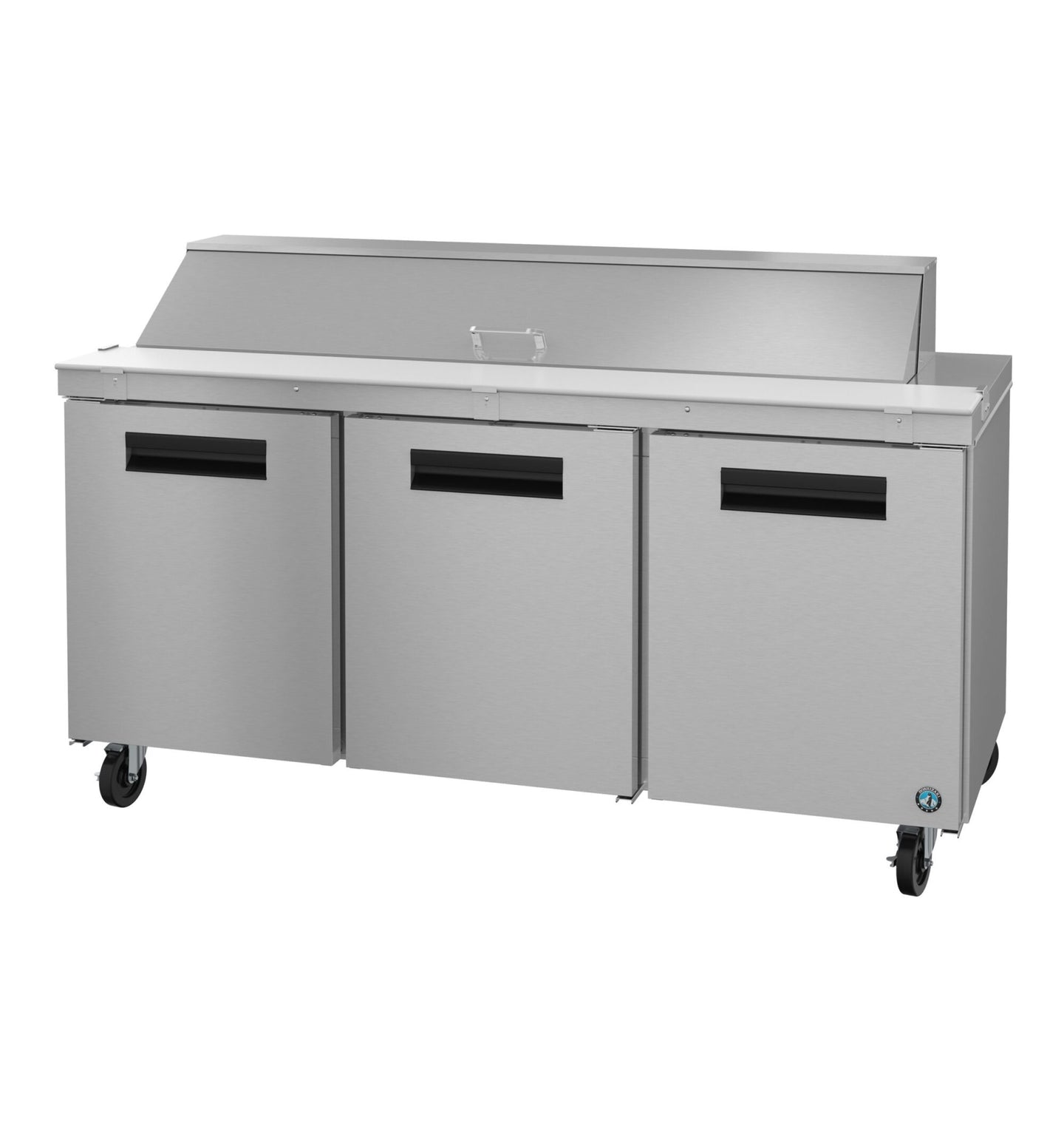

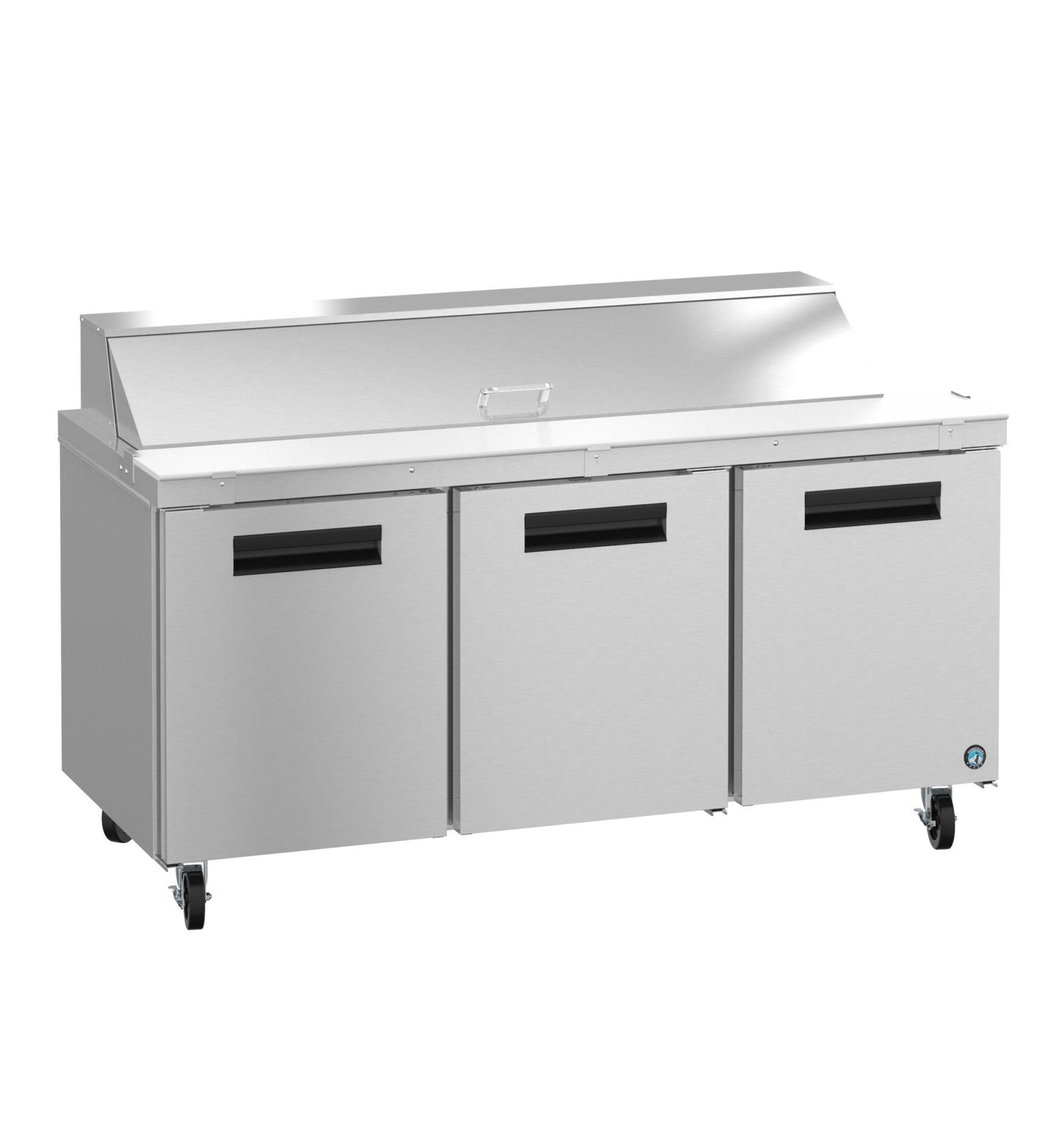

The Hoshizaki SR72B-18 is the widest-rail sandwich prep table in the Steelheart Series 72-inch line, carrying eighteen chilled 1/6-size pans over 18 cubic feet of net refrigerated storage in three sections. It is the configuration to specify when a single station has to hold every component of a made-to-order menu at once.

Eighteen Rail Positions on a 30-Inch-Deep Cabinet

Getting eighteen pans without moving to a deeper mega-top cabinet is the point of this model. At 30 inches deep it occupies the same floor space as the 12- and 16-pan versions and fits a standard 30-inch line run, where a mega top would push out to 34 inches and start crowding the aisle. Pans are 1/6 size at 4 inches deep and are included with the unit.

Front Airflow and Section Access

Intake and discharge are both at the front, so the cabinet can be installed tight against a back wall or flanked by hot equipment without the condenser ingesting its own exhaust. Three stainless doors open onto three sections, each with an epoxy-coated adjustable shelf, and the doors are field reversible.

Natural Refrigerant

The SR72B-18 uses R290 hydrocarbon refrigerant and draws 4 amps at 115V for 5.05 kWh per day, running from an ordinary 5-15R receptacle.

Specifications

Model SR72B-18
Type Three section sandwich prep table refrigerator, stainless doors
Series Steelheart
Net capacity 18 cu ft (21.25 cu ft nominal)
Rail capacity 18 pans, 1/6 size, 4 in deep (included)
Exterior dimensions 72 in W x 30 in D x 44.25 in H
Shipping weight 419 lb
Electrical 115V / 60 Hz / 1 phase, 4 amps
Cord and plug 10 ft cord, NEMA 5-15P
Refrigerant R290
Energy consumption 5.05 kWh/day
Certifications ETL Safety Listed (US and Canada), ETL Sanitation, Georgia Made Certified, Natural Refrigerant

Warranty

Hoshizaki 7-7-7 warranty: seven years labor, seven years parts, seven years compressor.
