Product Description

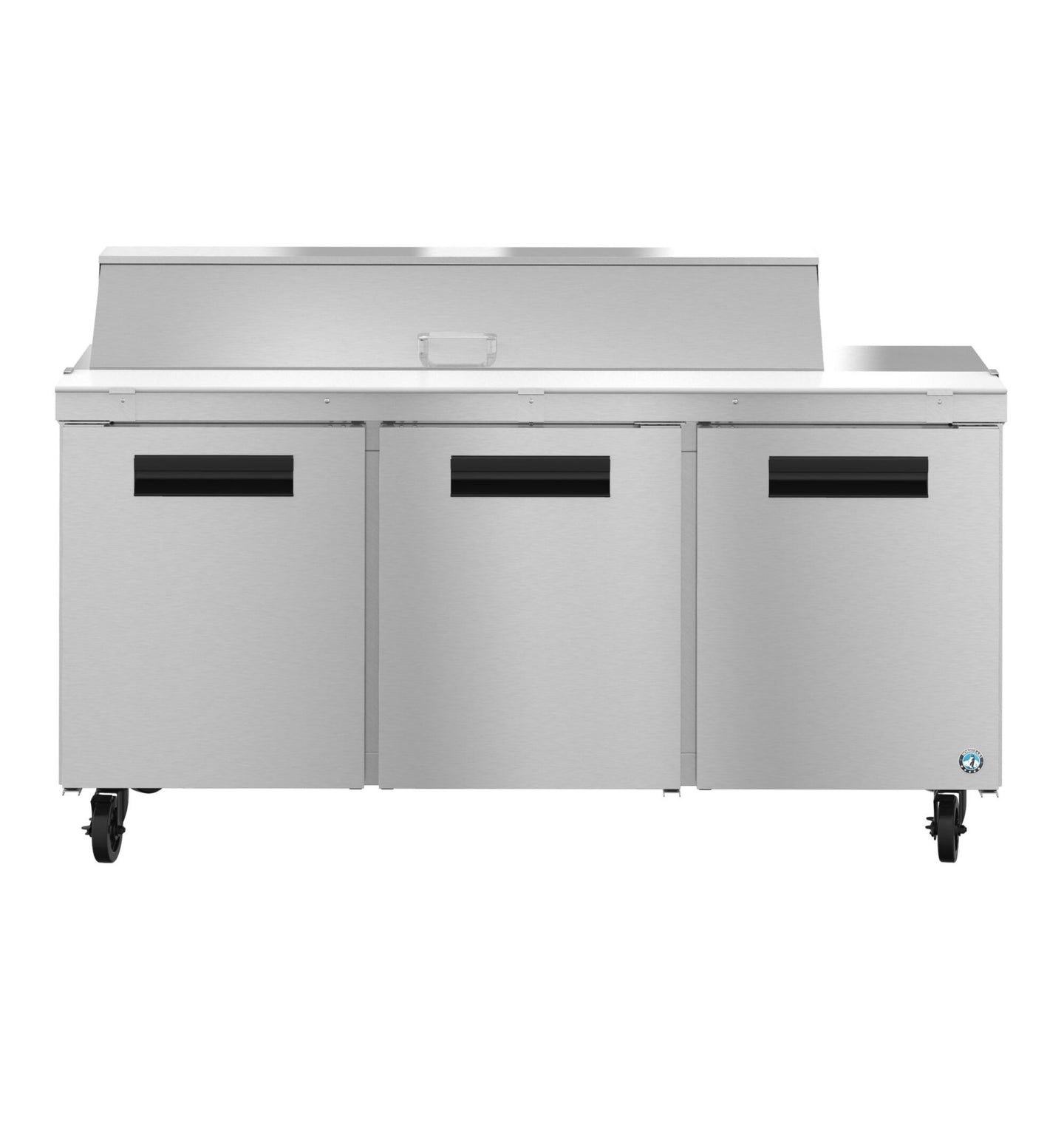

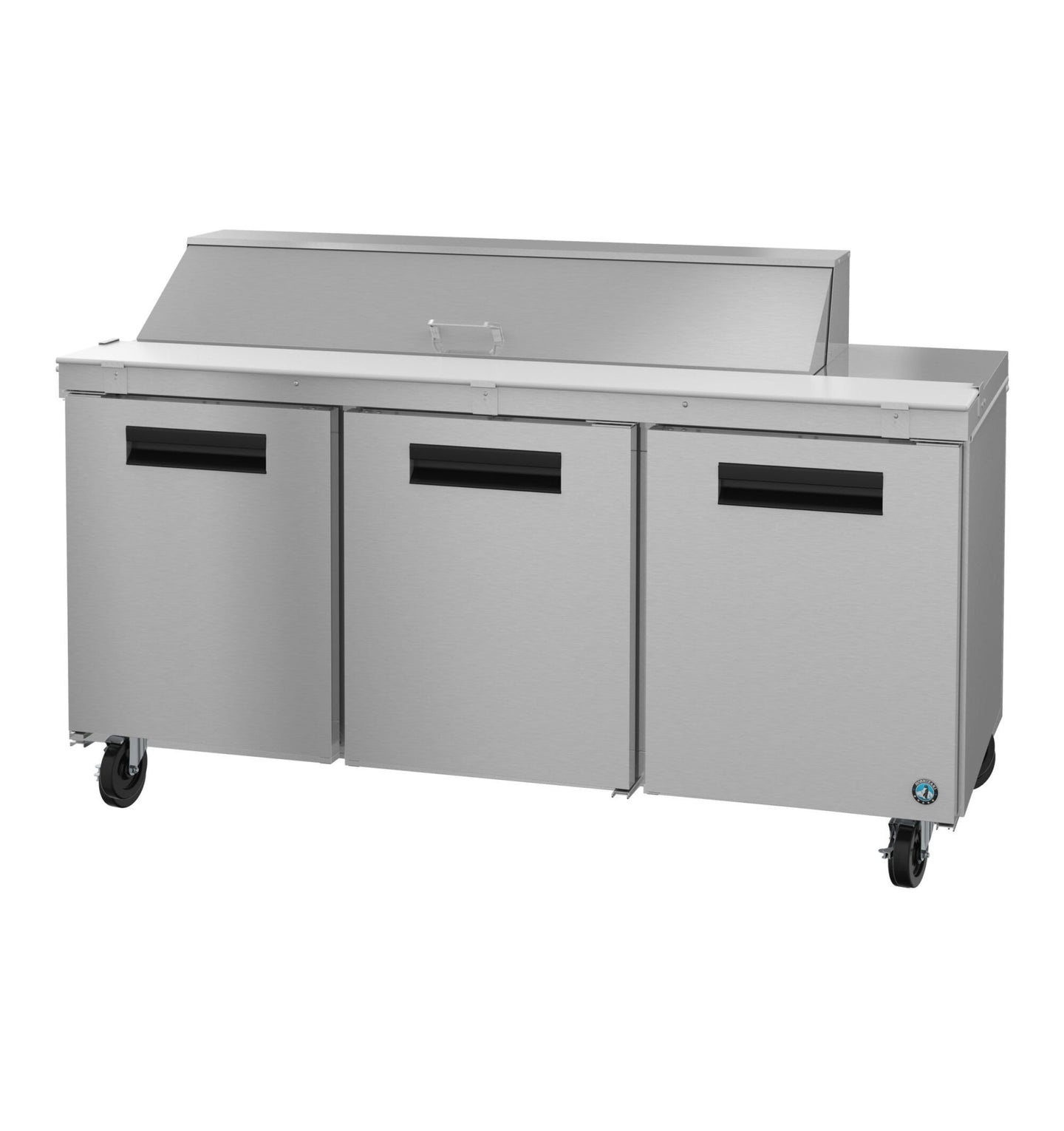

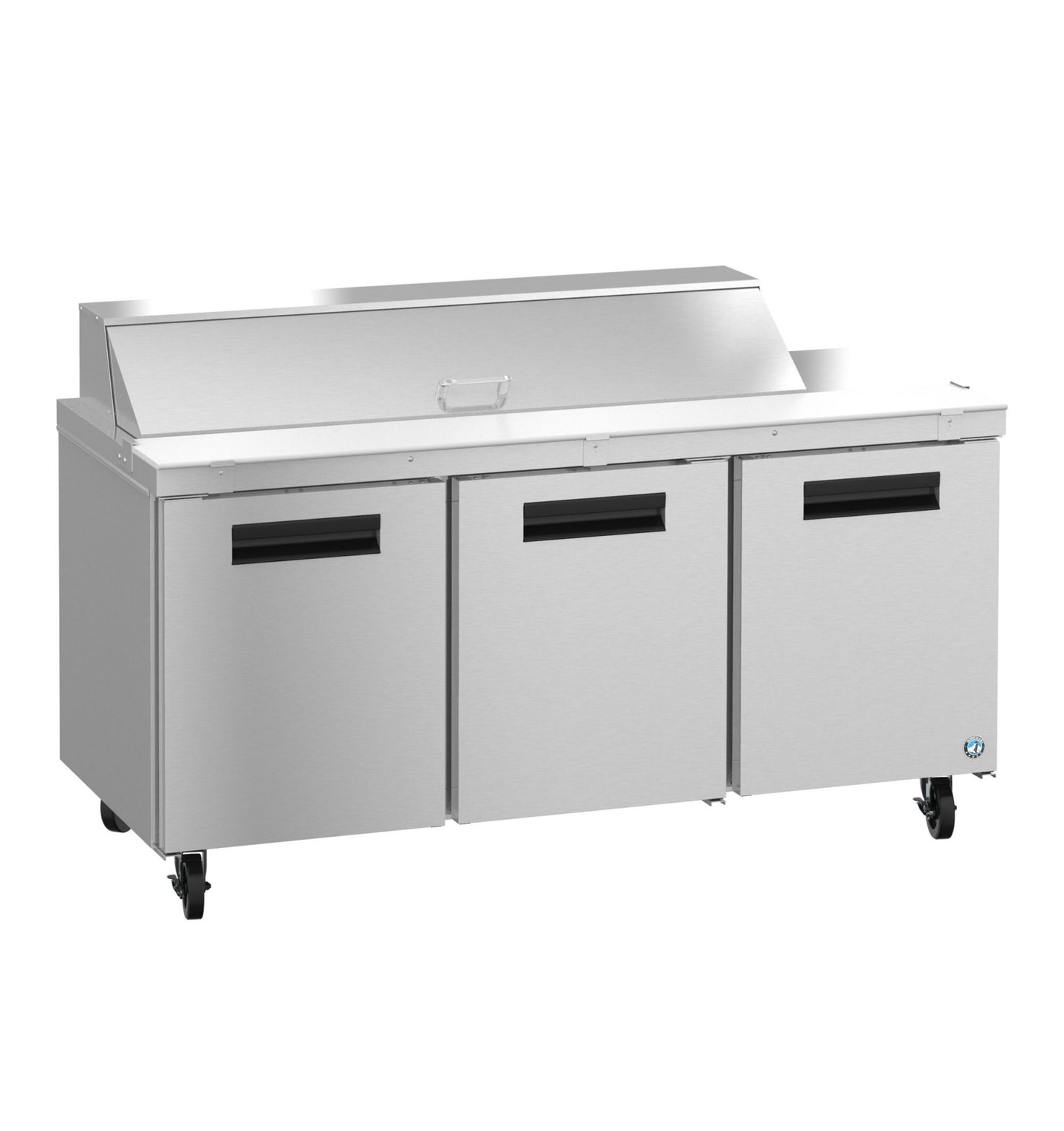

The Hoshizaki SR72B-16 is the mid-rail configuration of the Steelheart Series 72-inch sandwich prep table. It carries sixteen chilled 1/6-size pans across the cutting-board rail and 18 cubic feet of net refrigerated storage in the three-section cabinet beneath, on a 72 by 30 inch footprint that drops into a standard line without eating extra floor.

Why the Pan Count Is the Real Decision

The SR72B-12, -16 and -18 are the same cabinet, the same compressor, and the same 72 x 30 x 44.25 inch box. What separates them is the rail: 12, 16 or 18 pans. A station running a fixed sandwich menu with a handful of proteins and condiments is well served by twelve; a build-your-own line with multiple cheeses, three dressings and a garnish set will run out of rail at twelve and want the sixteen this model provides. Cold storage below is identical across all three, so buying up the range buys rail positions, not capacity.

Built to Hold Temperature in a Hot Kitchen

Air is pulled in and pushed out at the front of the cabinet, which means the unit tolerates being set against a wall or wedged between equipment without strangling its own condenser. Each of the three sections sits behind a stainless door and carries an epoxy-coated adjustable shelf.

R290 and Low Draw

The system runs on R290 natural refrigerant and pulls 4 amps at 115V, consuming 5.05 kWh per day. It plugs into a standard 5-15R outlet on a 10-foot cord.

Specifications

Model SR72B-16
Type Three section sandwich prep table refrigerator, stainless doors
Series Steelheart
Net capacity 18 cu ft (21.25 cu ft nominal)
Rail capacity 16 pans, 1/6 size, 4 in deep (included)
Exterior dimensions 72 in W x 30 in D x 44.25 in H
Crate dimensions 73.75 in L x 32 in D x 46.5 in H
Shipping weight 406 lb
Electrical 115V / 60 Hz / 1 phase, 4 amps
Cord and plug 10 ft cord, NEMA 5-15P
Refrigerant R290
Energy consumption 5.05 kWh/day
Certifications ETL Safety Listed (US and Canada), ETL Sanitation, Georgia Made Certified

Warranty

Covered by Hoshizaki's 7-7-7 warranty: seven years labor, seven years parts, seven years compressor.
