Product Description

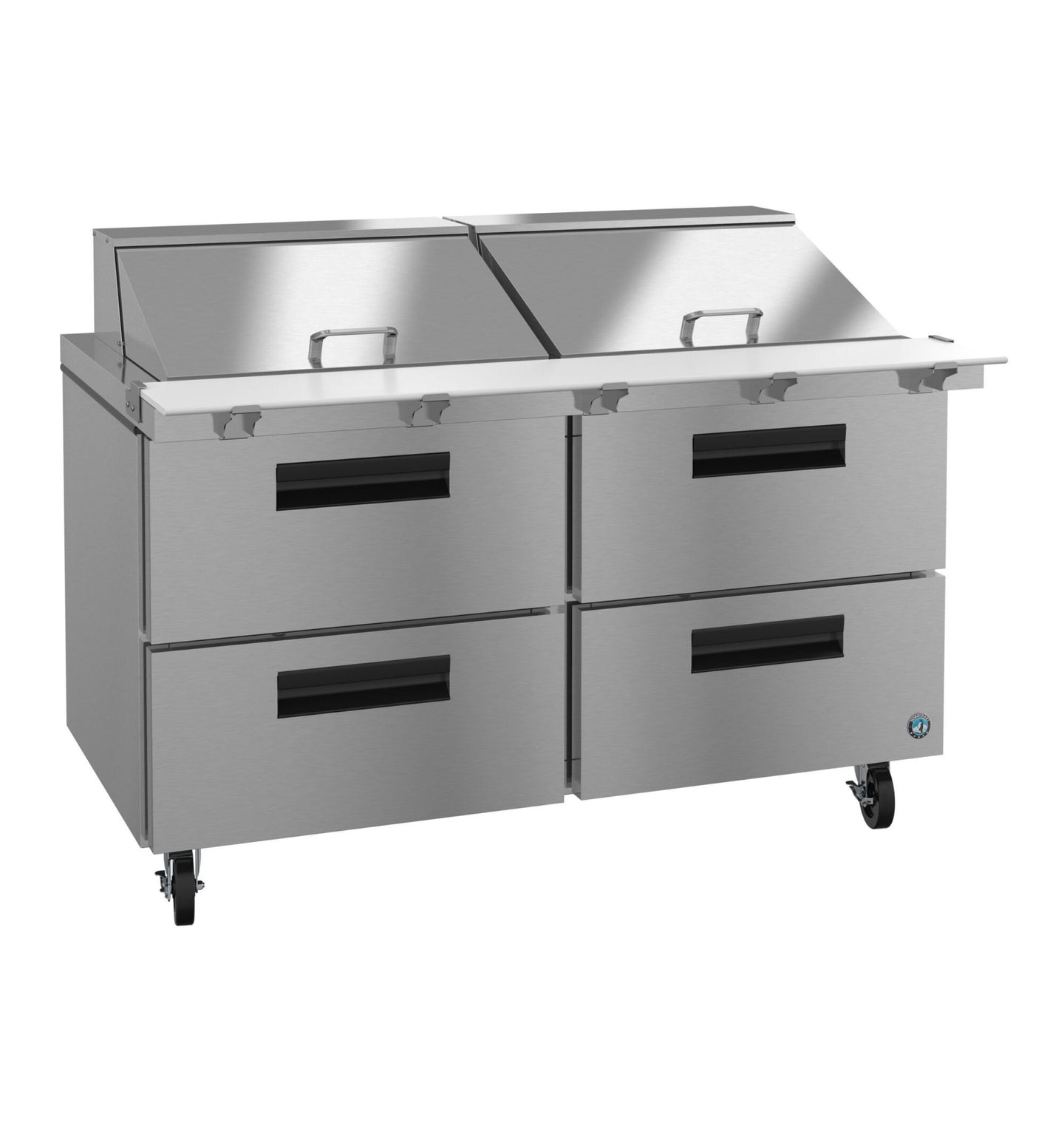

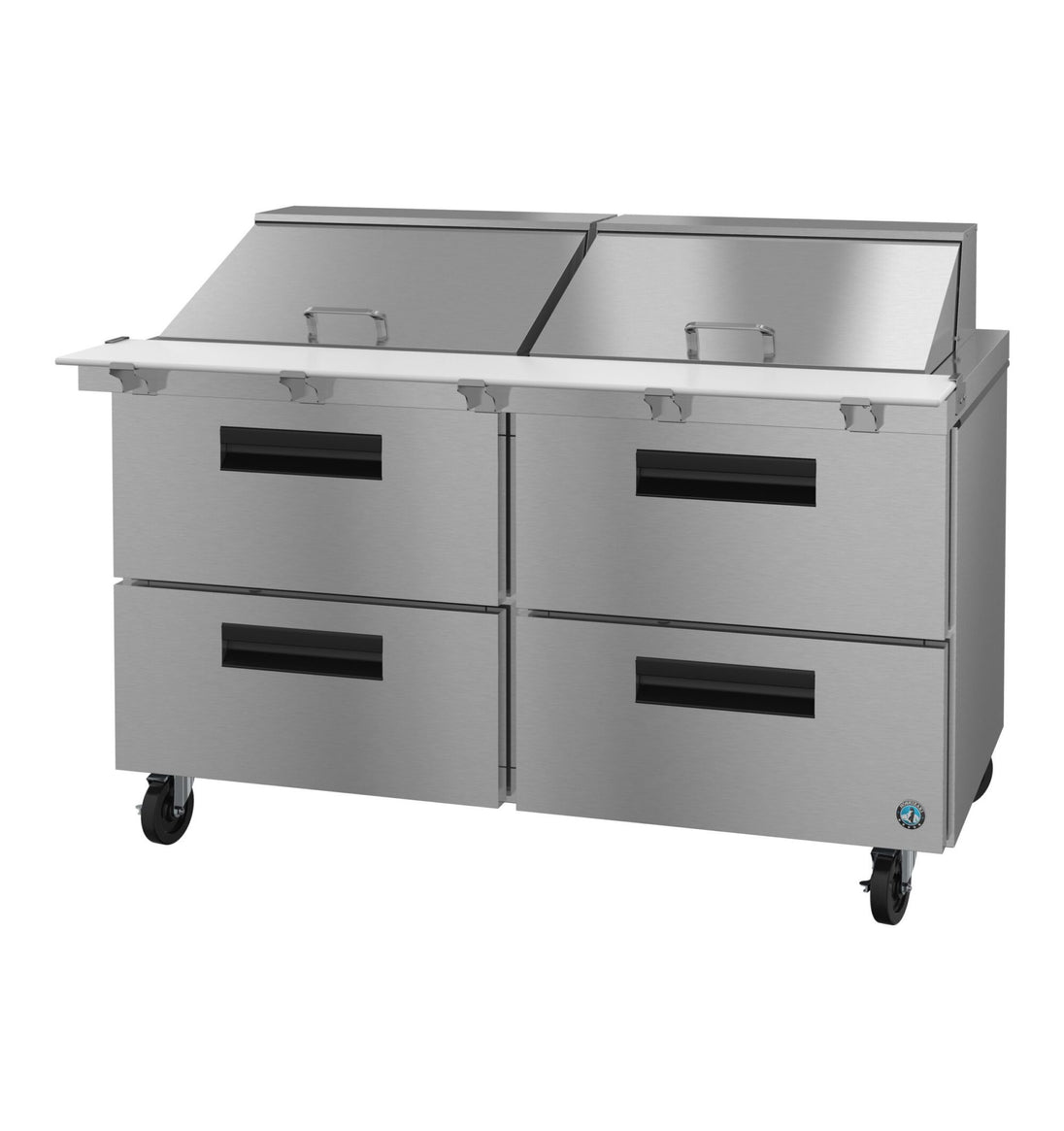

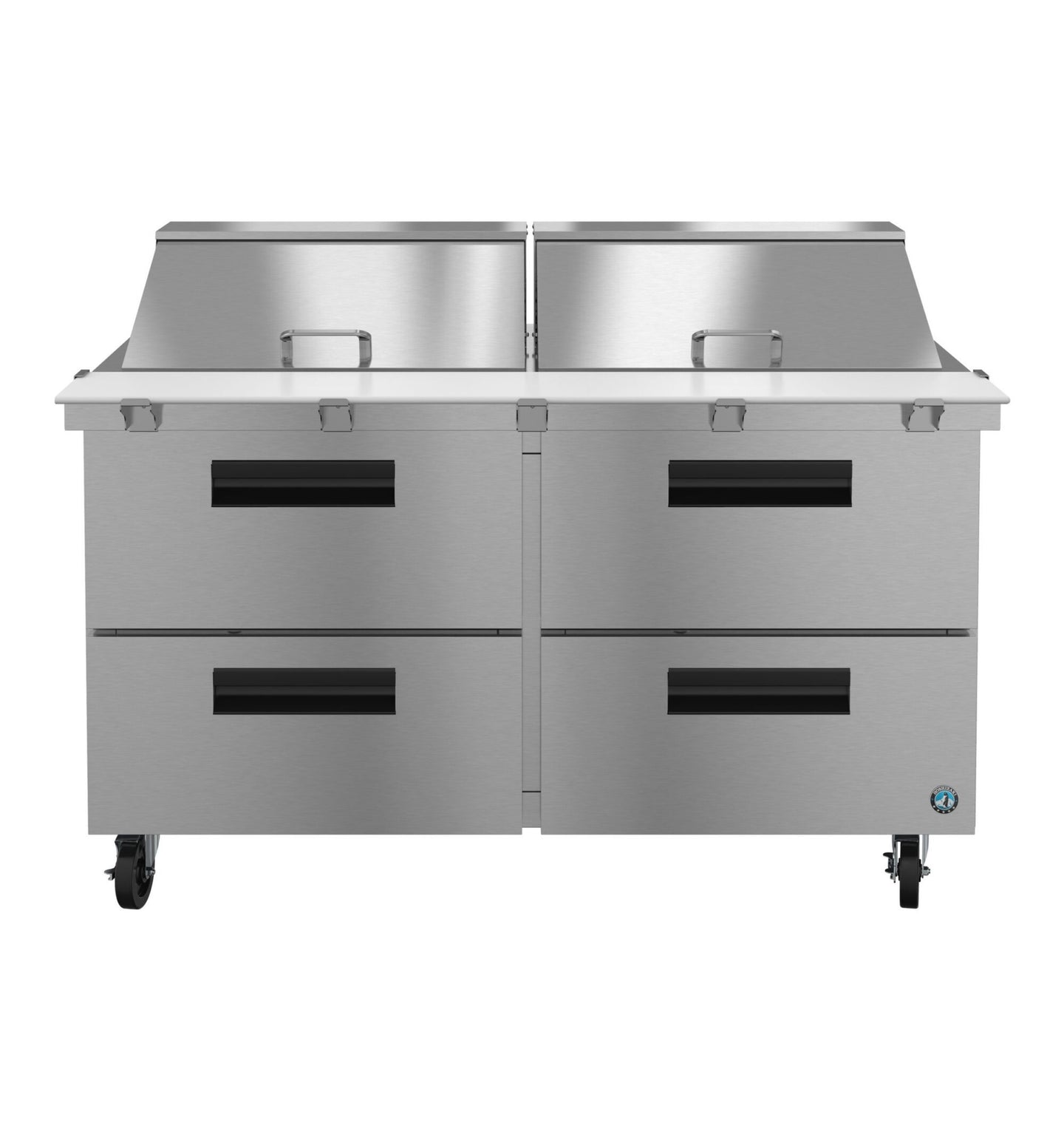

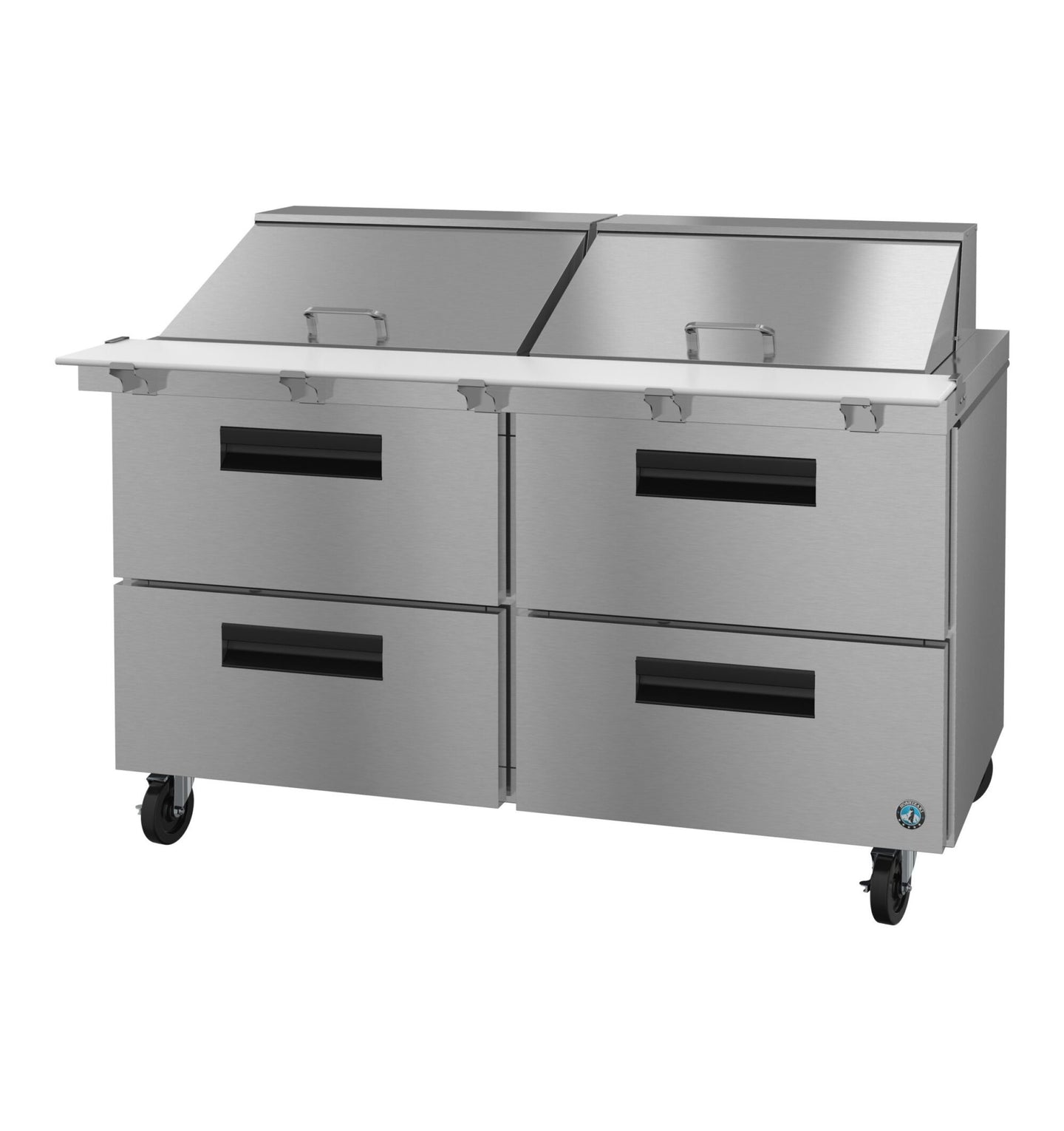

The Hoshizaki SR60B-24MD4 is the all-drawer configuration of the 60-inch, two-section mega-top prep table in the Steelheart Series: four stainless refrigerated drawers below a full-width mega-top rail, with 14.8 cubic feet net of cold storage. It is the heaviest unit in the 60-inch SR60B family at 457 lbs, which reflects the drawer hardware rather than any change in cabinet size.

All Drawers, No Doors

Going drawer-only changes how a station works. Every position is pulled out to the operator at working height instead of being reached into, which speeds up service on a busy line and keeps backs straight through a long shift. Drawers also spill less cold air per opening than a swung door, so a station that opens constantly holds temperature more steadily. The trade is height: tall containers and full sheet pans that fit a door section will not fit a drawer, so this configuration suits stations working from standard pan inserts.

Mega Top Above

The 34-inch cabinet depth is the mega-top depth, carrying the wider pan rail with room to work in front of it. Net cabinet capacity of 14.8 cubic feet matches the door and combination models in the range — the drawers change access, not volume.

R290 and Hot Line Rating

The unit is engineered to maintain food-safe product temperatures in ambient conditions up to 100°F, with front-breathing airflow that removes any side or rear clearance requirement. Cooling is by R290 natural hydrocarbon refrigerant, listed at 4.05 kWh per day and drawing 4 amps from a standard 115V circuit.

Specifications

Model SR60B-24MD4
Configuration Two section, mega top prep table, stainless drawers
Drawers 4 refrigerated stainless drawers
Net Capacity 14.8 cu ft
Nominal Capacity 17.55 cu ft
Exterior Dimensions 60" W x 34" D x 44.25" H
Shipping Weight 457 lbs
Crate Dimensions 62.5" L x 36" D x 46.5" H
Electrical 115V / 60 Hz / 1 phase
Amperage 4 amps
Plug NEMA 5-15P, 10 ft cord
Energy Consumption 4.05 kWh/day
Refrigerant R290
Compressor 1/3 HP, 2431 BTU/hr nominal
Certifications ETL Safety Listed (US & C), ETL Sanitation, Georgia Made Certified, Natural Refrigerant

Warranty

Hoshizaki covers the SR60B-24MD4 under its 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
