Product Description

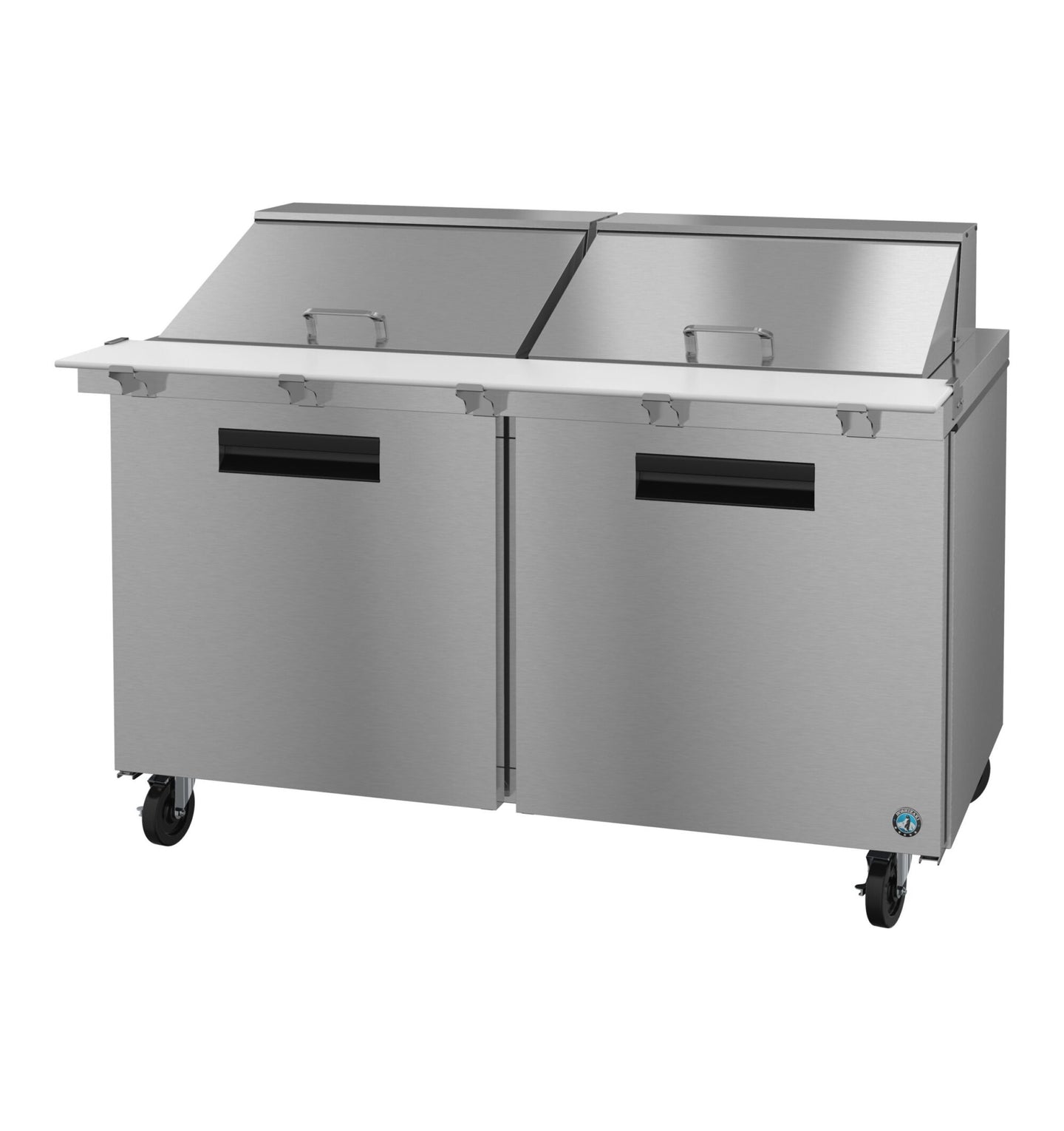

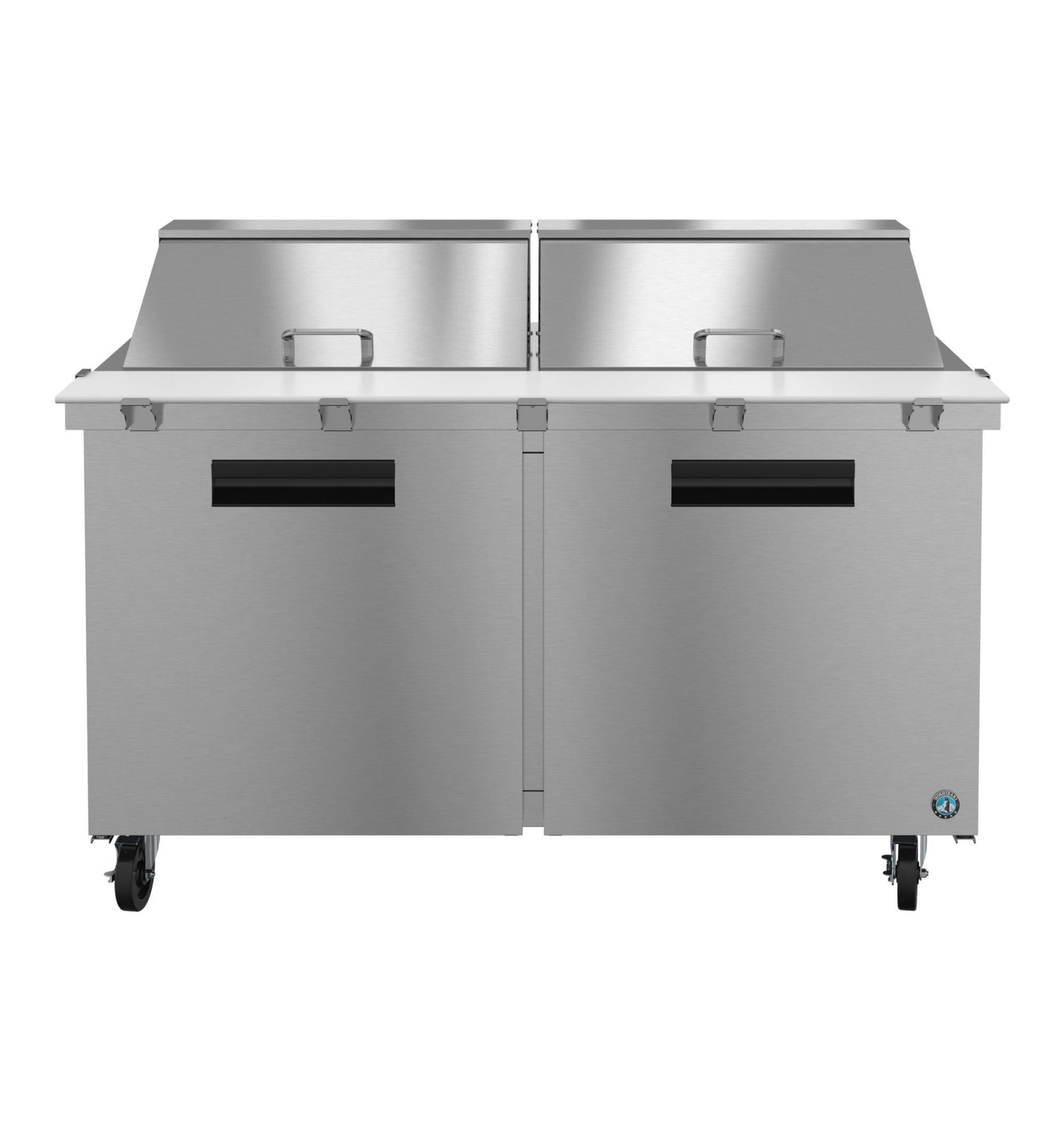

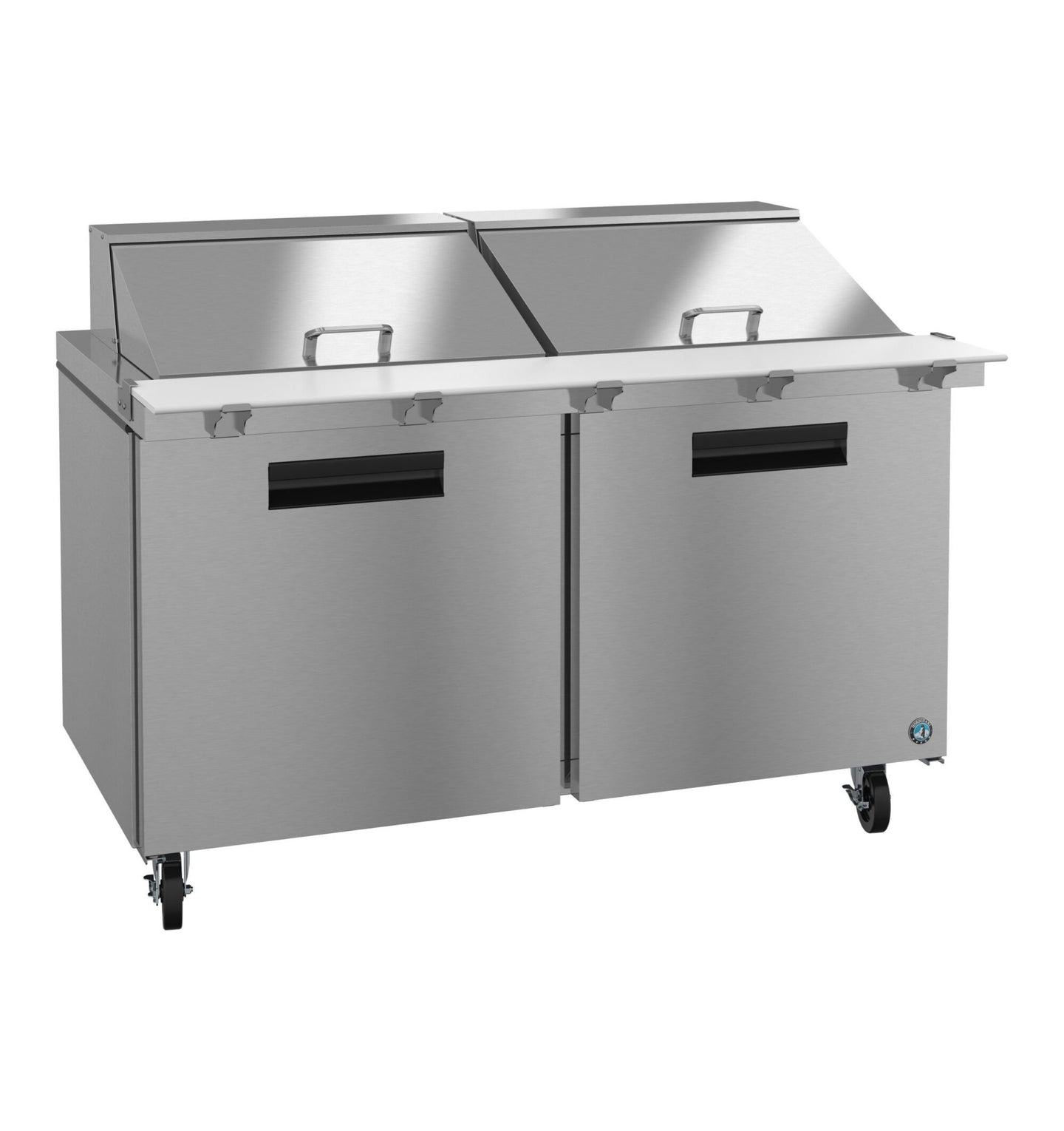

The Hoshizaki SR60B-24M is the maximum-rail configuration of the 60-inch, two-section mega-top prep table in the Steelheart Series: twenty-four 1/6-size pans across the top, with 14.8 cubic feet of refrigerated cabinet underneath. It is built for stations that hold a large number of components cold at once — a made-to-order salad or bowl line, or a pizza station running a long topping list.

Twenty-Four Pans in 60 Inches

Fitting twenty-four pans across a 60-inch table is what the mega top exists for. The cabinet runs 34 inches deep instead of the sandwich top's 30, and that additional depth carries the double-row rail. Refrigerated storage below is the same 14.8 cubic feet net as the narrower-rail models in the family, so the choice between them is purely about how many components the station needs on the rail.

Holds Temperature Where It Is Hot

Hoshizaki rates this cabinet to maintain food-safe product temperatures in ambient conditions up to 100°F, which is the realistic condition for a prep table on a working line. Front-breathing airflow means no side or rear clearance is required, so the unit can be built flush into a run.

R290 and Electrical

The SR60B-24M uses R290 natural hydrocarbon refrigerant, with a very low global warming potential and no exposure to HFC phase-down schedules. It is listed at 4.05 kWh per day and draws 4 amps on a standard 115V circuit with a NEMA 5-15P plug on a 10-foot cord.

Specifications

Model SR60B-24M
Configuration Two section, mega top prep table, stainless doors
Pan Capacity 24 pans, 1/6 size, 4" deep
Net Capacity 14.8 cu ft
Nominal Capacity 17.55 cu ft
Exterior Dimensions 60" W x 34" D x 44.25" H
Shipping Weight 383 lbs
Crate Dimensions 61.75" L x 36" D x 46.5" H
Cutting Board 60" x 10" x 1/2" polyethylene
Shelving One epoxy coated adjustable shelf per section
Electrical 115V / 60 Hz / 1 phase
Amperage 4 amps
Plug NEMA 5-15P, 10 ft cord
Energy Consumption 4.05 kWh/day
Refrigerant R290
Certifications ETL Safety Listed (US & C), ETL Sanitation, Georgia Made Certified

Warranty

Hoshizaki covers the SR60B-24M under its 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
