Product Description

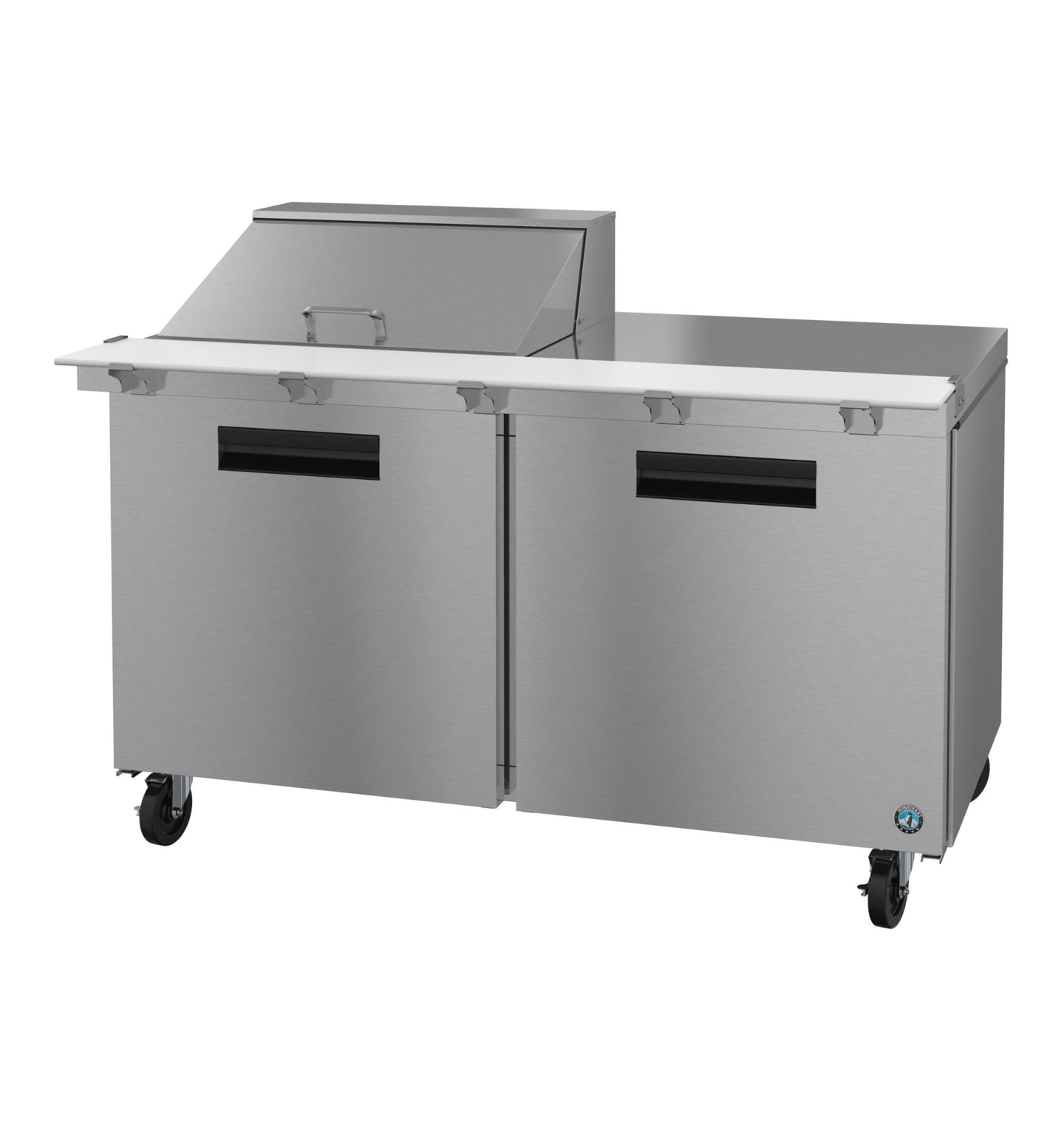

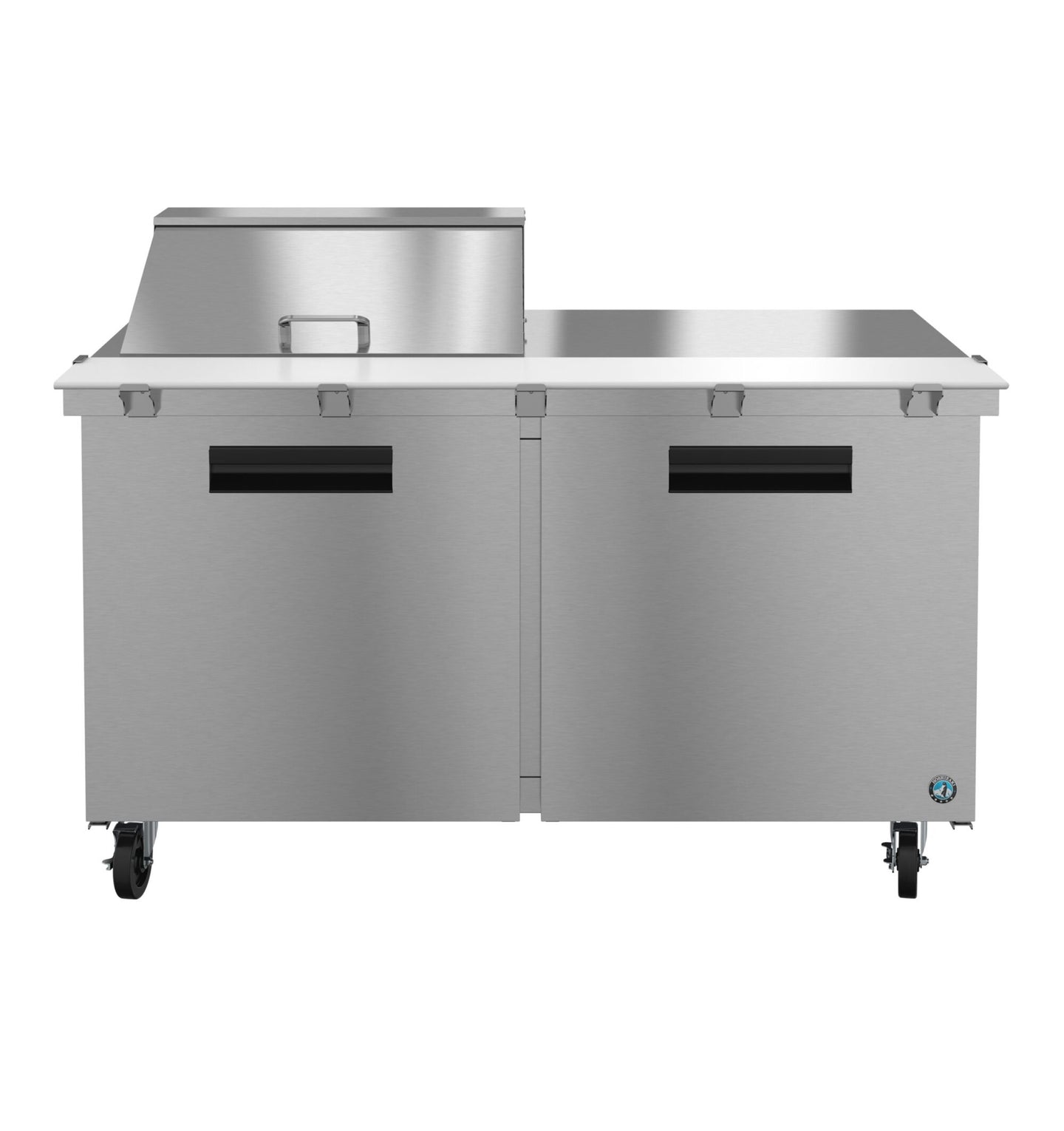

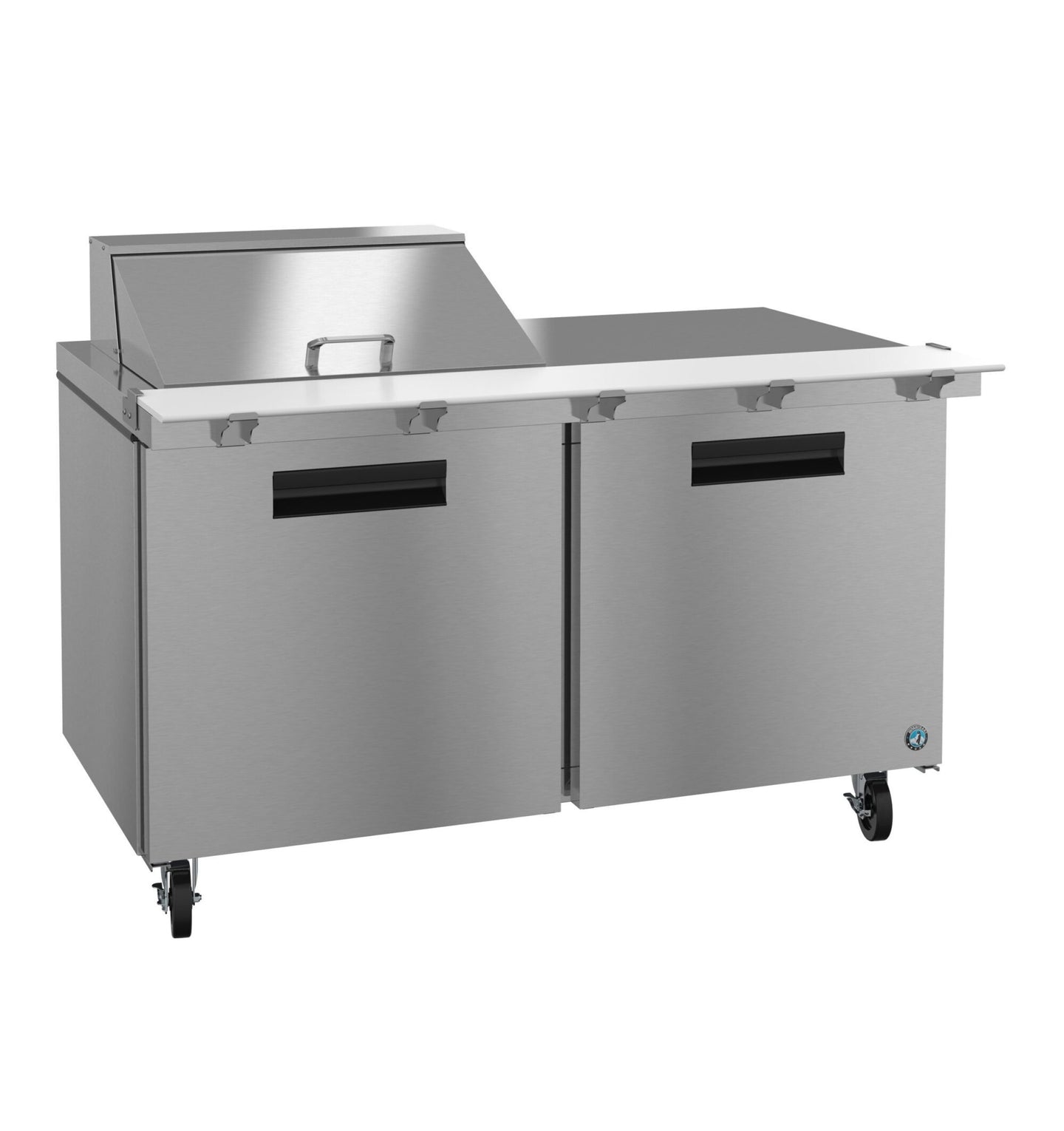

The Hoshizaki SR60B-12M is the mega-top version of the 60-inch, two-section prep table in the Steelheart Series. The mega top steps the cabinet out to 34 inches deep, which widens the pan rail and leaves usable landing space in front of the pans — the difference between a rail you reach across and one you can actually work on.

What the Mega Top Changes

Compared with the 30-inch-deep sandwich-top SR60B models, the mega top adds four inches of depth. That extra depth is what carries the wider rail and gives room for a cutting board without the operator working over the top of the pans. Cabinet capacity below is unchanged at 14.8 cubic feet net, so the trade is floor depth for rail comfort, not storage.

Rated to Hold in a 100°F Kitchen

Hoshizaki engineers this cabinet to maintain food-safe product temperatures in ambient conditions up to 100°F. The front-breathing airflow design draws and discharges at the front, so the table can be installed flush against neighbouring equipment with no side or rear clearance required.

R290 Refrigerant

The SR60B-12M runs on R290 natural hydrocarbon refrigerant — very low global warming potential and unaffected by the HFC phase-down. Consumption is listed at 4.05 kWh per day, drawing 4 amps from a standard 115V circuit through a NEMA 5-15P plug on a 10-foot cord.

Specifications

Model SR60B-12M
Configuration Two section, mega top prep table, stainless doors
Pan Capacity 12 pans, 1/6 size, 4" deep
Net Capacity 14.8 cu ft
Nominal Capacity 17.55 cu ft
Exterior Dimensions 60" W x 34" D x 44.25" H
Shipping Weight 346 lbs
Cutting Board 60" x 10" x 1/2" polyethylene
Shelving One epoxy coated adjustable shelf per section
Electrical 115V / 60 Hz / 1 phase
Amperage 4 amps
Plug NEMA 5-15P, 10 ft cord
Energy Consumption 4.05 kWh/day
Refrigerant R290
Certifications ETL Safety Listed (US & C), ETL Sanitation, Georgia Made Certified

Warranty

Hoshizaki covers the SR60B-12M under its 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
