Product Description

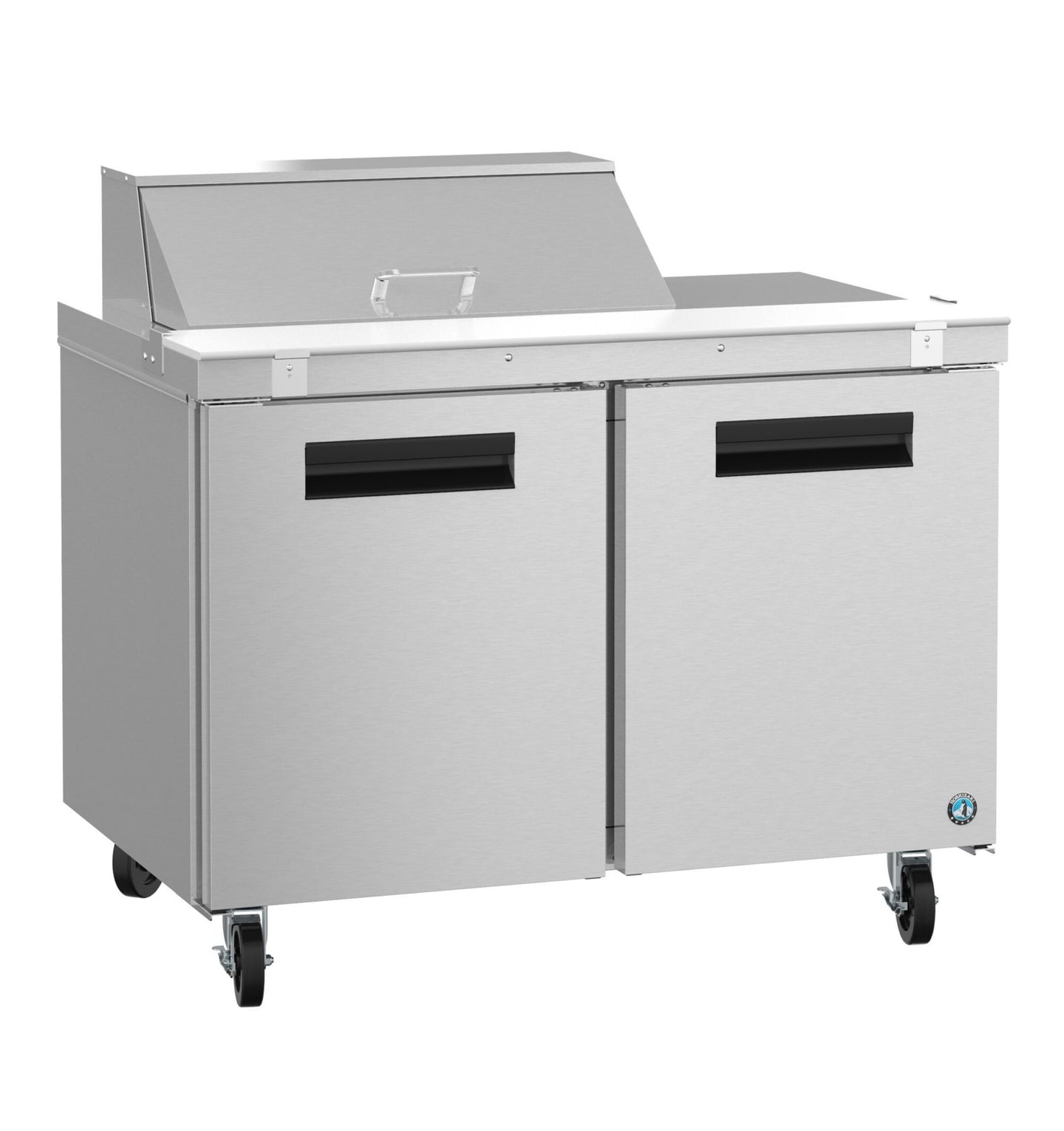

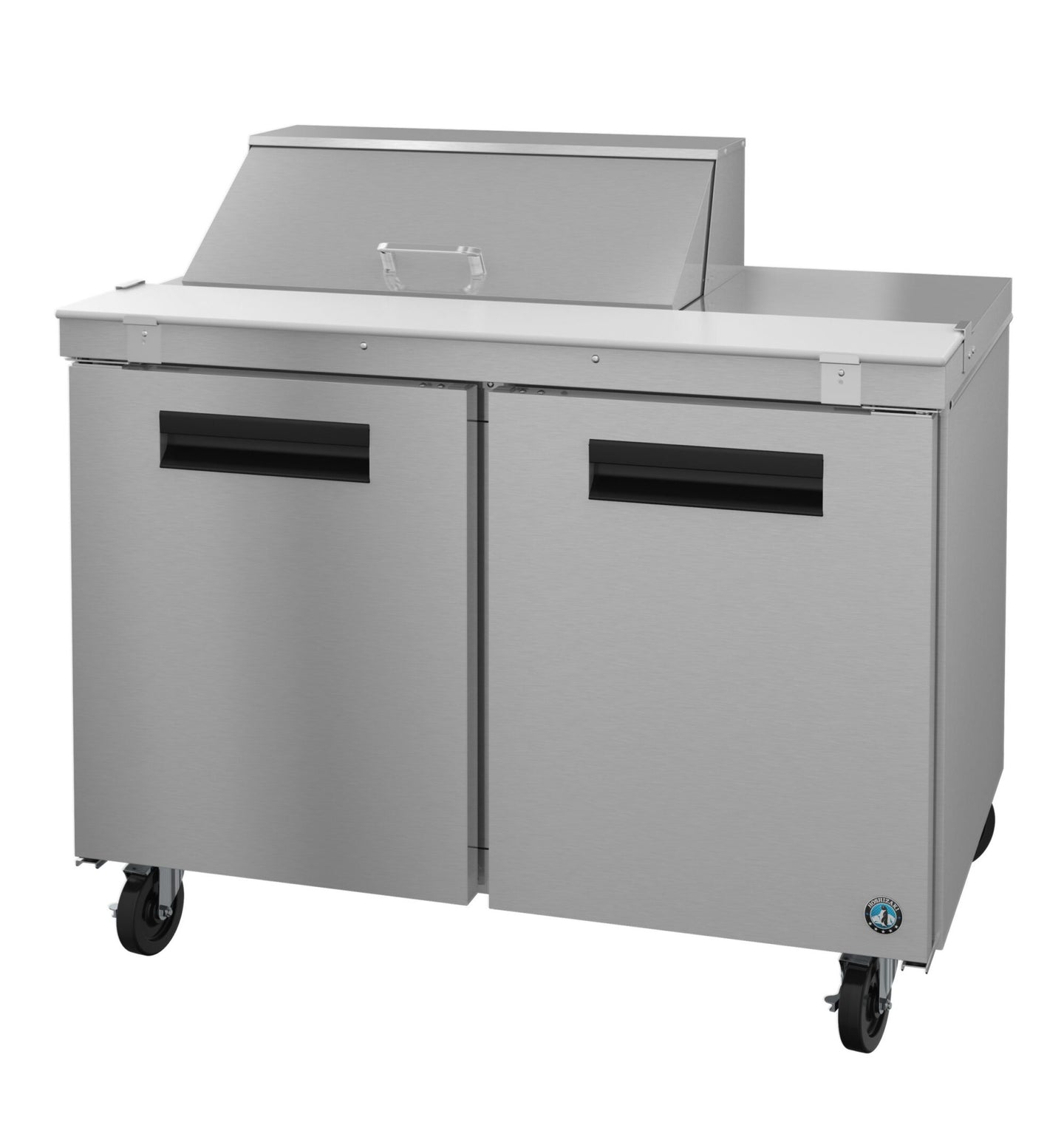

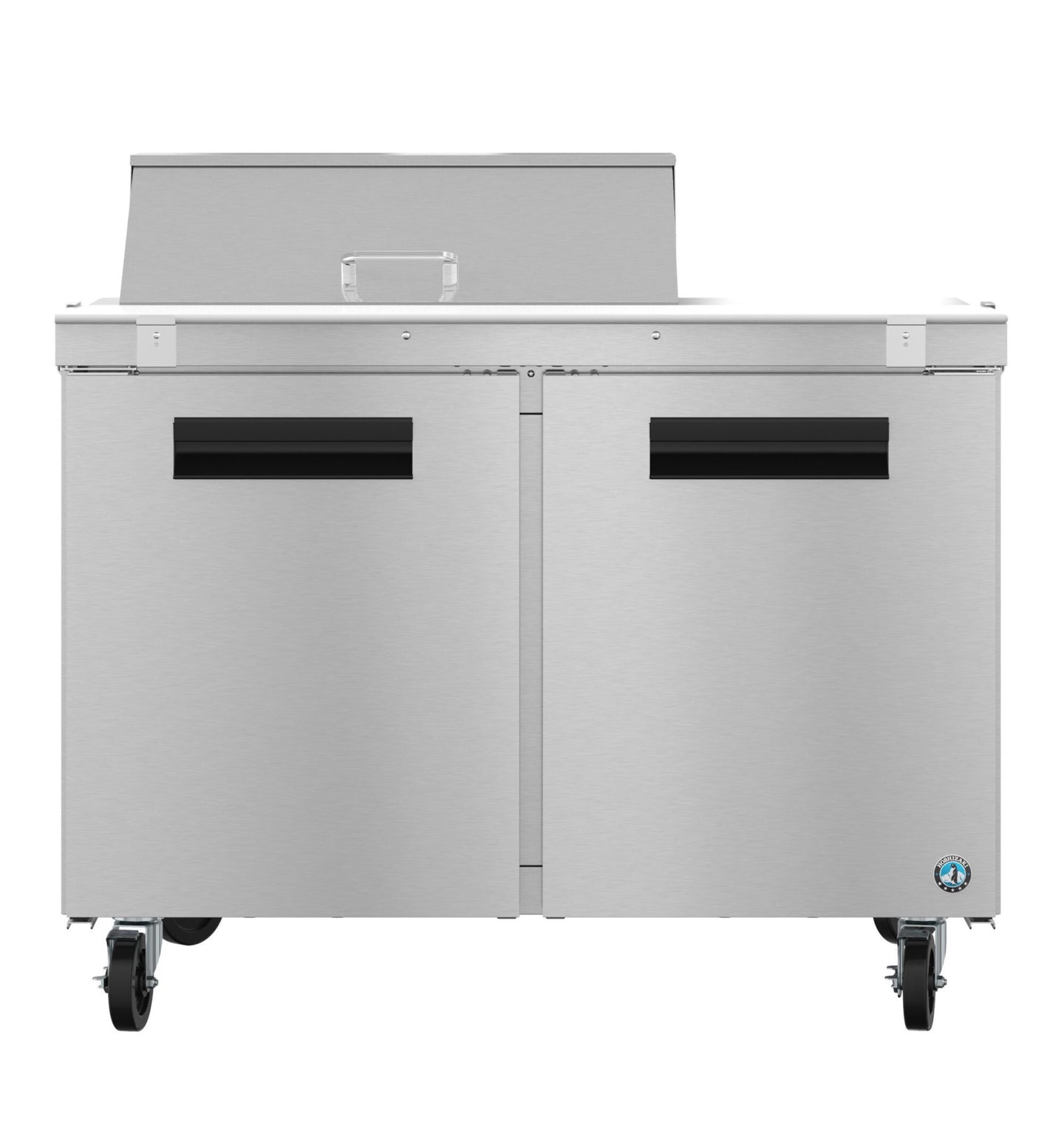

The Hoshizaki SR48B-8 is the entry configuration of the 48-inch Steelheart two-section prep table: an eight-pan top rail over two stainless steel doors and 12 cubic feet of net refrigerated storage. It is specified when the value of the cabinet is the storage underneath rather than the pan count on top.

Storage-Weighted Configuration

Eight sixth-size pans across a 48-inch rail is a deliberately sparse layout — the same cabinet is available with twelve or eighteen positions. Choosing eight means the station runs a short topping list and needs the cabinet mainly as a two-section reach-in with a work surface on top. That is common for sandwich stations, prep areas and service lines that plate rather than build to order.

Two Independent Sections

Both stainless doors open onto their own compartment within the 12 cubic feet of net storage (13.66 nominal). Splitting the cabinet keeps raw and ready product apart and lets two cooks work without competing for the same door. The unit measures 48 by 34 inches at the standard 44.25-inch Steelheart work height.

Efficiency

The R290 natural-refrigerant system meters 2.38 kWh per day — the lowest figure in the 48-inch two-section family, matching the SR48B-12 and running below the Mega Top variants. Draw is 3 amps at 115V single phase through a 10-foot cord and NEMA 5-15P plug. The unit is ETL Safety Listed for the US and Canada, ETL Sanitation Listed, and Georgia Made Certified, and it replaces the discontinued SR48A-8.

Specifications

Model SR48B-8
Type Two section sandwich prep table refrigerator
Series Steelheart
Net Capacity 12 cu ft
Nominal Capacity 13.66 cu ft
Doors 2 stainless steel doors
Pan Capacity 8 polycarbonate 1/6 size pans, 4" deep (accepts 6" deep)
Exterior Dimensions 48" W x 34" D x 44.25" H
Electrical 115V / 60 Hz / 1 phase, 3 amps
Plug NEMA 5-15P, 10 ft cord
Refrigerant R290
Energy Consumption 2.38 kWh/day
Certifications ETL Safety Listed (US & C), ETL Sanitation Listed, Georgia Made Certified
Shipping Weight 292 lbs
Crate Dimensions 52.5" L x 36" D x 46.5" H

Warranty

Hoshizaki covers the SR48B-8 with its 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
