Product Description

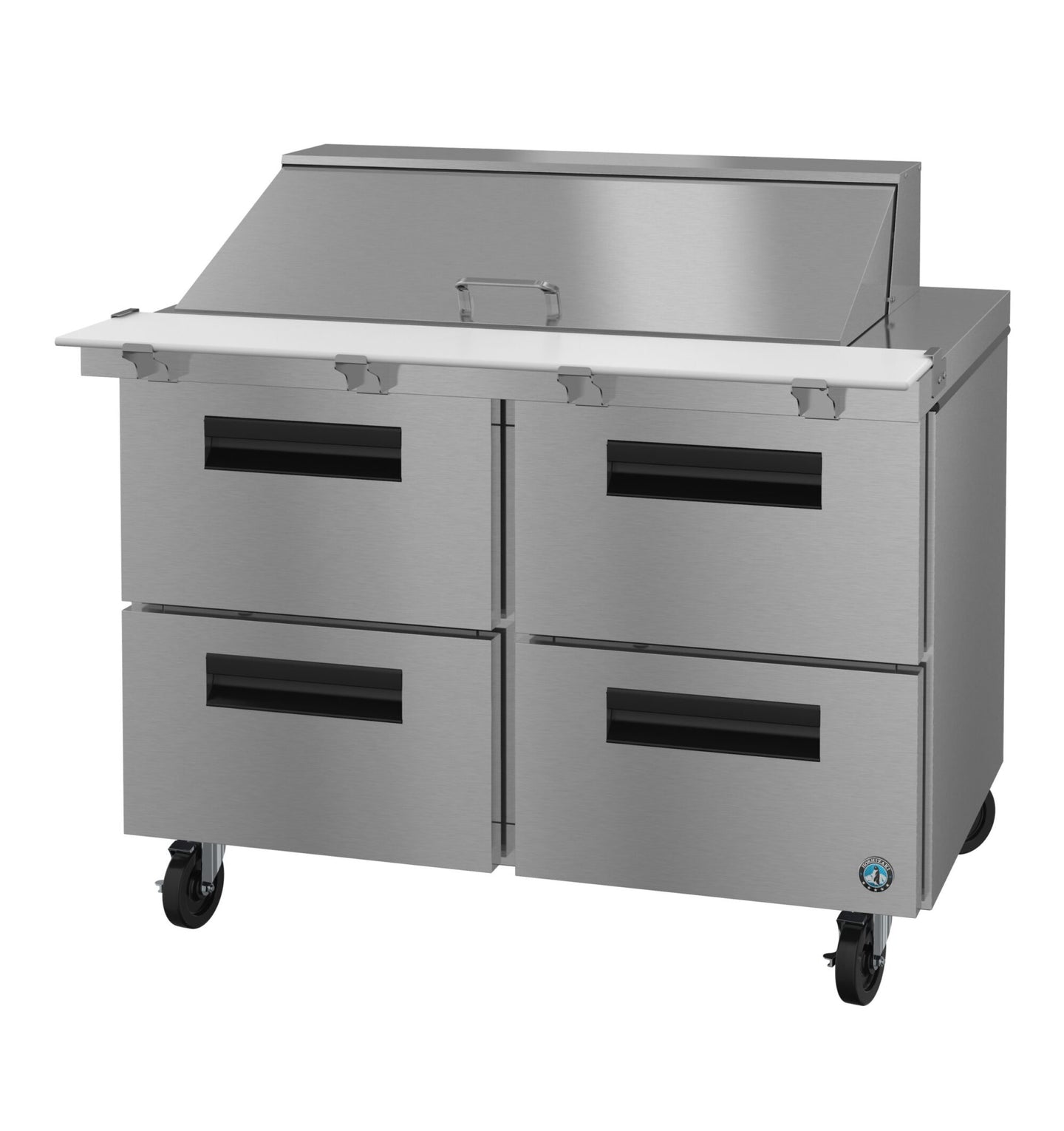

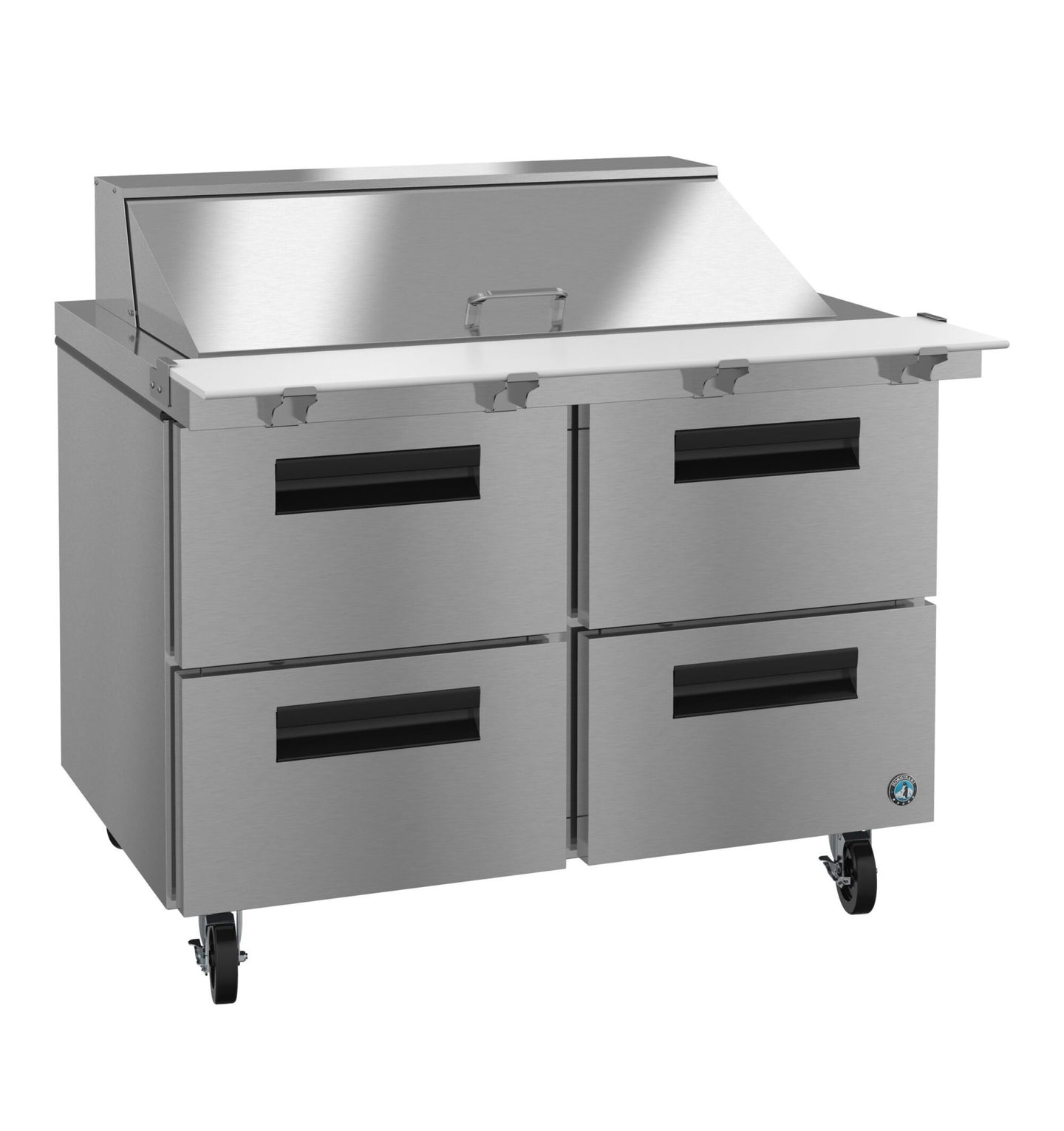

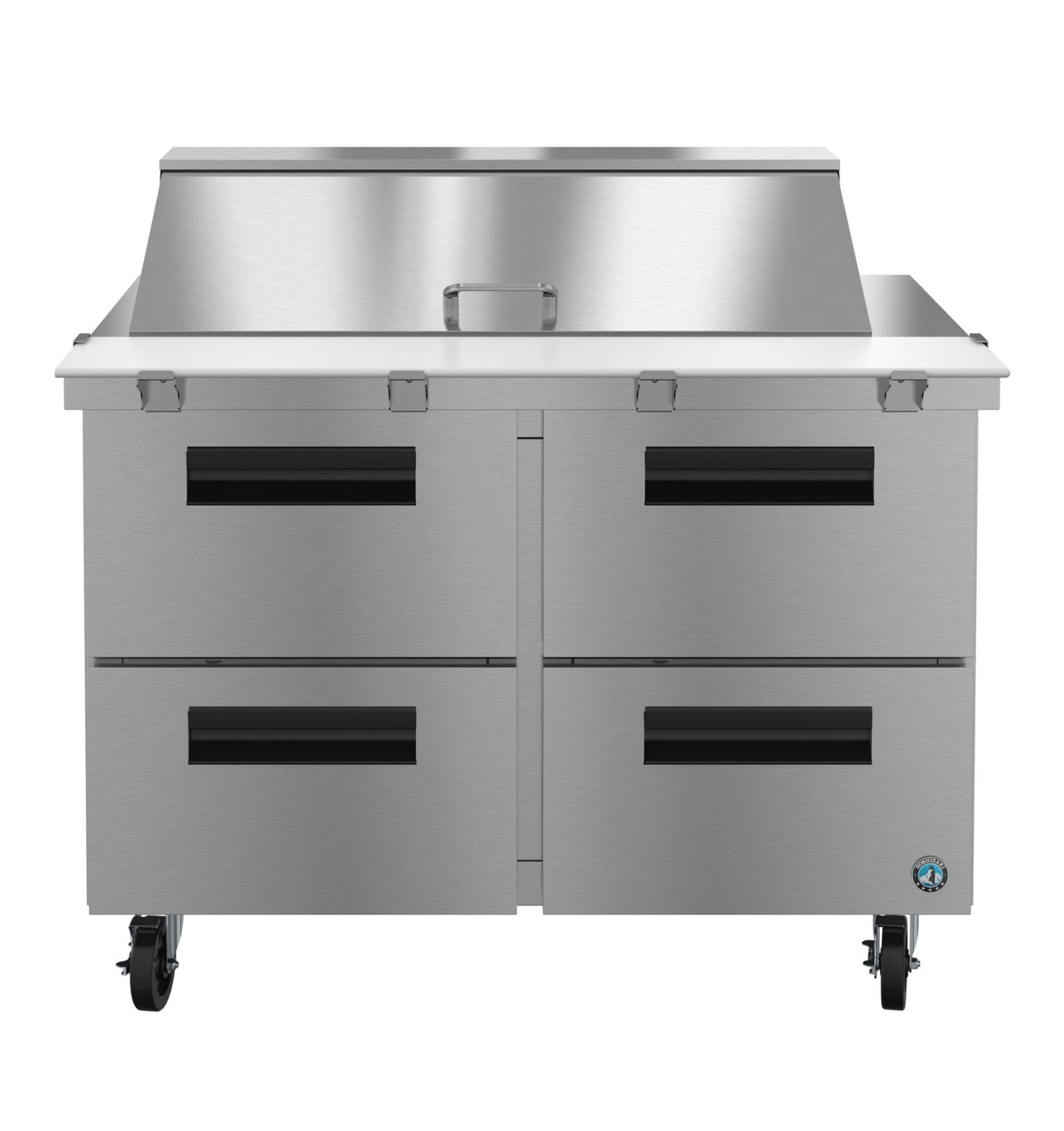

The Hoshizaki SR48B-18MD4 is the fully specified 48-inch Steelheart Mega Top: an eighteen-pan rail above, four fully welded stainless steel drawers below, and no doors at all. It is the top of the 48-inch range and the configuration for high-volume make-lines where every stored item is already portioned into a pan.

Four Welded Drawers

The drawers are fully welded rather than assembled, which matters on a component that gets pulled thousands of times a year and washed down constantly — there are no seams to work loose or trap product. The two top drawers each hold a half-size and a third-size pan at 4 inches deep; the two bottom drawers take the same pan sizes at 6 inches deep, for bulk backup.

Maximum Rail Density

Eighteen sixth-size positions is as many as Hoshizaki fits on a 48-inch rail. Combined with the drawer base, this unit is built for a station that never stops: full topping range on the rail, sorted portioned product in the drawers, and no door swing intruding into the aisle. Eighteen polycarbonate pans at 4 inches deep are included.

Cabinet and Refrigeration

Net storage is 12 cubic feet (13.66 nominal) in the standard 48-by-34-inch Mega Top footprint at 44.25 inches high. The R290 sealed system meters 2.83 kWh per day at 3 amps on 115V single phase. ETL Safety Listed for the US and Canada, ETL Sanitation listed, and Georgia Made Certified. This model supersedes the discontinued SR48A-18MD4.

Specifications

Model SR48B-18MD4
Type Two section Mega Top prep table refrigerator with drawers
Series Steelheart
Net Capacity 12 cu ft
Nominal Capacity 13.66 cu ft
Drawers 4 stainless steel drawers, fully welded
Top Drawers 1 x 1/2 size and 1 x 1/3 size pan, 4" deep
Bottom Drawers 1 x 1/2 size and 1 x 1/3 size pan, 6" deep
Pan Capacity (top rail) 18 polycarbonate 1/6 size pans, 4" deep
Exterior Dimensions 48" W x 34" D x 44.25" H
Electrical 115V / 60 Hz / 1 phase, 3 amps
Plug NEMA 5-15P, 10 ft cord
Refrigerant R290
Energy Consumption 2.83 kWh/day
Certifications ETL Safety Listed (US & C), ETL Sanitation, Georgia Made Certified
Shipping Weight 382 lbs
Crate Dimensions 52.5" L x 36" D x 46.5" H

Warranty

Hoshizaki covers the SR48B-18MD4 with its 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
