Product Description

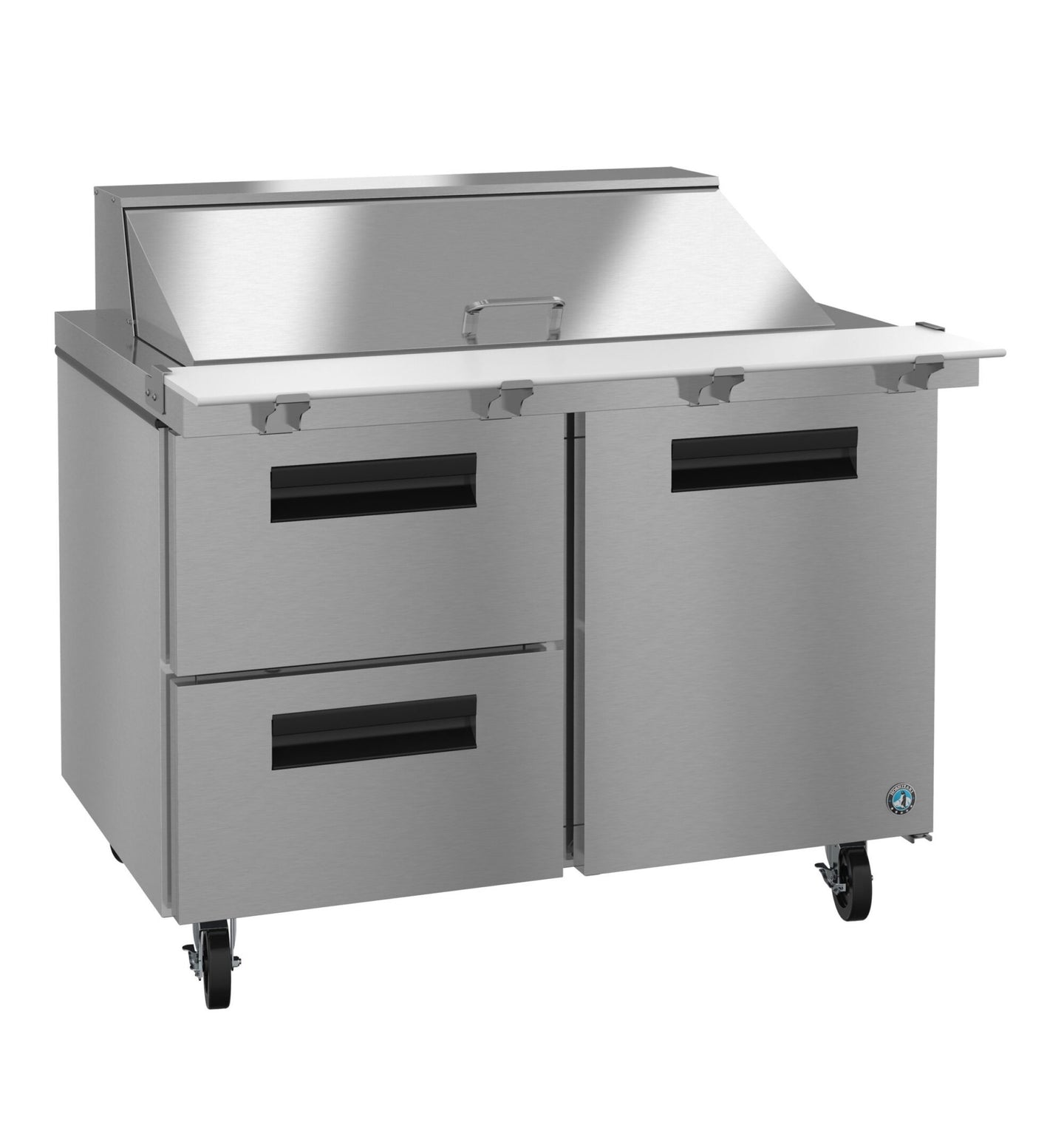

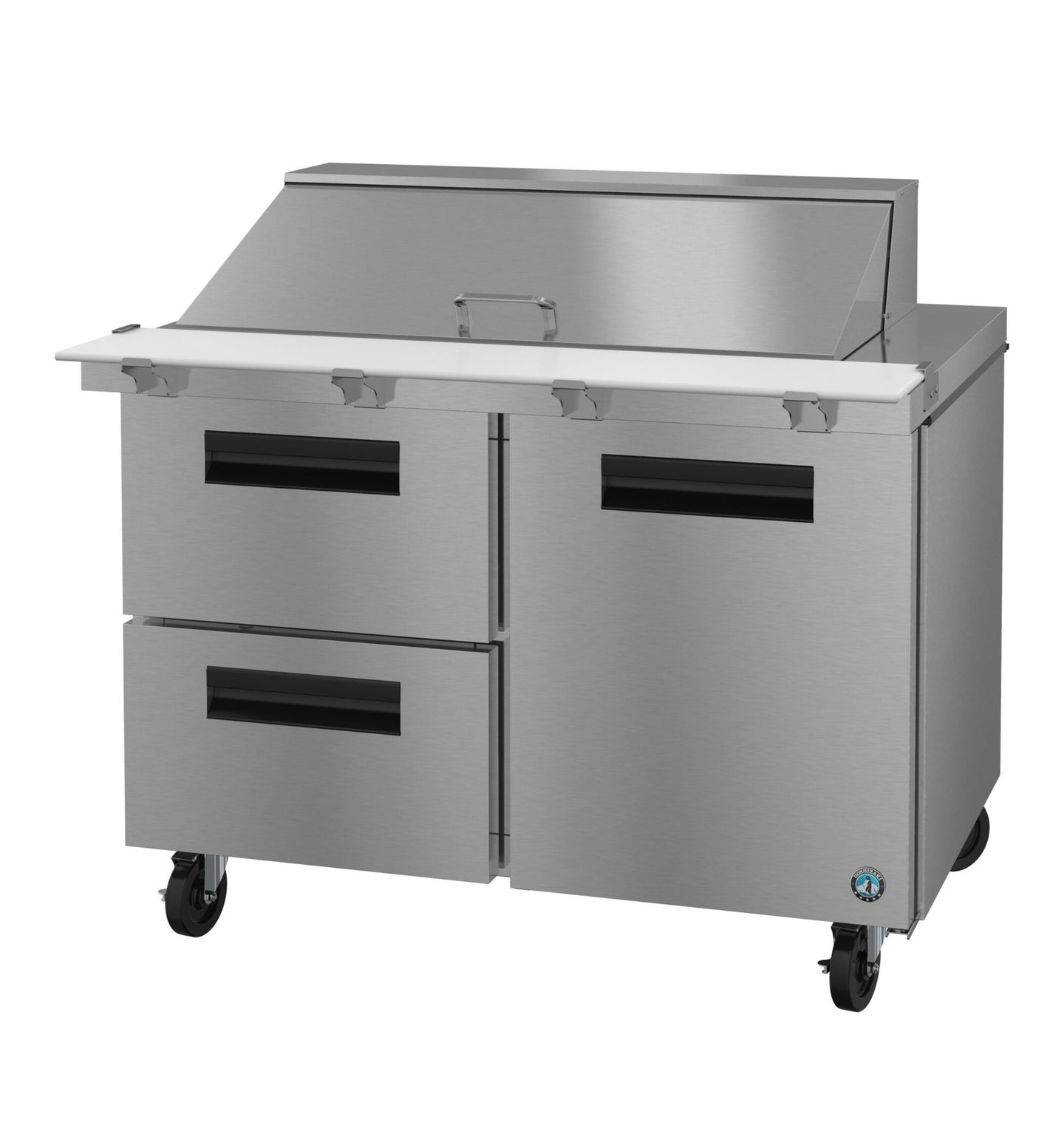

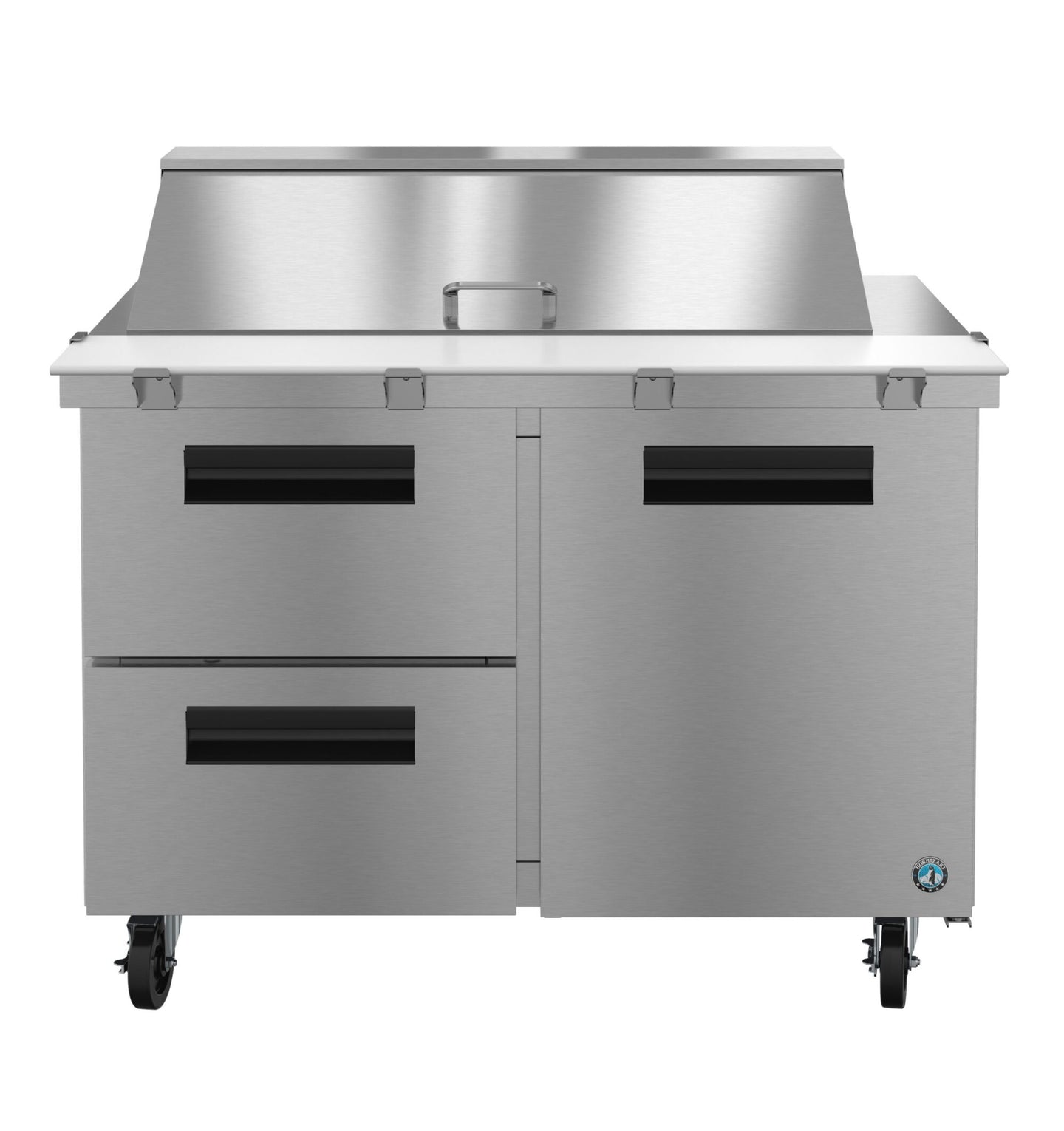

The Hoshizaki SR48B-18MD2 pairs the eighteen-pan Mega Top rail with a mixed storage layout: one stainless steel door on one side, two stainless steel drawers on the other. It is the configuration for a busy make-line that needs maximum topping variety above and both kinds of storage below.

Eighteen Pan Rail

Eighteen sixth-size positions is the maximum rail density Hoshizaki builds into a 48-inch cabinet. Practically, that is enough for a full pizza or salad build without a cook ever swapping inserts mid-service. Hoshizaki includes eighteen polycarbonate pans at 4 inches deep.

Door and Drawers Together

The two storage styles do different jobs. Drawers give sorted, one-motion access to portioned product and remove door swing from the aisle on that side of the cabinet. The remaining door handles anything tall, boxed or held in bulk on a shelf — items that will not fit in a drawer pan at all. Running one of each is what makes this model more flexible than either the all-door SR48B-18M or the all-drawer SR48B-18MD4.

Cabinet and Sealed System

Storage totals 12 cubic feet net (13.66 nominal) in a 48-by-34-inch footprint at 44.25 inches of work height. The R290 natural-refrigerant circuit draws 3 amps at 115V and meters 2.83 kWh per day, on a 10-foot cord with NEMA 5-15P plug. Listings cover ETL Safety for the US and Canada, ETL Sanitation, and Georgia Made Certified.

Specifications

Model SR48B-18MD2
Type Two section Mega Top prep table refrigerator, drawer/door combo
Series Steelheart
Net Capacity 12 cu ft
Nominal Capacity 13.66 cu ft
Configuration 1 stainless steel door, 2 stainless steel drawers
Pan Capacity 18 polycarbonate 1/6 size pans, 4" deep
Exterior Dimensions 48" W x 34" D x 44.25" H
Electrical 115V / 60 Hz / 1 phase, 3 amps
Plug NEMA 5-15P, 10 ft cord
Refrigerant R290
Energy Consumption 2.83 kWh/day
Certifications ETL Safety Listed (US & C), ETL Sanitation, Georgia Made Certified
Shipping Weight 355 lbs
Crate Dimensions 52.5" L x 36" D x 46.5" H

Warranty

Hoshizaki covers the SR48B-18MD2 with its 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
