Product Description

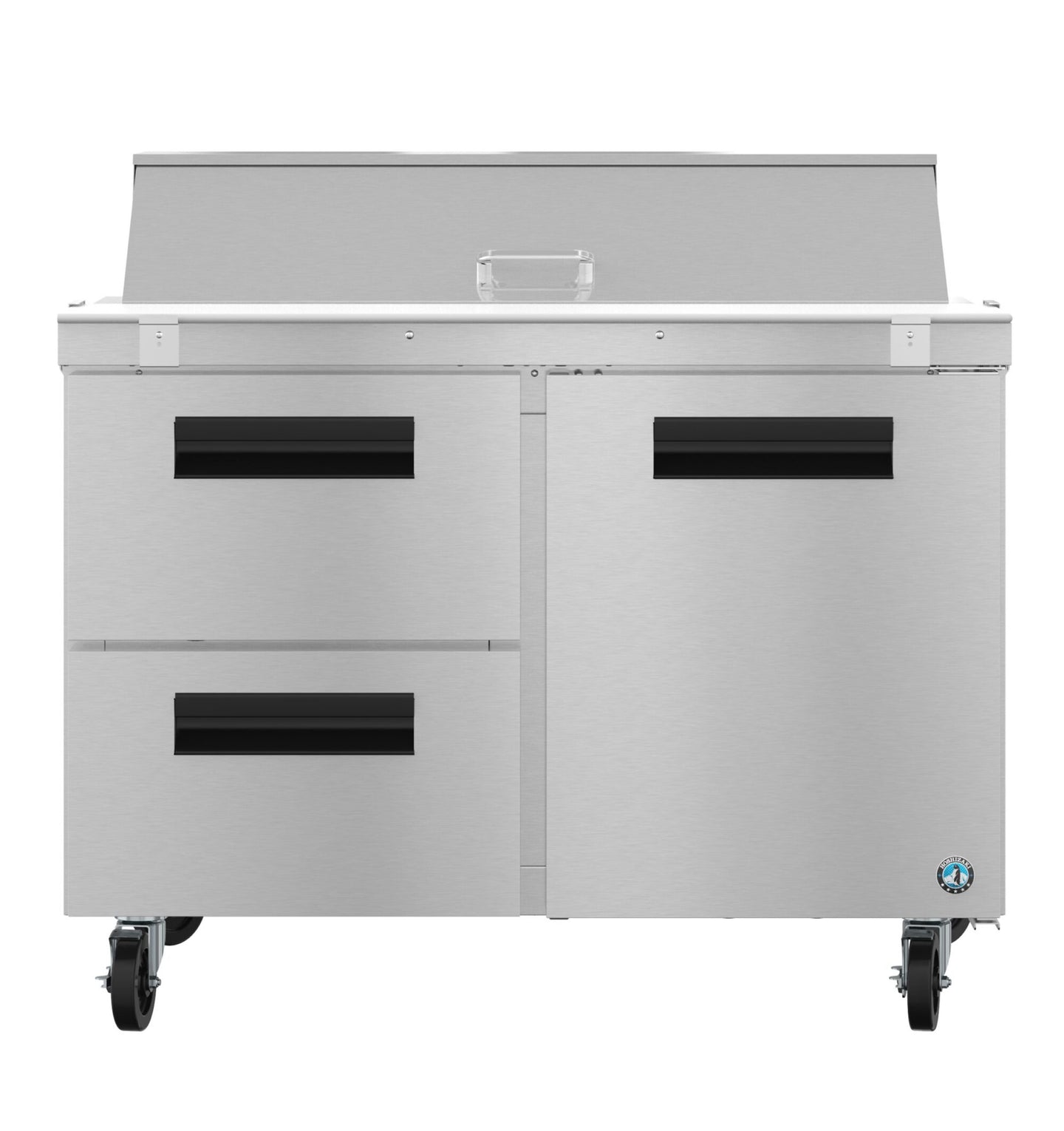

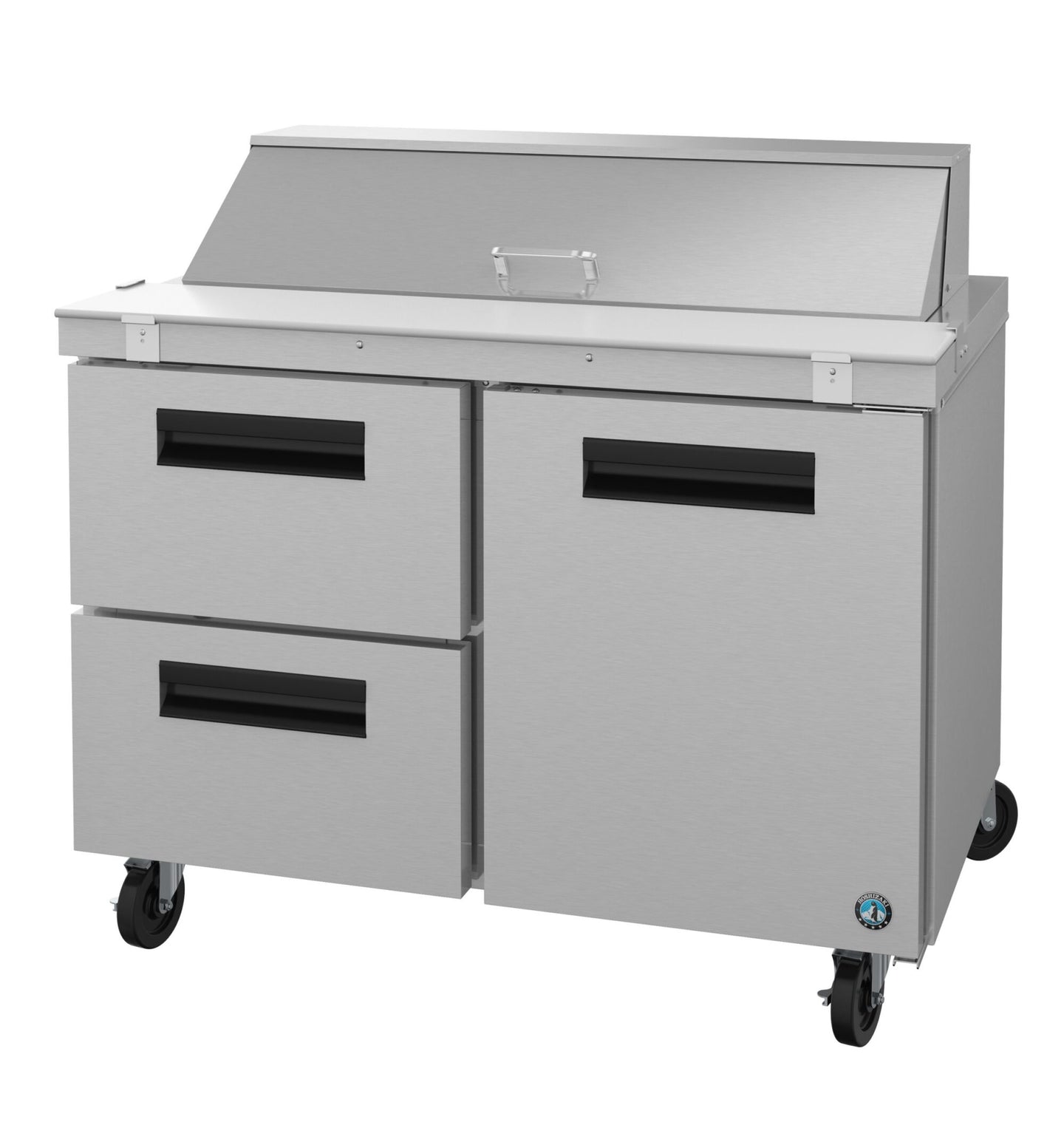

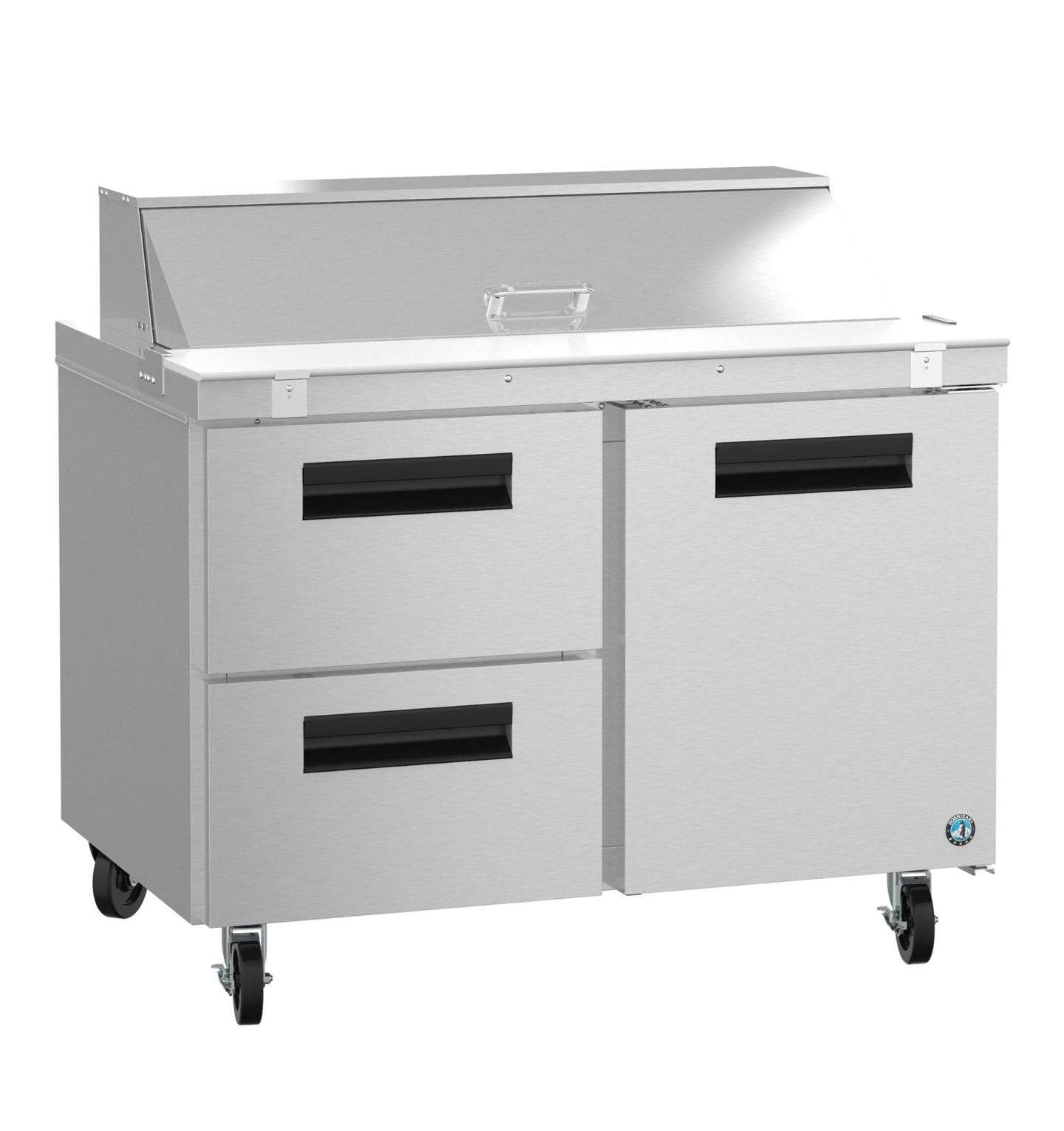

The Hoshizaki SR48B-12D2 is the drawer/door combination version of the 48-inch Steelheart sandwich prep table — one stainless steel door on one side, two stainless steel drawers on the other, under a twelve-pan top rail. It is the configuration for stations that need both bulk storage and fast sorted access, which a cabinet of all doors or all drawers cannot do at once.

Why a Combo Configuration

Drawers win for high-turnover portioned product: a cook pulls, takes and closes in one motion. Doors win for anything tall, boxed, or stored in bulk on a shelf, which will not fit a drawer pan at all. A 48-inch cabinet is the smallest width where splitting the difference makes sense, and this model does exactly that — one section of each. On a single-section unit the operator has to choose.

Top Rail and Cabinet

The rail carries twelve sixth-size pans, supplied as 4-inch polycarbonate inserts. Beneath it the cabinet holds 12 cubic feet of net storage (13.66 nominal) across both sections, in a footprint of 48 by 34 inches at the standard 44.25-inch Steelheart work height.

R290 System and Seven Year Coverage

An R290 natural-refrigerant circuit meters 2.83 kWh per day at 3 amps on a 115V single-phase supply, with a 10-foot cord and NEMA 5-15P plug. The unit is ETL Safety Listed for the US and Canada, ETL Sanitation listed, and Georgia Made Certified, and it carries Hoshizaki's 7-7-7 warranty — the coverage that replaced the shorter terms on the discontinued SR48A-12D2.

Specifications

Model SR48B-12D2
Type Two section sandwich prep table refrigerator, drawer/door combo
Series Steelheart
Net Capacity 12 cu ft
Nominal Capacity 13.66 cu ft
Configuration 1 stainless steel door, 2 stainless steel drawers
Pan Capacity 12 polycarbonate 1/6 size pans, 4" deep
Exterior Dimensions 48" W x 34" D x 44.25" H
Electrical 115V / 60 Hz / 1 phase, 3 amps
Plug NEMA 5-15P, 10 ft cord
Refrigerant R290
Energy Consumption 2.83 kWh/day
Certifications ETL Safety Listed (US & C), ETL Sanitation, Georgia Made Certified
Shipping Weight 355 lbs
Crate Dimensions 52.5" L x 36" D x 46.5" H

Warranty

Hoshizaki covers the SR48B-12D2 with its 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
