Product Description

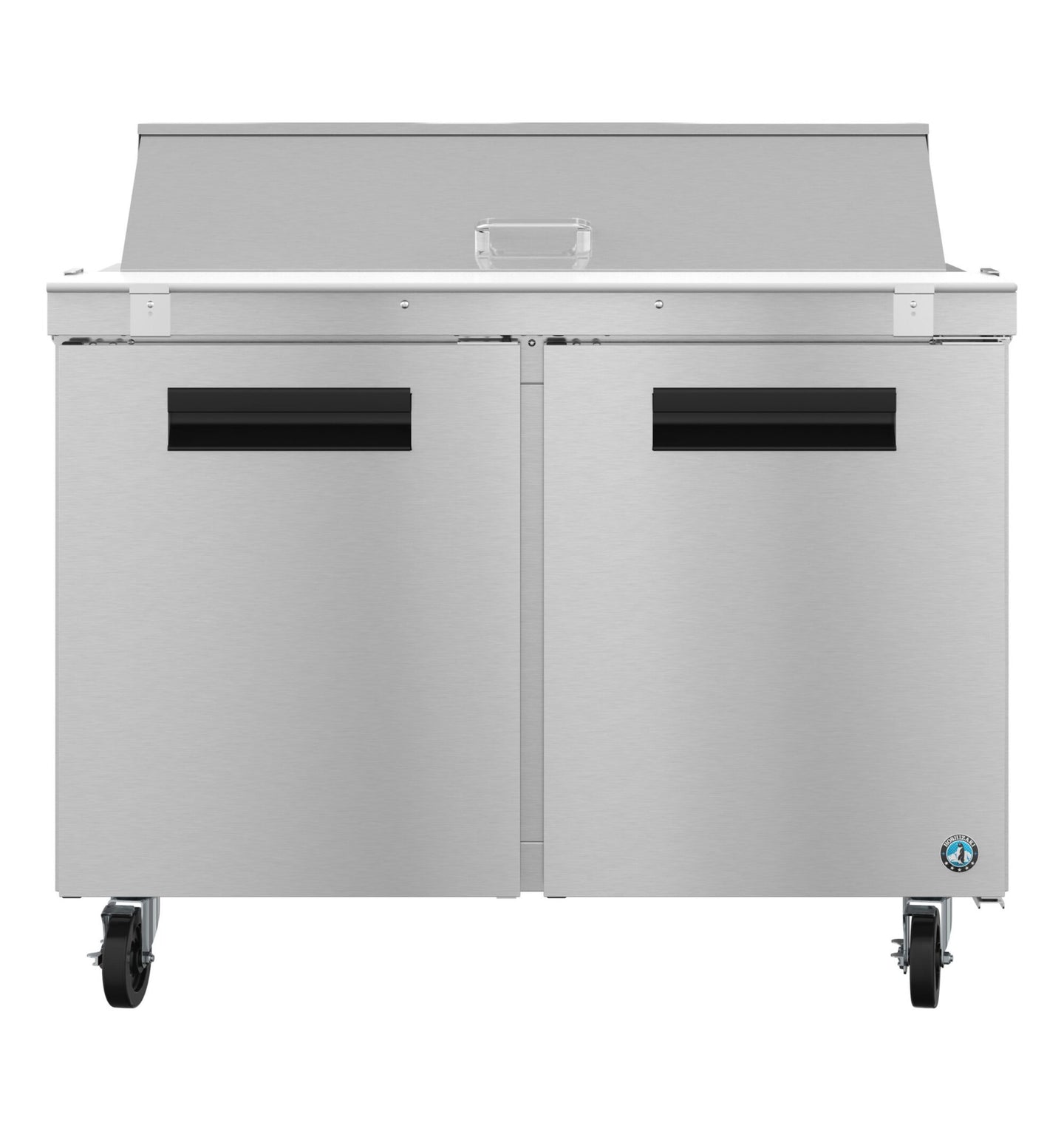

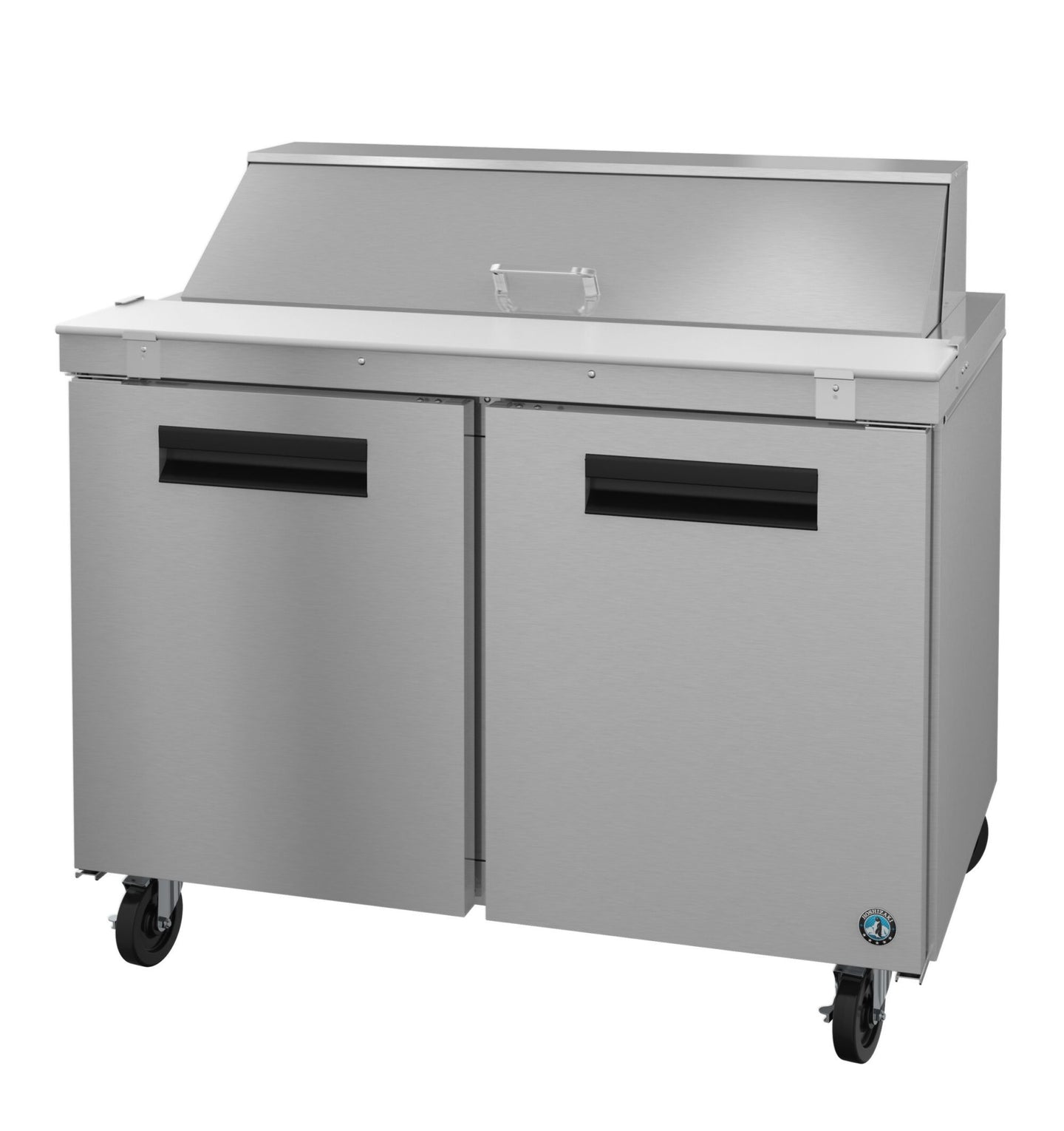

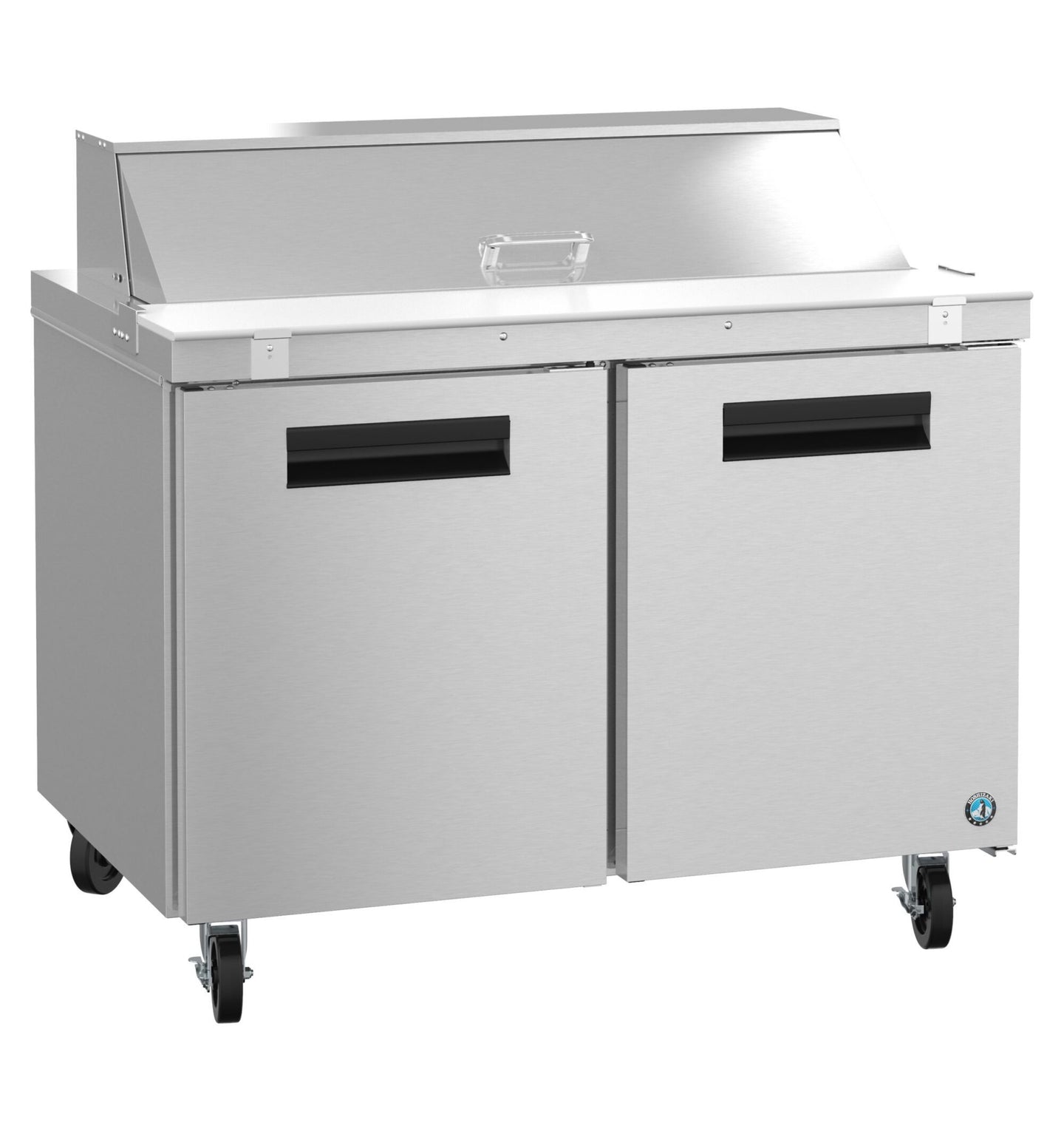

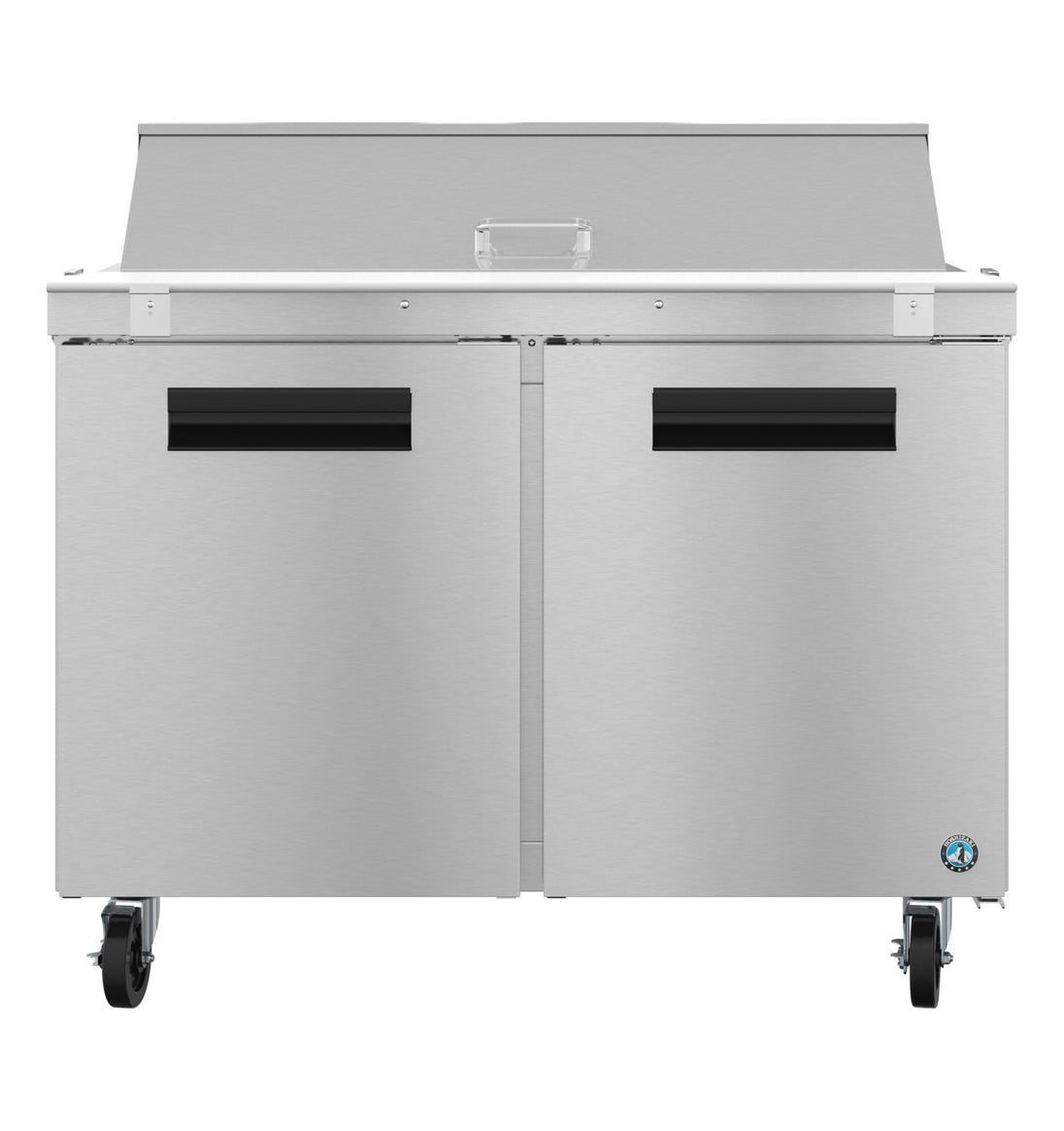

The Hoshizaki SR48B-12 is a two-section sandwich prep table from the Steelheart Series: 48 inches of work surface, a twelve-pan top rail, and two stainless steel doors over 12 cubic feet of net refrigerated storage. It is the current B-generation replacement for the discontinued SR48A-12, and the differences are worth understanding before specifying either.

What the B Generation Changed

Two things separate this unit from the A-series model it supersedes. First, warranty: Hoshizaki's 7-7-7 coverage gives seven years on labor, parts and compressor, against five years compressor and three years parts-and-labor on the older unit. Second, efficiency: the SR48B-12 meters 2.38 kWh per day where the SR48A-12 drew 3.2 kWh per day — roughly a quarter less energy for the same cabinet.

Two Section Layout

Twelve sixth-size pans sit on the rail, supplied as 4-inch polycarbonate inserts with clearance for 6-inch pans. Below, two stainless doors open onto separate compartments, which keeps two cooks from competing for the same door during service and allows raw and finished product to be kept apart. The cabinet runs 48 inches wide by 34 inches deep at the standard 44.25-inch Steelheart work height.

Refrigeration Detail

A 1/5 HP compressor rated at 1,354 BTU/hr runs an R290 natural-refrigerant circuit, with heat rejection of 403 BTU/hr into the kitchen — a figure worth checking against HVAC load when several units share a line. Total draw is 3 amps at 115V through a 10-foot cord and NEMA 5-15P plug.

Specifications

Model SR48B-12
Type Two section sandwich prep table refrigerator
Series Steelheart
Net Capacity 12 cu ft
Nominal Capacity 13.66 cu ft
Doors 2 stainless steel doors
Pan Capacity 12 polycarbonate 1/6 size pans, 4" deep (accepts 6" deep)
Exterior Dimensions 48" W x 34" D x 44.25" H
Compressor 1/5 HP, 1,354 BTU/hr
Heat Rejection 403 BTU/hr
Electrical 115V / 60 Hz / 1 phase, 3 amps
Plug NEMA 5-15P, 10 ft cord
Refrigerant R290
Energy Consumption 2.38 kWh/day
Certifications ETL Safety Listed (US & C), ETL Sanitation, Georgia Made Certified
Shipping Weight 301 lbs
Crate Dimensions 52.5" L x 36" D x 46.5" H

Warranty

Hoshizaki covers the SR48B-12 with its 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
