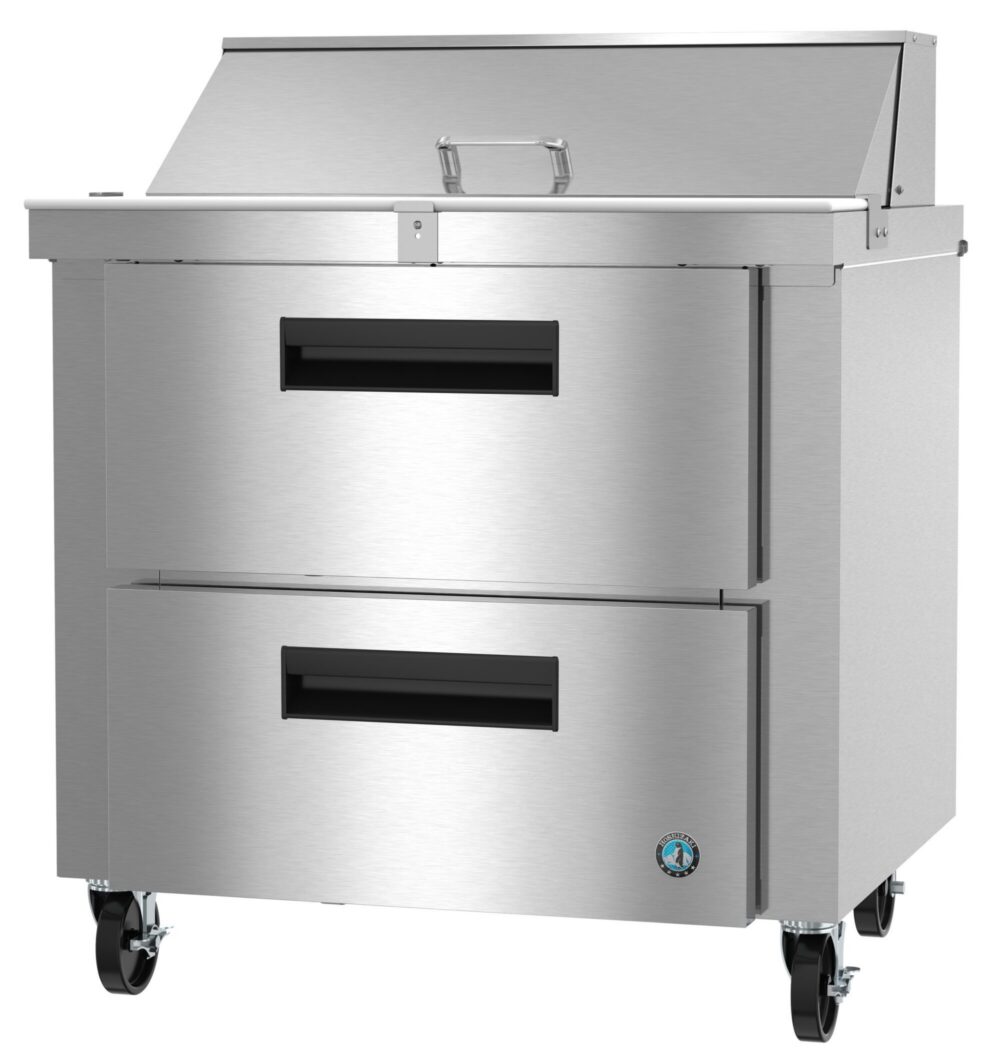

Hoshizaki SR36B-10D2 36 inch sandwich prep table refrigerator with two drawers, Steelheart Series

Product Description

The Hoshizaki SR36B-10D2 is the drawer configuration of the 36-inch Steelheart sandwich prep table: a ten-pan top rail over two stainless steel drawers, in a cabinet 30 inches deep. Swapping the door for drawers keeps the station tidier under volume and removes the swing-clearance problem in tight lines.

Drawer Layout

The upper drawer takes one full-size 12-by-20-inch pan alongside three sixth-size pans — a mixed layout that suits a station running one bulk item plus several garnishes. The lower drawer holds a single full-size pan. Both drawers, like the top rail, accommodate 6-inch-deep pans, so the station can be configured for volume rather than being locked to shallow inserts.

Efficient Sealed System

The SR36B-10D2 uses a small charge of R290 natural refrigerant — 2.1 ounces — and meters just 1.82 kWh per day, notably lower than the door version of the same cabinet. Electrically it needs 3 amps at 115V on a 15-amp maximum fuse, supplied with a 10-foot cord and NEMA 5-15P plug.

Listings and Coverage

The unit is ETL Safety Listed for the US and Canada, ETL Sanitation Listed, Georgia Made Certified, and carries Hoshizaki's Natural Refrigerant designation. Warranty is the Steelheart B-generation 7-7-7: seven years on labor, parts and compressor.

Specifications

Model SR36B-10D2
Type Single section sandwich prep table refrigerator with drawers
Series Steelheart
Capacity 8.7 cu ft
Drawers 2 stainless steel drawers
Upper Drawer 1 full size 12" x 20" pan plus 3 x 1/6 size pans
Lower Drawer 1 full size pan
Pan Capacity (top rail) 10 pans; accepts 6" deep
Exterior Dimensions 36" W x 30" D x 44.25" H
Electrical 115V / 60 Hz / 1 phase, 3 amps, 15A max fuse
Plug NEMA 5-15P, 10 ft cord
Refrigerant R290, 2.1 oz charge
Energy Consumption 1.82 kWh/day
Certifications ETL Listed (US & C), ETL Sanitation Listed, Georgia Made Certified
Shipping Weight 273 lbs

Warranty

Hoshizaki covers the SR36B-10D2 with its 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
