Product Description

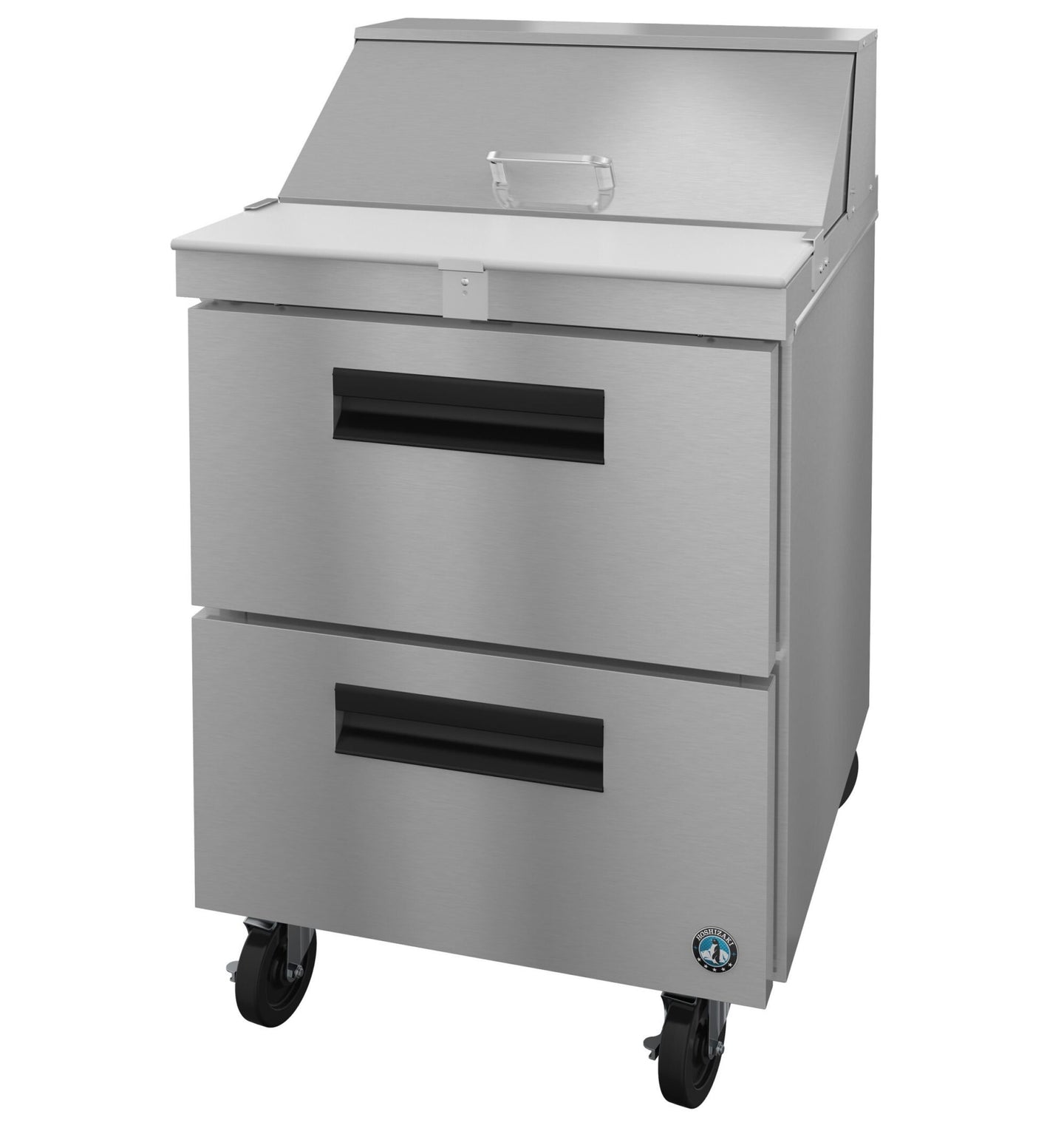

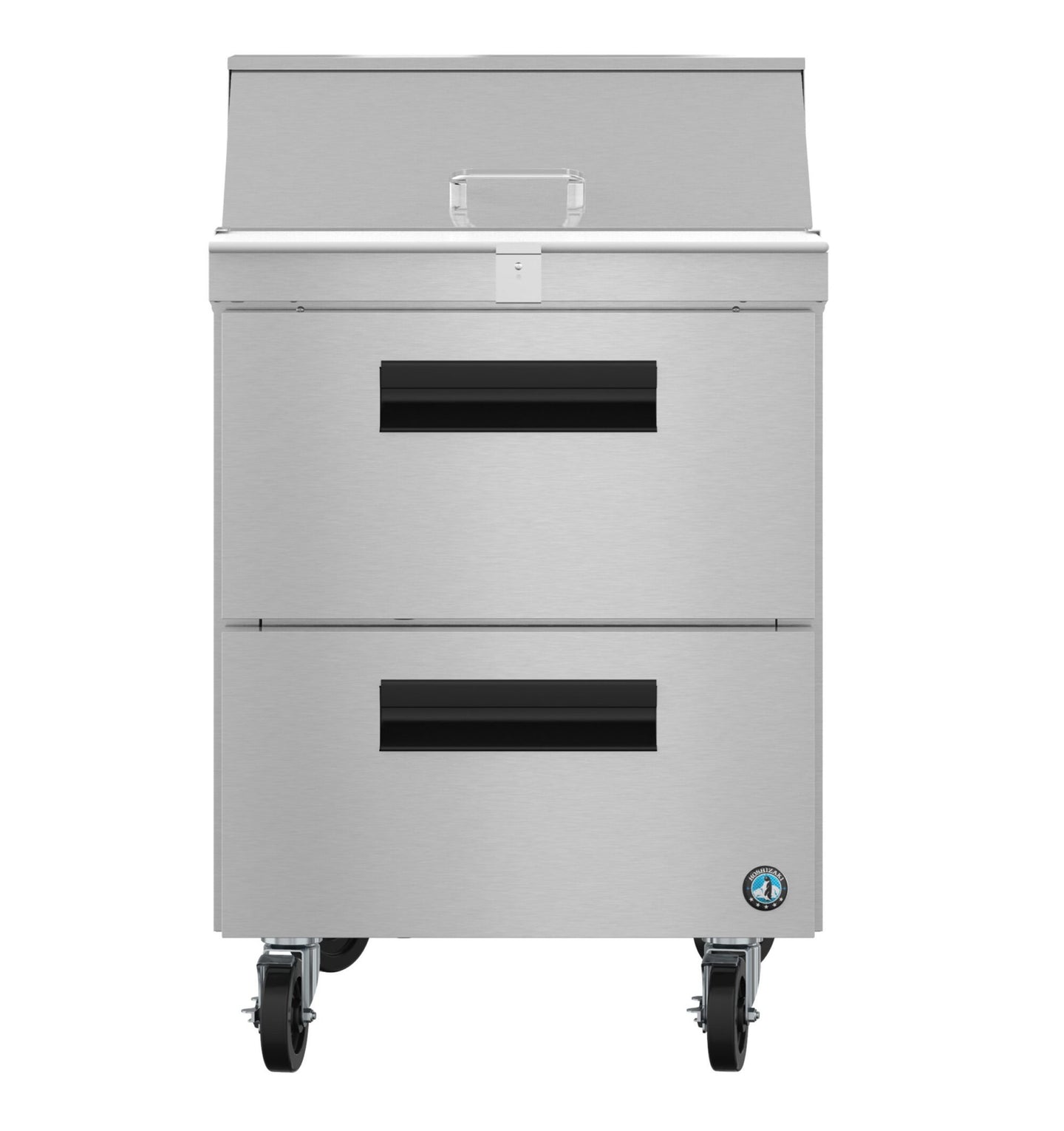

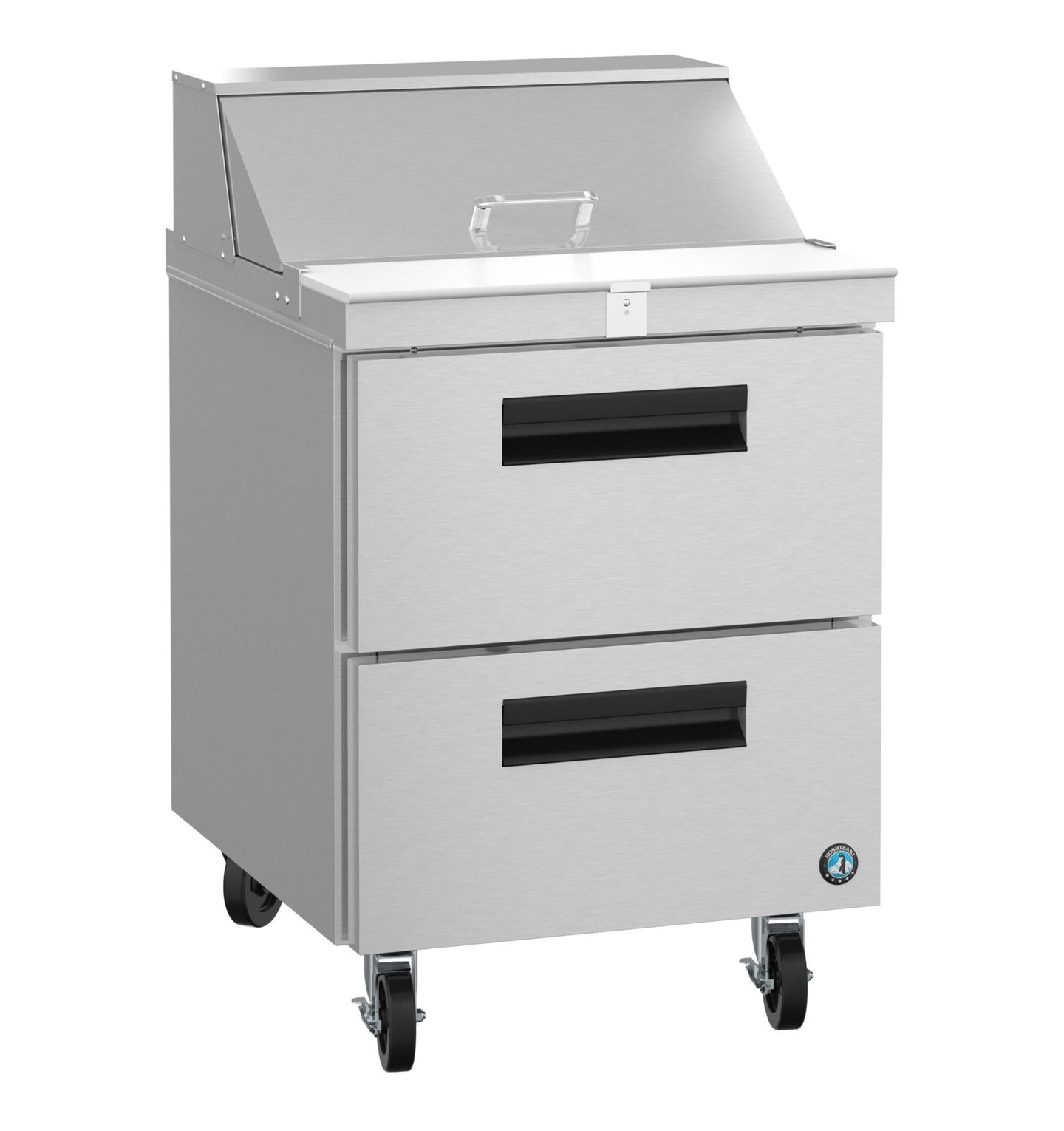

The Hoshizaki SR27B-8D2 is the drawer version of the 27-inch Steelheart sandwich prep table: an eight-pan top rail over two stainless steel drawers, in a shallow 30-inch-deep cabinet. It suits stations where a swing door would foul an aisle or where the crew works faster pulling a drawer than reaching into a cabinet.

Two Drawers, Two Jobs

The upper drawer is configured for one full-size 12-by-20-inch pan plus two quarter-size pans — the shallow layout for items that turn over constantly during service. The lower drawer takes a single full-size pan at full depth, which is where backup product and portioned proteins live. Pans for the drawers are not included, so specify them with the order if the kitchen does not already stock 12-by-20 hotel pans.

Shallow Cabinet, Standard Top

At 30 inches deep the SR27B-8D2 fits where the 34-inch Mega Top models will not. The trade is pan count: eight sixth-size positions on the rail rather than twelve. For a straightforward sandwich or salad build that is usually sufficient, and the four inches of recovered aisle clearance matter more in a tight line.

R290 System and Seven Year Warranty

A 1/5 HP compressor rated at 1,354 BTU/hr runs an R290 natural-refrigerant circuit, drawing 2.3 amps at 115V for a metered 2.54 kWh per day. The unit is ETL Safety Listed for the US and Canada, ETL Sanitation listed, and Georgia Made Certified, and it carries the B-generation 7-7-7 warranty.

Specifications

Model SR27B-8D2
Type Single section sandwich prep table refrigerator with drawers
Series Steelheart
Net Capacity 6.22 cu ft
Nominal Capacity 7.21 cu ft
Drawers 2 stainless steel drawers
Upper Drawer 1 full size 12" x 20" pan plus 2 quarter size pans
Lower Drawer 1 full size pan
Pan Capacity (top rail) 8 x 1/6 size pans
Exterior Dimensions 27" W x 30" D x 44.25" H
Compressor 1/5 HP, 1,354 BTU/hr
Electrical 115V / 60 Hz / 1 phase, 2.3 amps
Plug NEMA 5-15P, 10 ft cord
Refrigerant R290
Energy Consumption 2.54 kWh/day
Certifications ETL Safety Listed (US & C), ETL Sanitation, Georgia Made Certified
Shipping Weight 242 lbs
Crate Dimensions 32" L x 31.5" D x 46.5" H

Warranty

Hoshizaki covers the SR27B-8D2 with its 7-7-7 warranty: seven years labor, seven years parts, and seven years on the compressor.
