Product Description

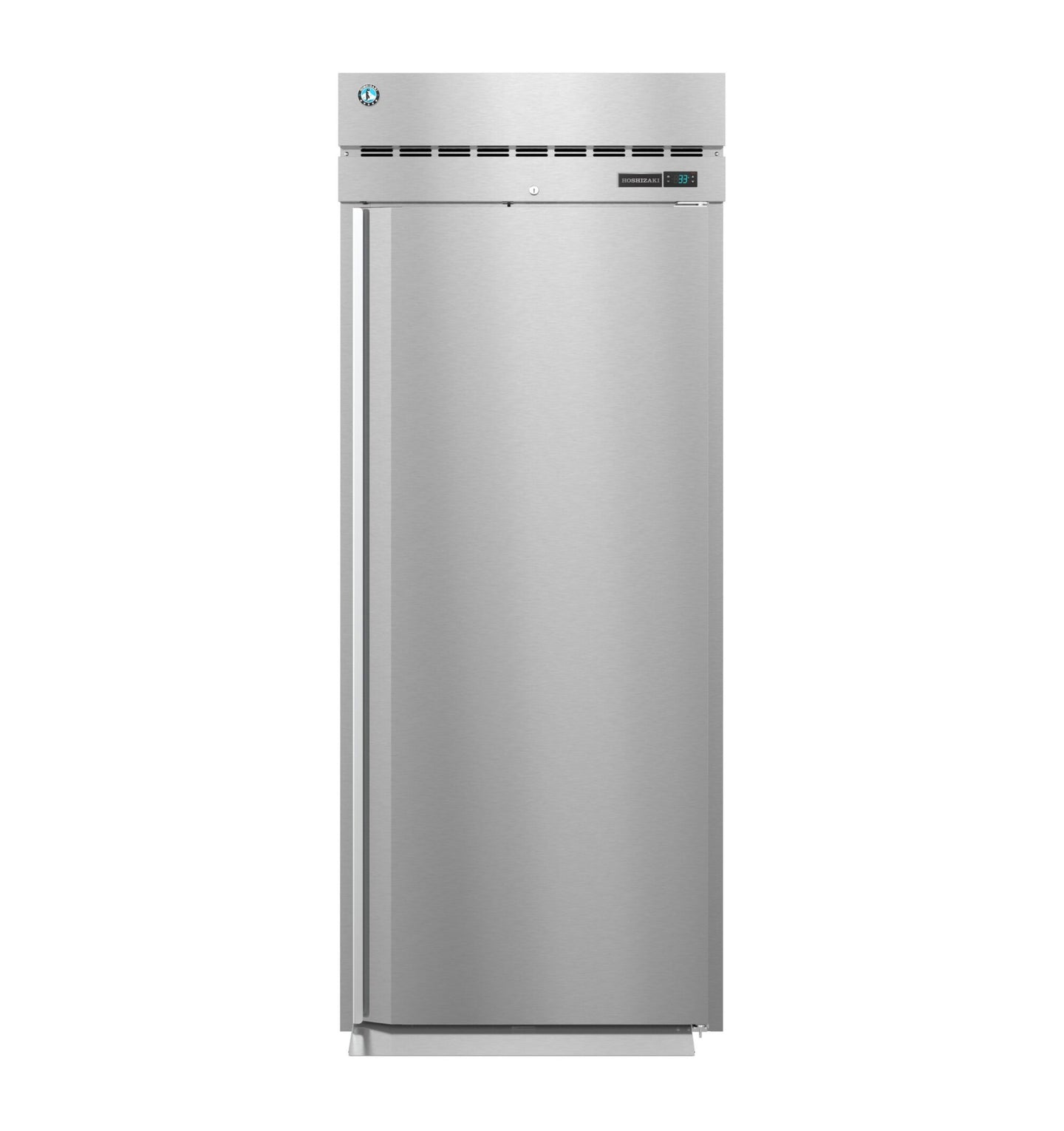

The Hoshizaki RN1A-FS is a single-section roll-in upright refrigerator from the Steelheart Series, built so a loaded rack can be wheeled straight into the cabinet instead of being unloaded onto shelves. It offers 38.13 cubic feet of net capacity behind a full stainless door with a lock, in a cabinet 35 inches wide.

Roll-in, not reach-in

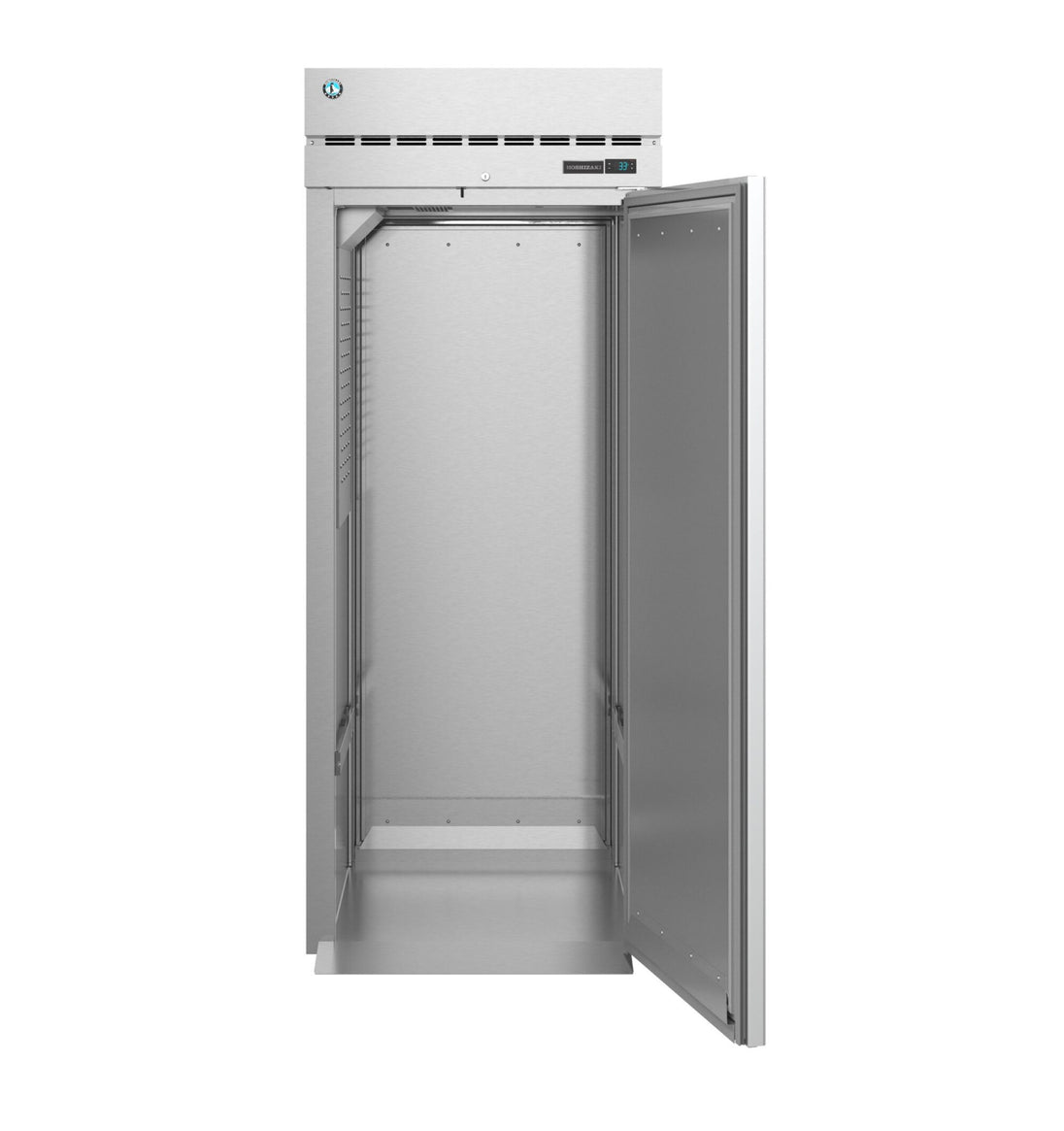

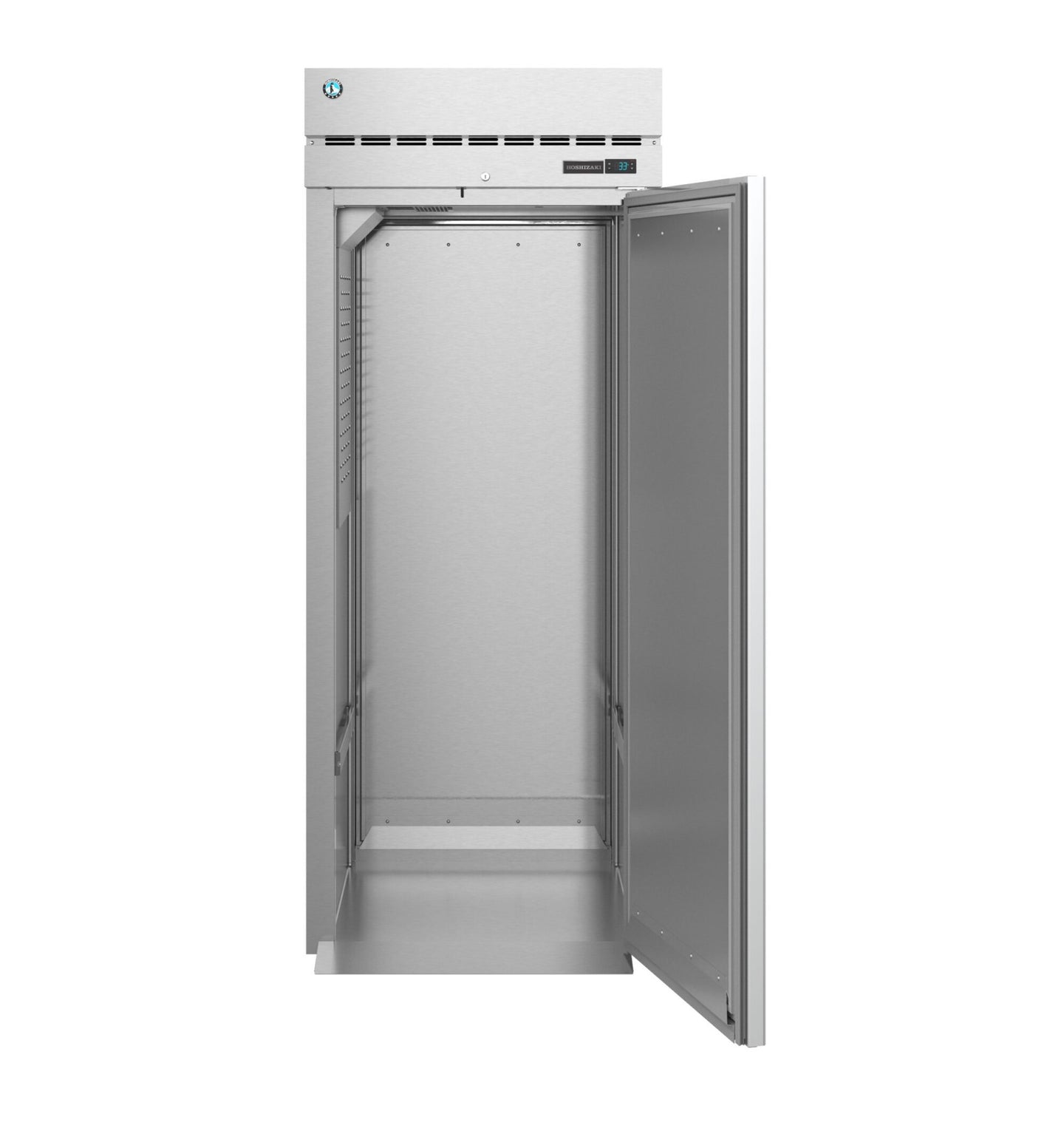

The distinction matters operationally. A roll-in cabinet has a flat, ramped floor and no fixed shelving, so a full sheet-pan rack rolls in as a unit. For banquet kitchens, bakeries, hospital tray lines and high-volume prep operations, that eliminates the transfer step entirely — product goes from the rack in production to the same rack in refrigeration to the same rack at service. The RN1A-FS is the single-section version; the RN2A-FS doubles it. If the racks need to be loaded on one side and pulled from another, the roll-thru RT1A-FS-FS is the pass-through equivalent.

Seven-year Steelheart warranty

Steelheart cabinets carry Hoshizaki's longest coverage: seven years on labor, seven years on parts and seven years on the compressor. That is materially longer than the three-and-five-year coverage on Hoshizaki's merchandiser line and is a substantial part of the cost case for these units in heavy-duty service.

R290 refrigeration and plug-in power

Refrigeration uses R290 natural hydrocarbon refrigerant, and the cabinet is rated at 3.186 kWh per day. Power is 115V single phase at 6.4 amps through a NEMA 5-15P plug on a 10-foot cord, so a cabinet of this capacity still connects to a standard receptacle. It is ETL Safety Listed for the US and Canada, ETL Sanitation Listed, and Georgia Made Certified.

Specifications

Model RN1A-FS
Series Steelheart
Configuration Single section roll-in upright, full stainless door with lock
Net capacity 38.13 cu ft
Exterior dimensions 35" W x 34.5" D x 87.5" H
Shipping weight 429 lbs
Crate dimensions 40.5" L x 39" D x 93.5" H
Electrical 115V / 60 Hz / 1 phase, 6.4 amps
Plug NEMA 5-15P, 10 ft cord
Energy consumption 3.186 kWh/day
Refrigerant R290
Certifications ETL Safety Listed (US & C), ETL Sanitation Listed, Georgia Made Certified

Warranty

Hoshizaki covers the RN1A-FS with seven years on labor, seven years on parts and seven years on the compressor.
