Product Description

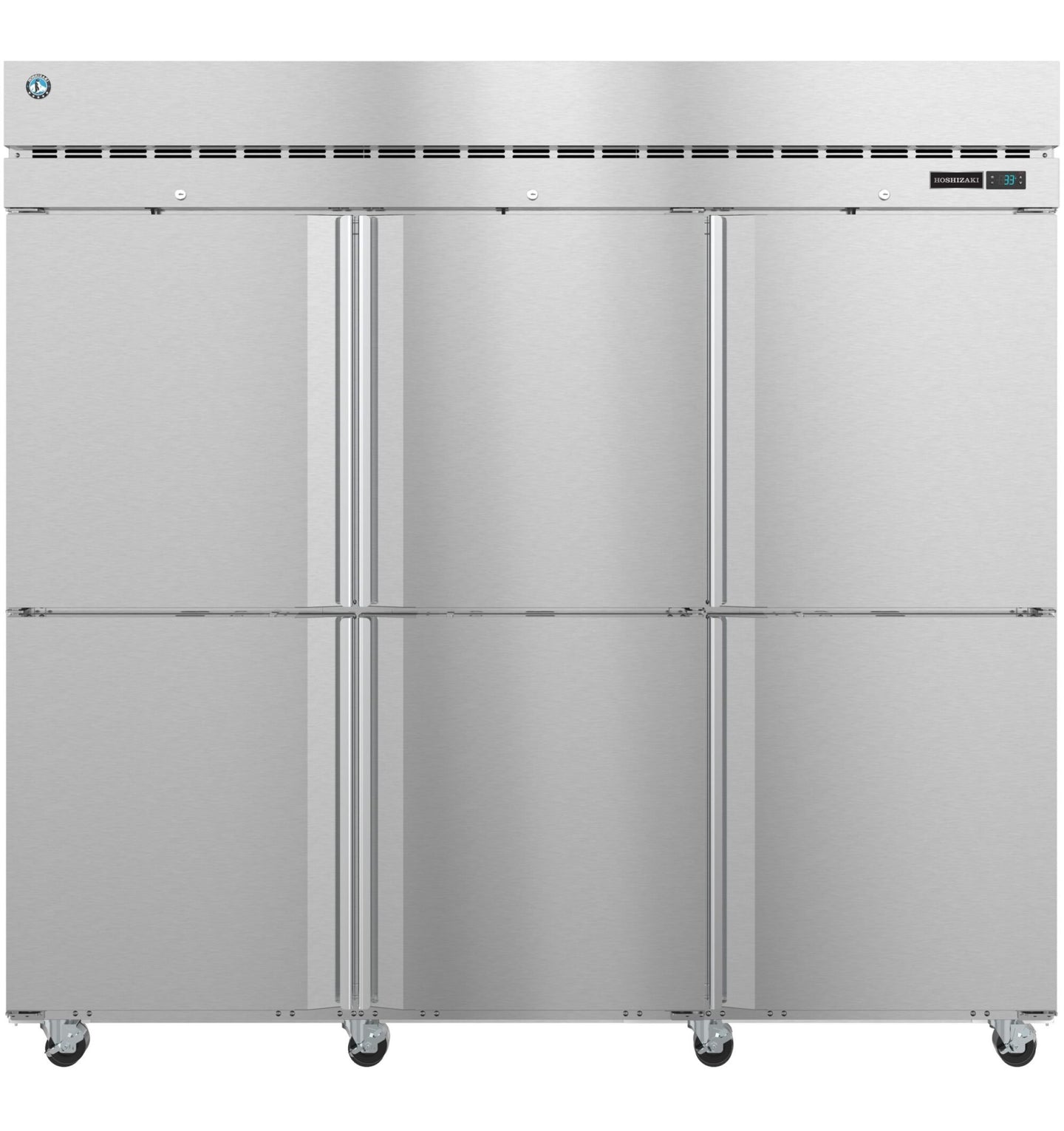

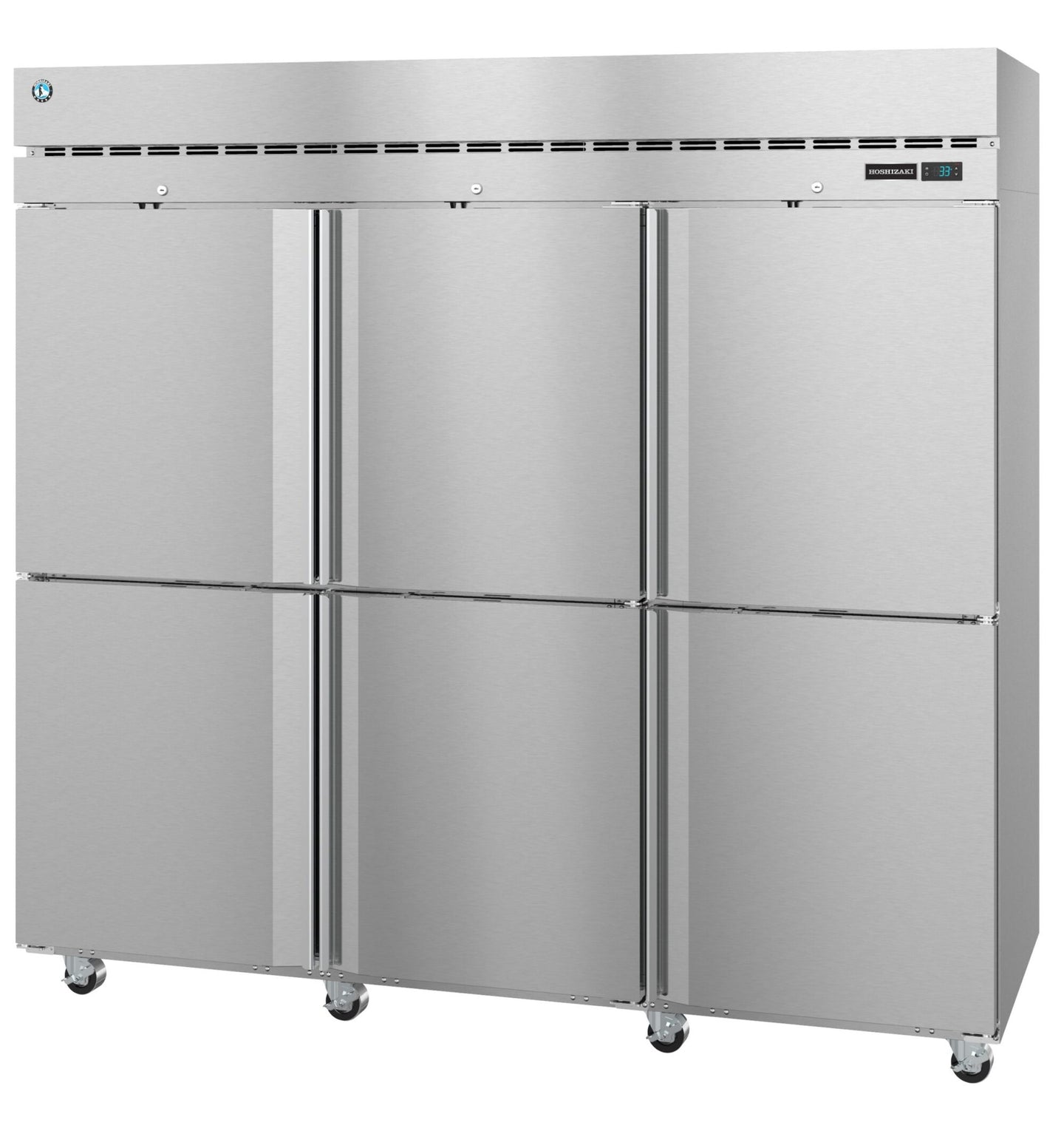

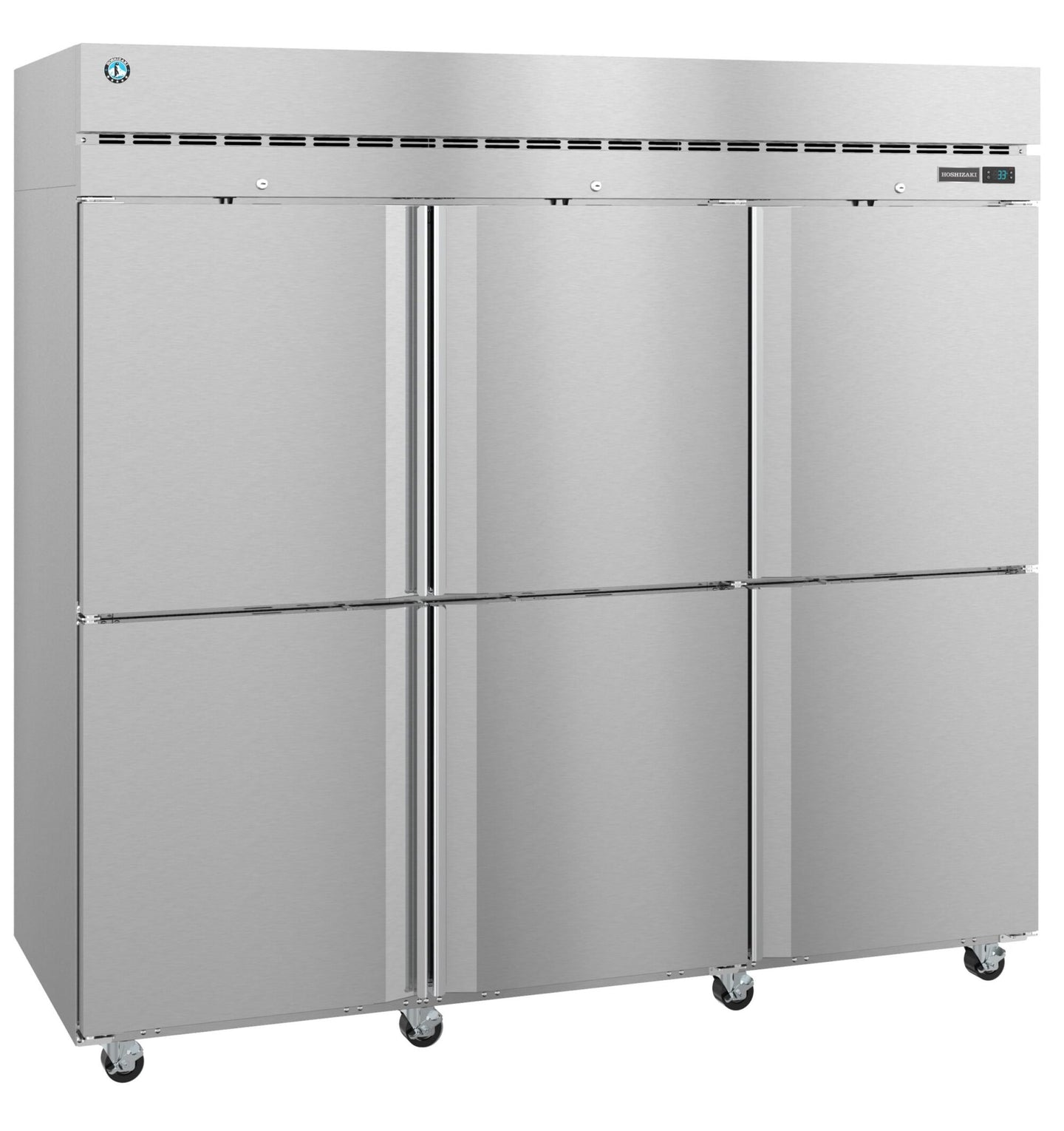

The Hoshizaki R3A-HS is a Steelheart Series three-section upright refrigerator, 82-1/2 inches wide with 79.03 cubic feet of storage behind lockable half stainless steel doors.

Six Solid Openings on a Seven-Foot Cabinet

Each of the three sections splits into an upper and a lower stainless door, so a reach exposes about a sixth of the cabinet instead of a third. On a bulk cabinet this size that halving of the opening is what keeps the temperature stable through a service where the doors never stop moving — and unlike the half-glass R3A-HG, you are not paying for visibility on a back-of-house unit.

Solid State Controls with Temperature Alarms

The controller is solid state with an LED display and temperature alarms. On a cabinet holding 79 cubic feet of product, an audible alarm on a door left ajar or a rising box temperature is the feature that protects the inventory rather than a convenience.

Nine Shelves Across Three Sections

Nine epoxy-coated wire shelves adjust in one-inch increments, three to a section, so each bay can be racked to a different product height. The cabinet is charged with R290 natural refrigerant and draws 9.5 amps from a standard 115 volt circuit through a NEMA 5-15 plug on a 10 foot cord.

Specifications

Model R3A-HS
Series Steelheart
Type Reach-in refrigerator, three section
Doors Half stainless with locks
Controls Solid state with LED display and temperature alarms
Shelves 9 epoxy-coated wire, adjustable in 1" increments
Storage Capacity 79.03 cu ft
Exterior Dimensions 82-1/2"W x 33-1/2"D x 79-1/2"H
Shipping Weight 825 lbs
Electrical 115V / 60 Hz / 1 Phase
Amperage 9.5 A
Plug NEMA 5-15P
Power Cord 10 ft
Energy Consumption 6.5 kWh/day
Refrigerant R290
Certifications ETL Safety Listed (US & C), ETL Sanitation Listed, Georgia Made Certified

Warranty

Seven years labor, seven years parts and seven years on the compressor.
