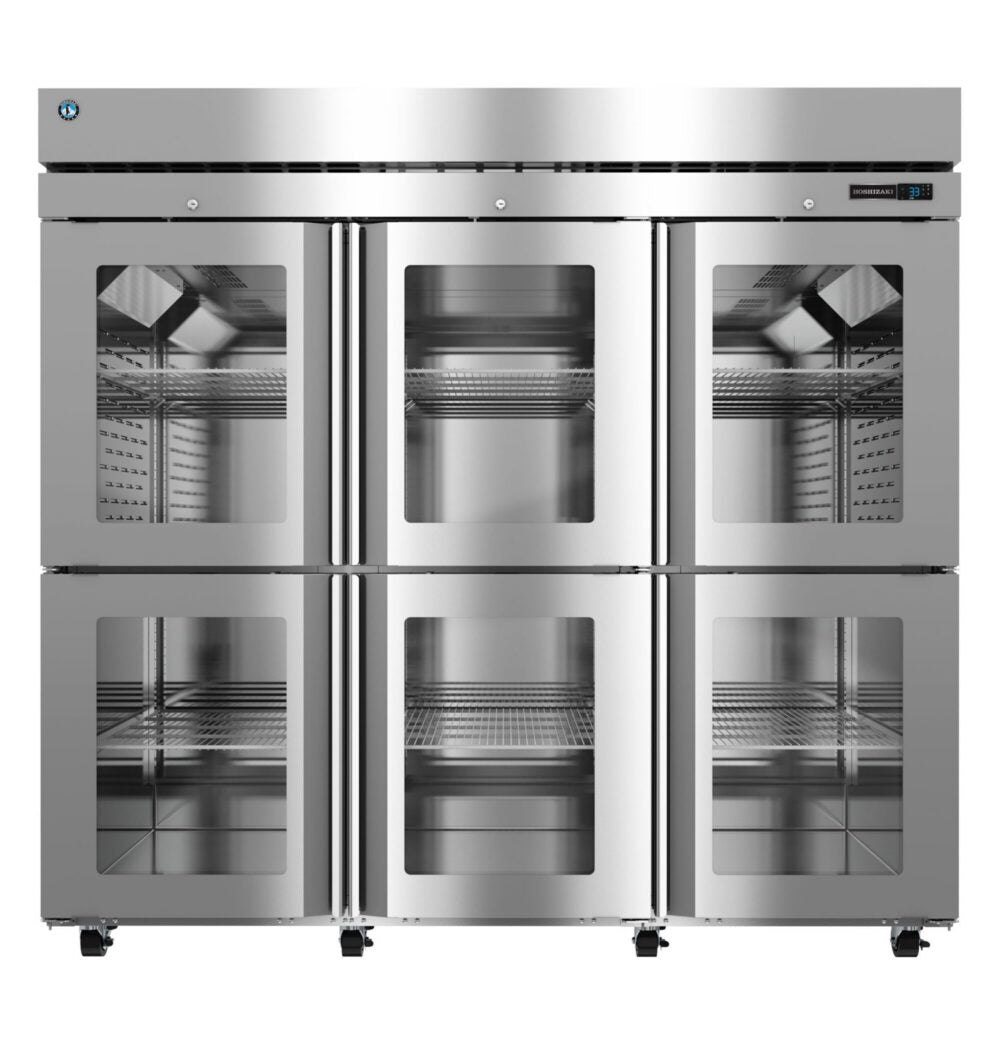

Hoshizaki R3A-HGE Steelheart Series three section reach-in refrigerator with half glass doors

Product Description

The Hoshizaki R3A-HGE is a Steelheart Series three-section upright refrigerator, 82-1/2 inches wide with 79.03 cubic feet of storage behind half glass doors and a digital controller.

Half Doors on a Seven-Foot Cabinet

Splitting each of the three sections into an upper and a lower glass door means a reach opens about a sixth of the cabinet rather than a third. On a unit this large, worked continuously through service, that halving of the exposed opening is what keeps temperature recovery short and the compressor duty cycle reasonable.

Digital Controller

The E designates the digital control package. Against the solid-state controller on the R3A-HG it gives a numeric setpoint and readout rather than a dial, which is what a HACCP log actually needs — a figure to transcribe rather than a position to interpret.

ENERGY STAR Qualified at 6.5 kWh per Day

Published consumption is 6.5 kWh per day and the cabinet is ENERGY STAR qualified, which is uncommon for a glass-door three-section at this volume. It is charged with 4.6 ounces of R290 natural refrigerant, carries nine epoxy-coated wire shelves, and draws 9.5 amps from a standard 115 volt circuit through a NEMA 5-15 plug on a 10 foot cord behind a 15 amp maximum fuse or HACR breaker.

Specifications

Model R3A-HGE
Series Steelheart
Type Reach-in refrigerator, three section
Doors Half glass
Controller Digital
Shelves 9 epoxy-coated wire
Storage Capacity 79.03 cu ft
Exterior Dimensions 82-1/2"W x 33-1/2"D x 79-1/2"H
Shipping Weight 840 lbs
Electrical 115V / 60 Hz / 1 Phase
Amperage 9.5 A
Max Fuse / HACR Breaker 15 A
Plug NEMA 5-15P
Power Cord 10 ft
Energy Consumption 6.5 kWh/day
Refrigerant R290, 4.6 oz
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & C), ETL Sanitation Listed, Georgia Made Certified, Natural Refrigerant

Warranty

Seven years labor, seven years parts and seven years on the compressor.
