Product Description

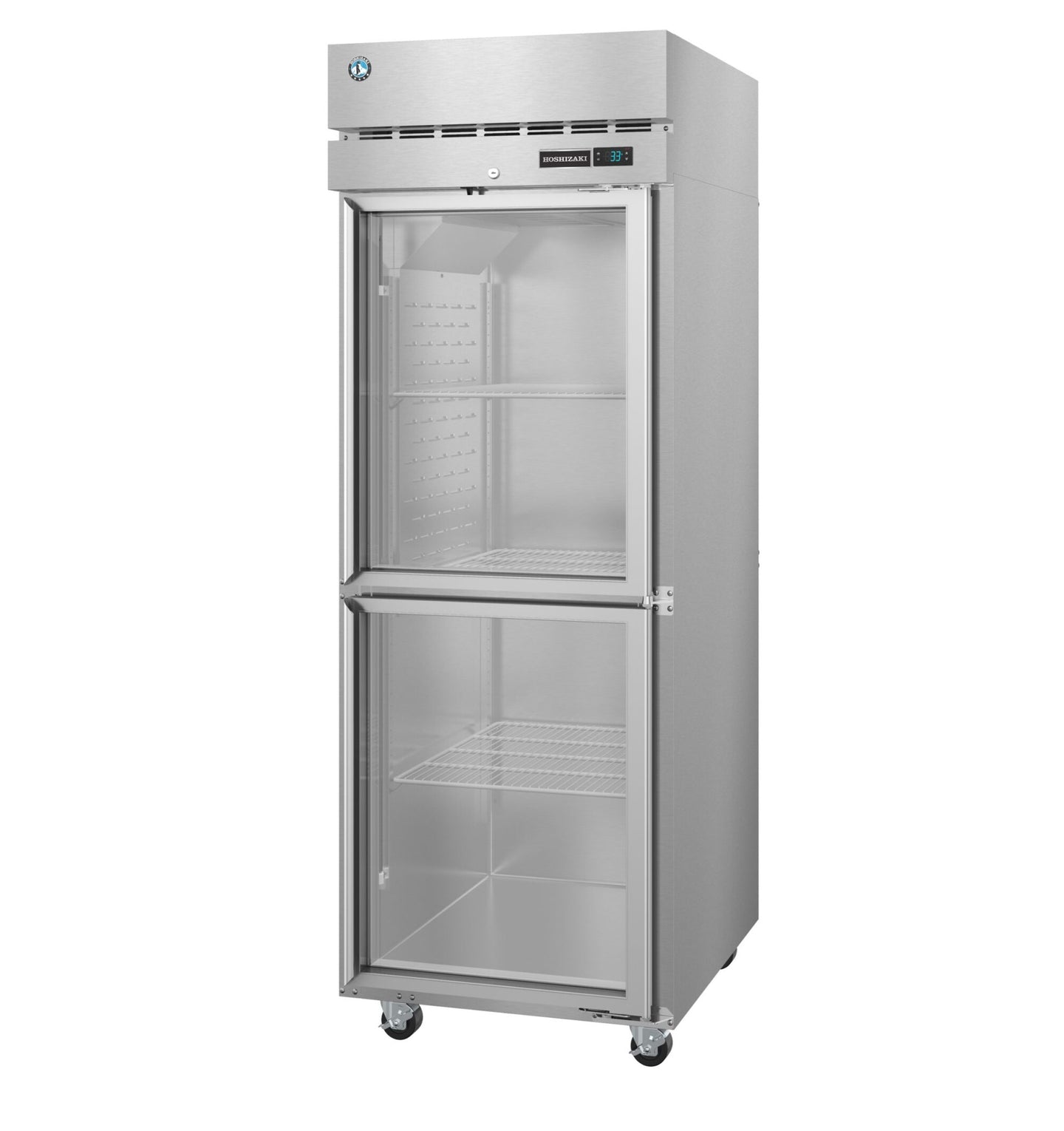

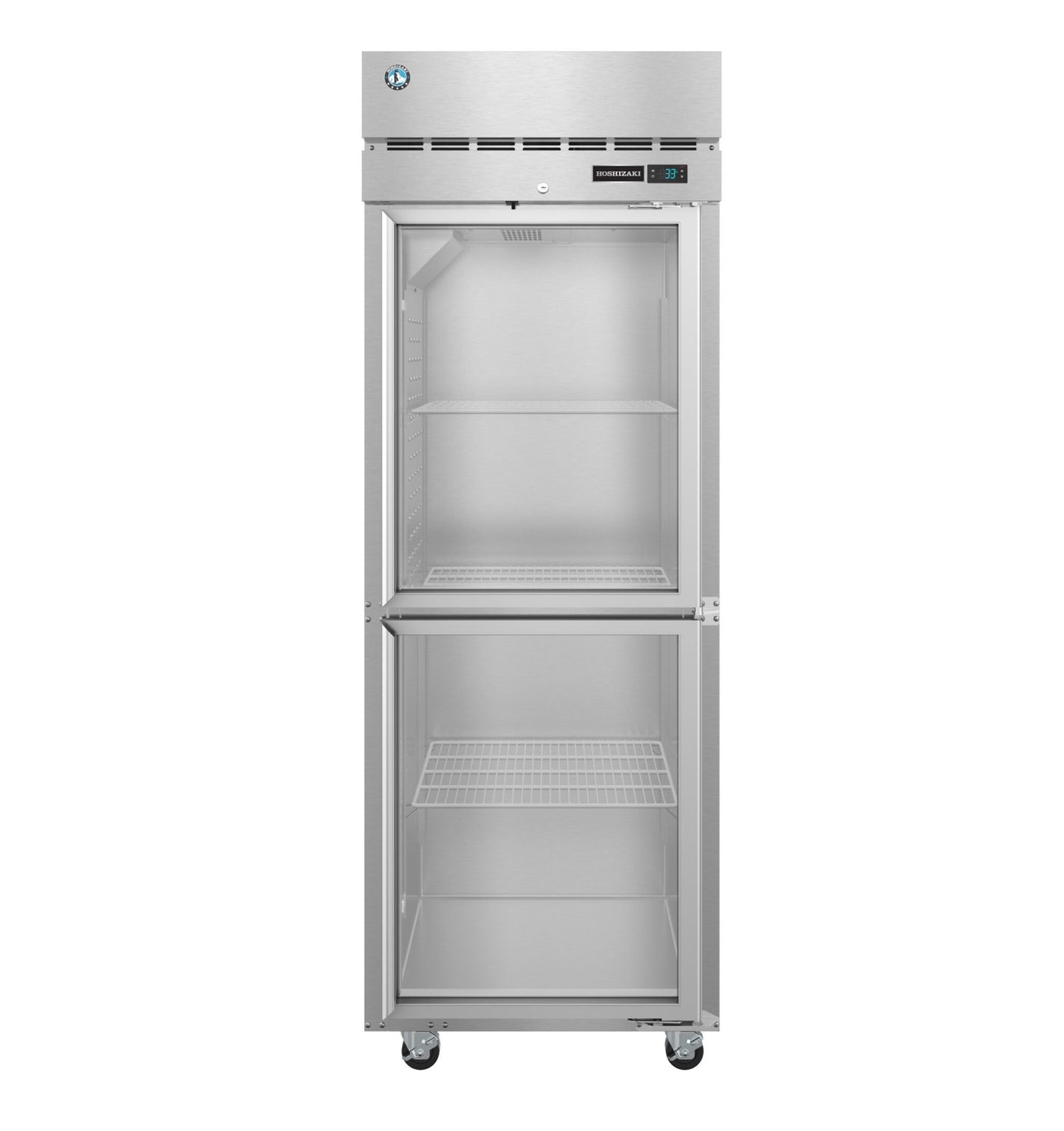

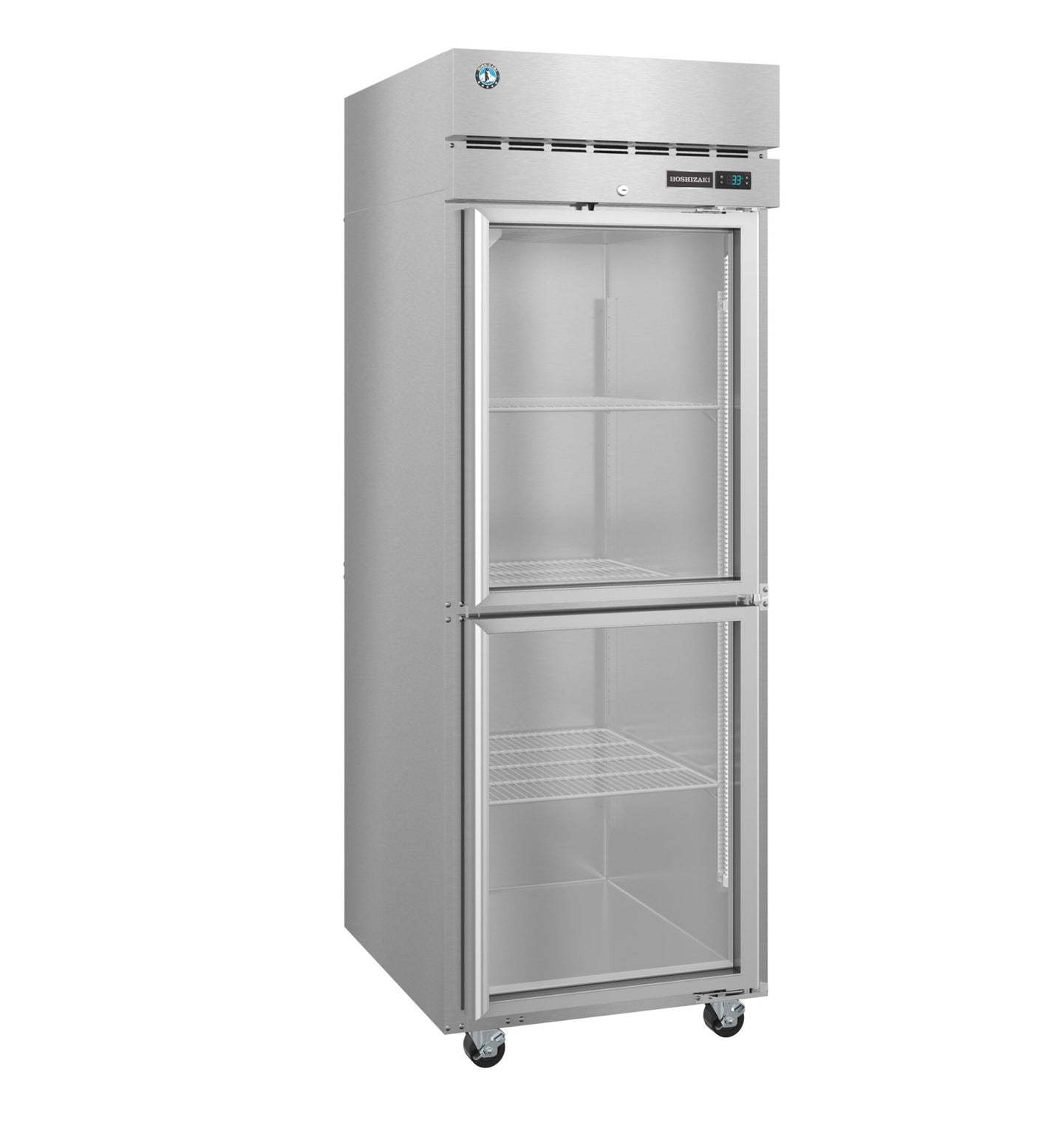

The Hoshizaki R1A-HG is a single-section Steelheart Series reach-in refrigerator fitted with two half glass doors and locks, holding 23.1 cubic feet net in a 27.5-inch-wide cabinet.

Half Doors and Glass Together

Splitting the face into upper and lower glass doors gives visibility without the air loss of a full-height opening. On a station where someone is in the cabinet every few minutes, opening only the half that holds what you need keeps the bulk of the cold air where it belongs, and the glass means most of those openings are informed rather than exploratory.

Where This Configuration Fits

Half glass doors are common on prep lines and behind bars: high traffic, frequent short reaches, and a real benefit to seeing stock levels at a glance. If neither of those applies, the solid-door R1A-FS at 1.25 kWh per day is the more economical cabinet; the R1A-HG is rated at 2.47.

Cabinet and Refrigeration

Exterior dimensions are 27.5 inches wide by 34.5 deep by 79.5 tall, with 23.61 cubic feet nominal and 23.1 net. Refrigeration is R290 natural refrigerant, drawing 5 amps at 115V through a 10 ft cord and 5-15P plug. The cabinet is ETL Safety Listed for the US and Canada, ETL Sanitation Listed and Georgia Made Certified.

Specifications

Model R1A-HG
Series Steelheart
Type One section upright reach-in refrigerator
Net capacity 23.1 cu ft
Nominal capacity 23.61 cu ft
Doors Two half glass with lock
Exterior dimensions 27.5" W x 34.5" D x 79.5" H
Electrical 115V / 60Hz / 1 phase, 5 amps
Plug NEMA 5-15P, 10 ft cord
Energy consumption 2.47 kWh/day
Refrigerant R290 natural refrigerant
Certifications ETL Safety Listed (US & Canada), ETL Sanitation Listed, Georgia Made Certified
Shipping weight 350 lbs
Crate dimensions 36" L x 31.5" D x 81" H

Warranty

Hoshizaki's 7-7-7 warranty: seven years labor, seven years parts and seven years on the compressor.
