Product Description

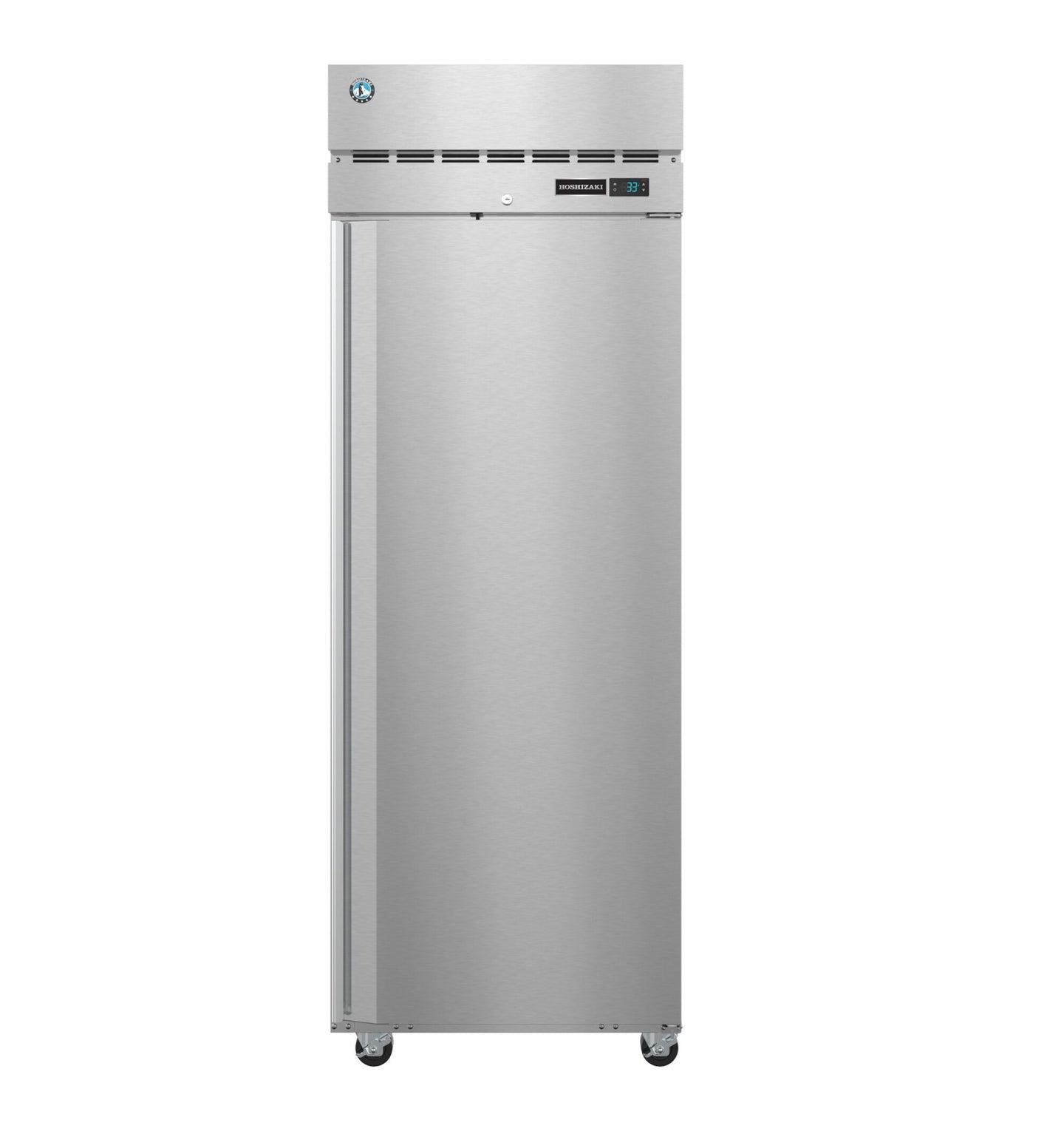

The Hoshizaki R1A-FS is a single-section Steelheart Series reach-in refrigerator with a full stainless lockable door, holding 23.1 cubic feet net in a 27.5-inch-wide cabinet. It is ENERGY STAR qualified and is the efficiency baseline of the R1A range.

The Efficiency Case for a Solid Door

At 1.25 kWh per day the R1A-FS uses roughly half the energy of the glass-door R1A-FG, which is rated at 2.47. Over the seven years Hoshizaki warrants the cabinet, that gap is a real operating cost, not a rounding error. Unless the application genuinely needs visibility, the solid-door cabinet is both cheaper to buy and cheaper to run.

Solid State Control With Temperature Alarms

The cabinet uses a solid state digital controller with an LED display switchable between Fahrenheit and Celsius, and built-in temperature alarms. The alarm matters operationally: a door left ajar at the end of a shift is the most common way a walk-in-adjacent reach-in loses a night's product, and an audible warning catches it before the food does.

Serviceability and Refrigeration

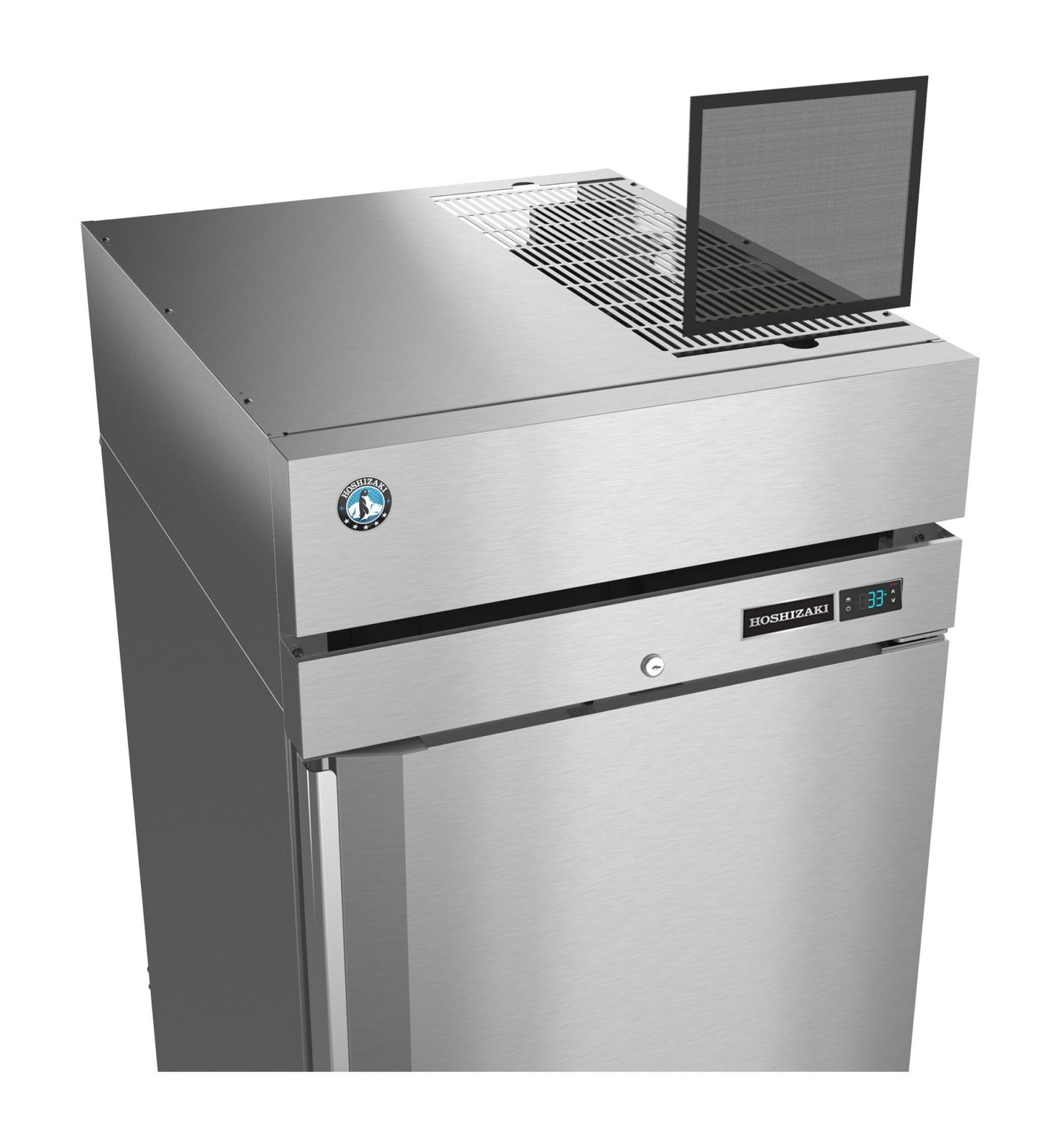

The air filter is front-accessible, so routine cleaning does not require pulling the cabinet out of its slot. Refrigeration is R290 natural refrigerant with a nominal compression of 770 BTU/hr at 1/4 HP, drawing 5 amps at 115V through a 10 ft cord and 5-15P plug. Certifications include ENERGY STAR, ETL Safety Listed for the US and Canada, ETL Sanitation Listed and Georgia Made Certified.

Specifications

Model R1A-FS
Series Steelheart
Type One section upright reach-in refrigerator
Net capacity 23.1 cu ft
Nominal capacity 23.61 cu ft
Door Full stainless with lock
Controls Solid state digital, LED display, temperature alarms
Exterior dimensions 27.5" W x 33.5" D x 79.5" H
Electrical 115V / 60Hz / 1 phase, 5 amps
Plug NEMA 5-15P, 10 ft cord
Energy consumption 1.25 kWh/day
Refrigerant R290 natural refrigerant
Nominal compression 770 BTU/hr at 1/4 HP
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & Canada), ETL Sanitation Listed, Georgia Made Certified
Shipping weight 350 lbs
Crate dimensions 36" L x 31.5" D x 81" H

Warranty

Hoshizaki's 7-7-7 warranty: seven years labor, seven years parts and seven years on the compressor.
