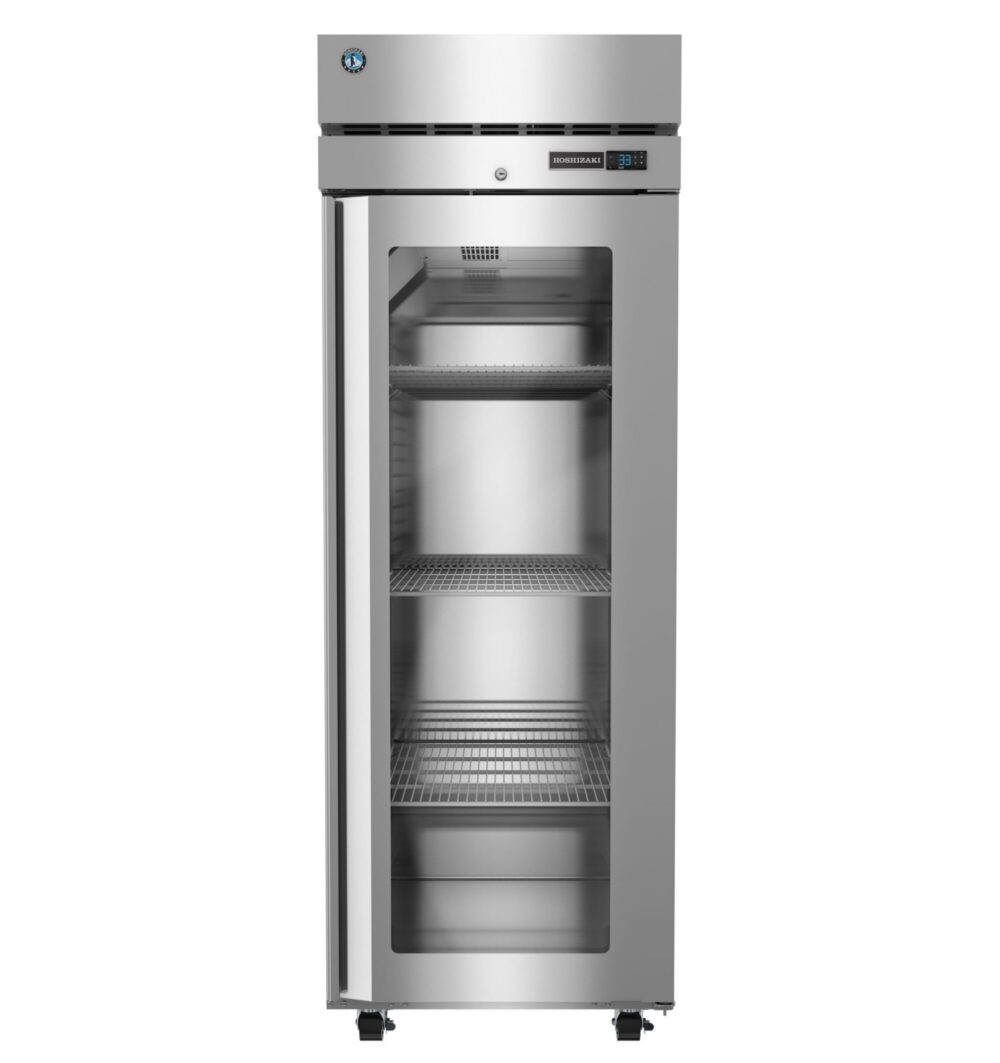

Hoshizaki R1A-FGE one section glass door reach-in refrigerator front view

Product Description

The Hoshizaki R1A-FGE is a single-section Steelheart Series reach-in refrigerator combining a glass door with digital controls, holding 23.1 cubic feet in a 27.5-inch-wide stainless cabinet.

Digital Control Instead of a Dial

Digital control gives an exact, readable setpoint rather than a mechanical dial position that has to be verified with a separate thermometer. On a glass-door cabinet, where door-open heat gain is higher than on a solid-door unit, being able to see the actual cabinet temperature at a glance is the difference between catching a drift and finding out about it during a health inspection.

Small Charge, Natural Refrigerant

The system runs R290 hydrocarbon refrigerant with a charge of just 4.6 ounces. Small charges are a deliberate design goal with hydrocarbons: they keep the system below the thresholds that trigger additional handling and installation requirements, while R290 itself has negligible global warming potential and good efficiency in small systems.

Footprint and Power

The cabinet is 27.5 inches wide, 33.5 deep and 79.5 tall, drawing 5 amps at 115V through a 10 ft cord and 5-15P plug, on a 15A maximum fuse or HACR breaker. Rated consumption is 2.47 kWh per day. Certifications include ETL Safety Listed for the US and Canada, ETL Sanitation Listed and Georgia Made Certified.

Specifications

Model R1A-FGE
Series Steelheart
Type One section upright reach-in refrigerator
Capacity 23.1 cu ft
Door Glass
Controls Digital
Exterior dimensions 27.5" W x 33.5" D x 79.5" H
Electrical 115V / 60Hz / 1 phase, 5 amps
Plug NEMA 5-15P, 10 ft cord
Max fuse / HACR breaker 15A
Energy consumption 2.47 kWh/day
Refrigerant R290, 4.6 oz charge
Certifications ETL Safety Listed (US & Canada), ETL Sanitation Listed, Georgia Made Certified
Shipping weight 350 lbs

Warranty

Hoshizaki's 7-7-7 warranty: seven years labor, seven years parts and seven years on the compressor.
