Product Description

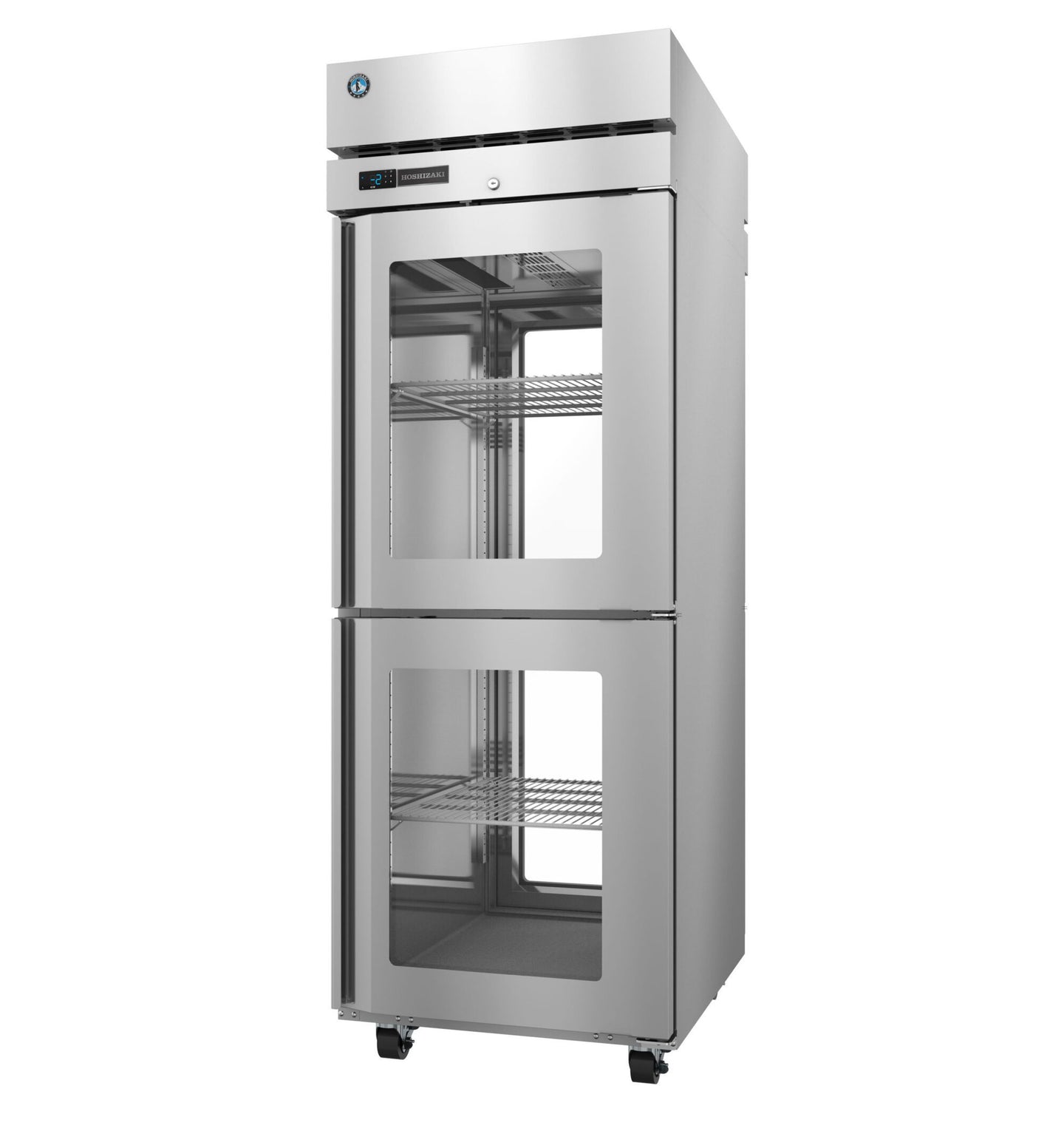

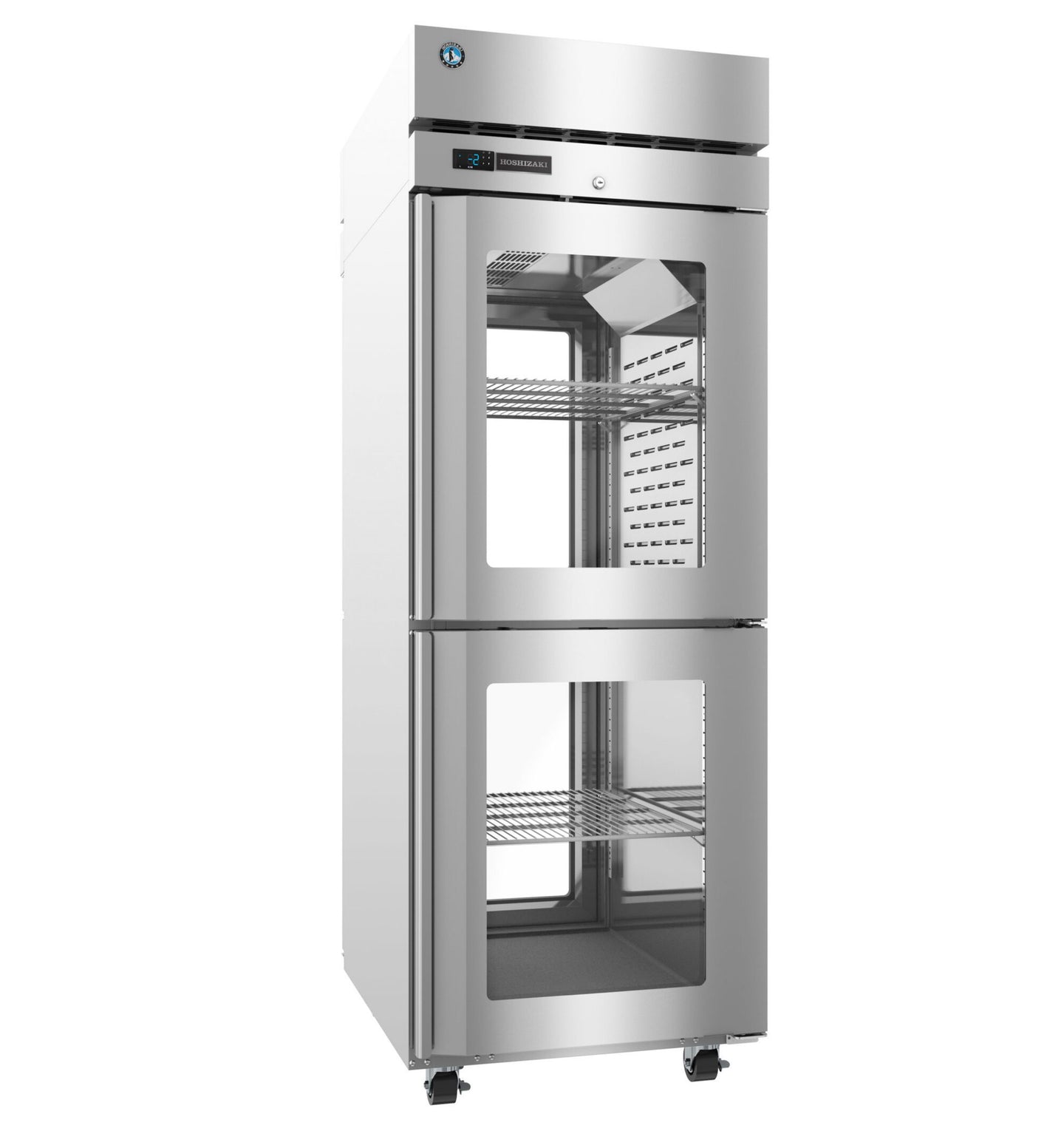

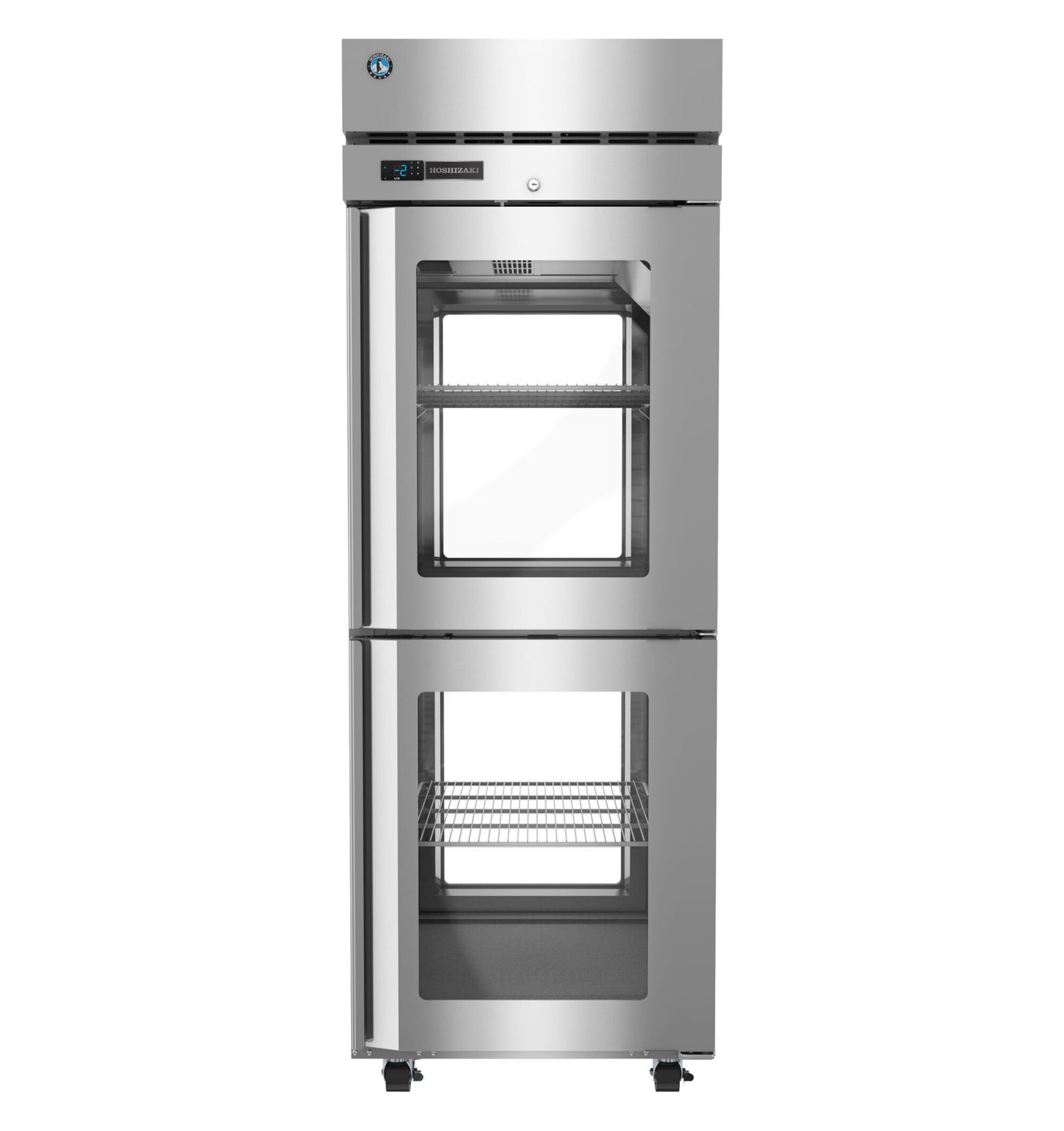

The Hoshizaki PTF1A-HGE-HGE is a single-section Steelheart Series pass-thru freezer with half glass doors on both faces, holding 25.8 cubic feet in a 27.5-inch wide cabinet.

Loaded from one side, pulled from the other

A pass-thru freezer is built into a wall or set between two work zones so product goes in from receiving or prep and comes out at the line. That removes a whole class of traffic from the kitchen: nobody carries frozen cases through the cook's working aisle. It is a layout decision as much as an equipment one, and it only pays off if it is planned into the floor.

Half glass doors on both faces

Four half doors — two per side — mean each access exposes a quarter of the cabinet, and glass on both faces lets staff on either side see the load before opening anything. On a pass-thru that gets worked from two directions all shift, both details matter more than they would on a standard reach-in.

Digital control and R290

Solid-state digital temperature control runs the compartment. The sealed system carries 4.1 oz. of R290 hydrocarbon refrigerant, draws 8.5 amps on a standard 115V circuit through a NEMA 5-15P plug, and is rated at 9.7 kWh per day.

Specifications

Model PTF1A-HGE-HGE
Series Steelheart
Configuration Single section pass-thru freezer, half glass doors both sides
Capacity 25.8 cu. ft.
Exterior Dimensions 27.5" W x 35.75" D x 79.5" H
Shipping Weight 367 lbs
Electrical 115V/60/1, 8.5 amps
Plug NEMA 5-15P
Refrigerant R290, 4.1 oz. charge
Energy Consumption 9.7 kWh/day
Certifications ETL Listed (US & C), ETL Sanitation Listed, Georgia Made Certified

Warranty

Hoshizaki covers the PTF1A-HGE-HGE with 7 years parts, 7 years labor, and 7 years on the compressor.
