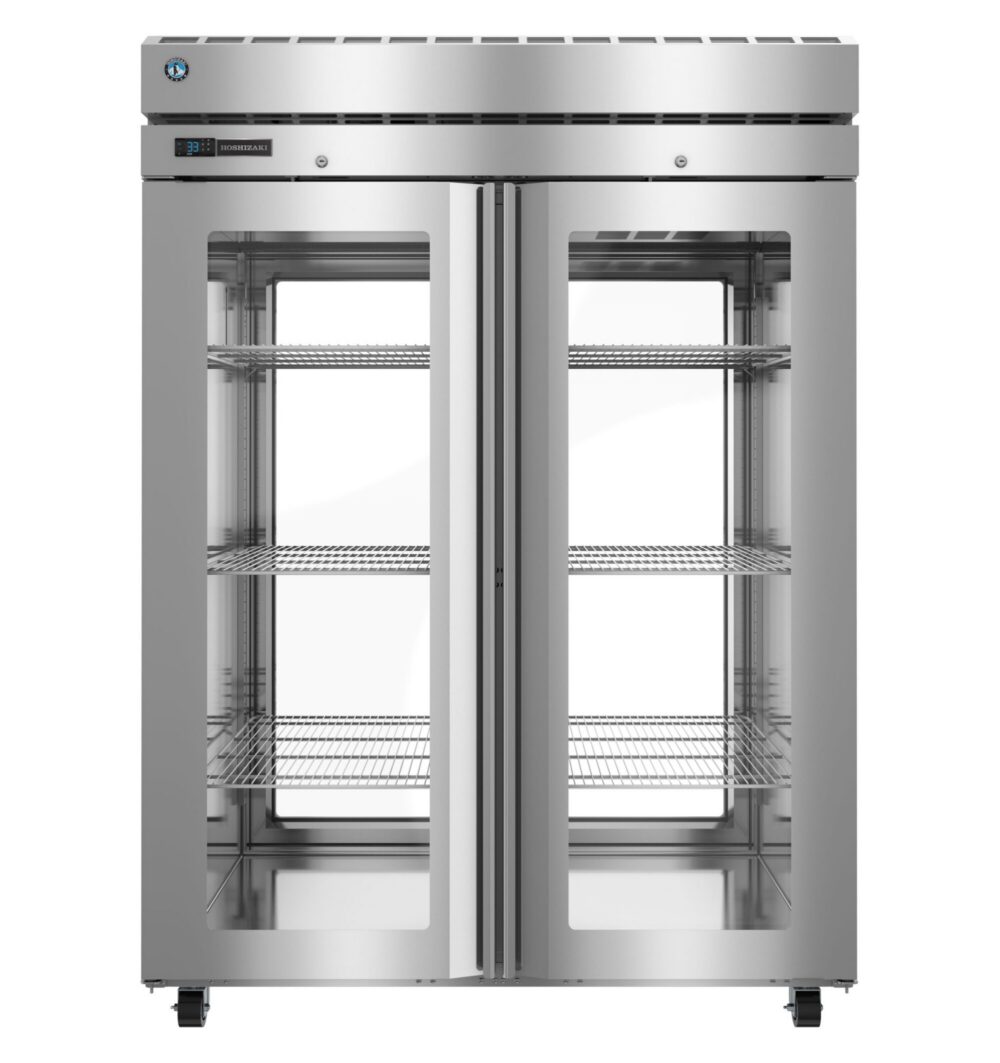

Hoshizaki PT2A-FGE-FGE two section glass door pass-thru refrigerator front view

Product Description

The Hoshizaki PT2A-FGE-FGE is a two-section Steelheart Series pass-thru refrigerator with glass doors on both faces and digital controls. It holds 52.5 cubic feet in a 55-inch-wide stainless cabinet and is the most fully specified unit in the PT2A range.

Digital Control Across Four Doors

A two-section pass-thru has four openings and typically two teams working it. That is a lot of door activity to hold a setpoint through. Digital control gives a readable, precise setpoint both sides can trust, rather than a dial that has to be inferred from a thermometer.

Two Sections Reduce Air Exchange

Because the cabinet is split into two sections, opening one door exposes half the interior rather than all of it. Over a service with hundreds of openings that difference compounds, which is why a two-section 52.5 cubic foot cabinet holds temperature better than a single-section cabinet of the same volume would.

R290 Charge and Power

The system uses R290 hydrocarbon refrigerant with a 5.3 oz charge and is rated at 6 kWh per day. It runs on a single 115V circuit at 8 amps through a 10 ft cord and 5-15P plug, on a 15A maximum fuse or HACR breaker. Certifications: ETL Safety Listed for the US and Canada, ETL Sanitation Listed, and Georgia Made Certified.

Specifications

Model PT2A-FGE-FGE
Series Steelheart
Type Two section pass-thru upright refrigerator
Capacity 52.5 cu ft
Doors Glass, both faces
Controls Digital
Exterior dimensions 55" W x 35.75" D x 79.5" H
Electrical 115V / 60Hz / 1 phase, 8 amps
Plug NEMA 5-15P, 10 ft cord
Max fuse / HACR breaker 15A
Energy consumption 6 kWh/day
Refrigerant R290, 5.3 oz charge
Certifications ETL Safety Listed (US & Canada), ETL Sanitation Listed, Georgia Made Certified
Shipping weight 681 lbs

Warranty

Hoshizaki's 7-7-7 warranty: seven years labor, seven years parts and seven years on the compressor.
