Product Description

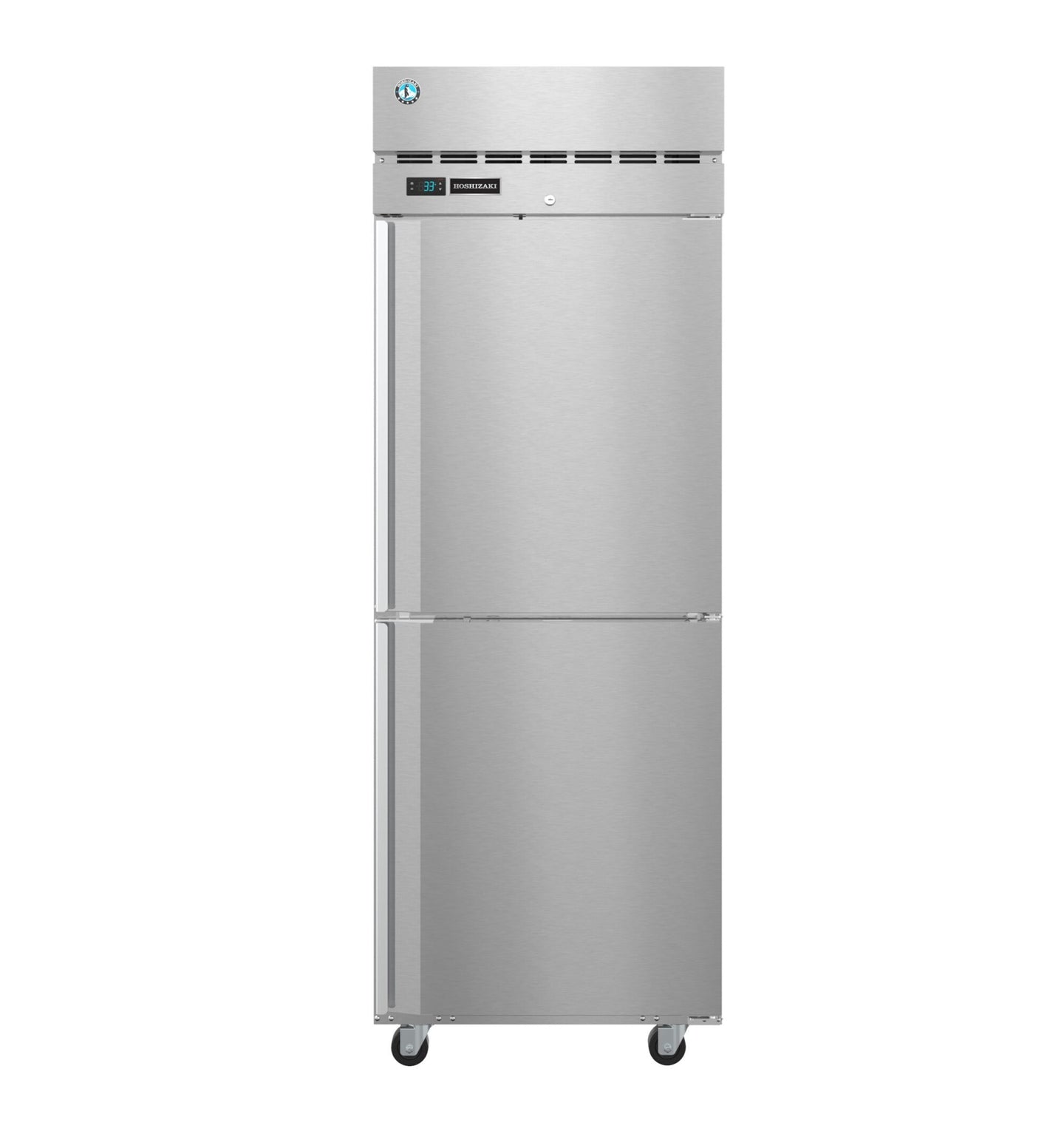

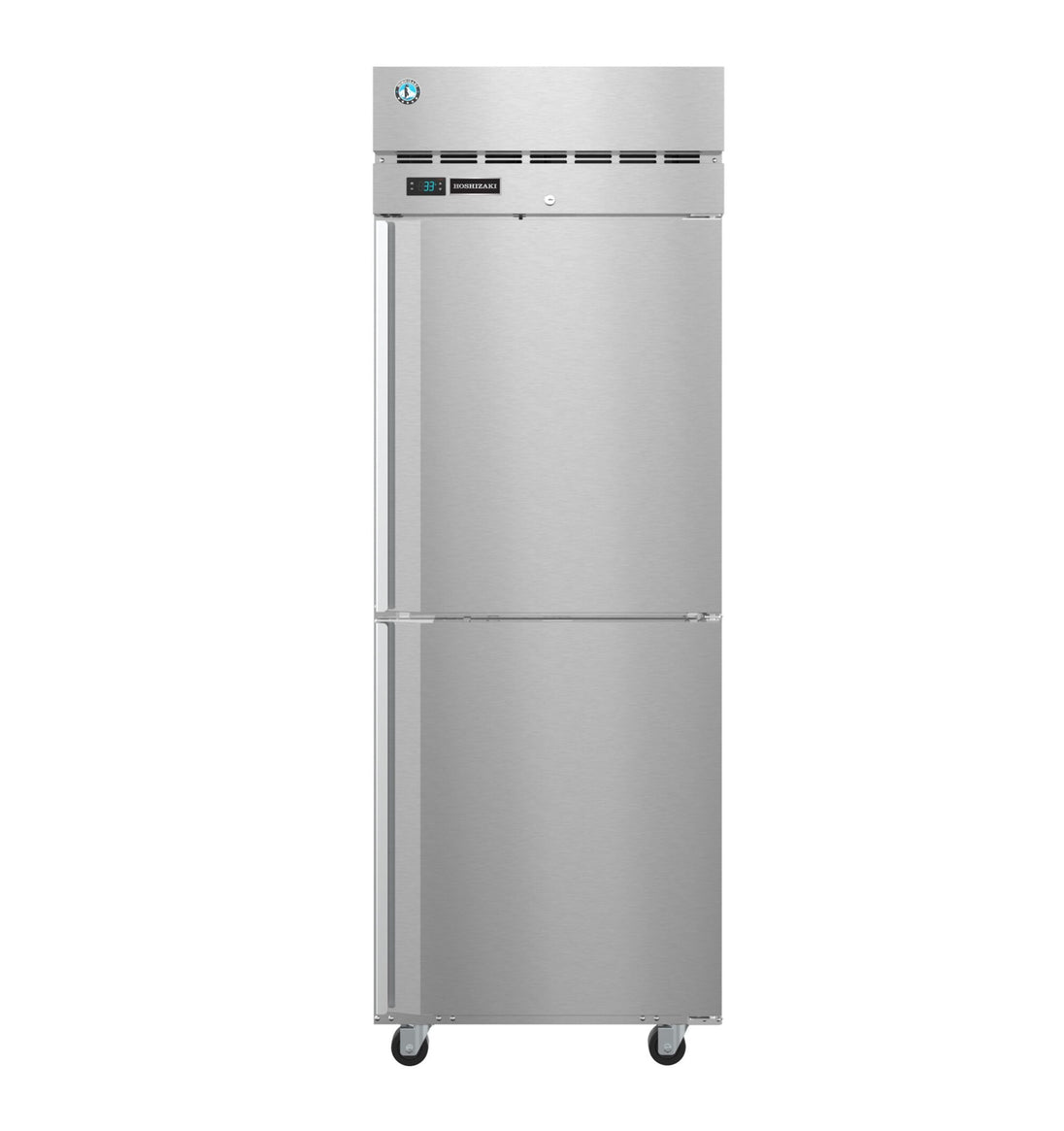

The Hoshizaki PT1A-HS-HS is a single-section Steelheart Series pass-thru refrigerator fitted with half stainless doors and locks on both faces, holding 24.2 cubic feet in a 27.5-inch-wide cabinet.

Why Half Doors on a Pass-Thru

Half doors split each face into an upper and a lower opening. Opening only the half you need keeps most of the cold air in the cabinet, so on a station where someone reaches in every couple of minutes the temperature holds far better than with a single full-height door. In tight aisles the shorter door swing is also easier to work around.

Solid-Door Efficiency

Insulated stainless doors give the PT1A-HS-HS a rated 1.31 kWh per day, and the cabinet carries ENERGY STAR qualification. Combined with the reduced air spill of half-door operation, this is the configuration to specify when a high-traffic pass-thru station is also expected to hold tight temperature.

Steelheart Build and R290

Refrigeration is R290 natural refrigerant, drawing 5 amps at 115V through a 10 ft cord and 5-15P plug. The cabinet is 35.75 inches deep and 79.5 inches tall, and is ETL Safety Listed for the US and Canada, ETL Sanitation Listed and Georgia Made Certified.

Specifications

Model PT1A-HS-HS
Series Steelheart
Type One section pass-thru upright refrigerator
Capacity 24.2 cu ft
Doors Half stainless with lock, both faces
Exterior dimensions 27.5" W x 35.75" D x 79.5" H
Electrical 115V / 60Hz / 1 phase, 5 amps
Plug NEMA 5-15P, 10 ft cord
Energy consumption 1.31 kWh/day
Refrigerant R290 natural refrigerant
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & Canada), ETL Sanitation Listed, Georgia Made Certified
Shipping weight 357 lbs
Crate dimensions 38.25" L x 31.5" D x 81" H

Warranty

Hoshizaki's 7-7-7 warranty: seven years labor, seven years parts and seven years on the compressor.
