Product Description

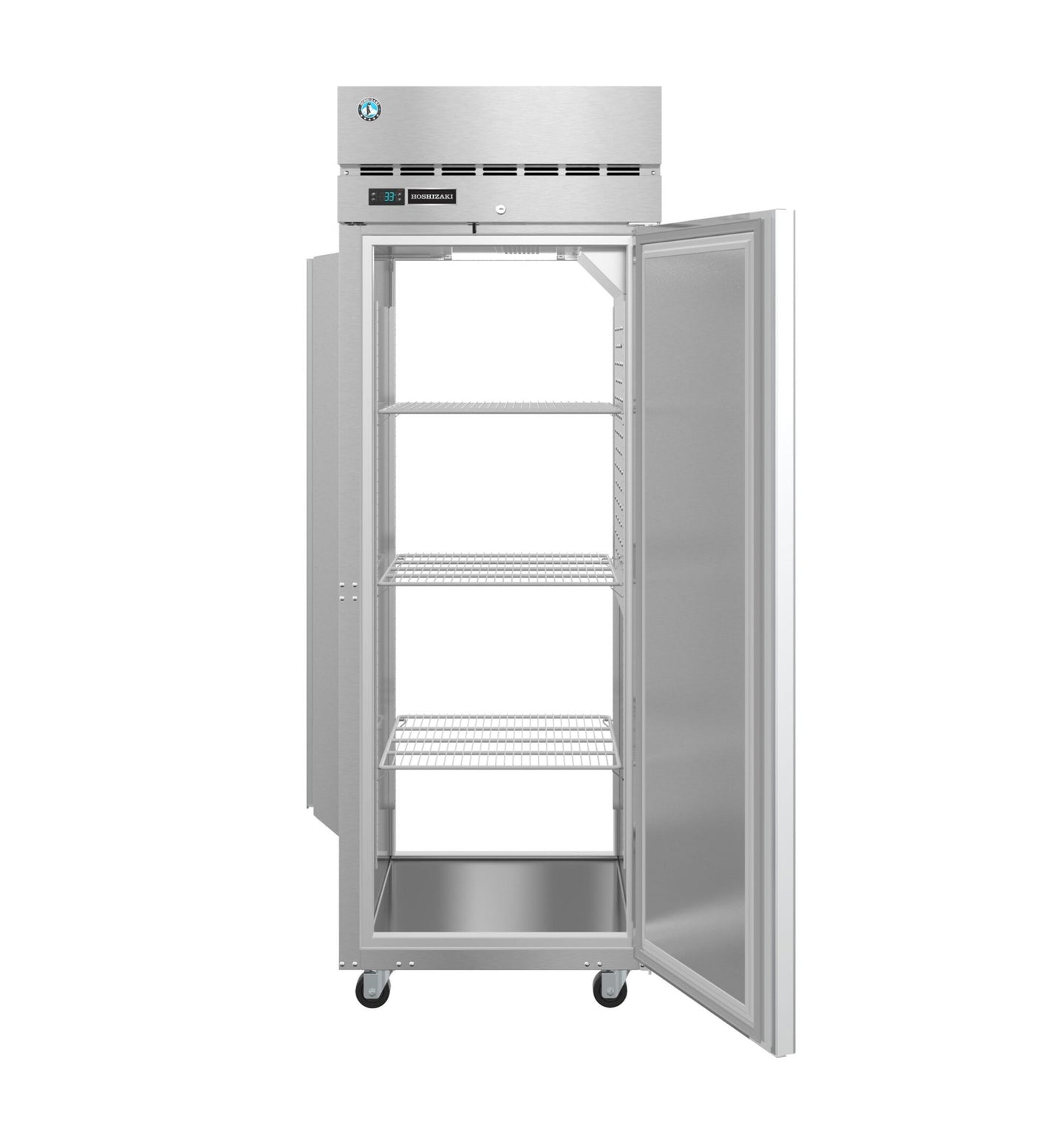

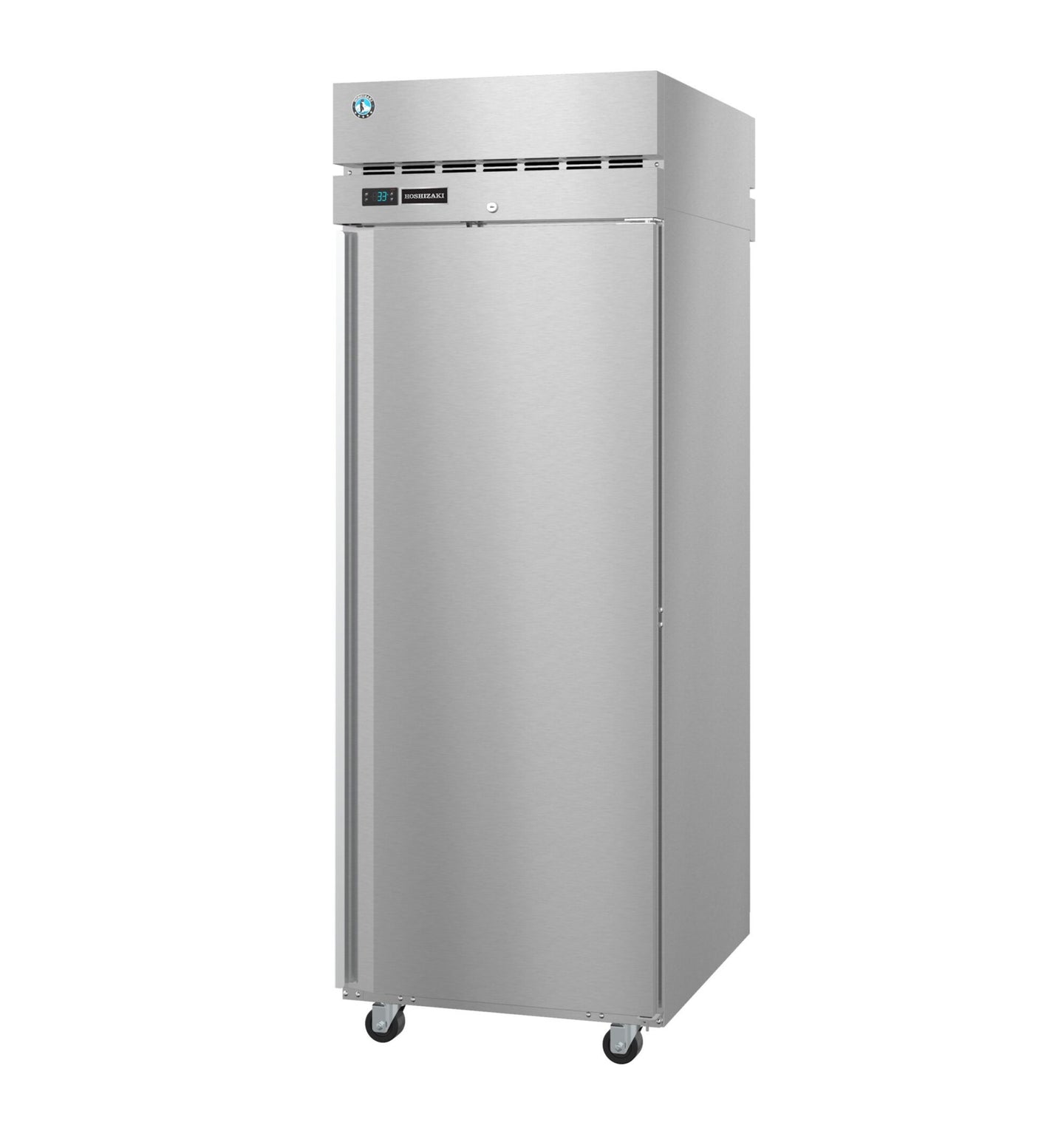

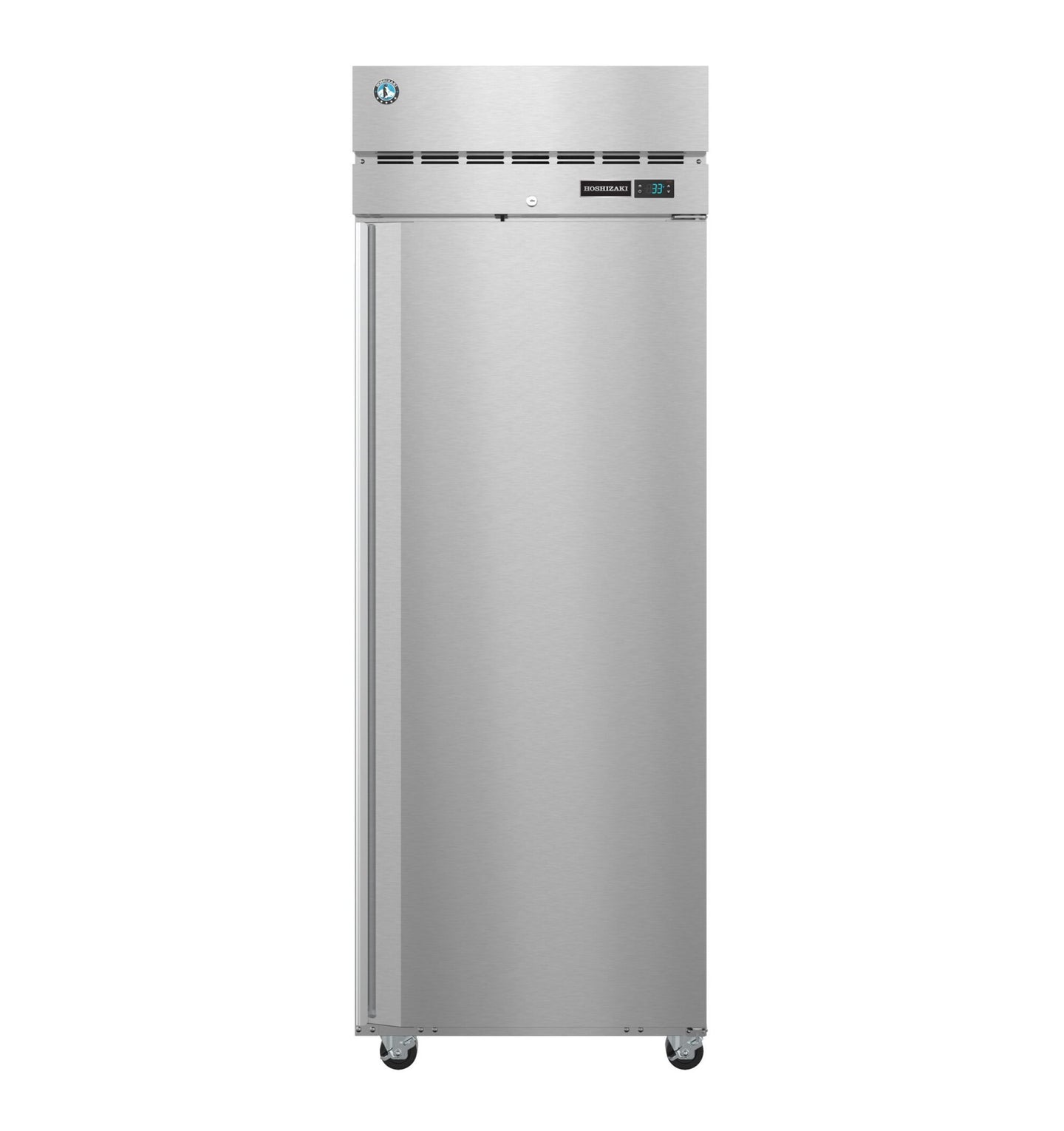

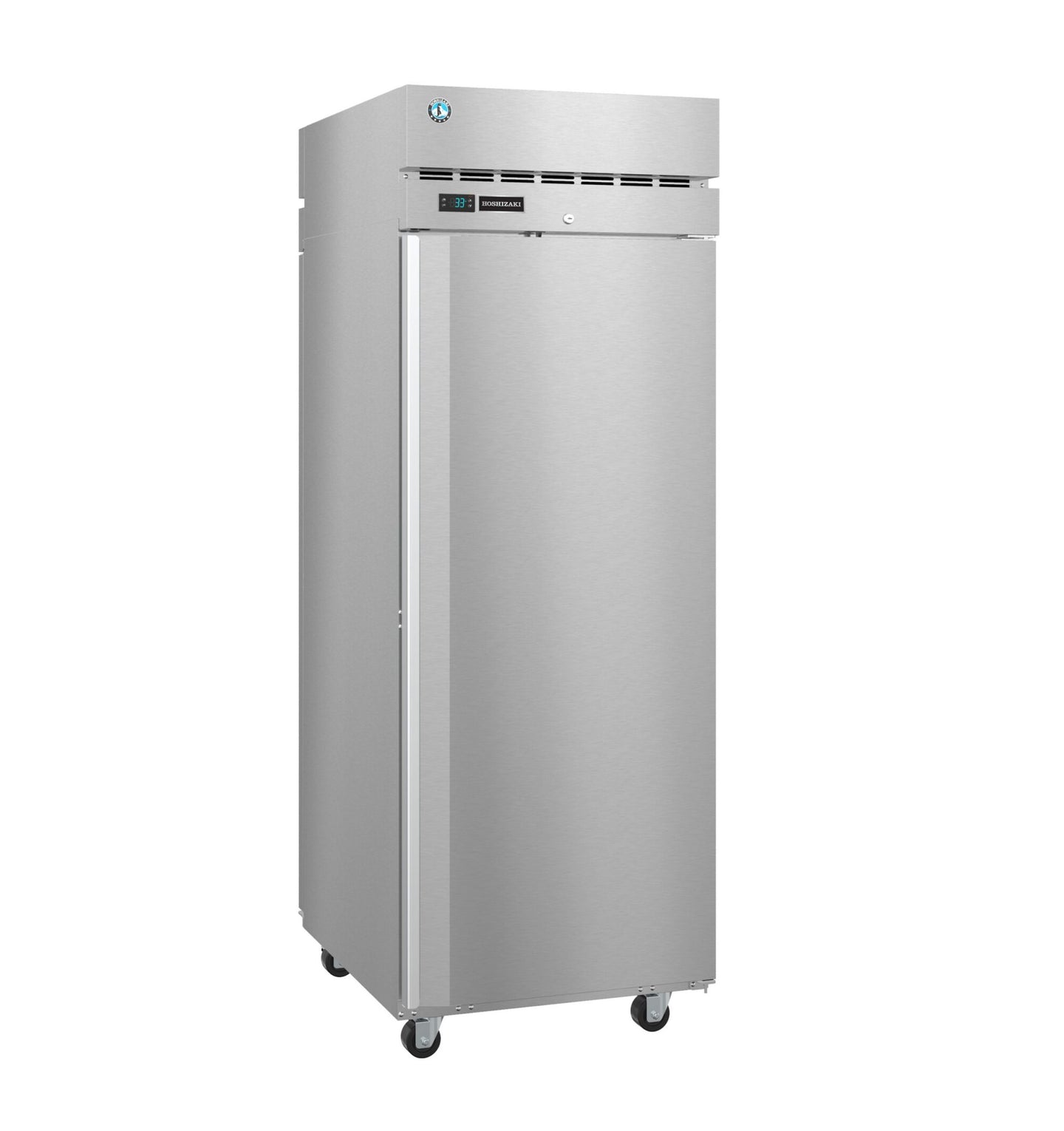

The Hoshizaki PT1A-FS-FS is a single-section Steelheart Series pass-thru refrigerator with full stainless doors and locks on both faces. It holds 24.2 cubic feet in a 27.5-inch-wide cabinet and is the ENERGY STAR qualified, solid-door member of the PT1A family.

Solid Doors Where Efficiency Matters

The difference between this cabinet and the glass-door PT1A-FG-FG shows up in the energy number: 1.31 kWh per day here versus 2.68 for the glass version. Insulated stainless doors carry roughly half the daily load because they do not conduct and radiate the way glass does. If nothing about the application requires seeing the contents, the solid-door version is the cheaper cabinet to own as well as to buy.

Loading Back, Pulling Front

Pass-thru configuration lets prep stock the cabinet from the kitchen side while the line pulls from the front, in the same 27.5-inch slot a standard reach-in would take. Both doors lock. At 35.75 inches deep, the solid-door version is two inches shallower than the glass-door model, which can matter in a tight aisle.

ENERGY STAR and R290

The PT1A-FS-FS is ENERGY STAR qualified and runs on R290 natural refrigerant, drawing 5 amps at 115V through a 10 ft cord and 5-15P plug. It is ETL Safety Listed for the US and Canada and ETL Sanitation Listed.

Specifications

Model PT1A-FS-FS
Series Steelheart
Type One section pass-thru upright refrigerator
Capacity 24.2 cu ft
Doors Full stainless with lock, both faces
Exterior dimensions 27.5" W x 35.75" D x 79.5" H
Electrical 115V / 60Hz / 1 phase, 5 amps
Plug NEMA 5-15P, 10 ft cord
Energy consumption 1.31 kWh/day
Refrigerant R290 natural refrigerant
Certifications ENERGY STAR Qualified, ETL Safety Listed (US & C), ETL Sanitation Listed
Shipping weight 357 lbs
Crate dimensions 38.25" L x 31.5" D x 81" H

Warranty

Hoshizaki's 7-7-7 warranty: seven years labor, seven years parts and seven years on the compressor.
