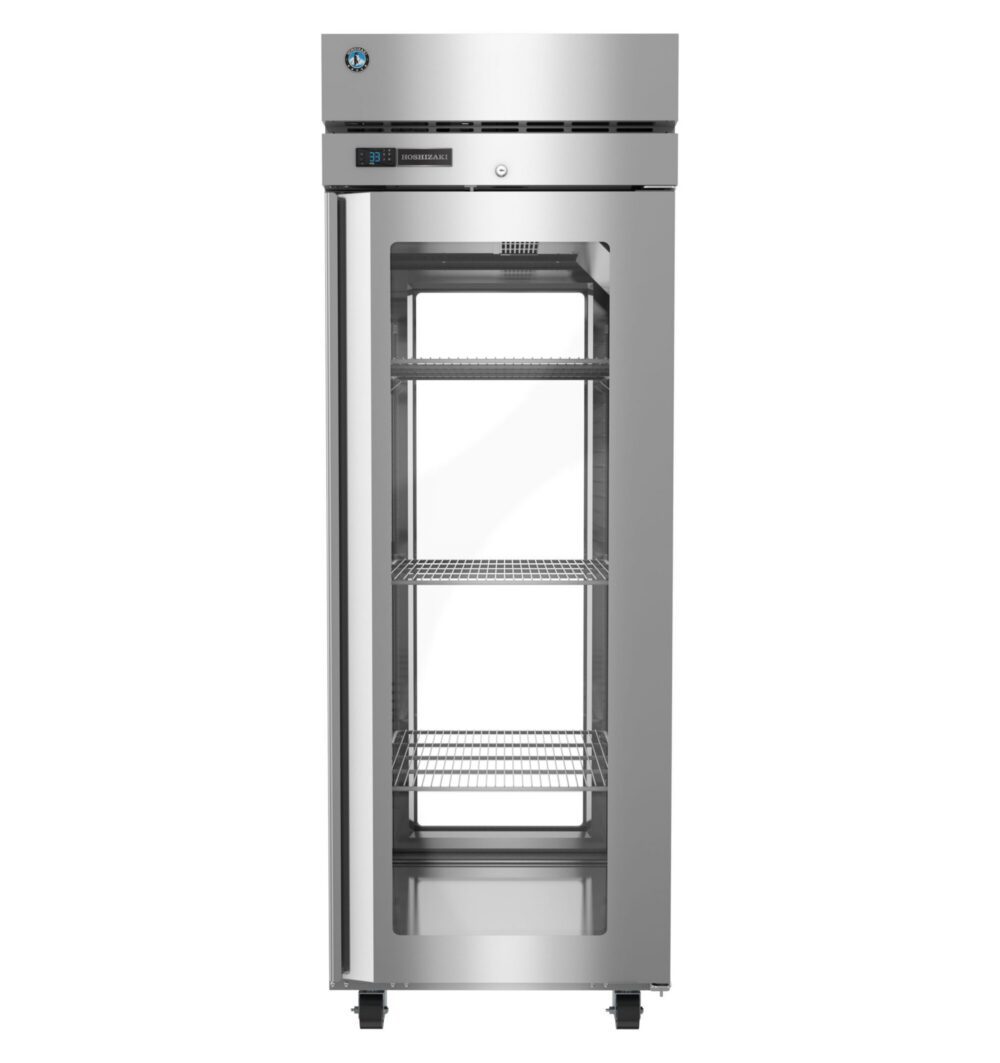

Hoshizaki PT1A-FGE-FGE one section glass door pass-thru refrigerator front view

Product Description

The Hoshizaki PT1A-FGE-FGE is a single-section Steelheart Series pass-thru refrigerator with glass doors on both faces and digital controls, holding 24.2 cubic feet in a 27.5-inch-wide stainless cabinet. It sits at the top of the PT1A glass-door range.

Digital Control on a Pass-Thru Cabinet

A pass-thru gets opened from two sides, often by different teams, which makes temperature drift harder to notice than in a single-access reach-in. Digital control with a readable setpoint gives both the kitchen and the line the same reference, and takes the guesswork out of confirming the cabinet recovered after a heavy stocking run.

Two-Sided Access in a 27.5-Inch Footprint

Product loads from the back of house and comes out at the line without anyone crossing traffic. Glass on both faces lets staff check contents before opening, which is the single biggest lever on door-open time in a busy service. Cabinet depth is 35.75 inches and height 79.5 inches.

R290 Charge and Efficiency

Refrigeration uses R290 hydrocarbon refrigerant with a 4.6 oz charge, small enough to keep the system inside standard hydrocarbon handling thresholds. Rated consumption is 2.68 kWh per day at 5 amps on a 115V circuit through a 10 ft cord and 5-15P plug, protected by a 15A maximum fuse or HACR breaker. Certifications include ETL Safety Listed for the US and Canada, ETL Sanitation Listed, and Georgia Made Certified.

Specifications

Model PT1A-FGE-FGE
Series Steelheart
Type One section pass-thru upright refrigerator
Capacity 24.2 cu ft
Doors Glass, both faces
Controls Digital
Exterior dimensions 27.5" W x 35.75" D x 79.5" H
Electrical 115V / 60Hz / 1 phase, 5 amps
Plug NEMA 5-15P
Max fuse / HACR breaker 15A
Energy consumption 2.68 kWh/day
Refrigerant R290, 4.6 oz charge
Certifications ETL Safety Listed (US & Canada), ETL Sanitation Listed, Georgia Made Certified
Shipping weight 367 lbs

Warranty

Hoshizaki's 7-7-7 warranty: seven years labor, seven years parts and seven years on the compressor.
