Product Description

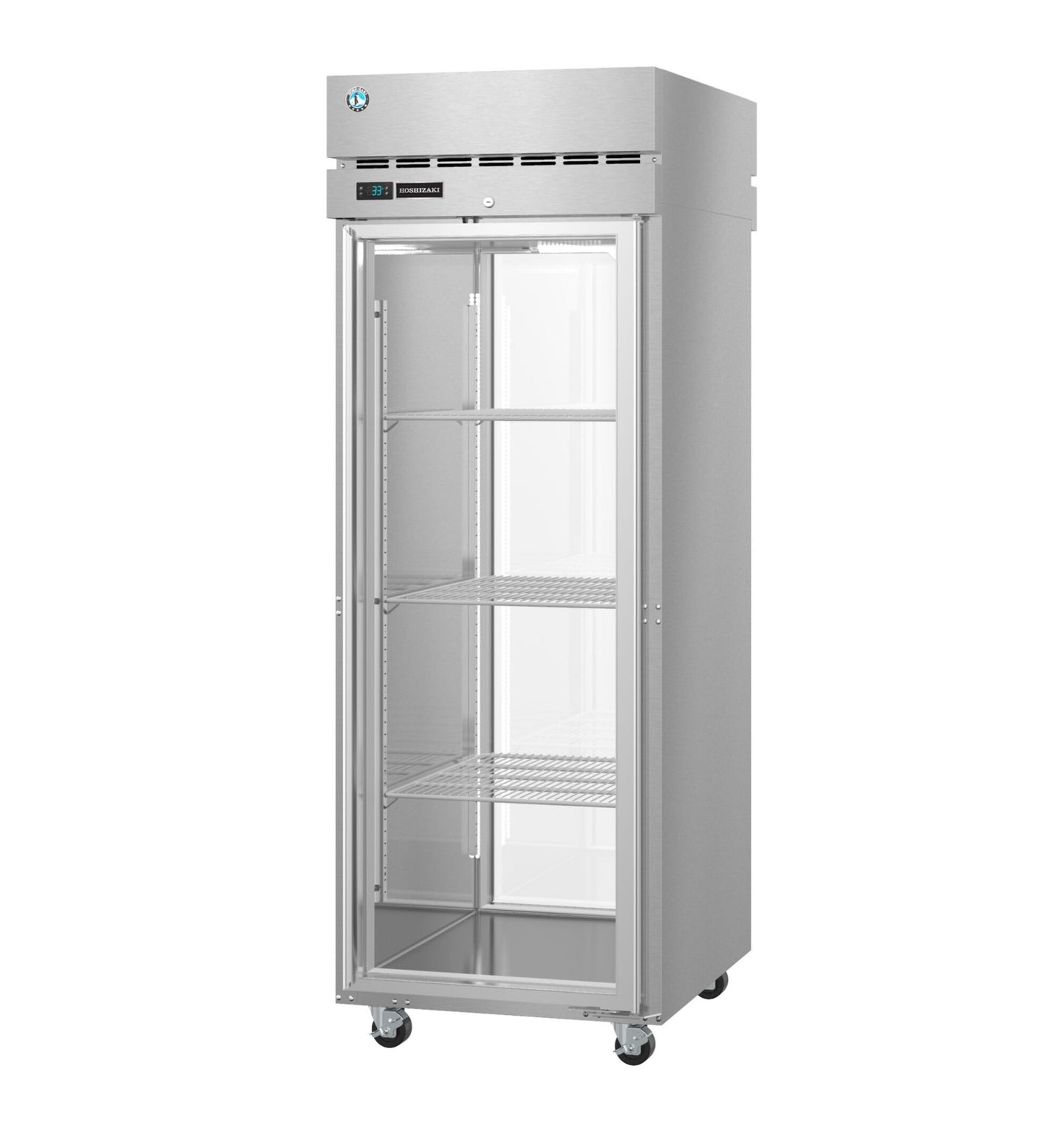

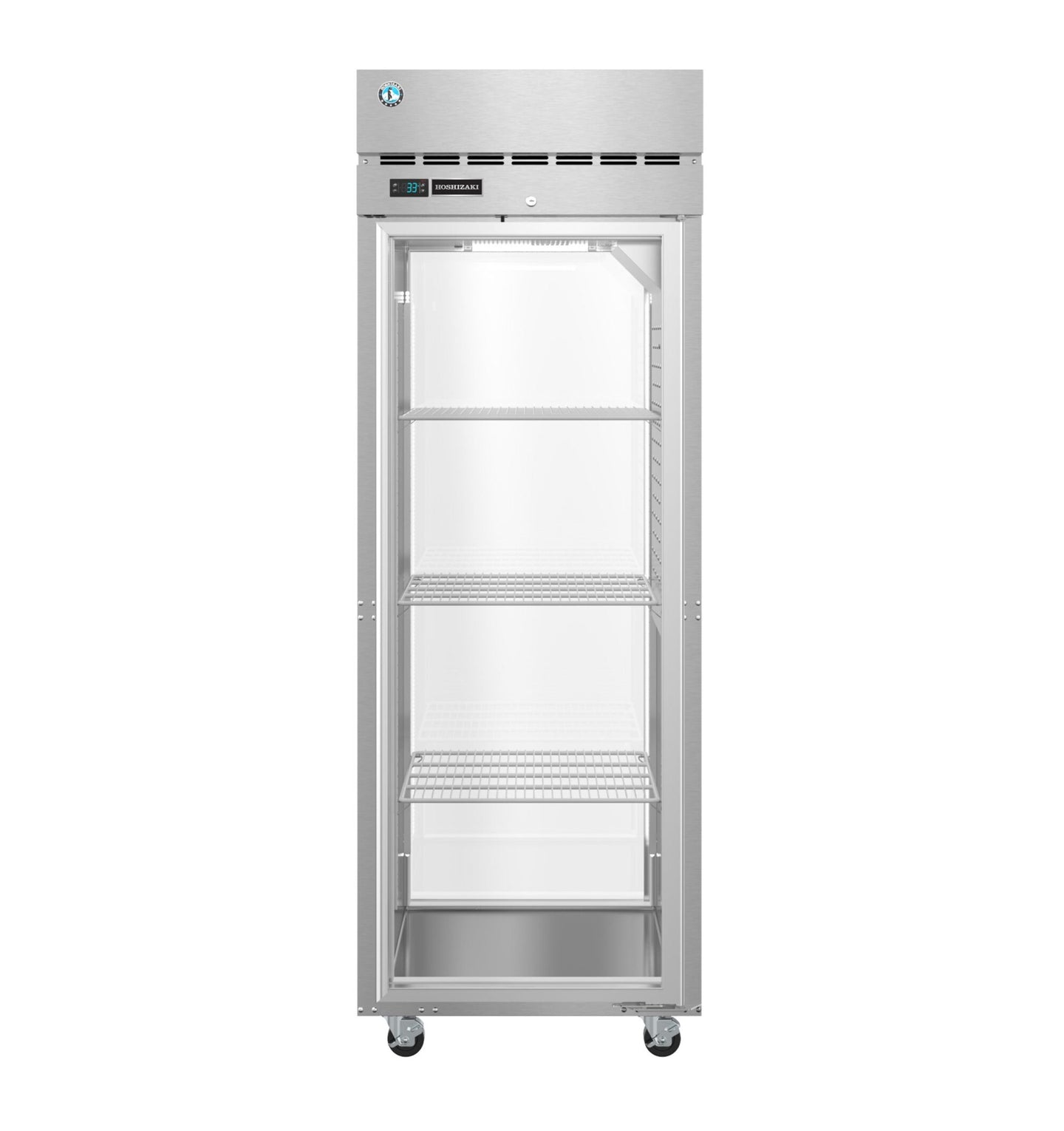

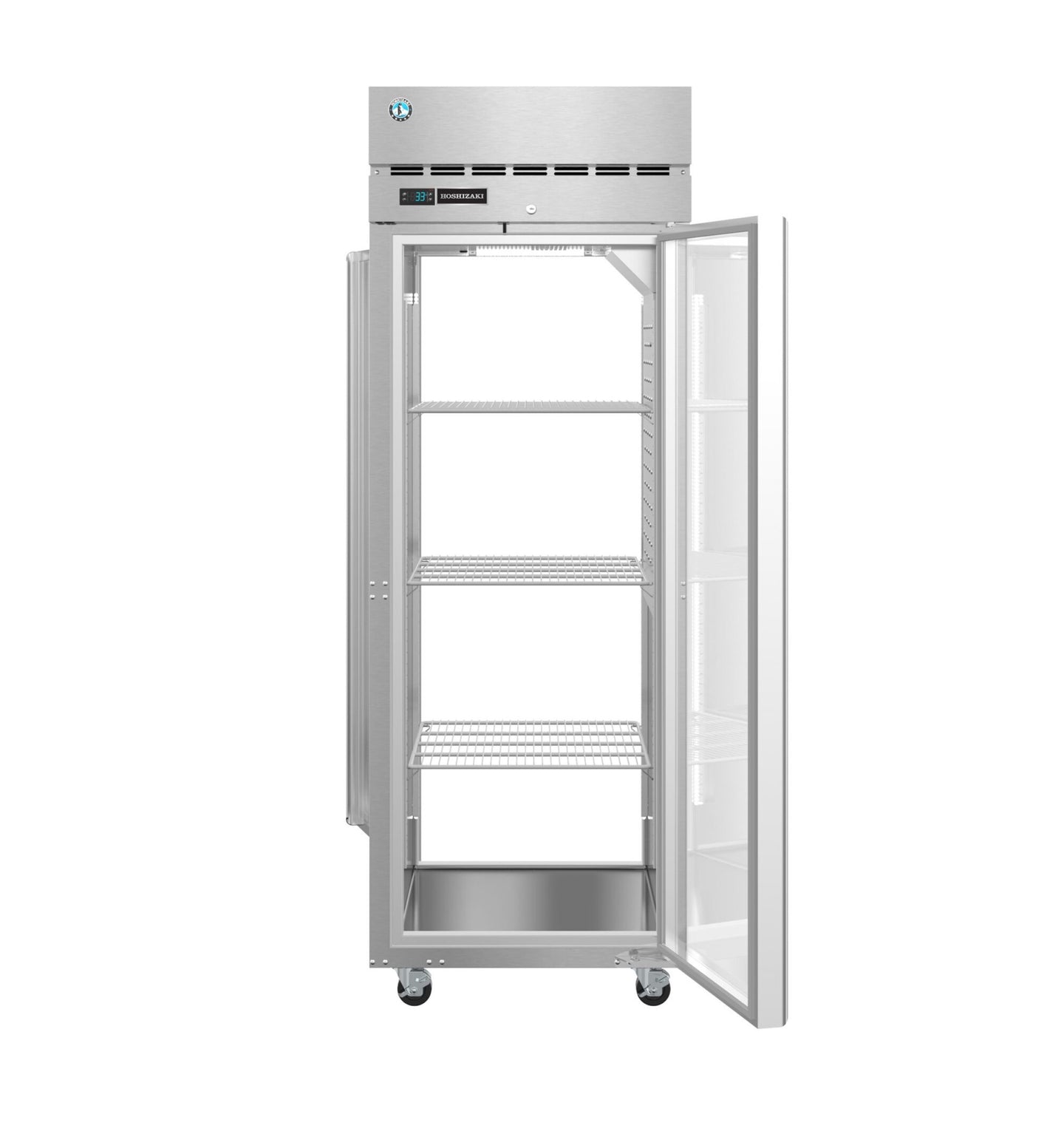

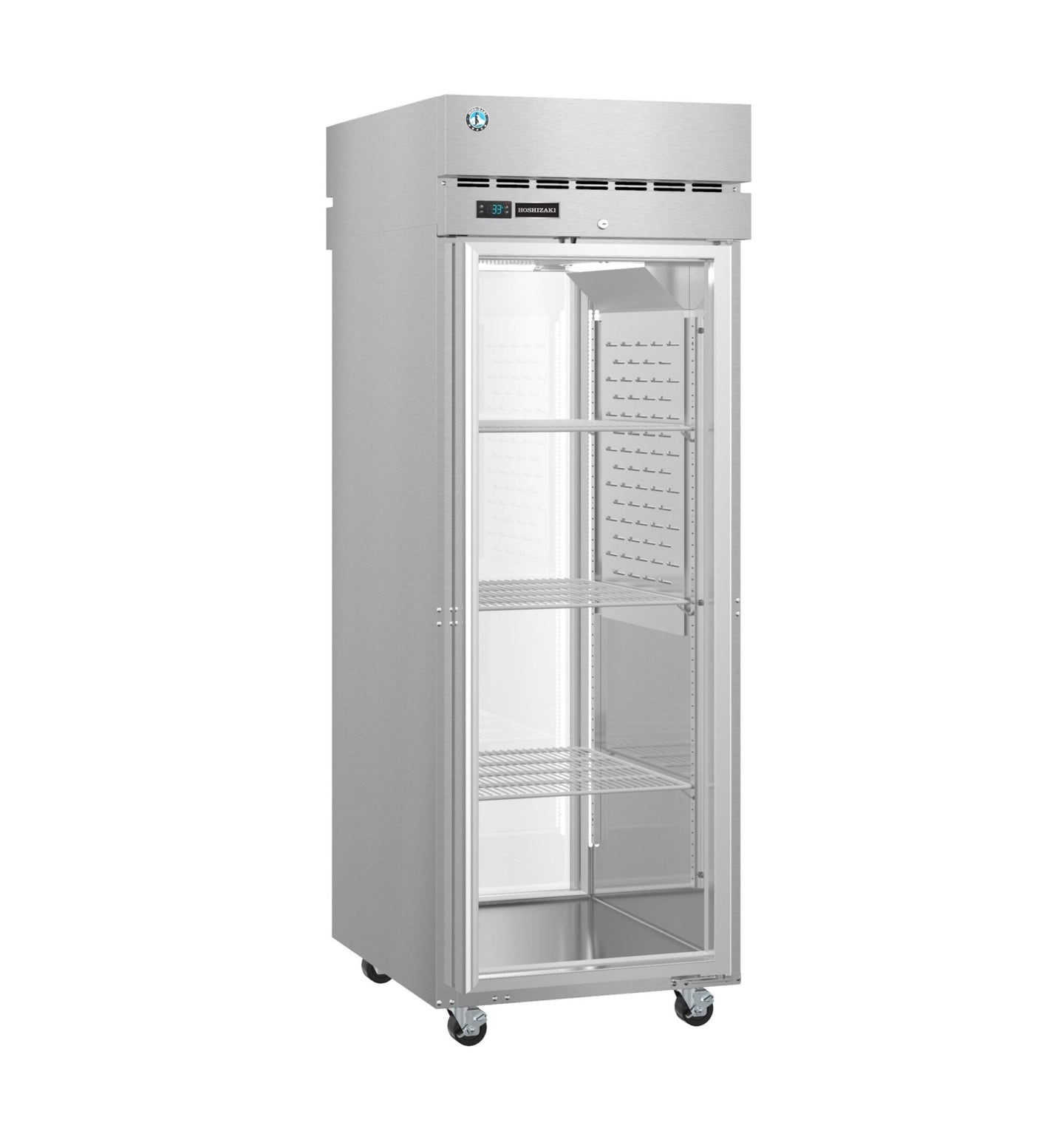

The Hoshizaki PT1A-FG-FG is a single-section Steelheart Series pass-thru refrigerator with full glass doors and locks on both faces. Pass-thru cabinets earn their place where a kitchen and a service line meet: product is loaded from the back of house and pulled from the front without anyone crossing the line, and 24.2 cubic feet of capacity sits in a footprint only 27.5 inches wide.

Glass on Both Faces

Full glass doors front and back mean staff on either side can see what is in the cabinet before opening it, which cuts down the door-open time that drives temperature recovery and energy use in a busy service. Both doors lock, so a cabinet that opens into a public-facing area can still be secured after hours.

Where a Pass-Thru Beats Two Reach-Ins

A pass-thru replaces the pattern of stocking one cabinet from the kitchen and a second from the line. One cabinet, one refrigeration system, one set of contents, accessible from both sides. It also removes the walk: expediters pull from the front while prep restocks from the back, in the same 27.5-inch slot a single reach-in would occupy.

R290 Refrigeration and Steelheart Construction

The system runs on R290 natural refrigerant, drawing 5 amps at 115V through a 10 ft cord and 5-15P plug, with rated energy consumption of 2.68 kWh per day. The cabinet is ETL Safety Listed for the US and Canada, ETL Sanitation Listed, and Georgia Made Certified. Note that the glass-door version is 37.75 inches deep, slightly deeper than the solid-door PT1A models.

Specifications

Model PT1A-FG-FG
Series Steelheart
Type One section pass-thru upright refrigerator
Capacity 24.2 cu ft
Doors Full glass with lock, both faces
Exterior dimensions 27.5" W x 37.75" D x 79.5" H
Electrical 115V / 60Hz / 1 phase, 5 amps
Plug NEMA 5-15P, 10 ft cord
Energy consumption 2.68 kWh/day
Refrigerant R290 natural refrigerant
Certifications ETL Safety Listed (US & C), ETL Sanitation Listed, Georgia Made Certified
Shipping weight 367 lbs
Crate dimensions 38.25" L x 31.5" D x 81" H

Warranty

Hoshizaki's 7-7-7 warranty: seven years labor, seven years parts and seven years on the compressor.
