Product Description

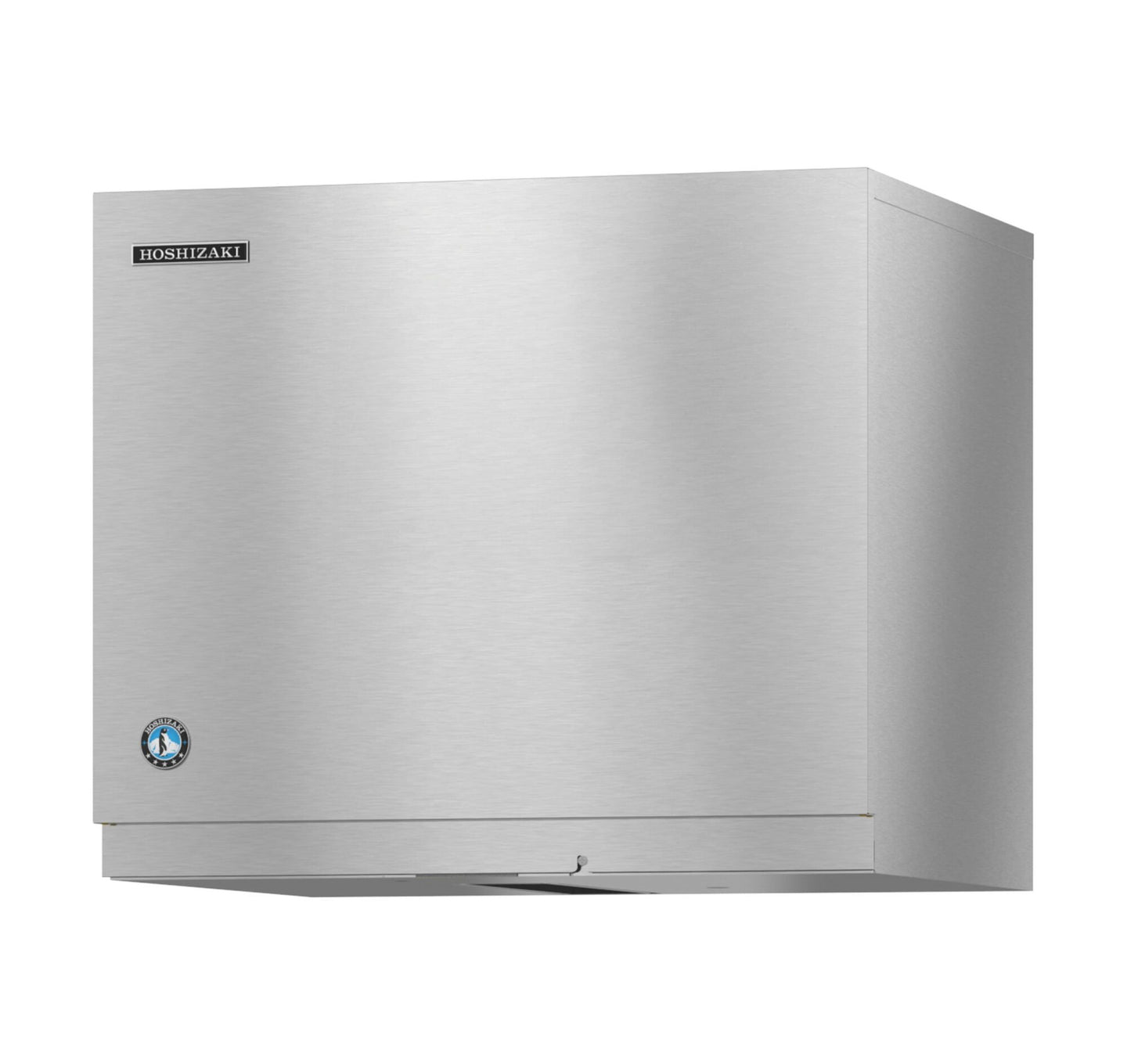

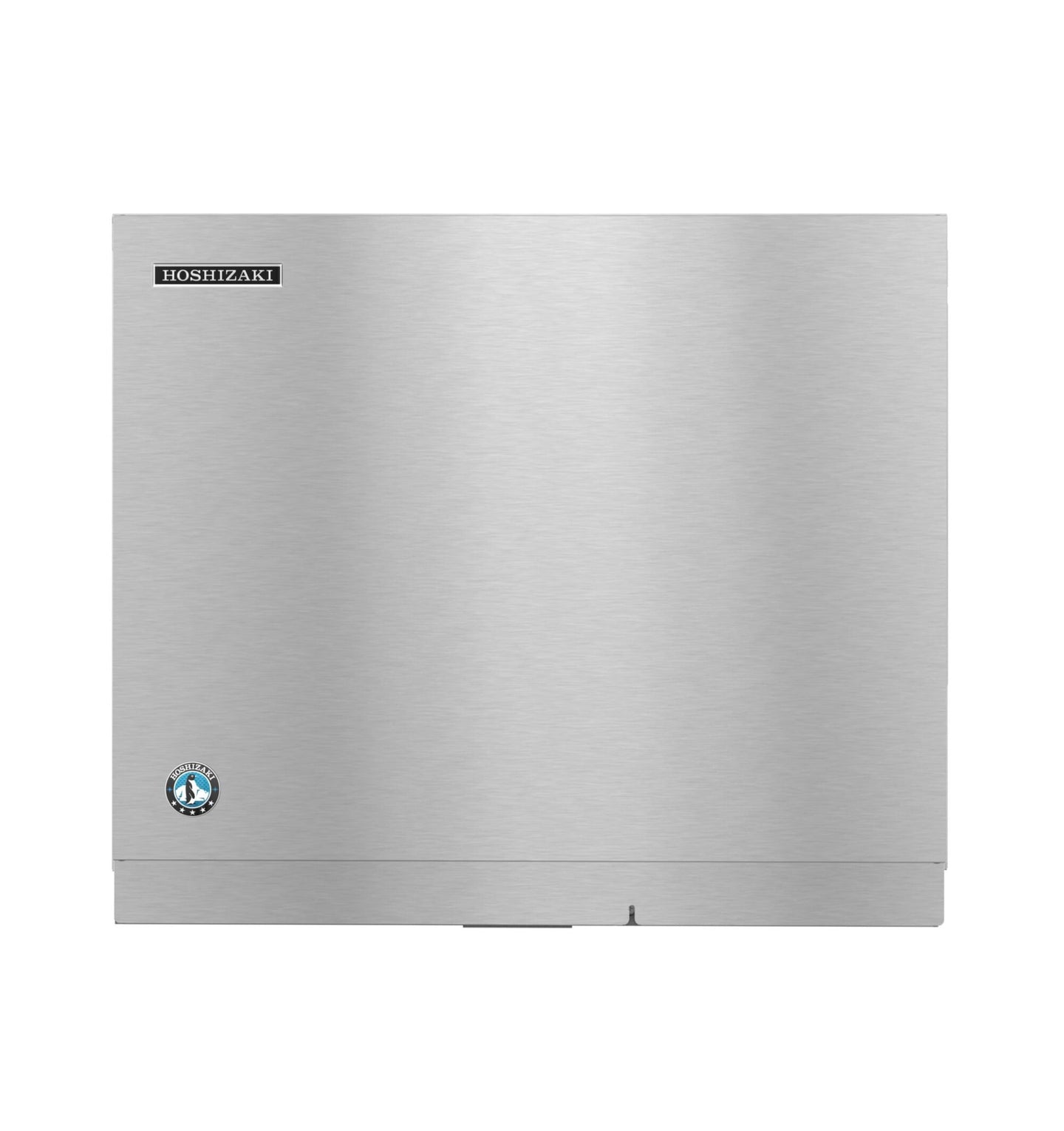

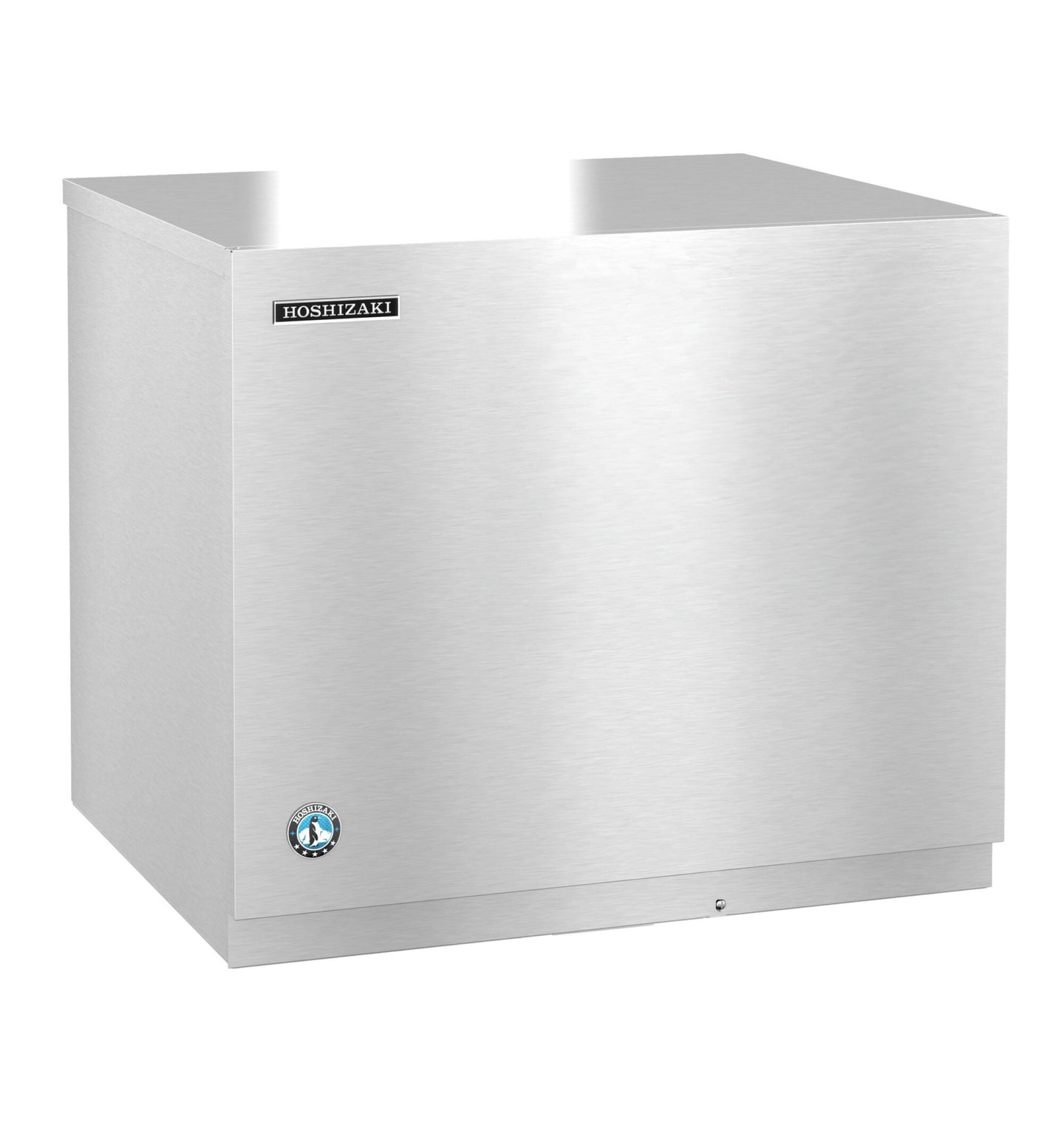

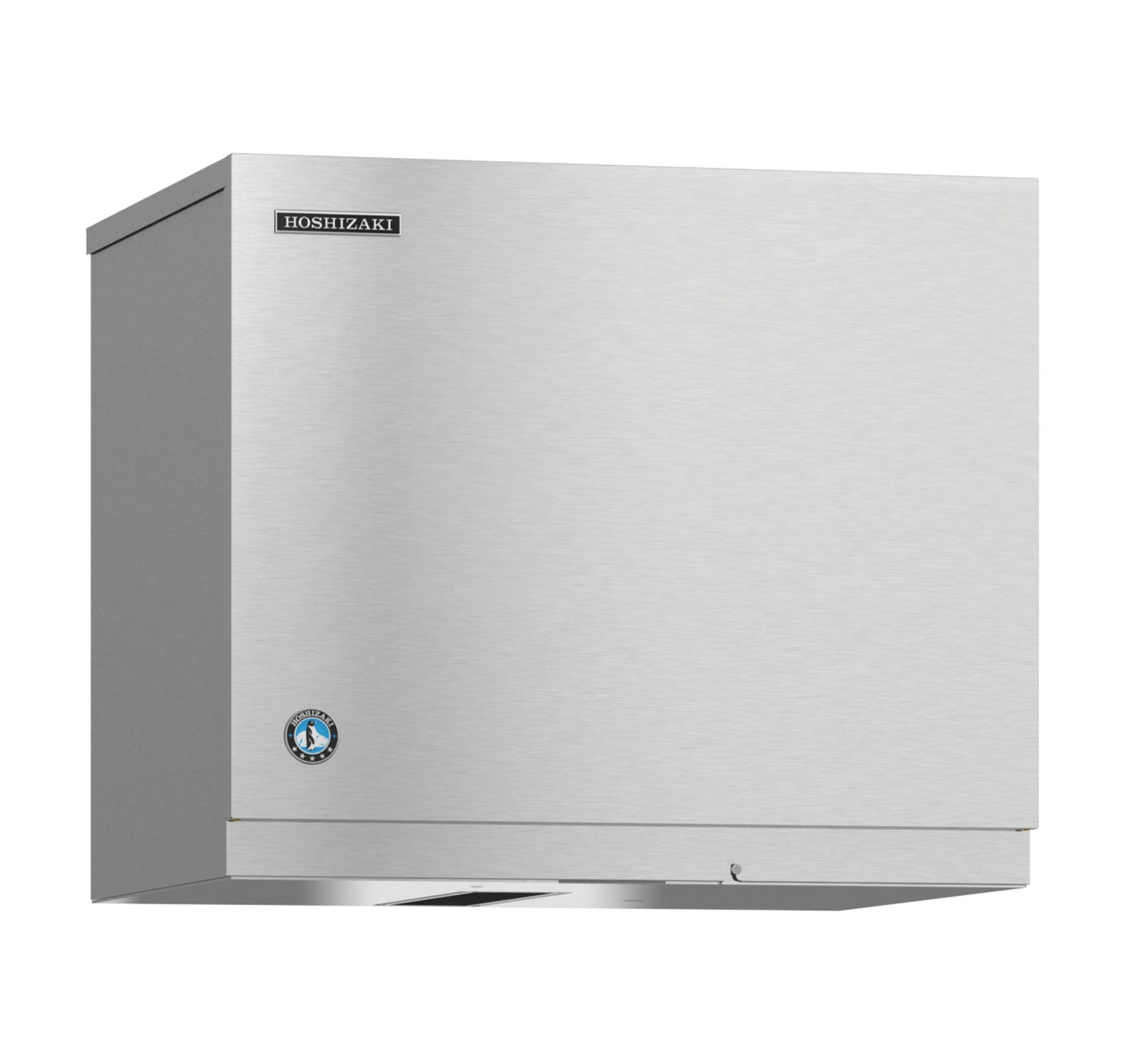

The Hoshizaki KMD-705MWJ is a 30-inch water-cooled modular crescent cuber rated at up to 773 pounds of ice per 24 hours. It is a head unit only and mounts on a separately purchased storage bin or dispenser.

Why Water-Cooled at This Capacity

A 700-pound-class air-cooled head throws a substantial amount of heat into whatever room it occupies. Water cooling moves that heat out through a condenser water circuit instead, which keeps production from sagging in hot kitchens and mechanical rooms and eliminates the condenser fan noise. It also makes this model the practical answer where clearances are too tight for an air-cooled machine to breathe. Plan on a condenser water supply and a separate condenser drain in addition to the potable supply.

Efficiency and Evaporator Design

At 3.8 kWh per 100 pounds of ice at 90°F/70°F, this is the most efficient head in the KMD-705 family, and potable water use is 22.5 gallons per 100 pounds. Hoshizaki builds the freezing section around a double-sided stainless steel evaporator, which forms ice on both faces of the plate and shortens the harvest cycle relative to single-sided designs — part of why the water-cooled version reaches 773 pounds a day against the air-cooled model's 721 in the same cabinet.

Crescent Ice and Bin Pairing

The crescent cube is dense and slow-melting, packs tightly in a glass, and resists bridging in the bin. Because no storage is included, you choose bin capacity to match your peak service window rather than being locked into a fixed pairing — a hotel banquet operation and a quick-service counter can run the same head with very different storage.

Specifications

Model KMD-705MWJ
Ice Type Crescent cube
Ice Production Up to 773 lb per 24 hours
Condenser Water-cooled
Storage Modular head unit — bin sold separately
Exterior Dimensions 30" W x 24" D x 26" H
Shipping Weight 200 lb
Electrical 115V / 60Hz / 1 phase, 13 amps, 20A max fuse, 3-wire with ground, hardwired (no plug)
Refrigerant R-404A, 1 lb 11.3 oz (774 g)
Energy Consumption 3.8 kWh per 100 lb @ 90/70
Water Consumption 22.5 gal potable water per 100 lb @ 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine. Five years parts and labor on the evaporator. Five years parts on the compressor. Warranty is honored through Hoshizaki's authorized service network.
