Product Description

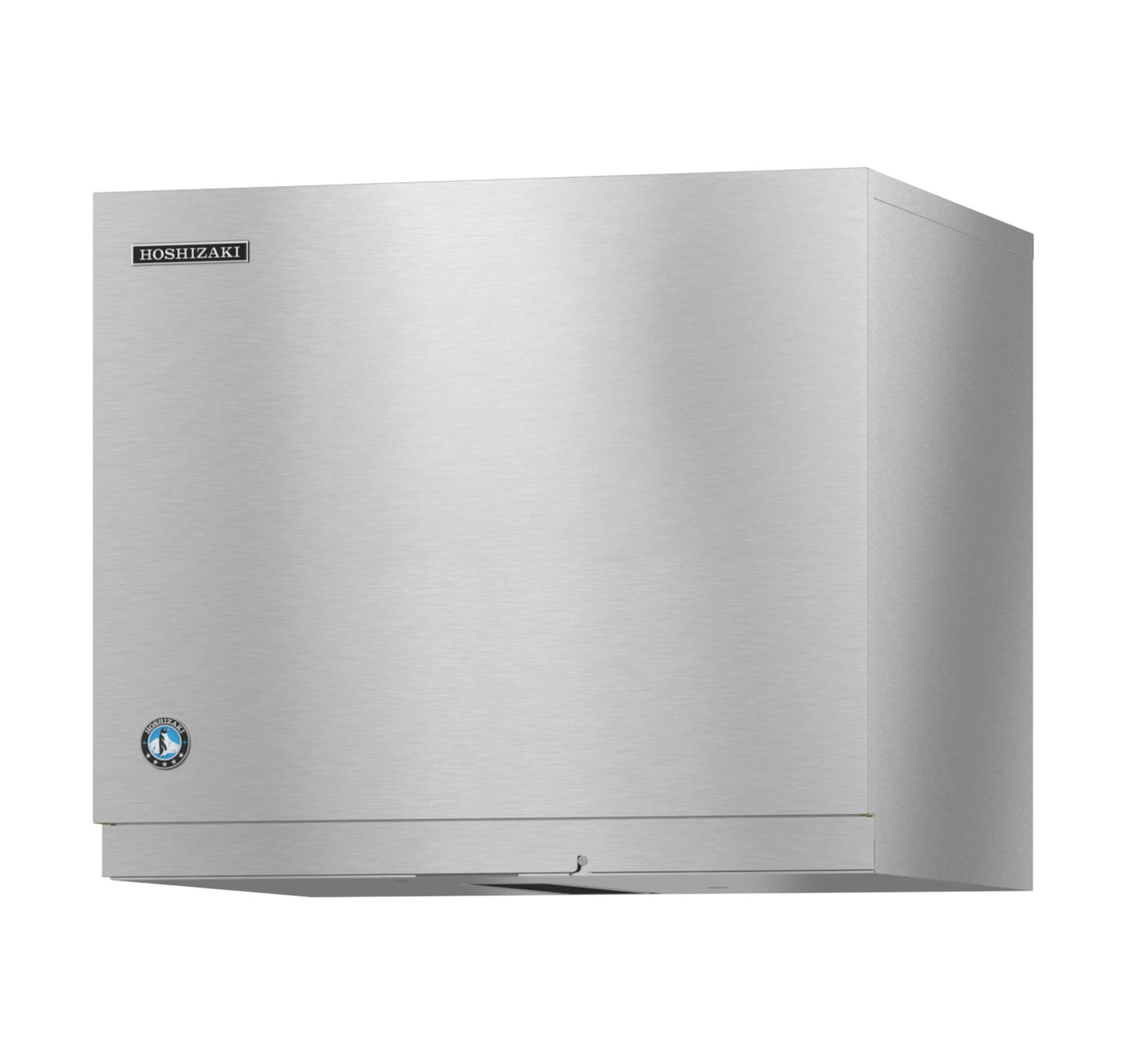

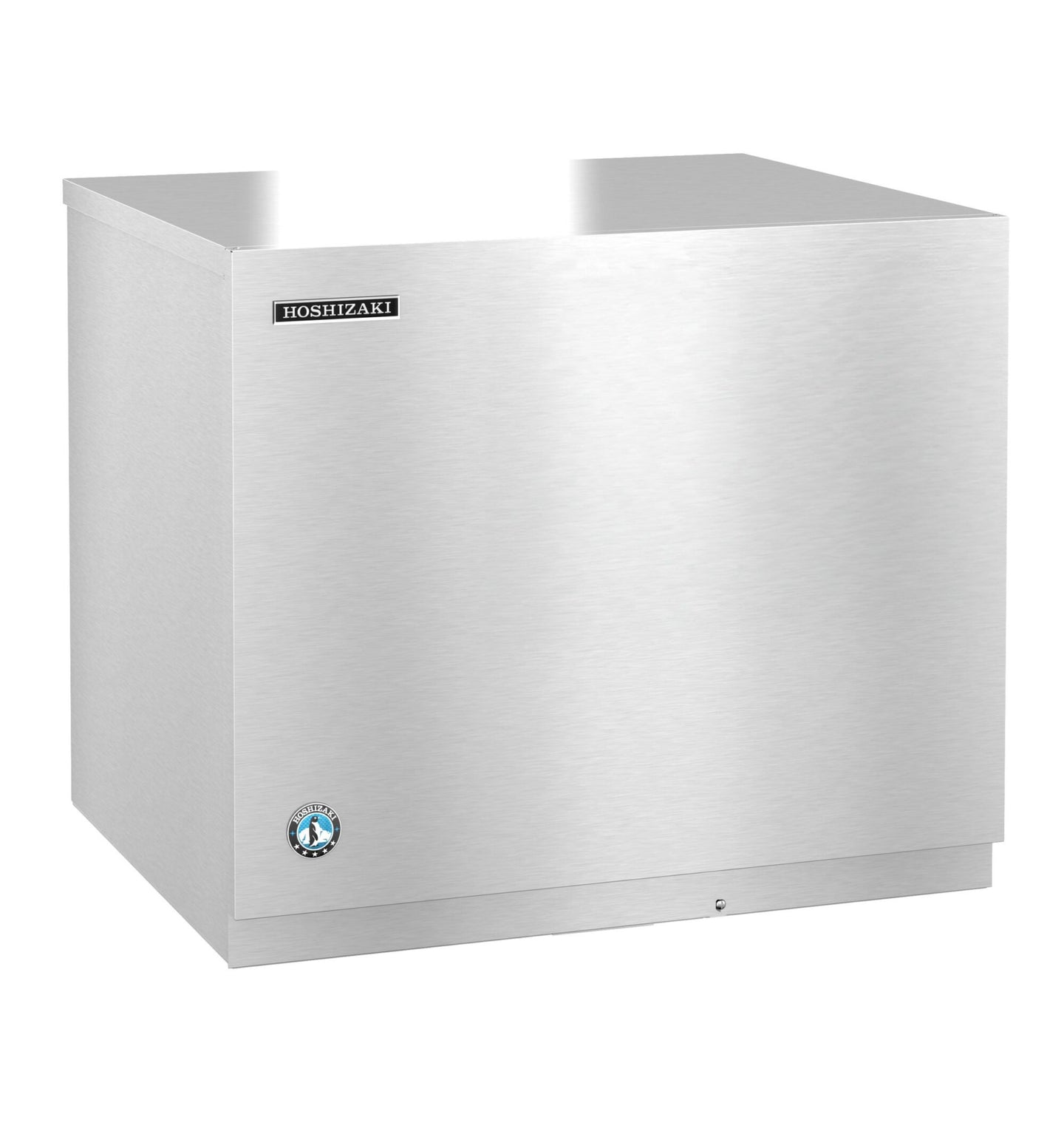

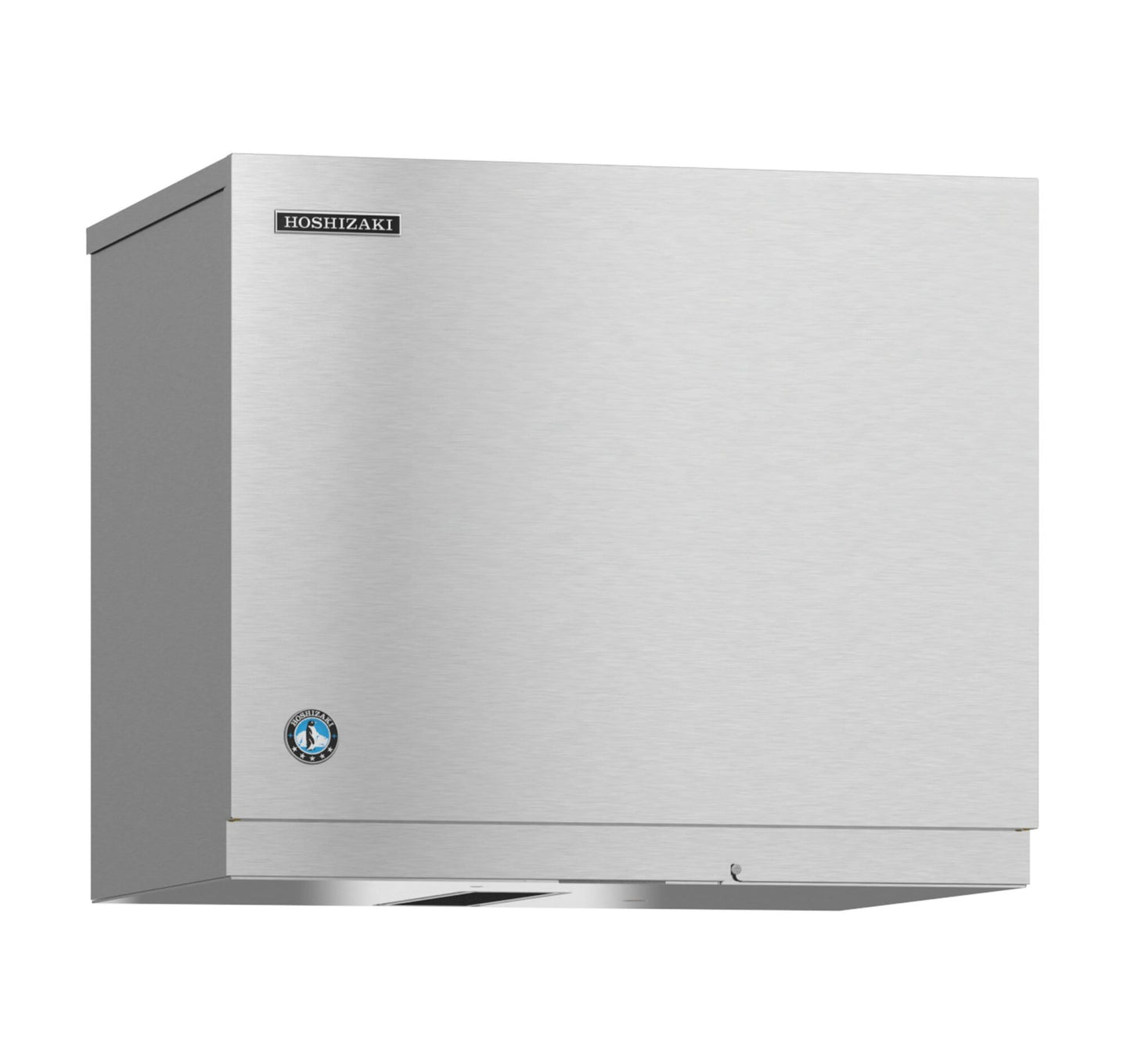

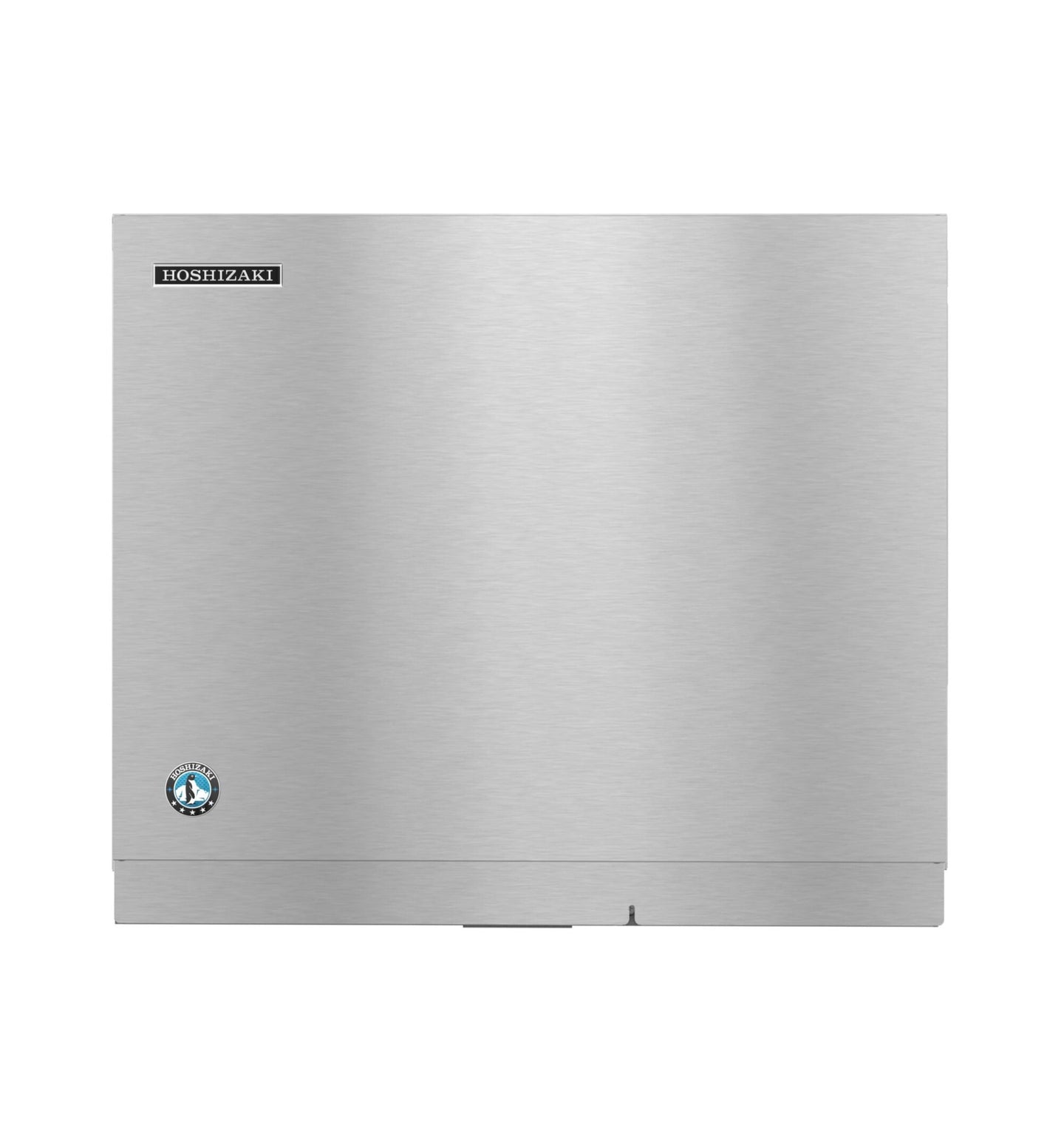

The Hoshizaki KMD-705MRJZ is a 30-inch remote-cooled modular crescent cuber rated at up to 727 pounds of ice per 24 hours. The condensing unit lives outside the building; only the icemaker head occupies floor space indoors, where it mounts on a separately purchased bin or dispenser.

Remote Cooling in a 30-Inch Cabinet

Most remote-cooled icemakers start much larger. Getting a remote condenser on a 30-inch head means a small operation with a heat or noise problem — a bar behind a dining room, a hospital floor pantry, a hotel service alcove — can eliminate both without stepping up to a 36-inch machine. Nothing is exhausted into the room and the compressor noise leaves with the condenser. In exchange, installation requires a refrigeration line set and a qualified contractor, and the remote condensing unit is ordered separately.

Efficiency

Because the condenser is not fighting kitchen ambient, this is the leanest head in the KMD-705 family on water: 21 gallons of potable water per 100 pounds of ice at 90°F/70°F, with energy use of 4.4 kWh per 100 pounds. It out-produces the air-cooled KMD-705MAJ by a few pounds a day in the same footprint.

Ice and Storage

Output is Hoshizaki's crescent cube: hard, dense, slow to melt, and easy to scoop because it does not bridge in the bin. No storage is included. The head is designed to pair with Hoshizaki's 30-inch bin range as well as their DB-200H and DM-200B dispensers, so you can size storage to your peak service rather than your daily total.

Specifications

Model KMD-705MRJZ
Ice Type Crescent cube
Ice Production Up to 727 lb per 24 hours
Condenser Remote-cooled (remote condensing unit required)
Storage Modular head unit — bin sold separately
Exterior Dimensions 30" W x 24" D x 26" H
Shipping Weight 200 lb
Electrical 115V / 60Hz / 1 phase, 13.7 amps, 20A max fuse, 3-wire with ground, hardwired (no plug)
Refrigerant R-404A, 6 lb 12.3 oz (3070 g)
Energy Consumption 4.4 kWh per 100 lb @ 90/70
Water Consumption 21 gal potable water per 100 lb @ 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Three years parts and labor on the entire machine. Five years parts and labor on the evaporator. Warranty is honored through Hoshizaki's authorized service network.
