Product Description

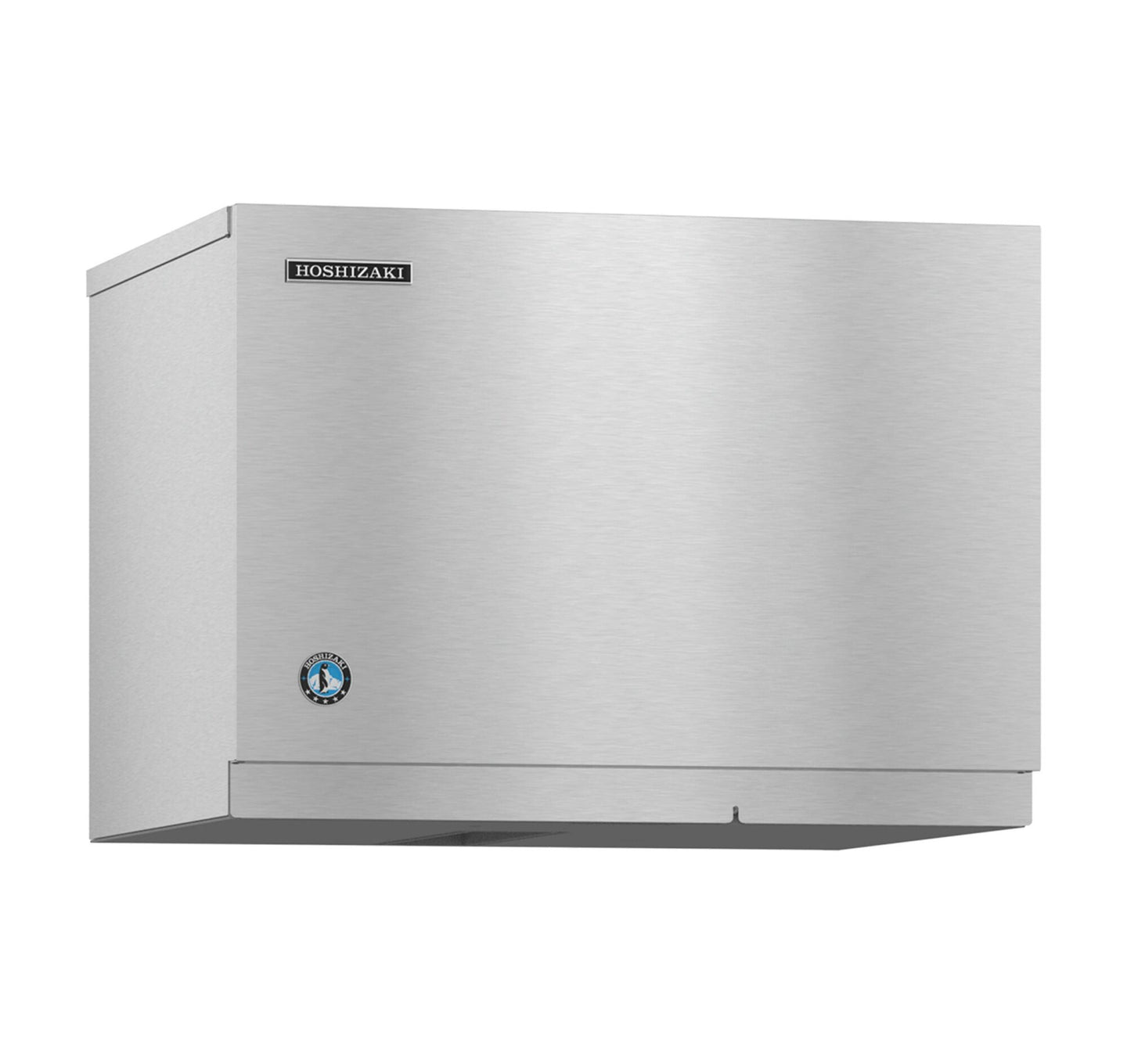

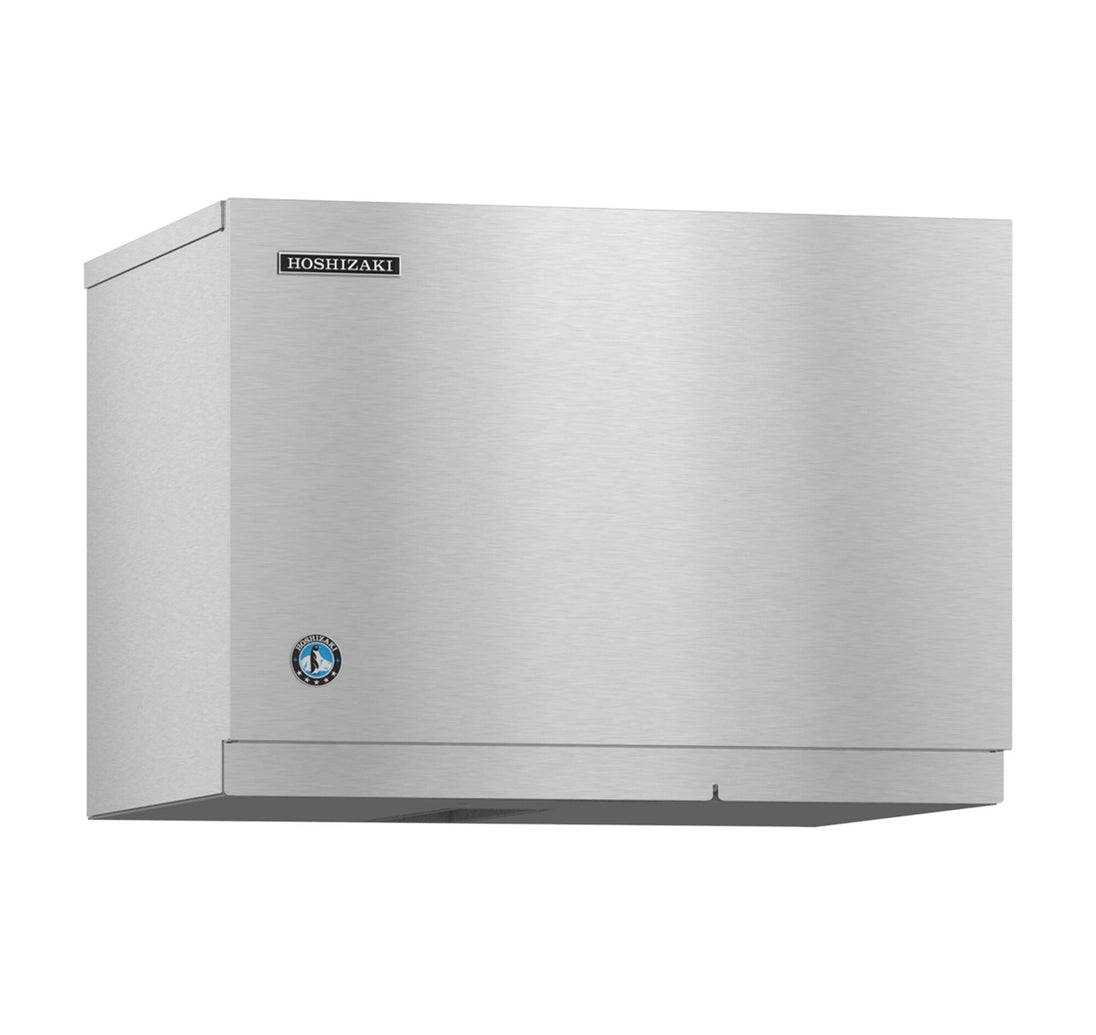

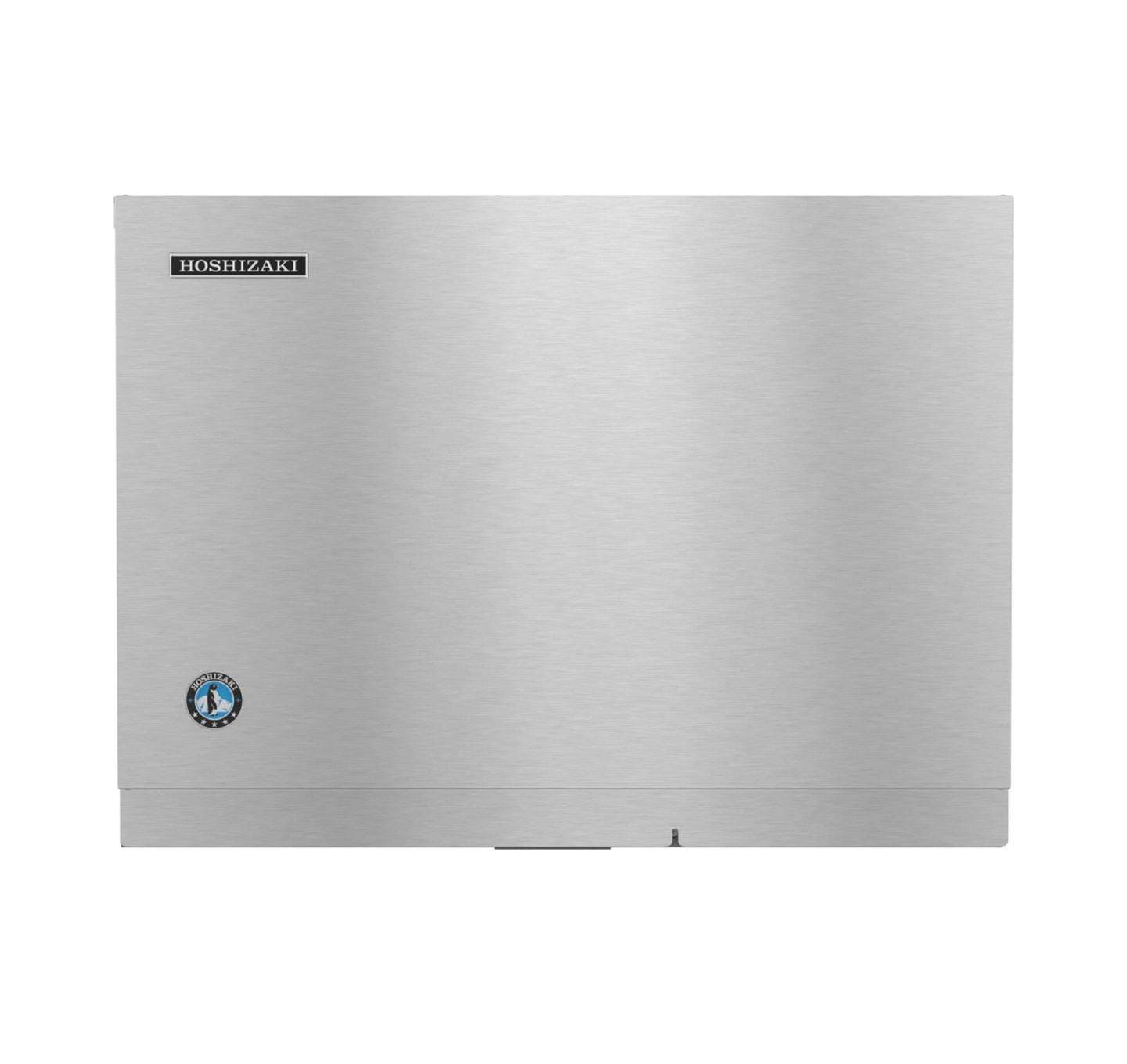

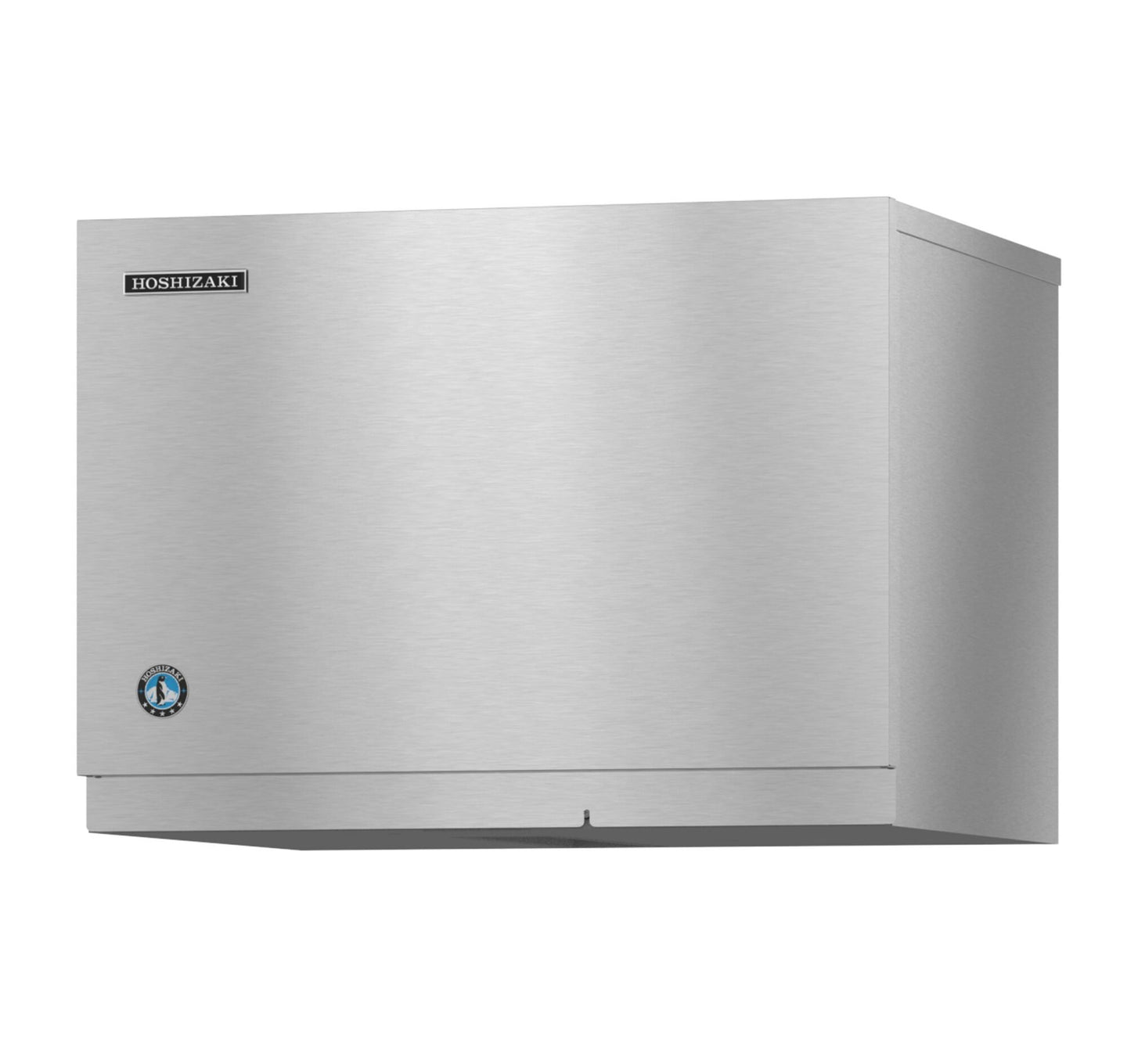

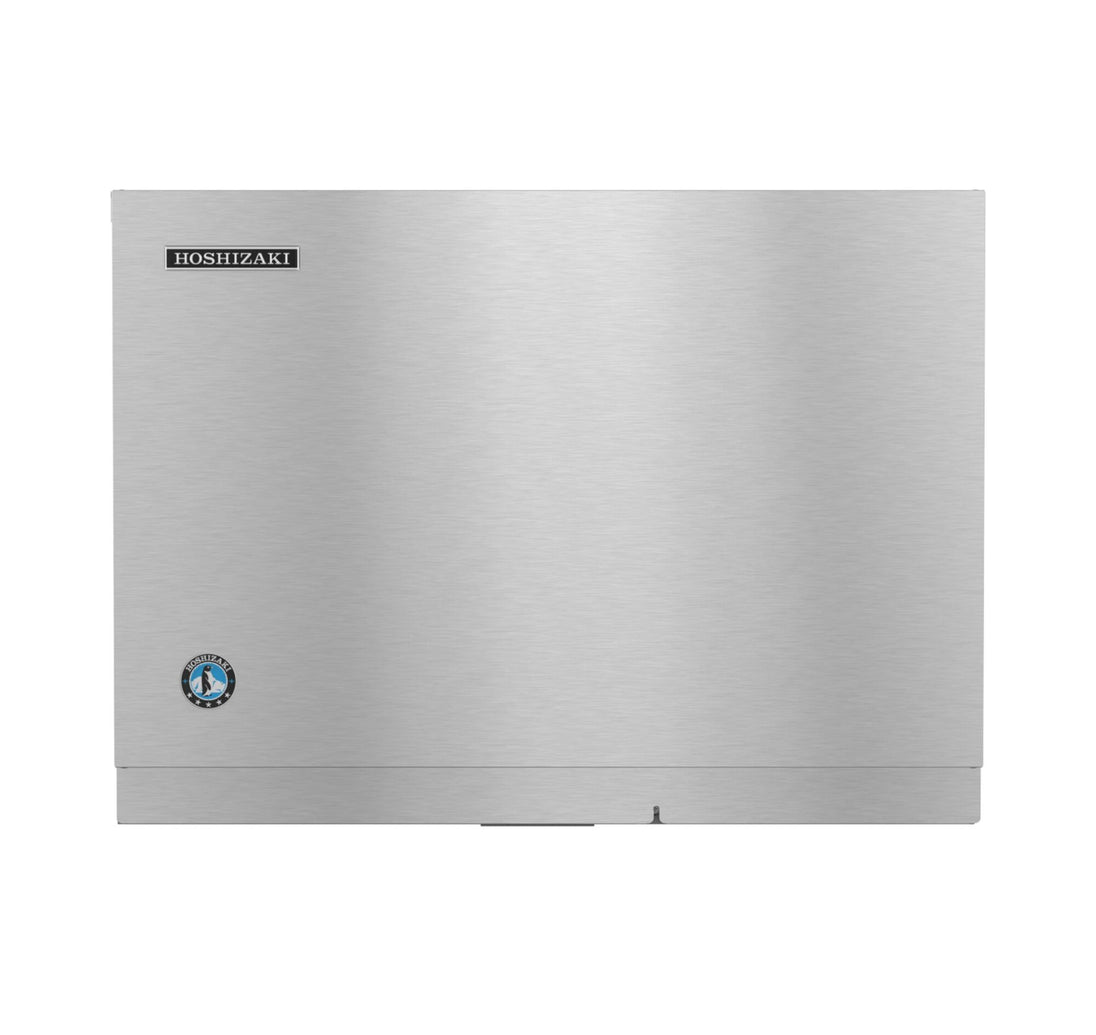

The Hoshizaki KMD-505MRJZ is a 30-inch wide, 22-inch tall remote-cooled Crescent Cuber head producing 560 pounds of ice per 24 hours. It combines the KMD line's low-profile dispenser format with a remote condenser, which is an unusual and deliberate pairing.

Low profile plus remote condensing

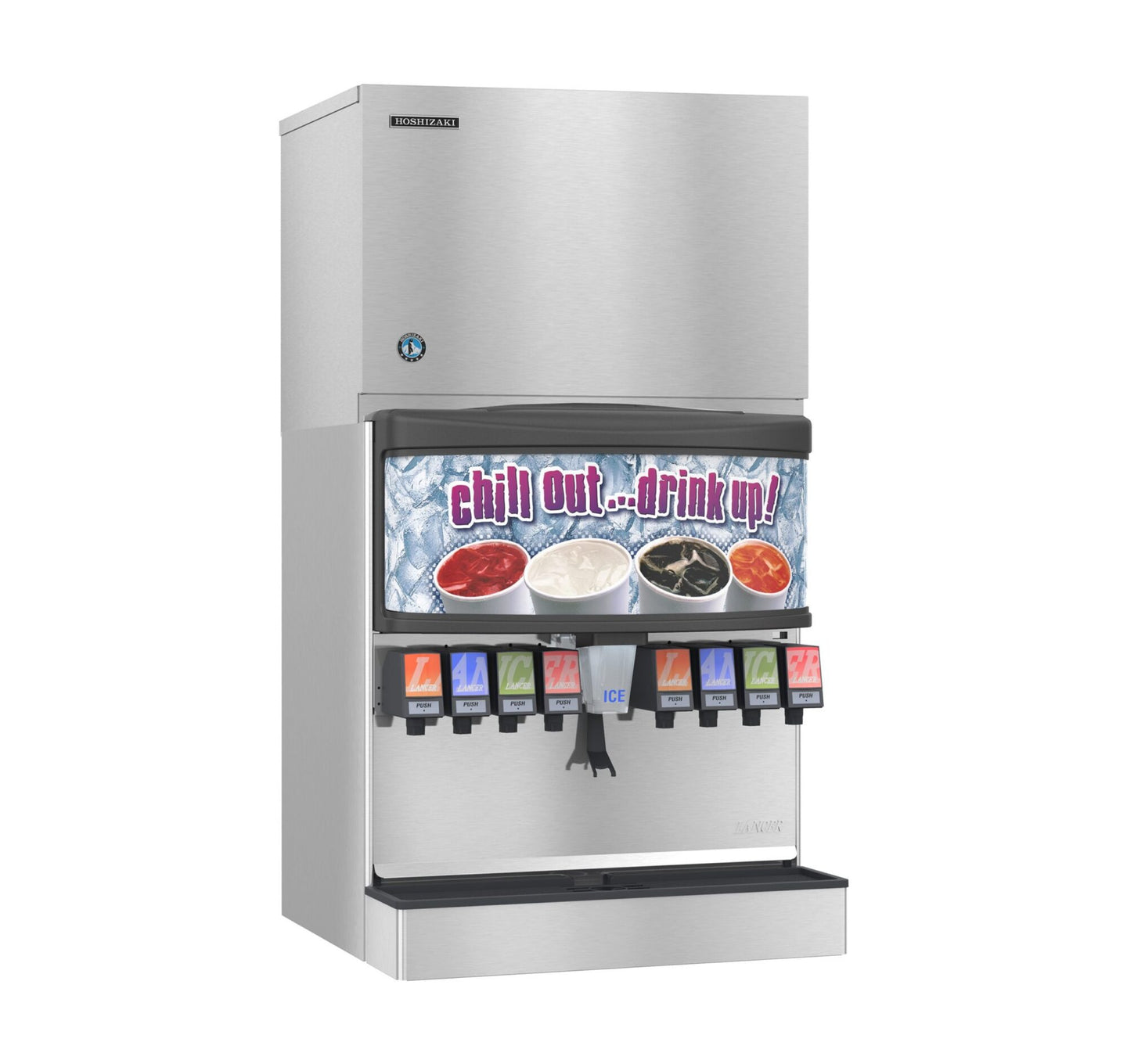

Machines in this format usually end up in customer-facing locations — hotel lobbies, cafeteria beverage lines, self-serve fixtures — sitting on an ice and beverage dispenser such as the IBD30. Those are exactly the places where a condenser fan running all day is intrusive and where warm exhaust across a drink station is unwelcome. Moving the condensing unit to a roof or exterior pad removes both problems and leaves a silent 22-inch-tall cabinet on top of the dispenser.

Output and running costs

Five hundred and sixty pounds a day is the highest production in Hoshizaki's KMD range, enough to keep a busy self-serve station supplied through a full day. Hoshizaki rates the machine at 4.15 kWh and 21 gallons of water per 100 pounds of ice at 90/70 conditions. The head draws 12.4 amps on a 115V single-phase circuit against a 20 amp maximum fuse, with three wires including ground, hardwired at the site.

Crescent cube ice

Ice is formed on KM Edge stainless steel evaporators into Hoshizaki's crescent shape — flat on one face, curved on the other — which packs a glass without bridging, drains cleanly and melts slowly in a drink. CycleSaver design governs the freeze and harvest cycle. The system carries 2 lb 13.9 oz of R-404A across the head and the remote condensing unit.

Specifications

Model KMD-505MRJZ
Ice production 560 lb per 24 hours
Ice shape Crescent cube
Condenser Remote-cooled
Exterior dimensions 30" W x 24" D x 22" H
Shipping weight 176 lb
Electrical 115V / 60Hz / 1 phase, 3-wire with ground, hardwired
Amperage 12.4 A
Maximum fuse / HACR breaker 20 A
Refrigerant R-404A, 2 lb 13.9 oz (1,301 g)
Energy consumption 4.15 kWh per 100 lb at 90/70
Water consumption 21 gal per 100 lb at 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Hoshizaki covers the KMD-505MRJZ with three years parts and labor on the entire machine and five years parts and labor on the evaporator.
