Product Description

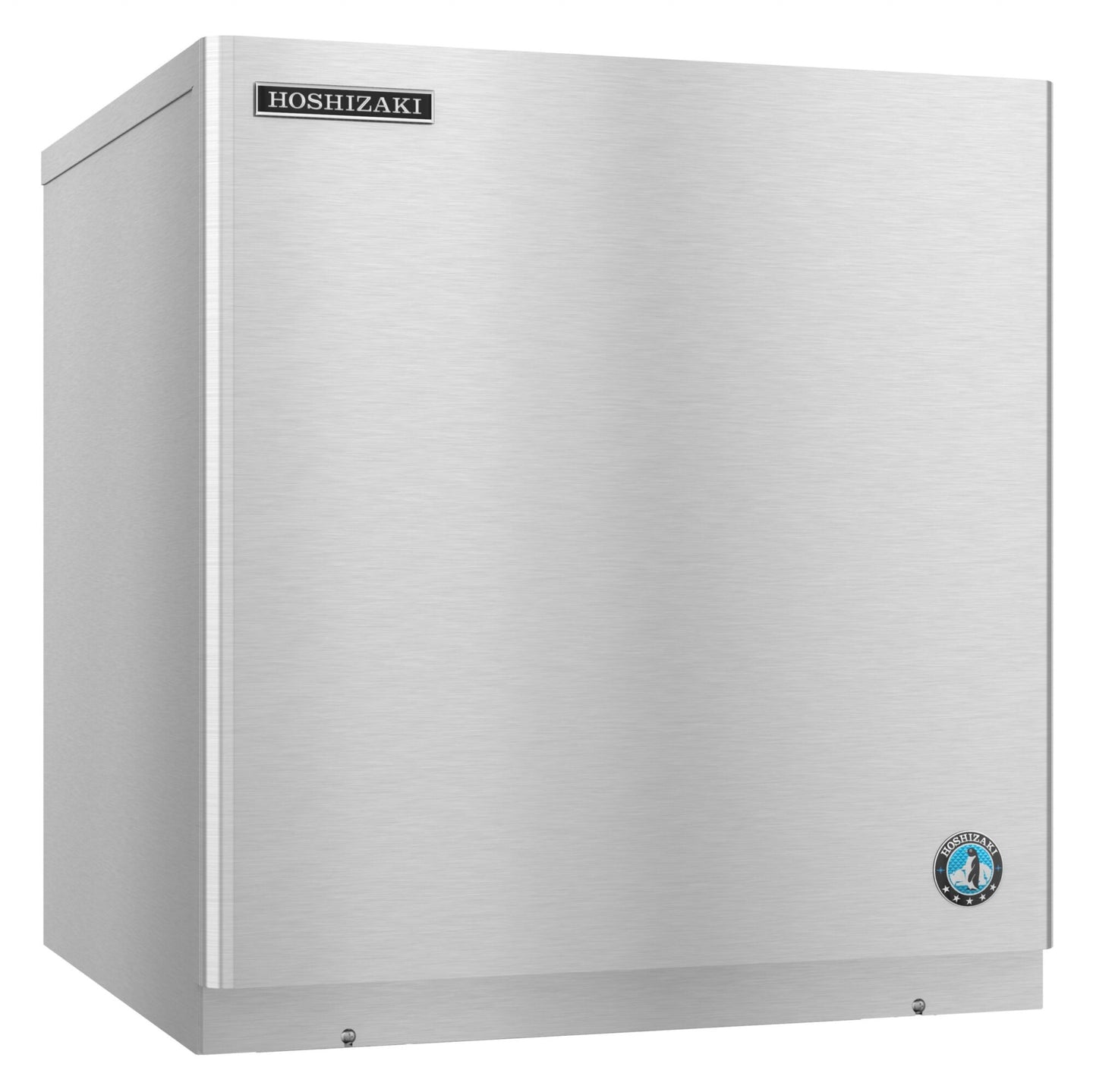

The Hoshizaki KMD-410MWJ is a compact water-cooled Crescent Cuber head producing 449 pounds of ice per 24 hours from a cabinet 22-1/4 inches wide, 24-1/8 inches deep and 24 inches tall. It makes more ice than its air-cooled counterpart in the same footprint, which is the usual reason to choose it.

More ice, less electricity, same box

The air-cooled KMD-410MAJ makes 418 pounds a day at 5.7 kWh per 100 pounds. This machine makes 449 at 4.1 kWh. Water carries heat away far more effectively than a small condenser fan can, so the compressor works less for more output. The price is 22.9 gallons of potable water per 100 pounds of ice at 90/70 conditions on top of what freezes, so the location needs a supply and a drain.

Compact and quiet enough for the front of house

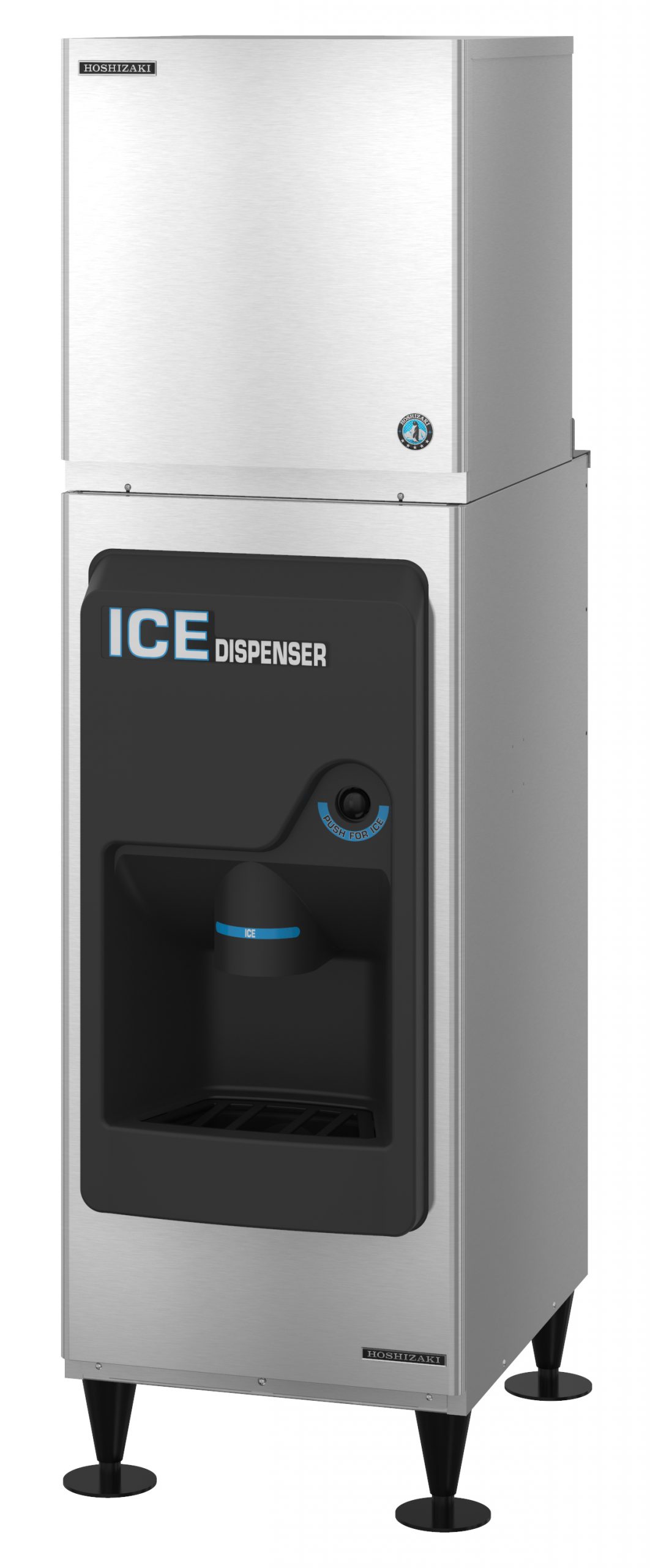

With no condenser fan the machine is notably quieter than an air-cooled head, and it does not blow warm air across a beverage station. Combined with the small cabinet, that makes it a sensible fit on a DB-130H dispenser or in a self-serve fixture in a customer-facing space. Compatible storage bins are the B-250, BD-300, B-500, B-700, B-800 and B-900.

Electrical and ice

The head runs on 115V single phase drawing 6.6 amps against a 20 amp maximum fuse or HACR breaker, hardwired at the site. Ice is Hoshizaki's crescent cube, formed on KM Edge stainless steel evaporators — flat one face, curved the other, dense in the glass and slow to melt. Refrigerant is R-404A with a 14.1 ounce charge.

Specifications

Model KMD-410MWJ
Ice production 449 lb per 24 hours
Ice shape Crescent cube
Condenser Water-cooled
Exterior dimensions 22-1/4" W x 24-1/8" D x 24" H
Shipping weight 155 lb
Electrical 115V / 60Hz / 1 phase, hardwired
Amperage 6.6 A
Maximum fuse / HACR breaker 20 A
Refrigerant R-404A, 14.1 oz (400 g)
Energy consumption 4.1 kWh per 100 lb at 90/70
Water consumption 22.9 gal potable water per 100 lb at 90/70
Compatible bins B-250, BD-300, B-500, B-700, B-800, B-900, DB-130H
Certifications AHRI Standard 810, ETL Listed (US and Canada), NSF, UL Health Effects

Warranty

Hoshizaki covers the KMD-410MWJ with three years parts and labor on the entire machine and five years parts on the evaporator and air-cooled condenser coil.
