Product Description

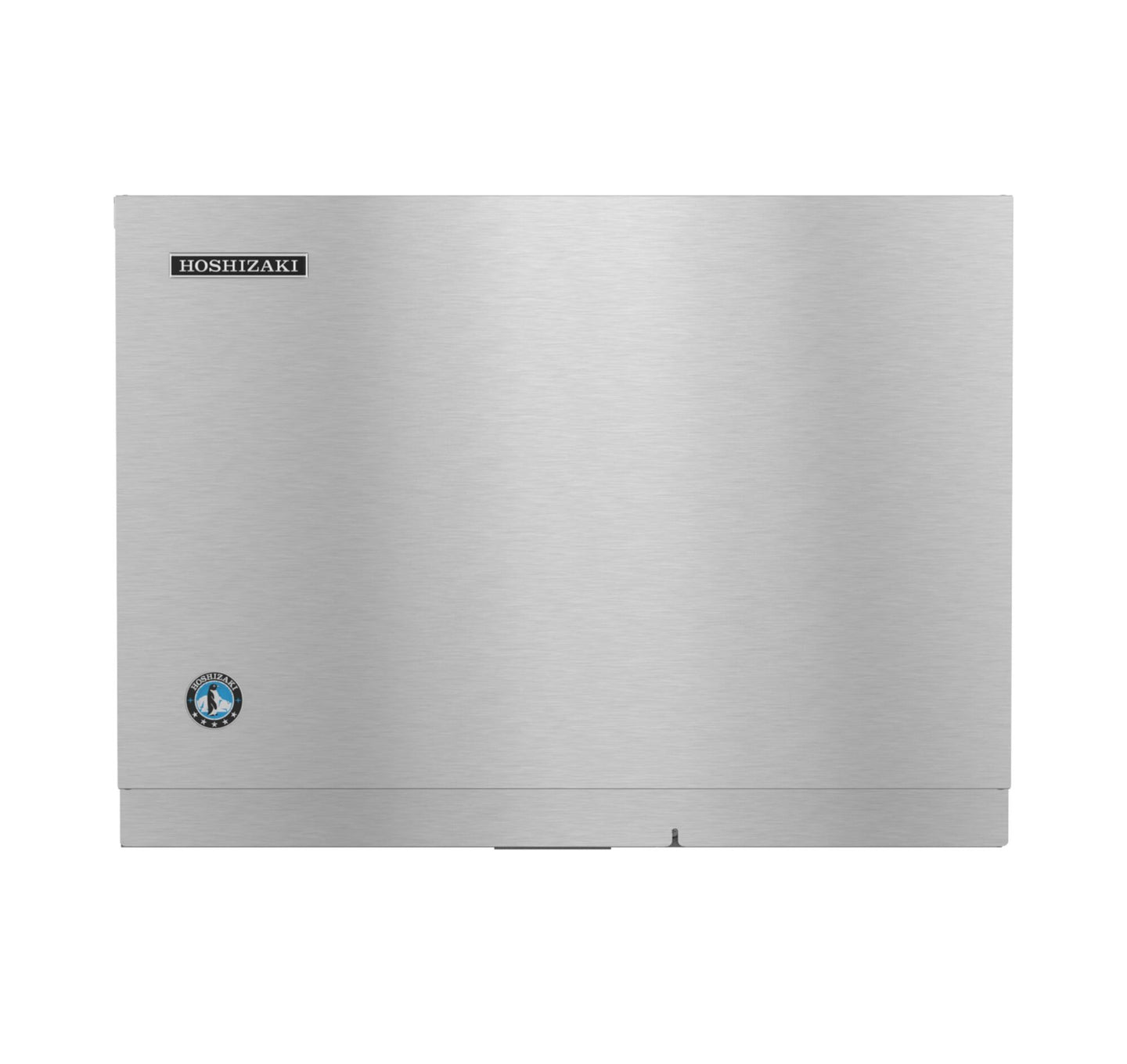

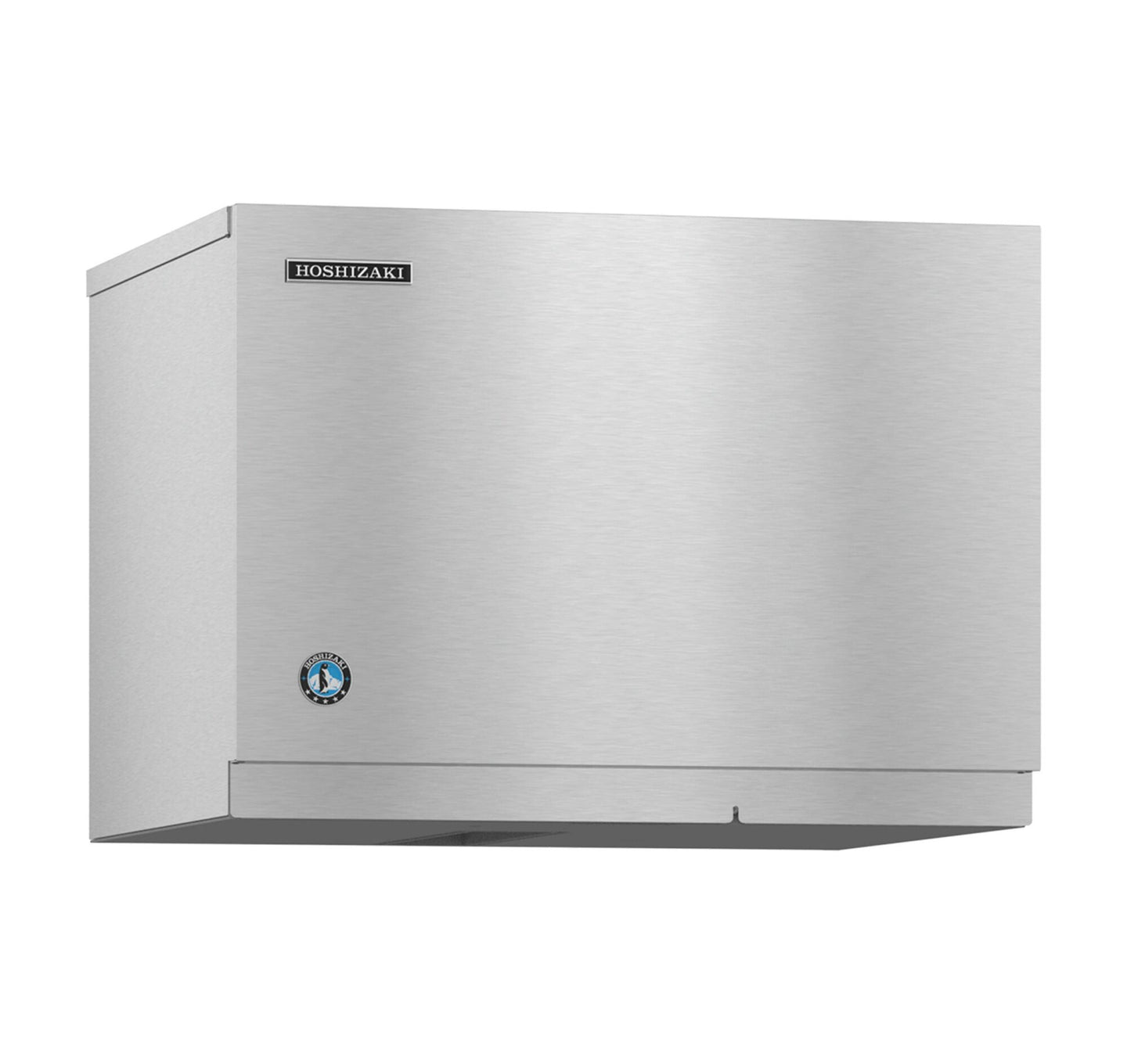

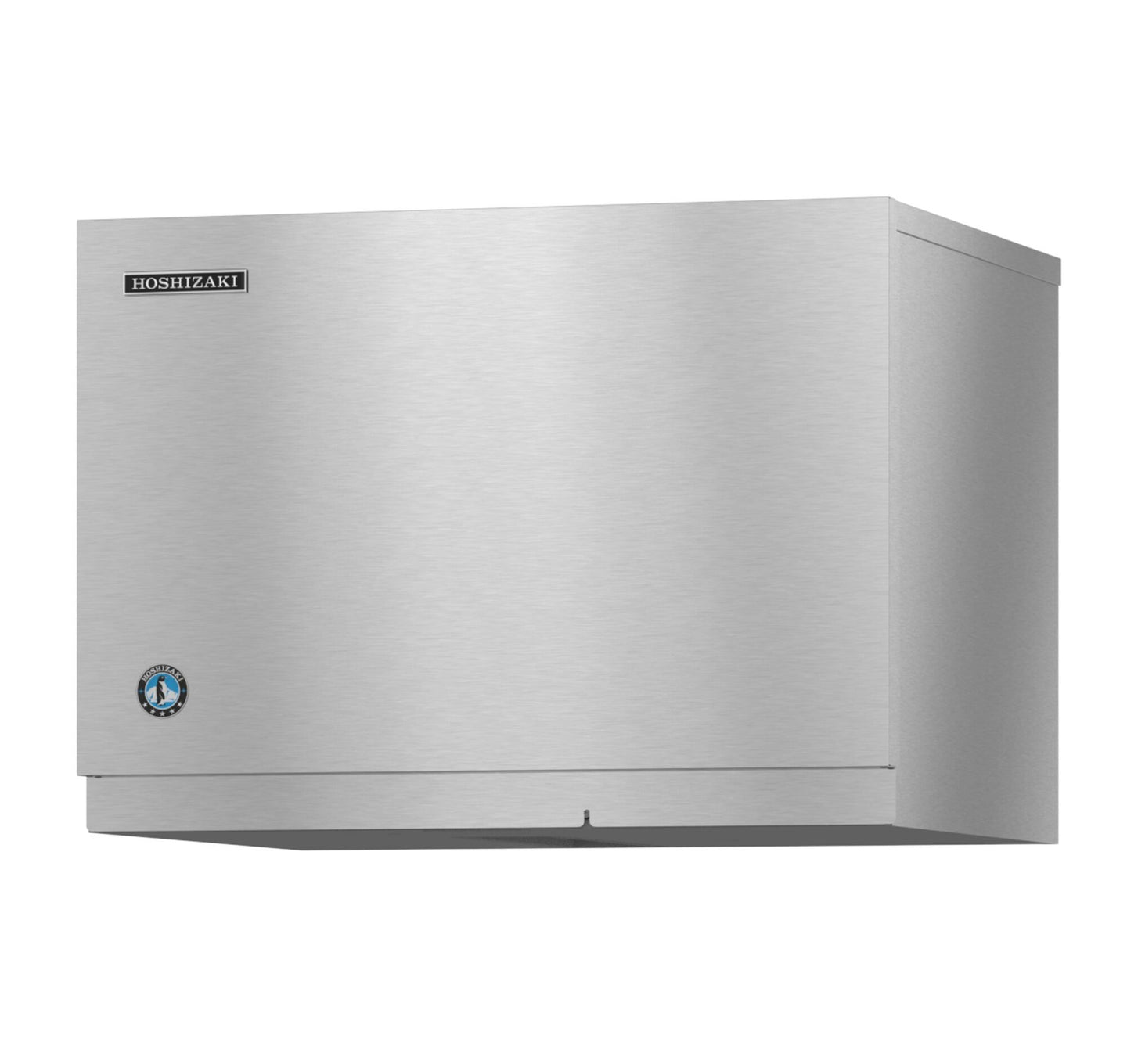

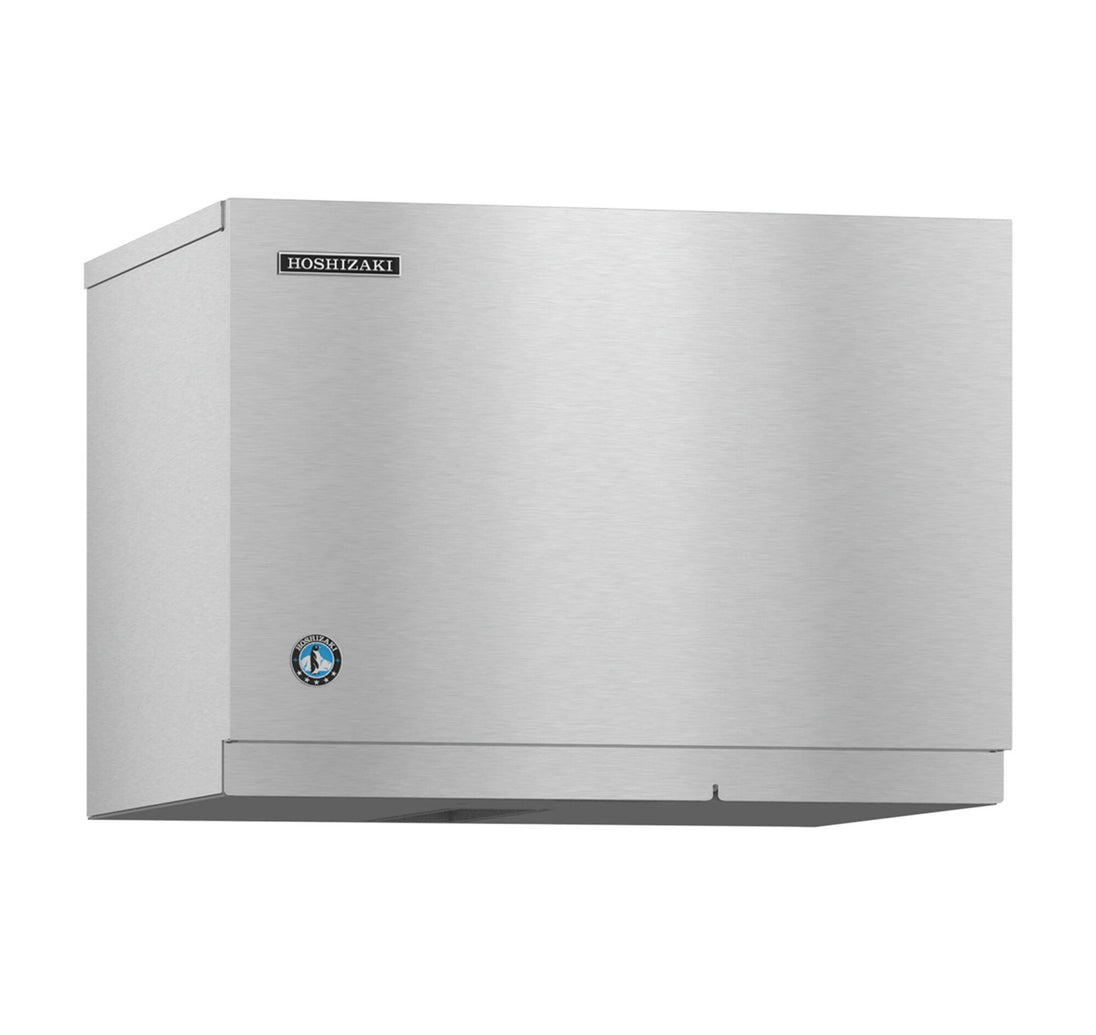

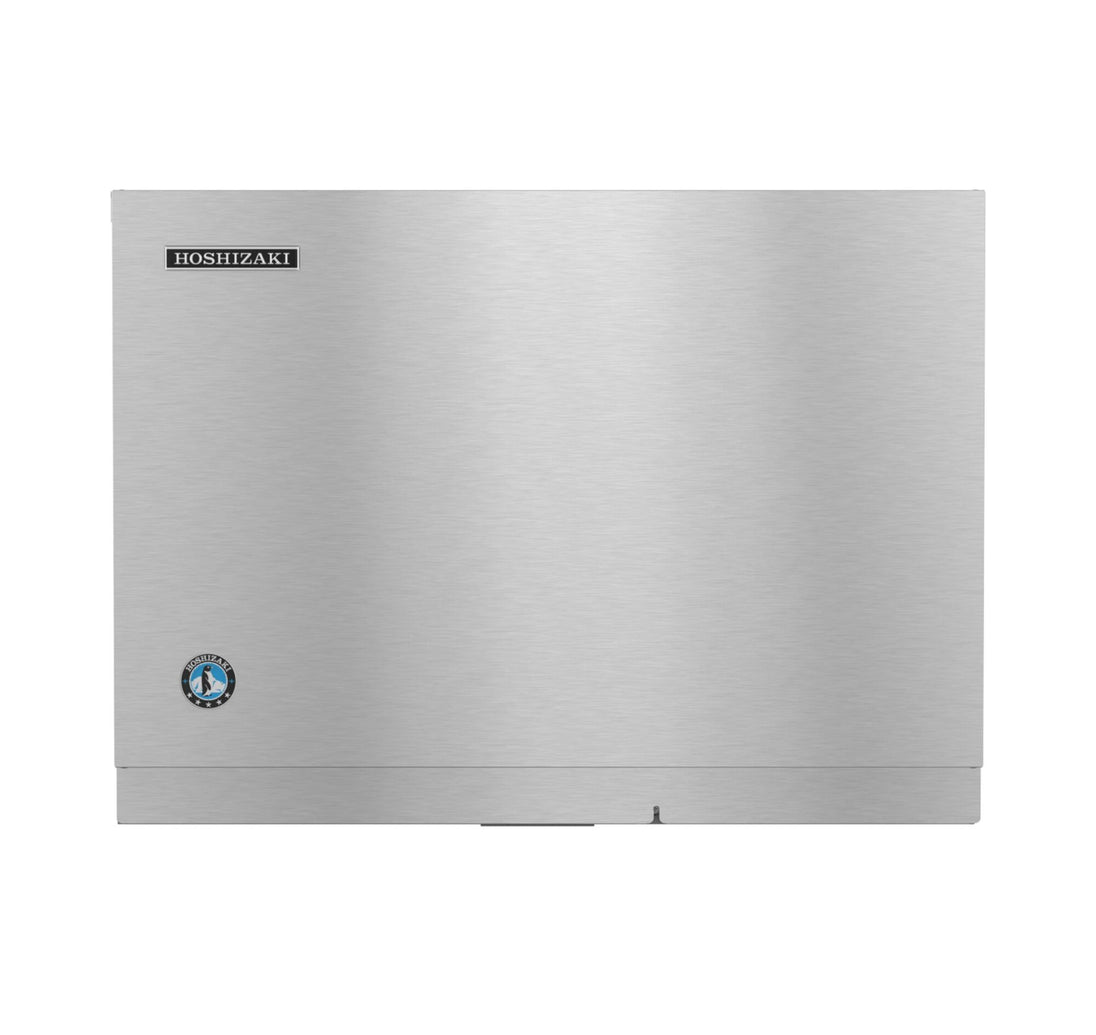

The Hoshizaki KMD-355MWJ is a 30-inch wide, 22-inch tall water-cooled Crescent Cuber head producing up to 395 pounds of ice per 24 hours. The KMD series is Hoshizaki's low-profile dispenser-oriented line, designed to sit under overhead obstructions and on top of ice-and-beverage dispensers rather than conventional tall bins.

Low cabinet built for dispensers

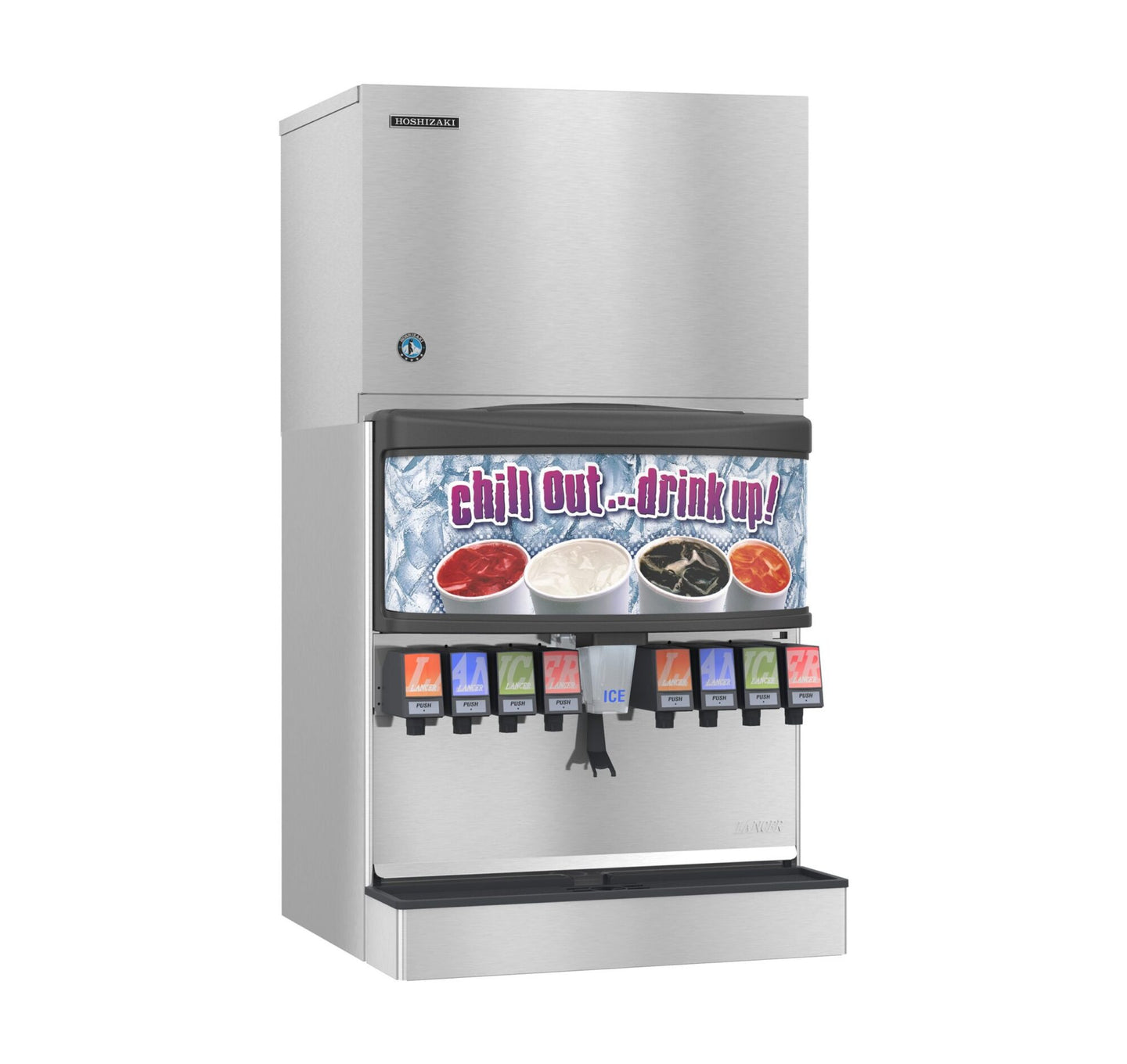

Twenty-two inches of height is what defines this machine. Mounted on a dispenser such as the IBD30, the finished assembly stays at a height a customer can use and a staff member can service, which is why the KMD line turns up in self-serve areas, hotel lobbies, cafeterias and convenience-store beverage stations rather than back-of-house equipment runs.

Water-cooled in a public space

Water-cooled condensing matters more in a customer-facing installation than in a kitchen. There is no condenser fan noise and no warm exhaust blowing across a beverage station, and the machine holds production in a room that is not mechanically ventilated. The trade-off here is significant: 34.5 gallons of potable water per 100 pounds of ice at 90/70 conditions, high even by water-cooled standards, so verify the drain and supply and check local rules on single-pass condenser water before specifying.

Low draw and crescent cube ice

The head draws just 7.4 amps on a 115V single-phase circuit against a 15 amp maximum fuse, hardwired at the site, and is rated at 4.4 kWh per 100 pounds. Ice is Hoshizaki's crescent cube, formed on KM Edge stainless steel evaporators — dense in the glass, slow to melt, resistant to bridging.

Specifications

Model KMD-355MWJ
Ice production Up to 395 lb per 24 hours
Ice shape Crescent cube
Condenser Water-cooled
Exterior dimensions 30" W x 24" D x 22" H
Shipping weight 179 lb
Electrical 115V / 60Hz / 1 phase, 3-wire, hardwired
Amperage 7.4 A
Maximum fuse / HACR breaker 15 A
Refrigerant R-404A, 15.0 oz (425 g)
Energy consumption 4.4 kWh per 100 lb at 90/70
Water consumption 34.5 gal potable water per 100 lb at 90/70
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Hoshizaki covers the KMD-355MWJ with three years parts and labor on the entire machine and five years parts and labor on the evaporator.
