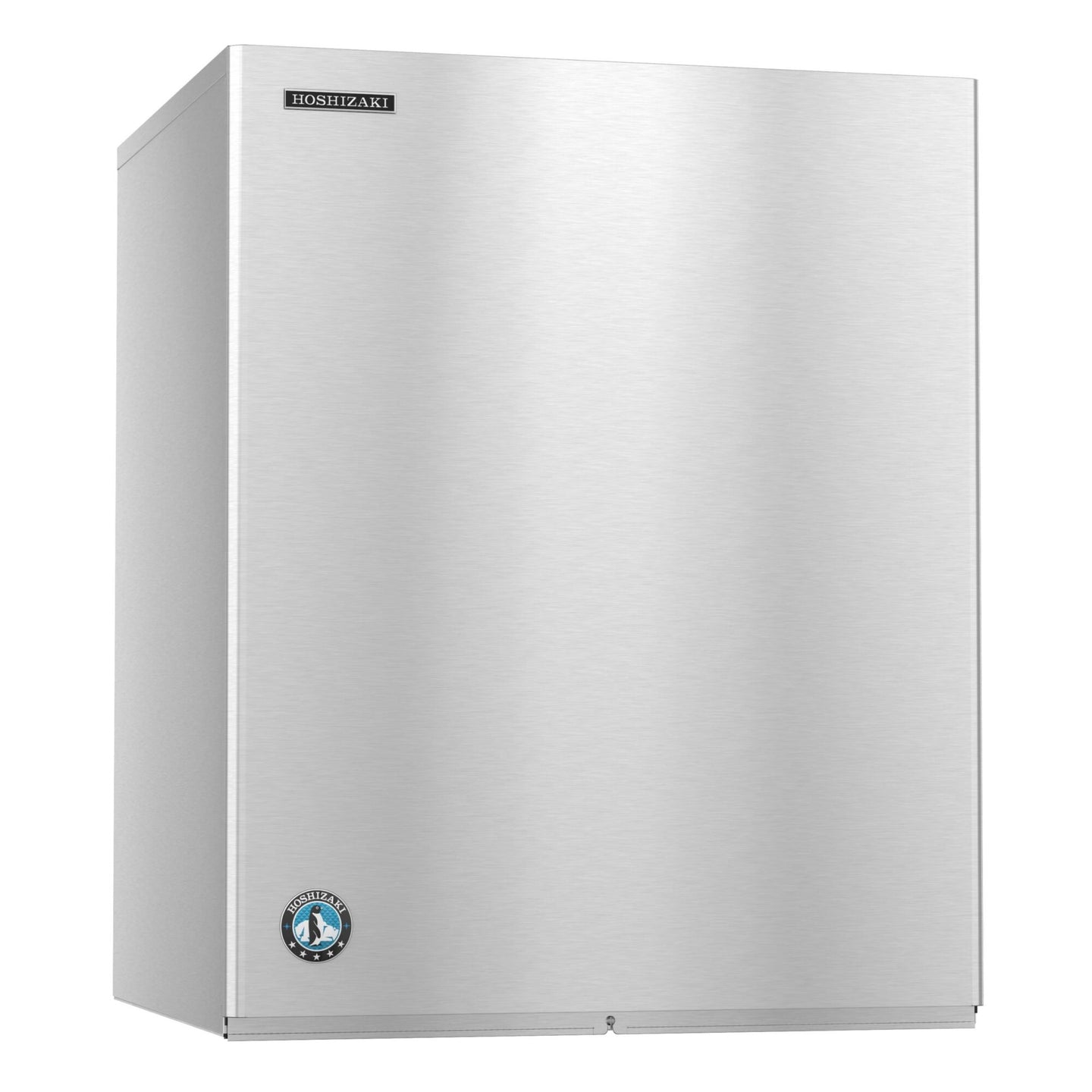

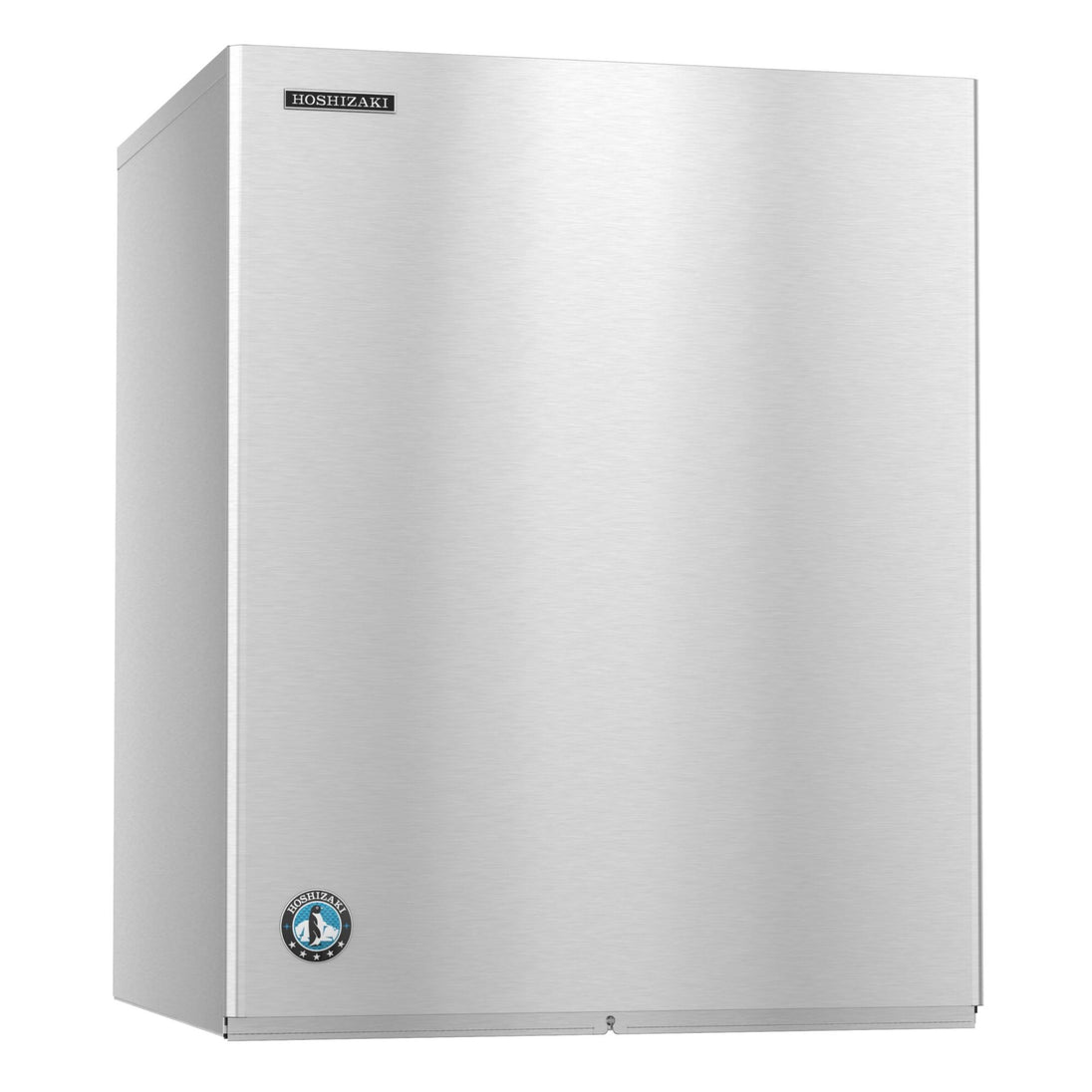

Hoshizaki KM-901MRJZ3 30 inch remote-cooled three-phase crescent cube modular ice machine head

Product Description

The Hoshizaki KM-901MRJZ3 is the three-phase build of Hoshizaki's 30-inch remote-cooled Crescent Cuber, rated at 927 pounds of ice per 24 hours. Three-phase power drops the current draw to 7.1 amps, roughly half what the single-phase version needs for the same work.

Lightest electrical load in its output class

At 7.1 amps on a 20 amp maximum fuse, this is about as little current as a 900-pound-a-day ice machine can be asked to draw. In an institutional plant room where the panel is the binding constraint — hospitals and universities in particular — that number is often what decides the specification. It is hardwired at the site; no cord or plug is supplied.

Remote condensing

The condensing unit sits outdoors on a roof or pad, connected by a refrigerant line set carrying a total 12 lb 5.5 oz charge of R-404A. Heat and compressor noise leave the building rather than accumulating in the equipment room, so the head can be sited near the point of use. It is ENERGY STAR qualified and rated at 4.4 kWh and 15 gallons of potable water per 100 pounds of ice at 90/70 conditions — the leanest water figure across the 901 family.

Crescent cube ice and bin pairing

Ice is formed on double-sided stainless steel KM Edge evaporators into Hoshizaki's crescent shape, which packs a glass without bridging and melts slowly in a drink. Sold as a head only; compatible bins are the B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500 and B-1650.

Specifications

Model KM-901MRJZ3
Ice production 927 lb per 24 hours
Ice shape Crescent cube
Condenser Remote-cooled
Exterior dimensions 30" W x 27-3/8" D x 32-1/2" H
Shipping weight 250 lb
Electrical 208-230V / 60Hz / 3 phase, hardwired
Amperage 7.1 A
Maximum fuse 20 A
Refrigerant R-404A, 12 lb 5.5 oz (6,600 g)
Energy consumption 4.4 kWh per 100 lb at 90/70
Water consumption 15 gal potable water per 100 lb at 90/70
Compatible bins B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
Certifications ENERGY STAR qualified, AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Hoshizaki covers the KM-901MRJZ3 with three years parts and labor on the entire machine and five years parts and labor on the evaporator.
