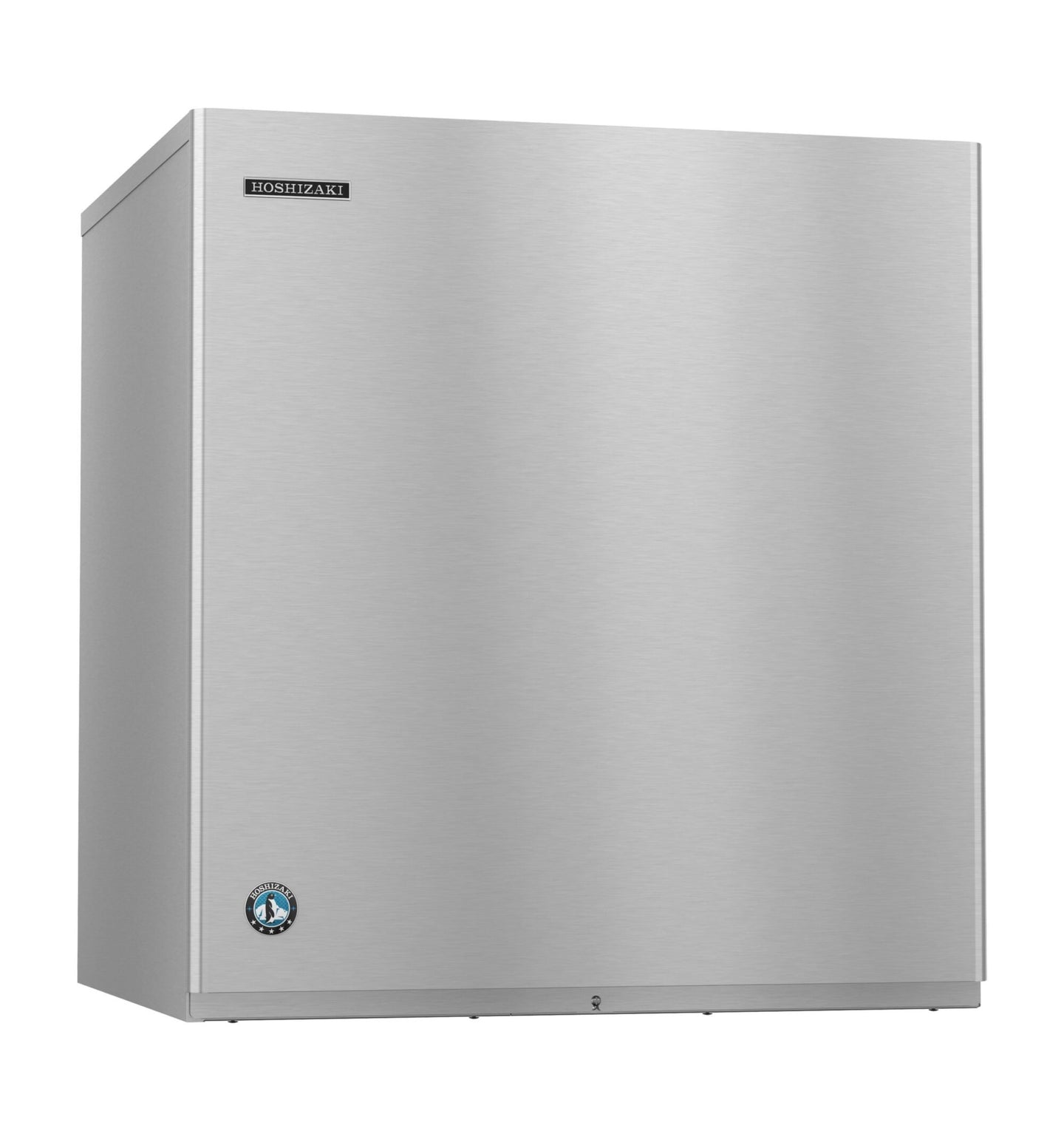

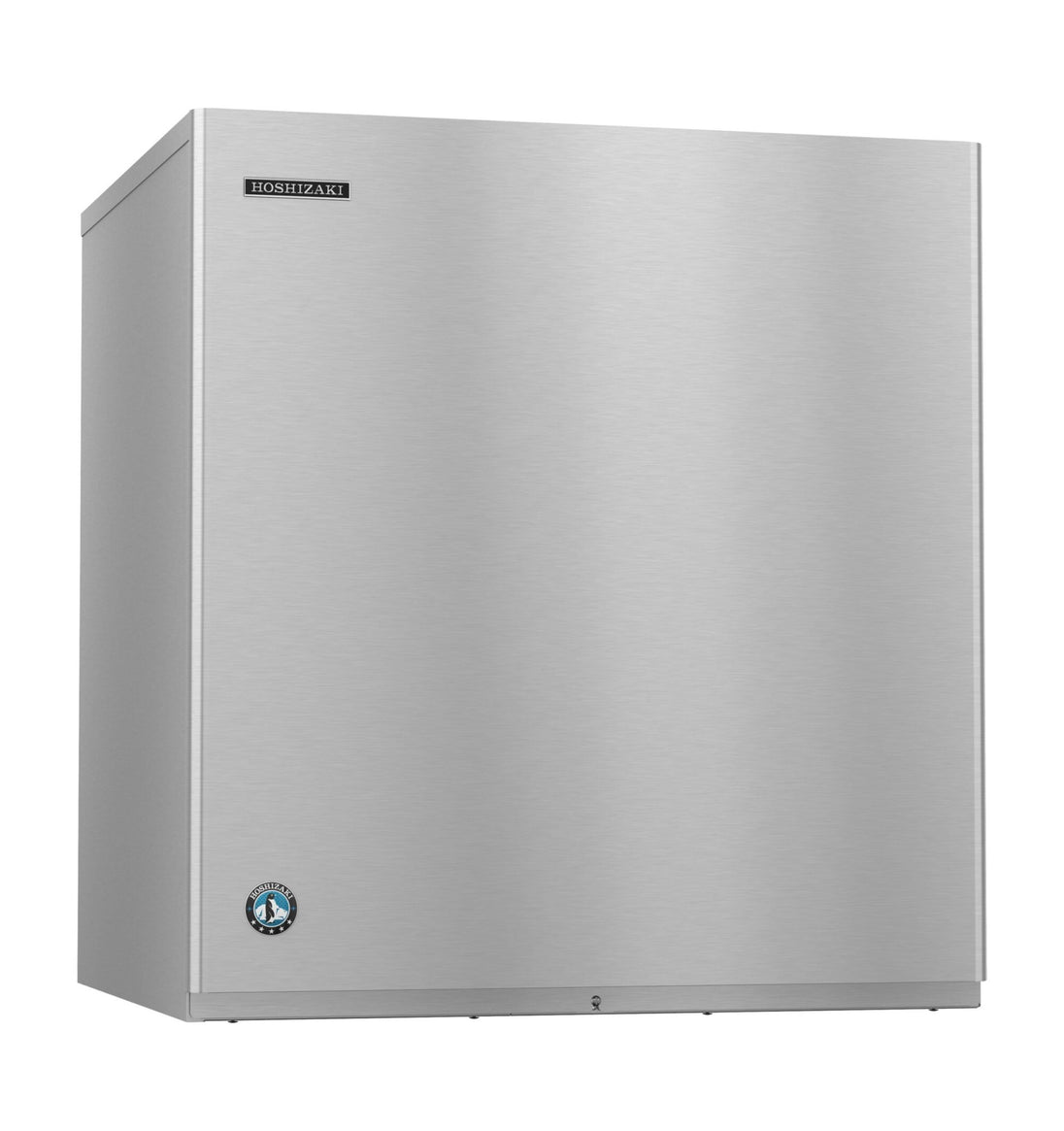

Hoshizaki KM-901MRJZ 30 inch remote-cooled crescent cube modular ice machine head

Product Description

The Hoshizaki KM-901MRJZ is a 30-inch remote-cooled modular Crescent Cuber head producing up to 900 pounds of ice per 24 hours. The condensing unit mounts outside, which is what allows a machine of this output to be installed in an occupied space rather than a dedicated mechanical room.

Where the heat goes

Making 900 pounds of ice a day releases a substantial amount of heat somewhere. With an air-cooled head that somewhere is the room, and in a building already fighting its cooling load that becomes an HVAC cost as well as an equipment one. A remote condenser exports the heat outdoors and takes the compressor noise with it, leaving a quiet stainless cabinet at the point of use.

Single-phase 208-230V, 12 amps

The head runs from a 208-230V single-phase supply drawing 12 amps against a 20 amp maximum fuse, three wires including ground, hardwired at the site with no cord or plug supplied. Hoshizaki rates it at 4.75 kWh and 16 gallons of potable water per 100 pounds of ice at 90/70 conditions. The system carries a 12 lb 5.5 oz charge of R-404A across the head and remote unit.

Crescent cube ice and bin pairing

Ice forms on double-sided stainless steel KM Edge evaporators into the crescent shape, flat on one face and curved on the other, so cubes pack a glass without bridging and melt slowly. CycleSaver design and the EverCheck alert system manage cycle efficiency and fault warning. This is a head only; Hoshizaki lists the B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500 and B-1650 bins as compatible.

Specifications

Model KM-901MRJZ
Ice production Up to 900 lb per 24 hours
Ice shape Crescent cube
Condenser Remote-cooled
Exterior dimensions 30" W x 27-3/8" D x 32-1/2" H
Shipping weight 255 lb
Electrical 208-230V / 60Hz / 1 phase, 3-wire with ground, hardwired
Amperage 12 A
Maximum fuse 20 A
Refrigerant R-404A, 12 lb 5.5 oz (6,600 g)
Energy consumption 4.75 kWh per 100 lb at 90/70
Water consumption 16 gal potable water per 100 lb at 90/70
Compatible bins B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
Certifications AHRI Standard 810, NSF, UL Listed, Georgia Made Certified

Warranty

Hoshizaki covers the KM-901MRJZ with three years parts and labor on the entire machine and five years parts and labor on the compressor and air-cooled condenser coil.
